Lincoln
>>
2007
>>
Navigator 4WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Front
Front
Disc Brake System
- Exploded View

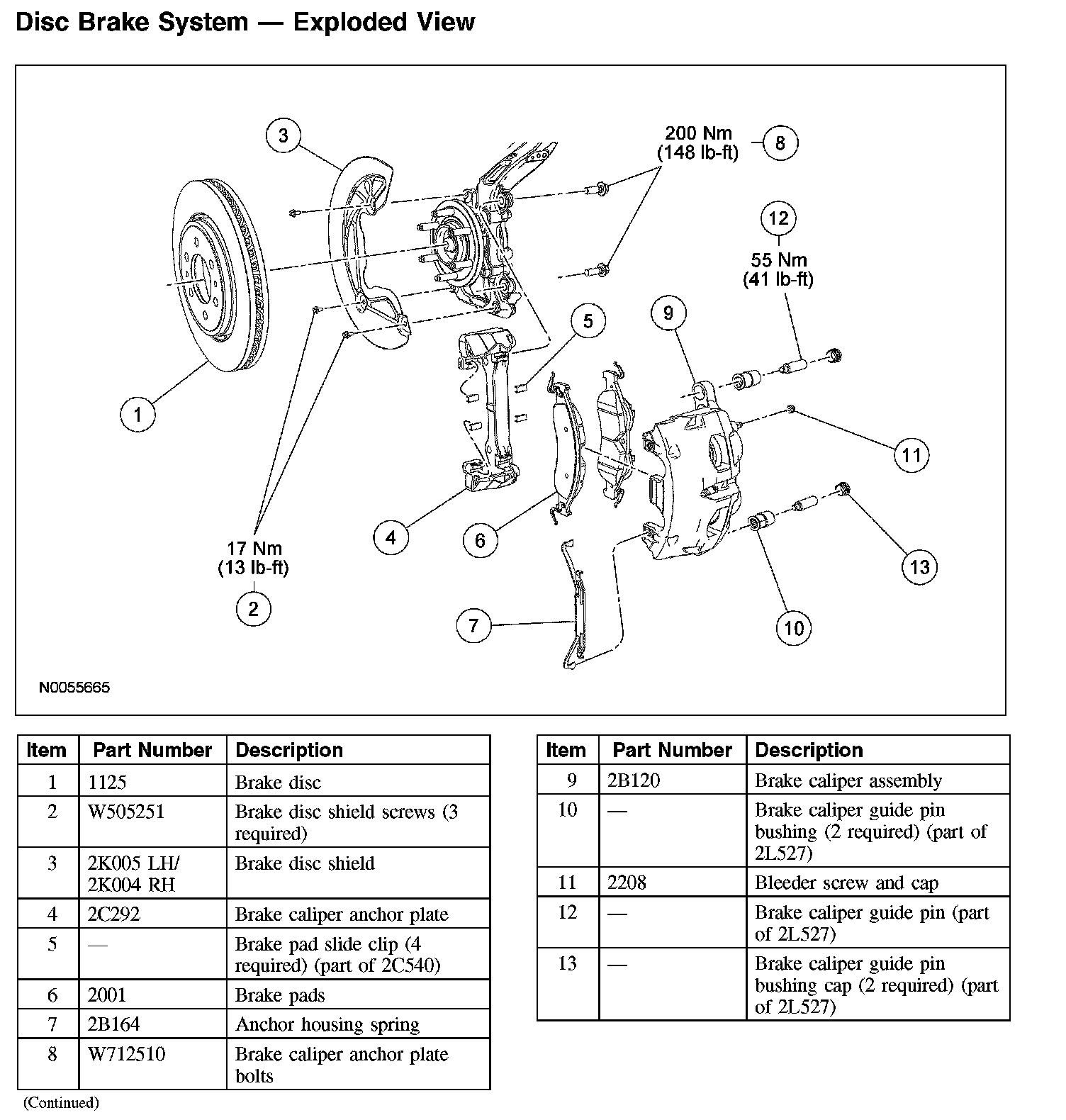

Disc Brake System - Exploded View:
