Home >> Lincoln >> 2007 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations >> Heater Blower Control Module

Heater Blower Control Module

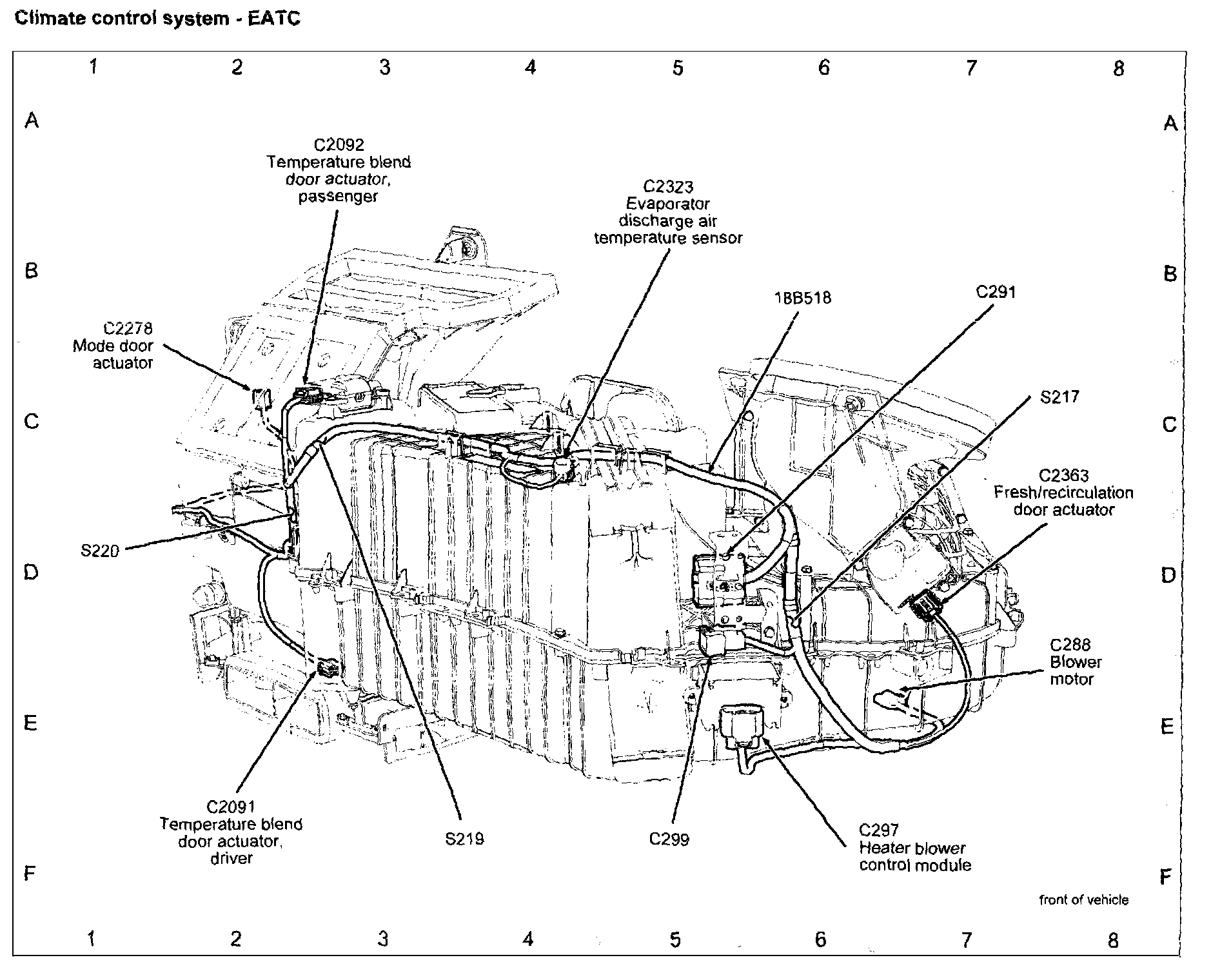

View 151-47 (Climate Control System - EATC):
