Home >> Lincoln >> 2007 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

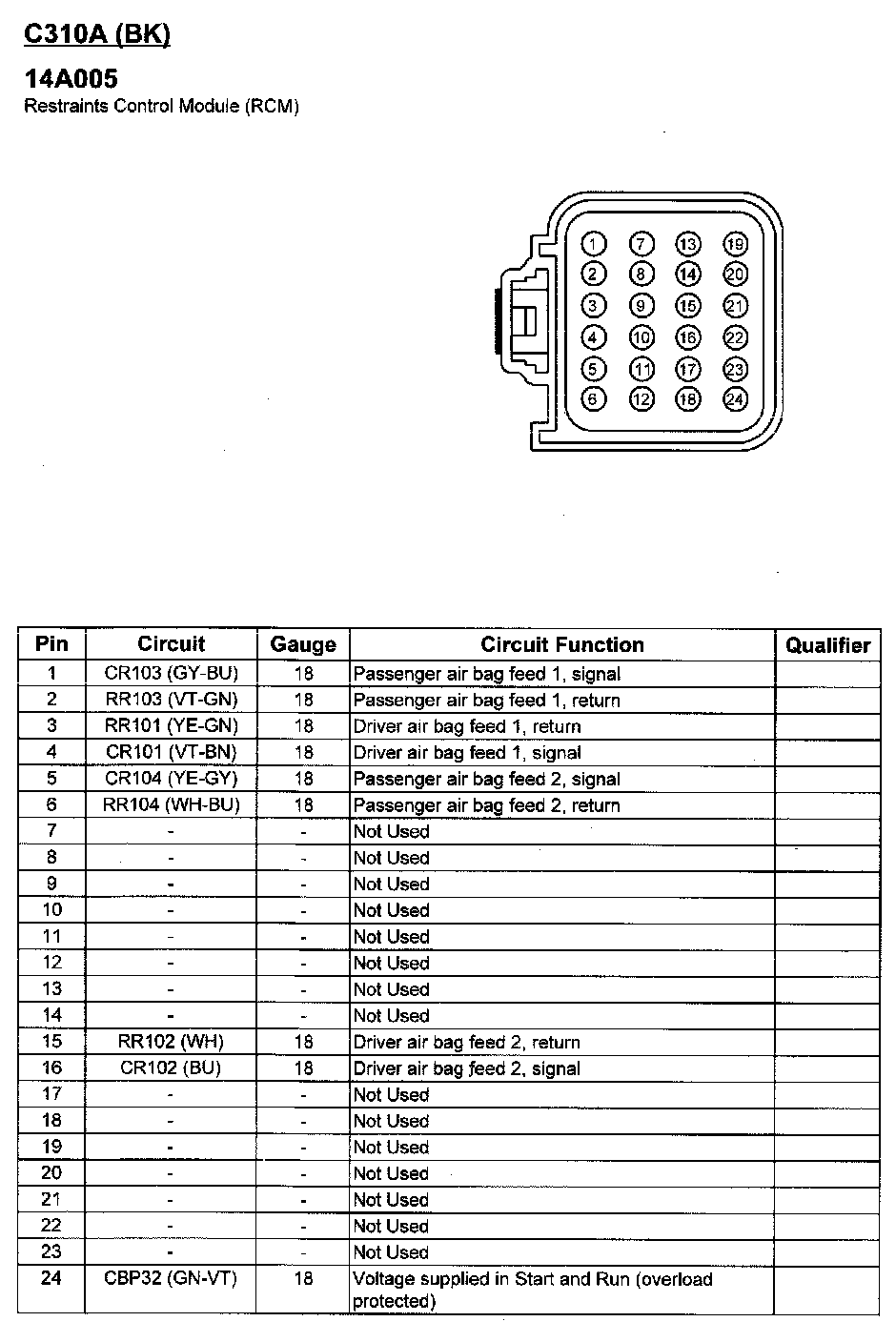

C310A:

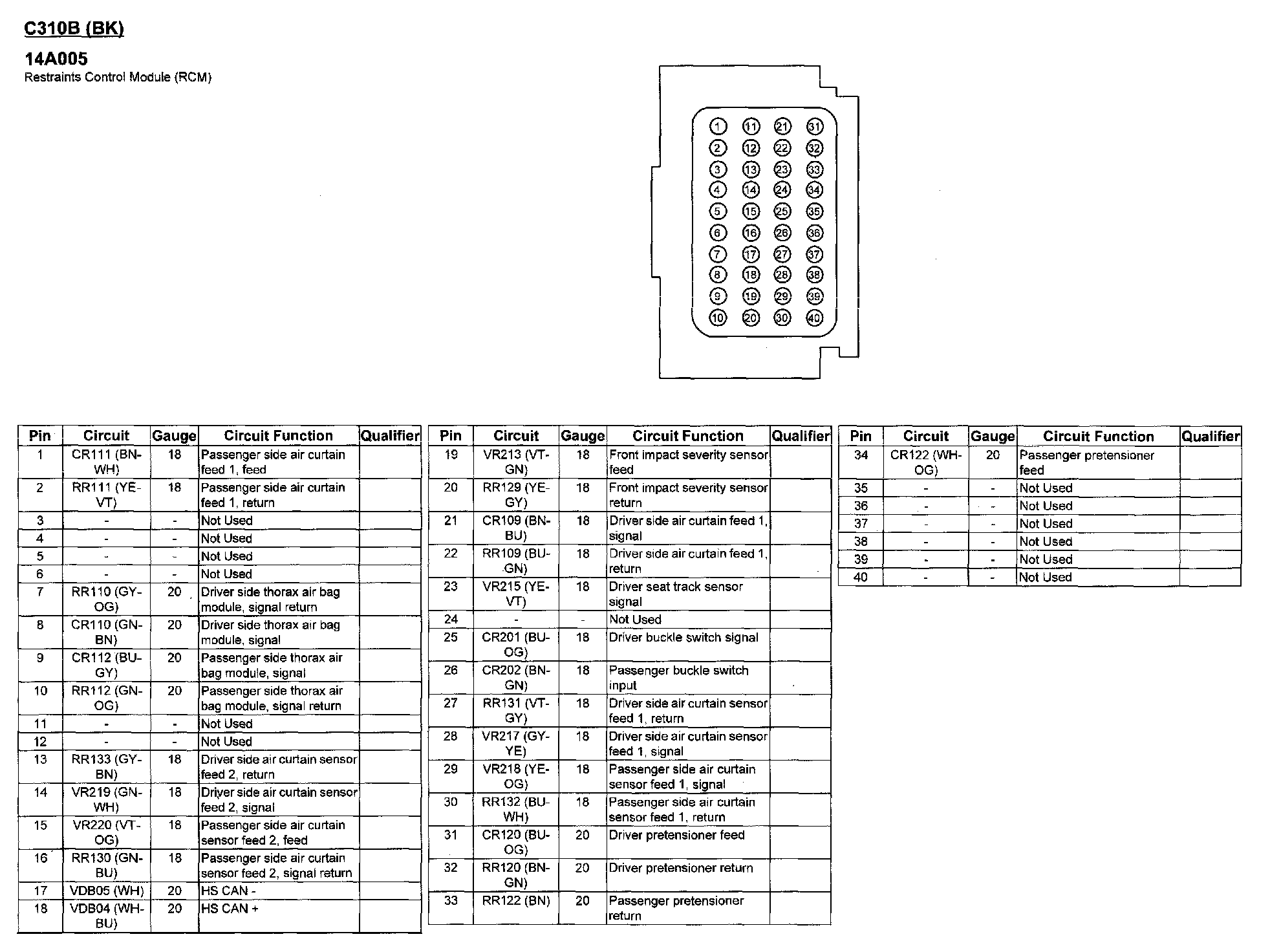

C310B:
