Home >> Lincoln >> 2007 >> MKX FWD V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations >> Manual Climate Control Module

Manual Climate Control Module

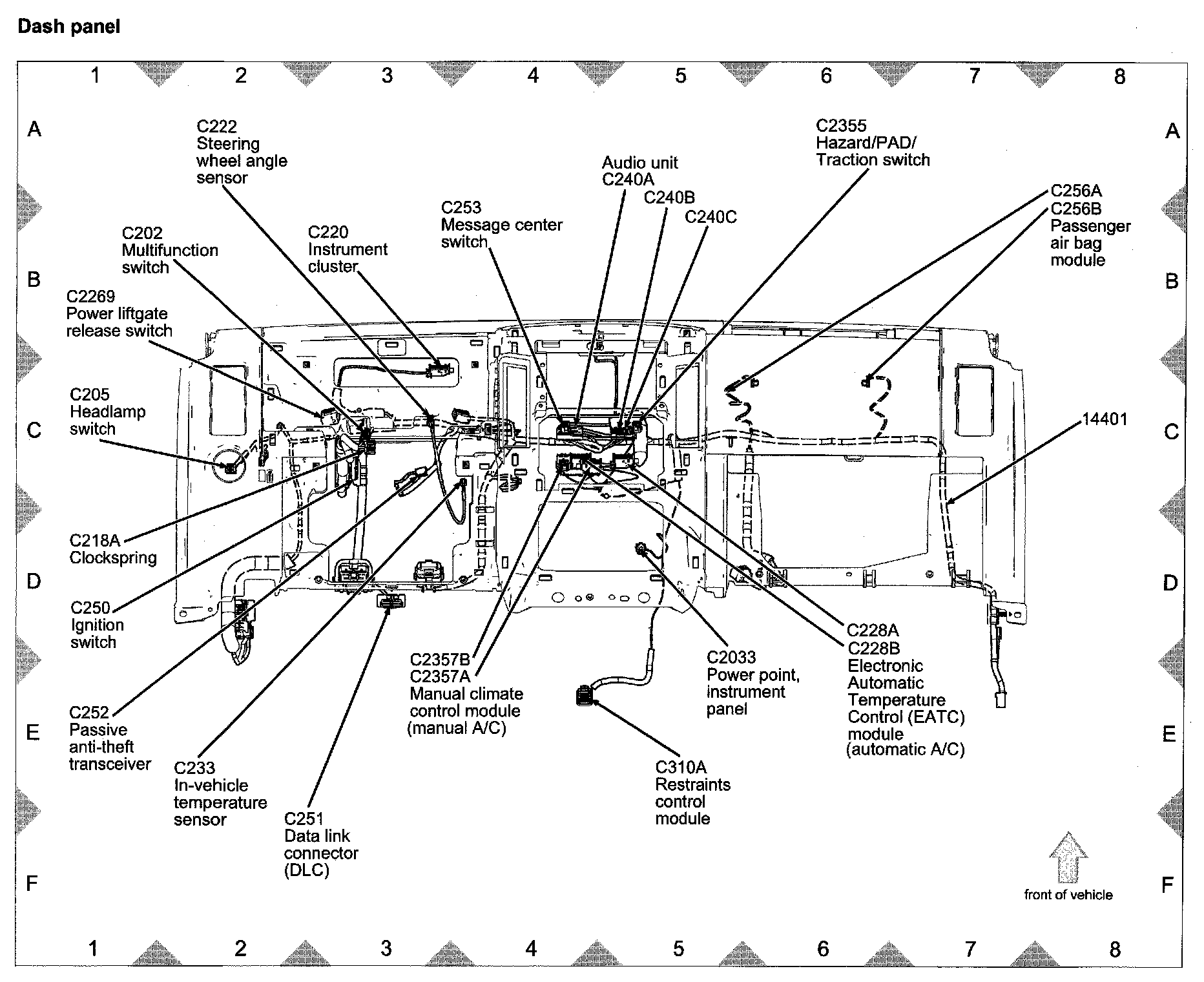

View 151-9 (Dash Panel):
