Home >> Lincoln >> 2007 >> MKX FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

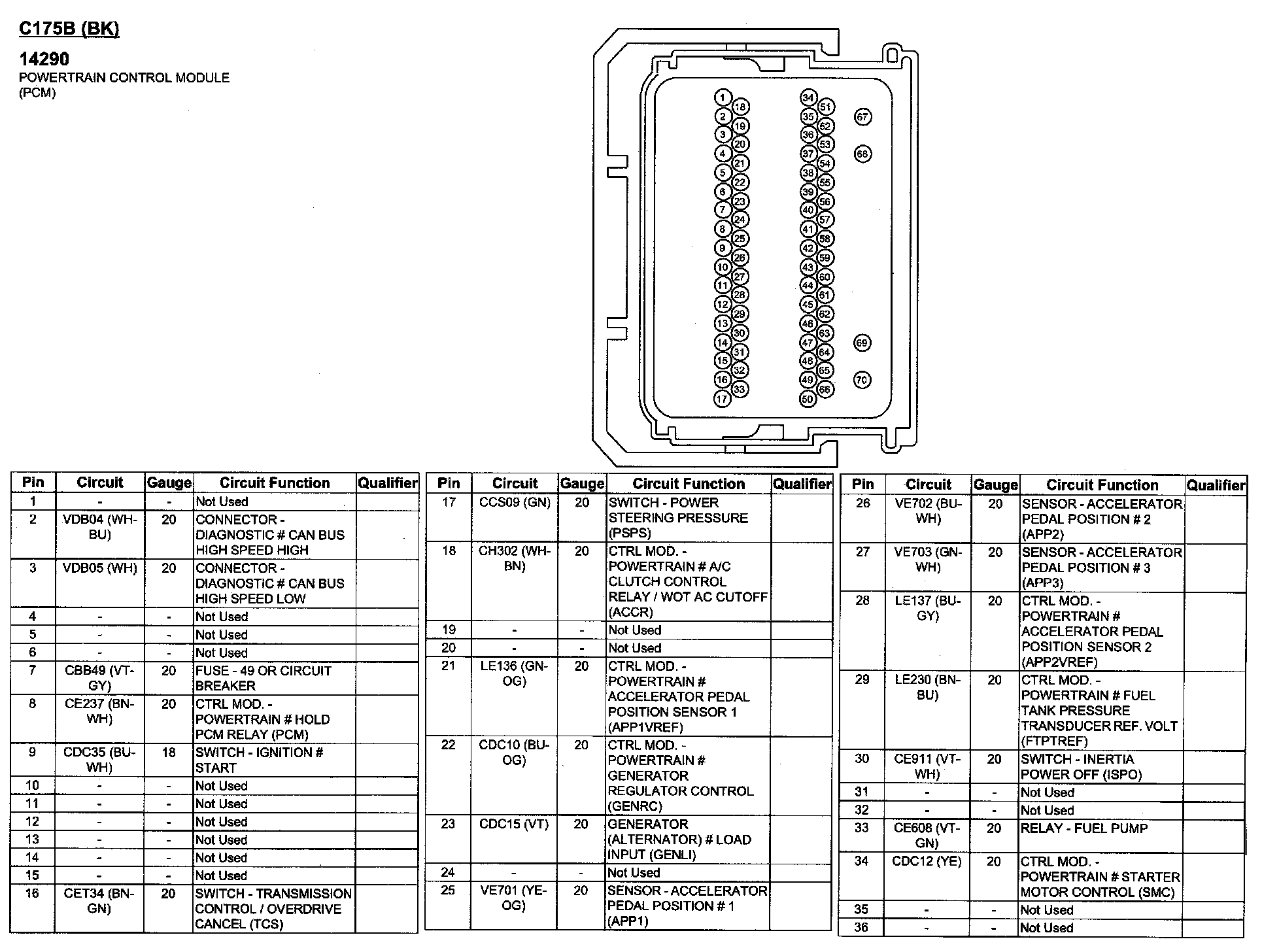

C175B (Part 1):

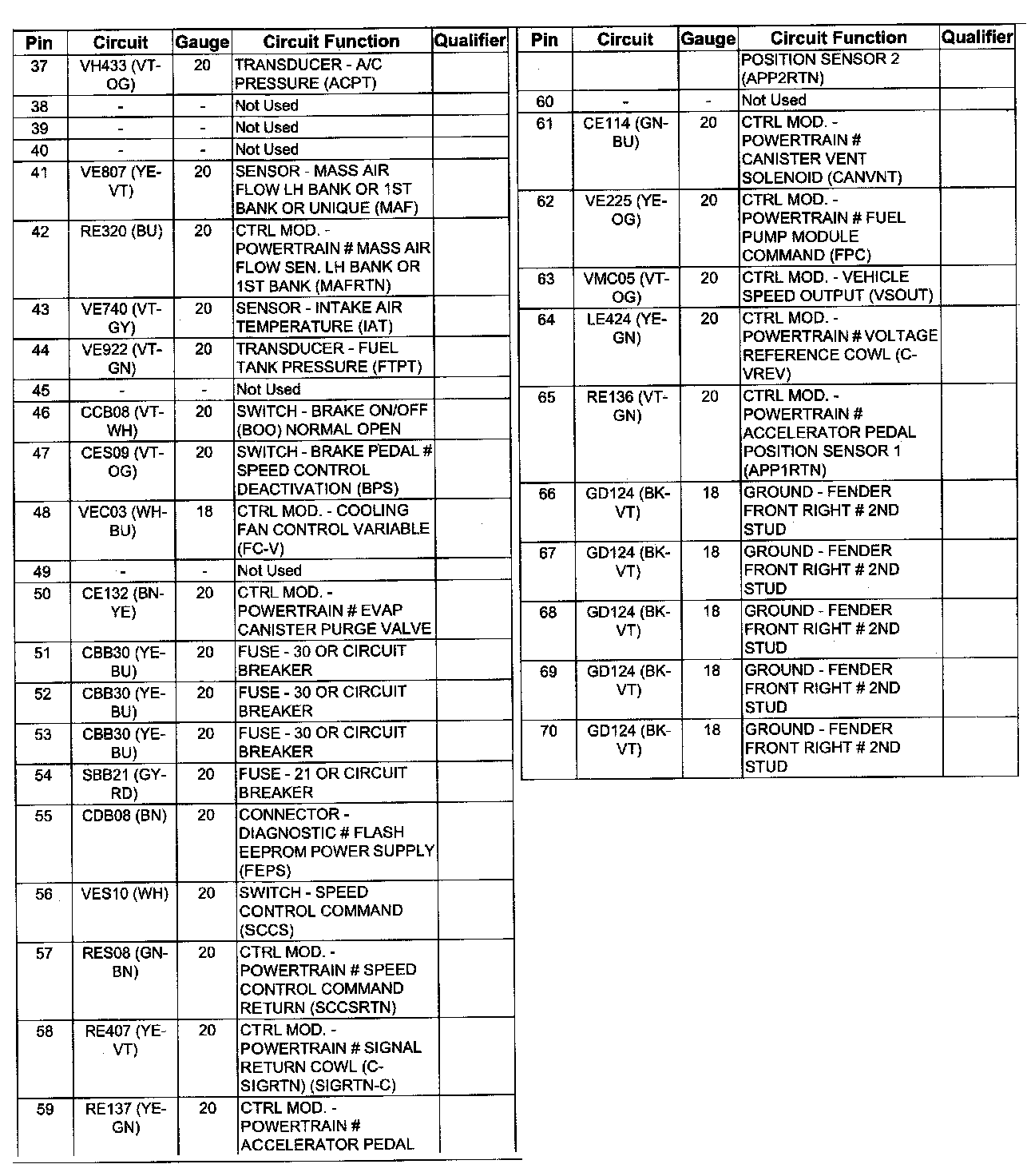

C175B (Part 2):

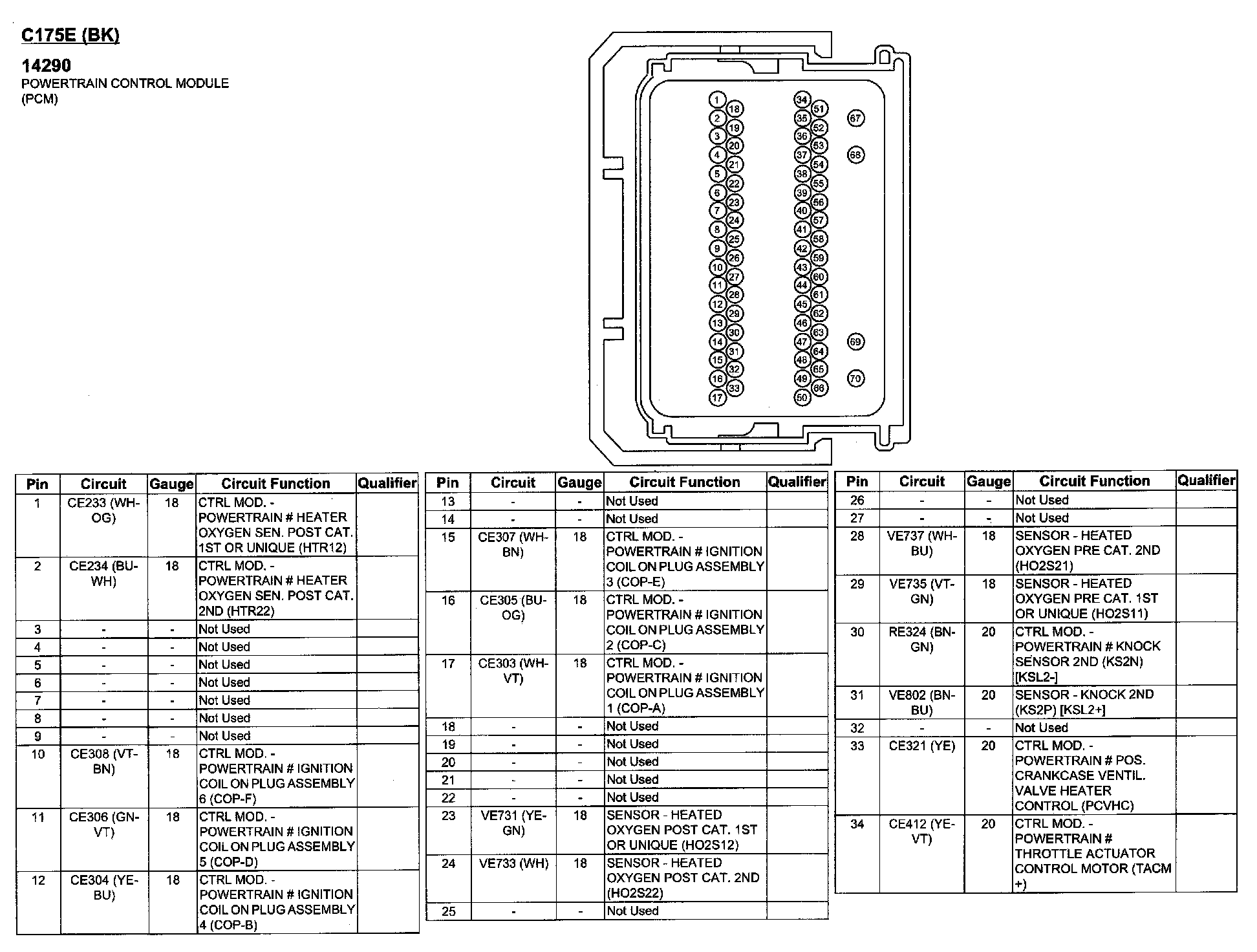

C175E (Part 1):

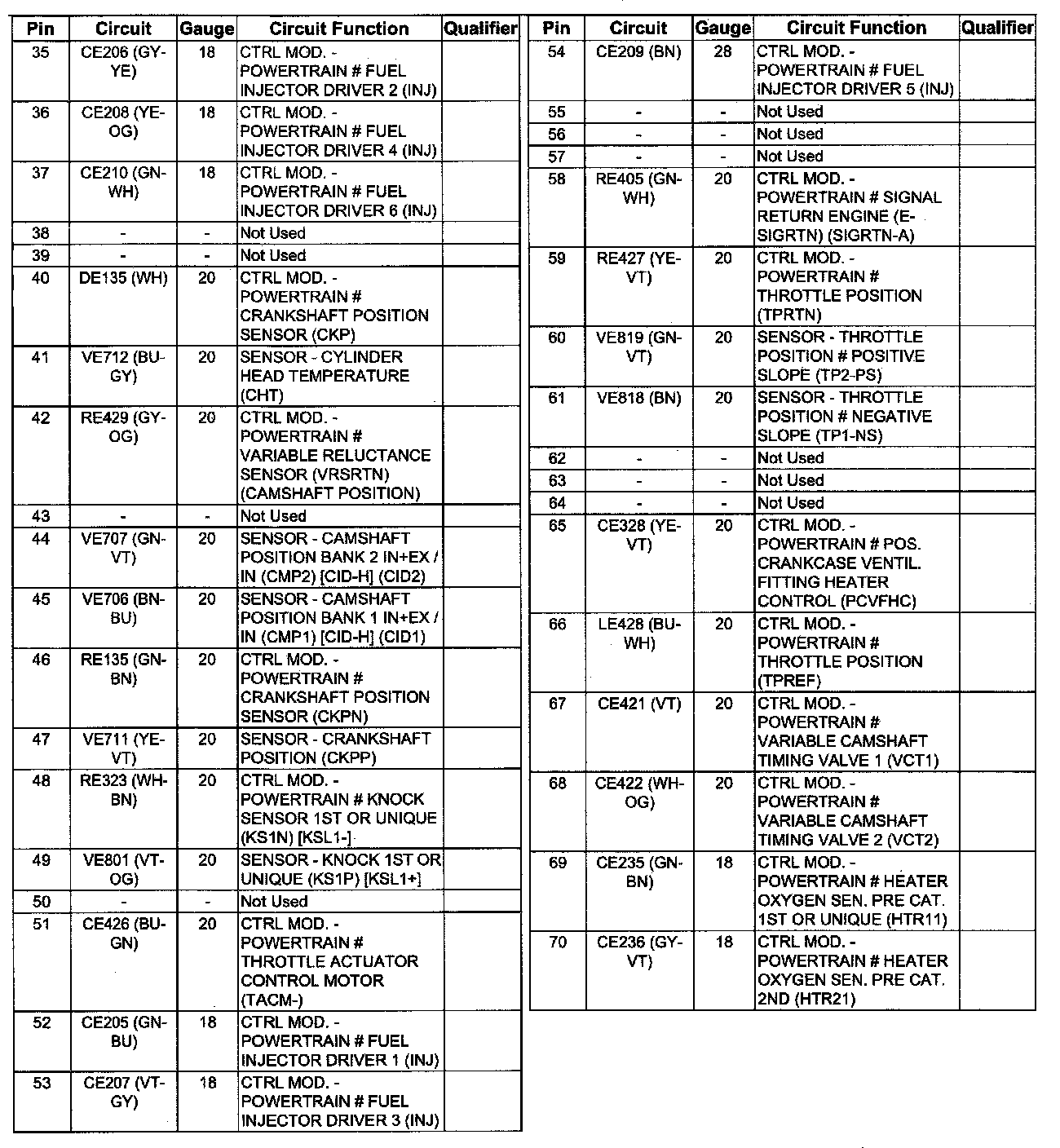

C175E (Part 2):

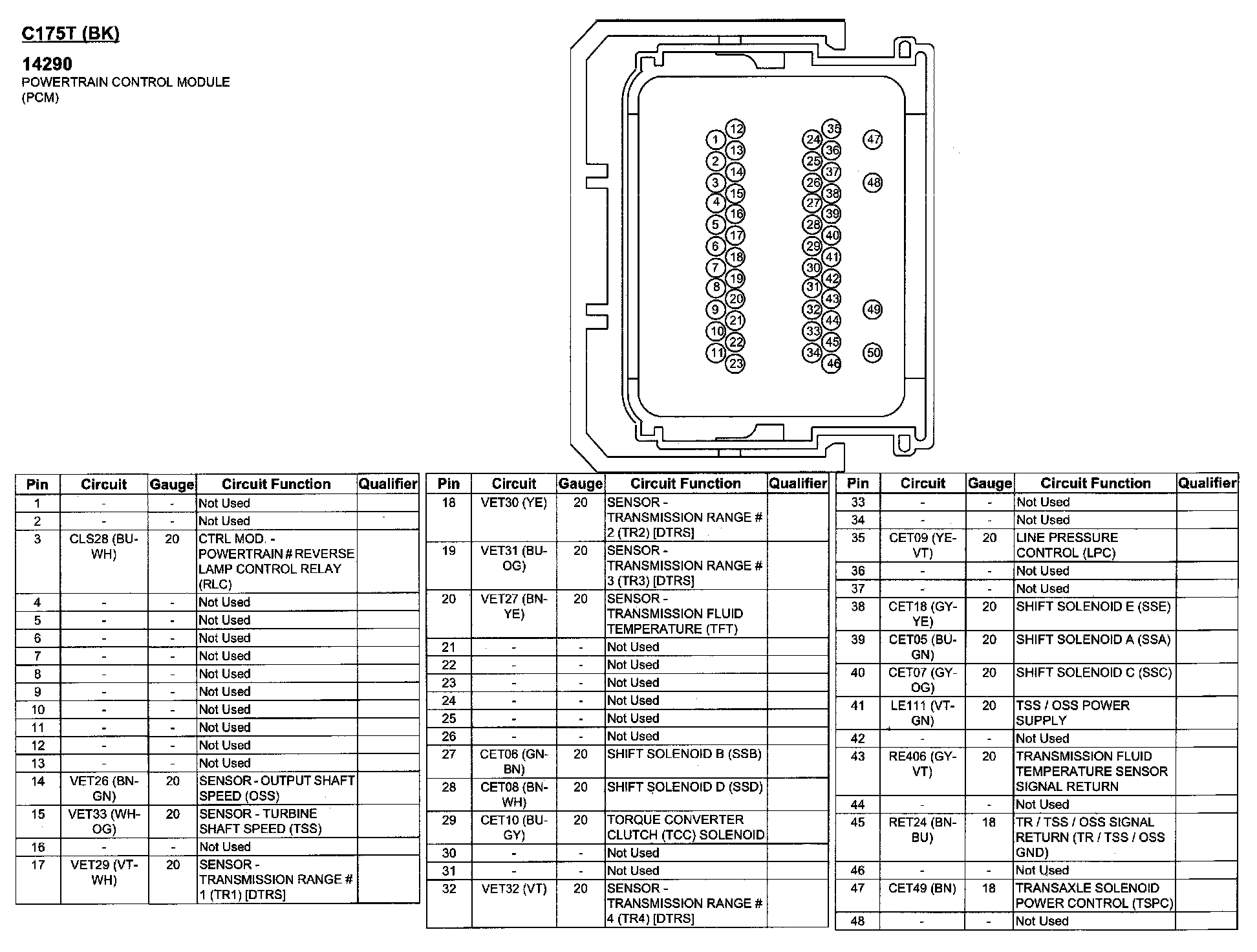

C175T (Part 1):



C175T (Part 2):
