Control Module HVAC
>>
Electronic Automatic Temperature Control (EATC) Module
Electronic Automatic Temperature Control (EATC) Module

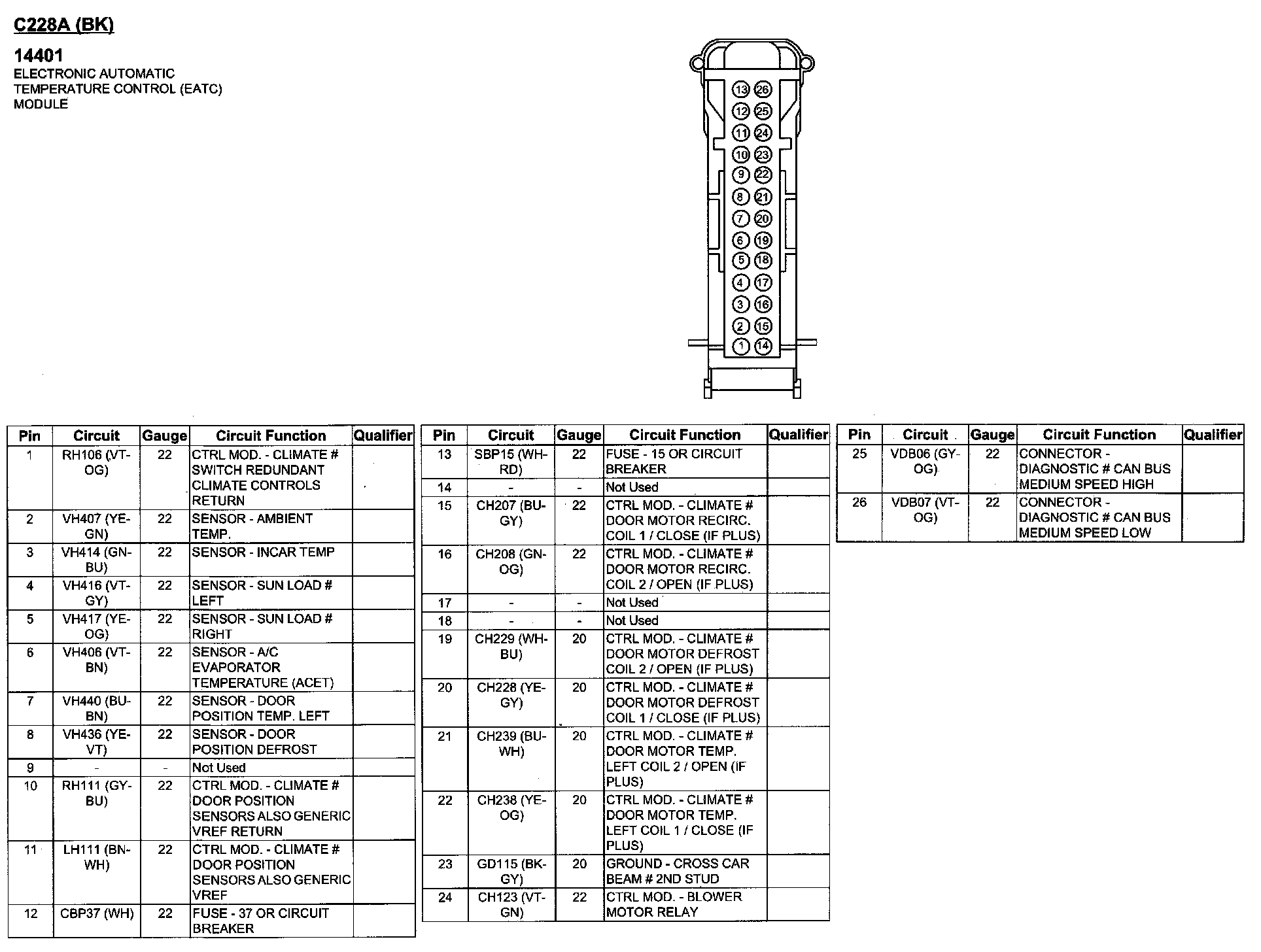

C228A:

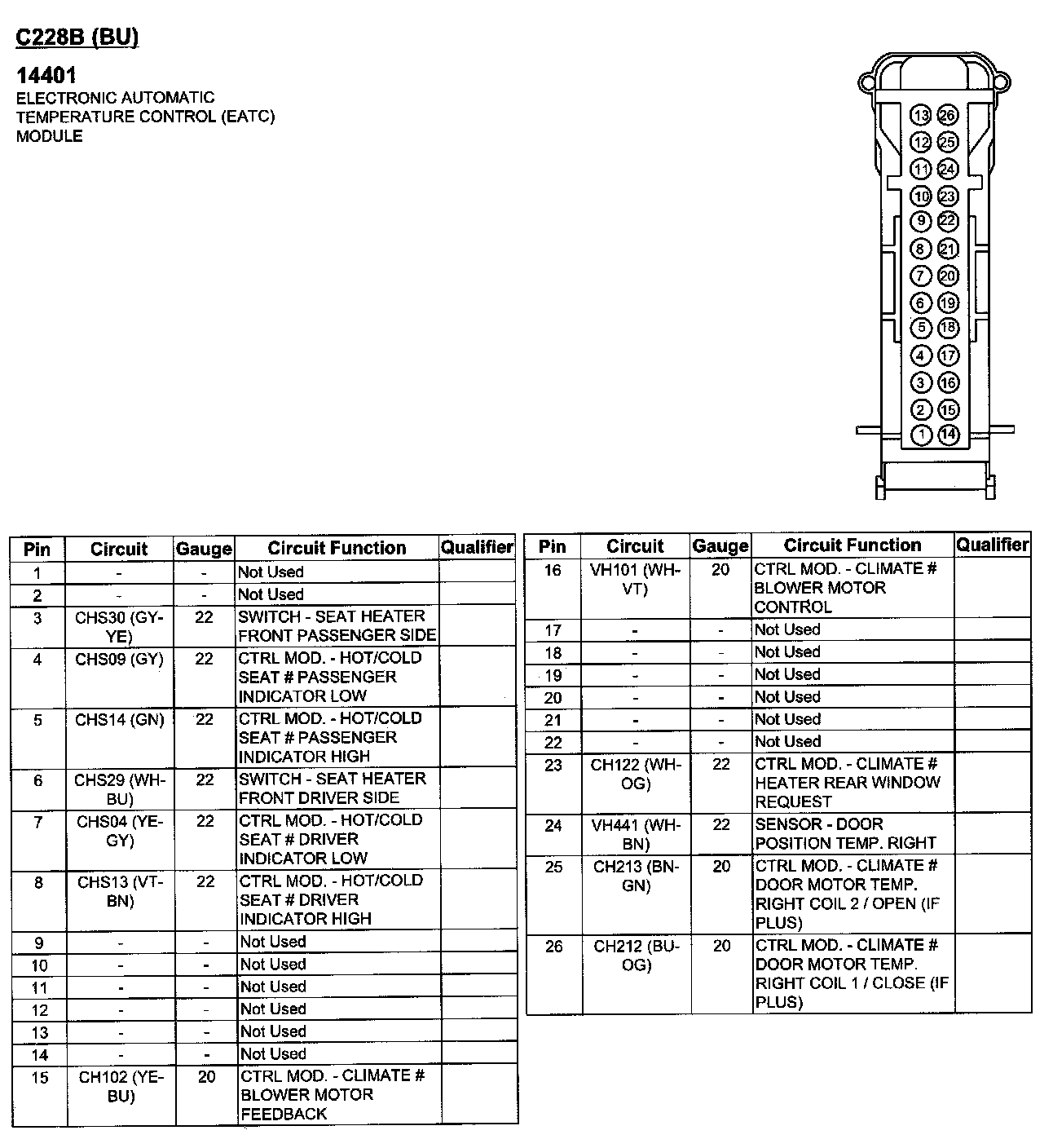

C228B:
