Engine
>>
Drive Belt
Drive Belt

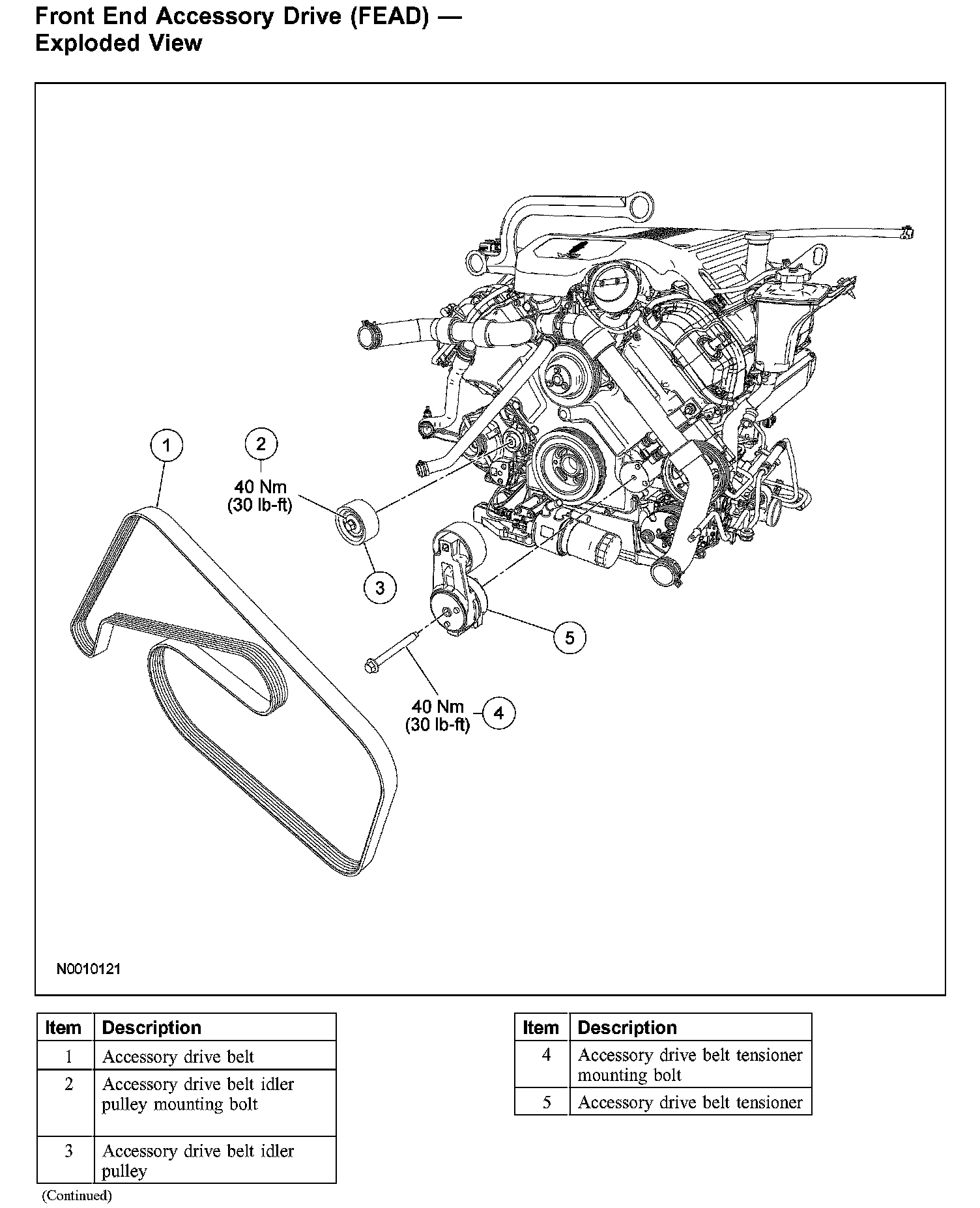

Front End Accessory Drive (FEAD) Exploded View
Front End Accessory Drive (FEAD) Exploded View:
