lemon-mirror
:
Home
>>
Lincoln
>>
2006
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Rear
Rear
Disc Brake System
- Exploded View

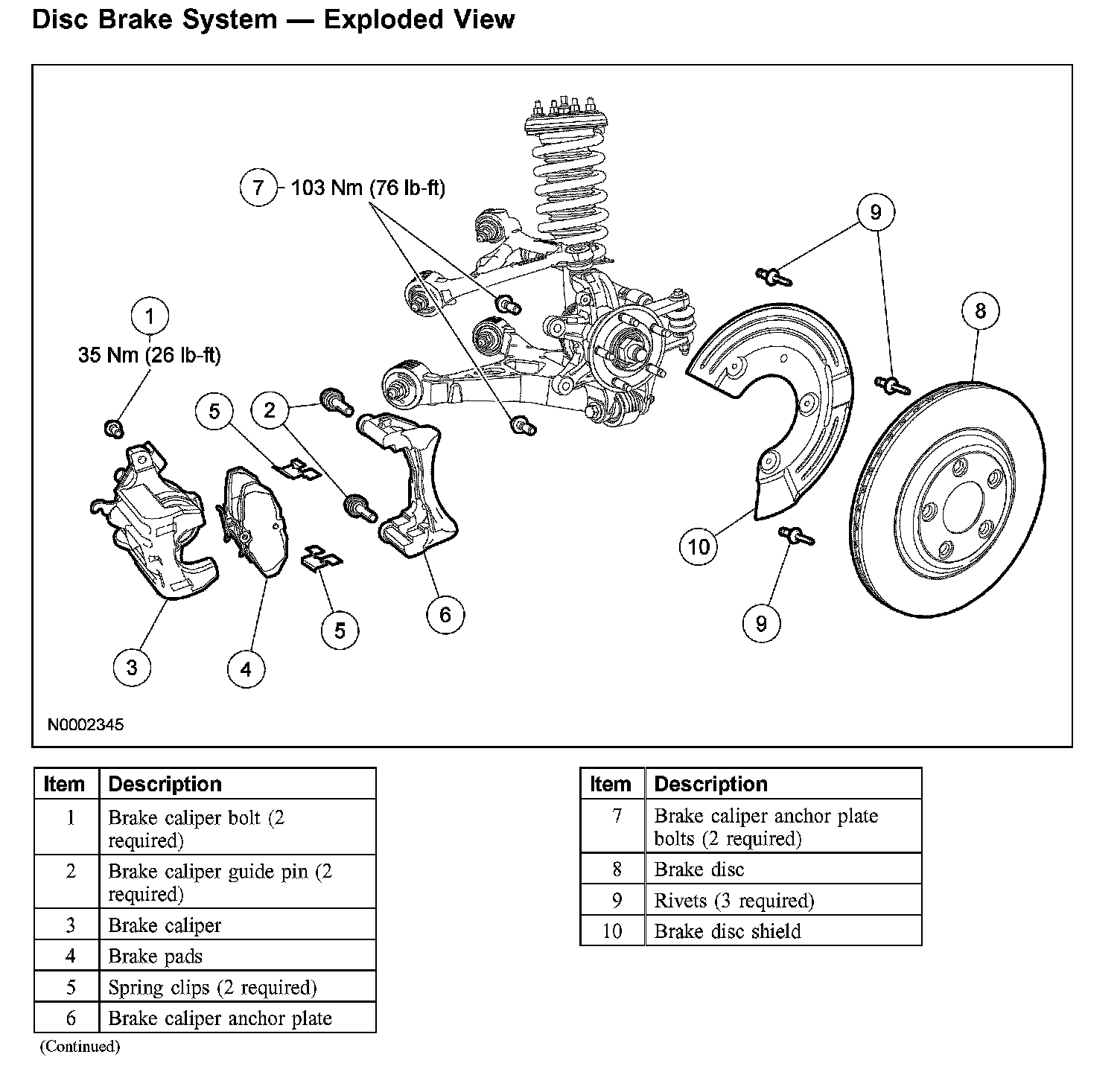

Disc Brake System - Exploded View:
