Lincoln
>>
2006
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation Module
>>
Audio/Navigation Control Unit
Audio/Navigation Control Unit

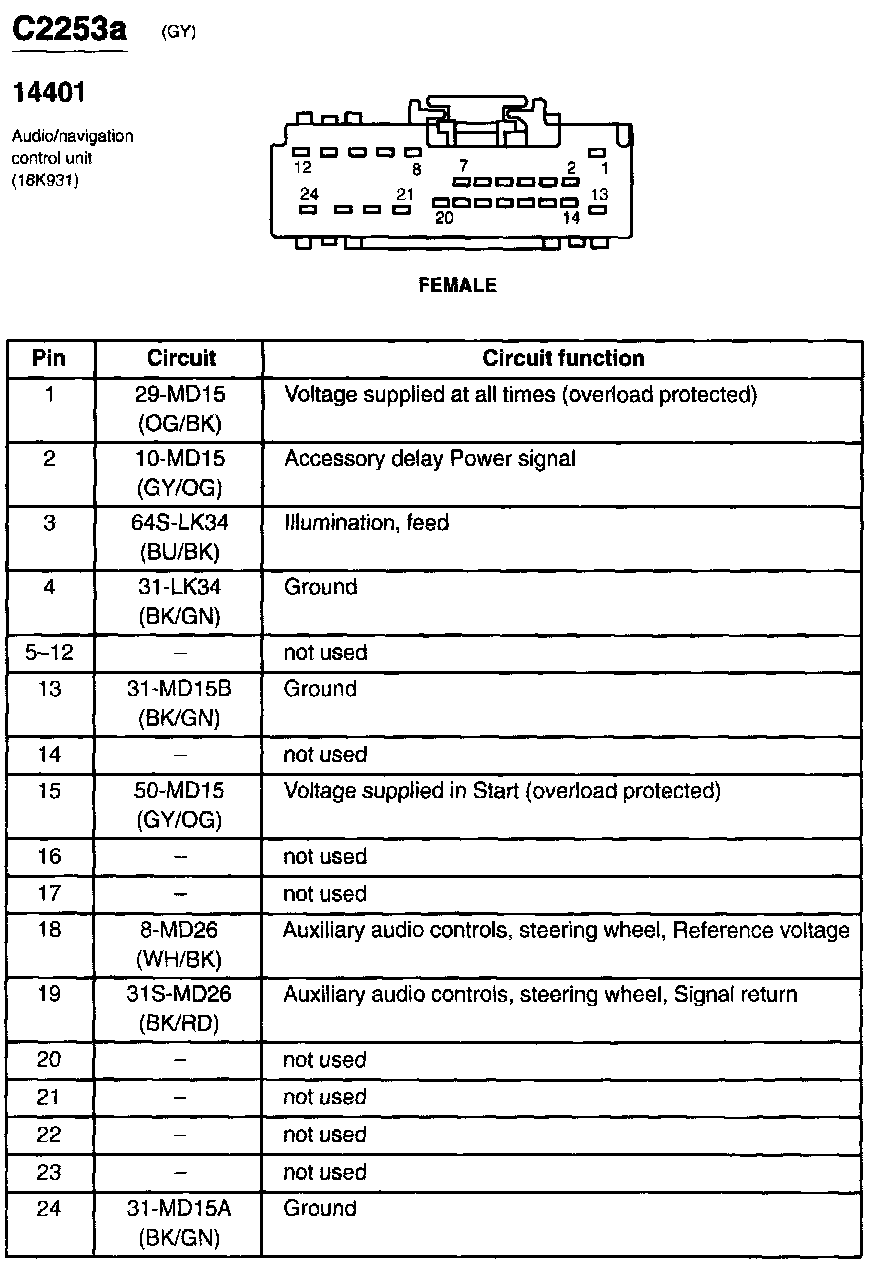

C2253a:

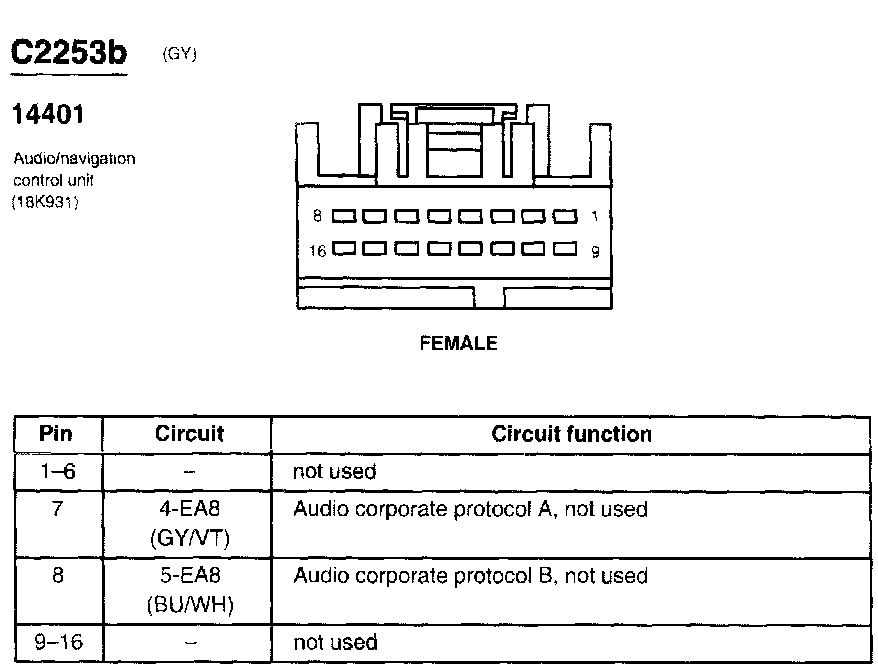

C2253b:

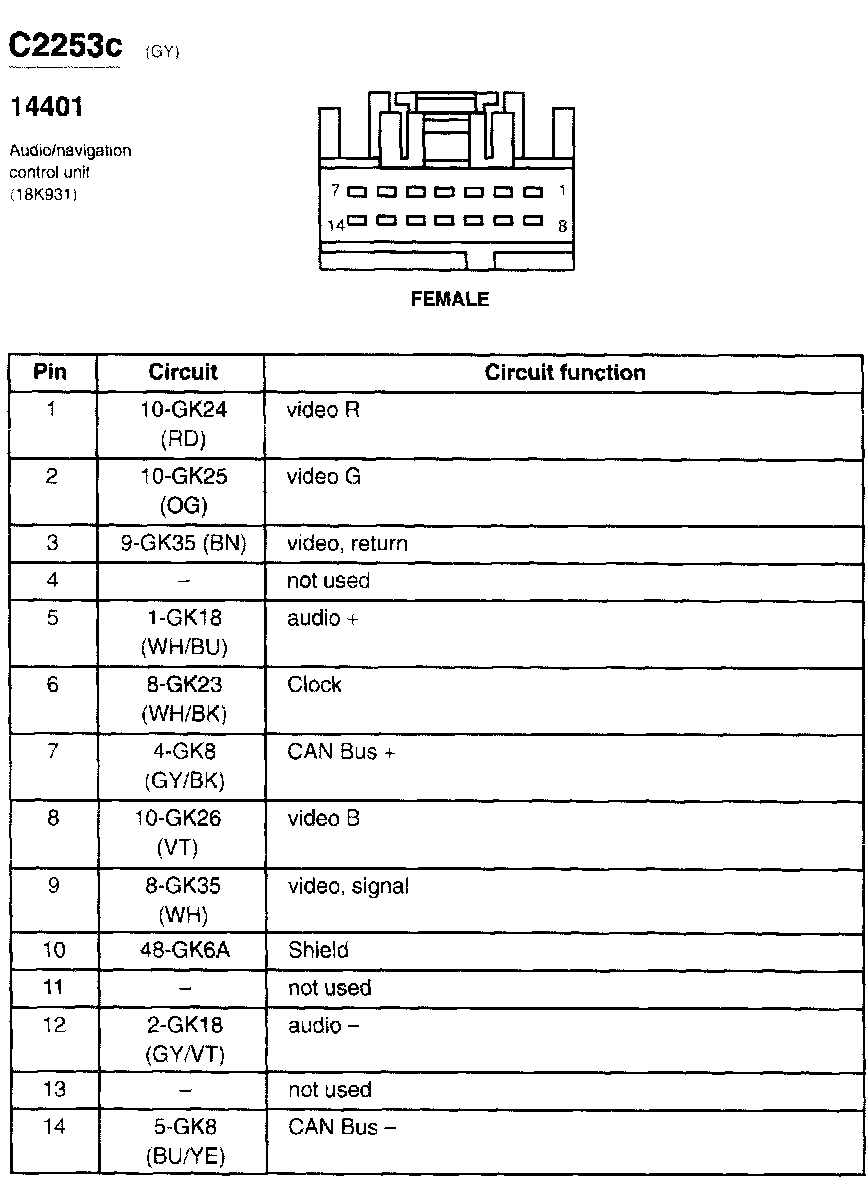

C2253c:

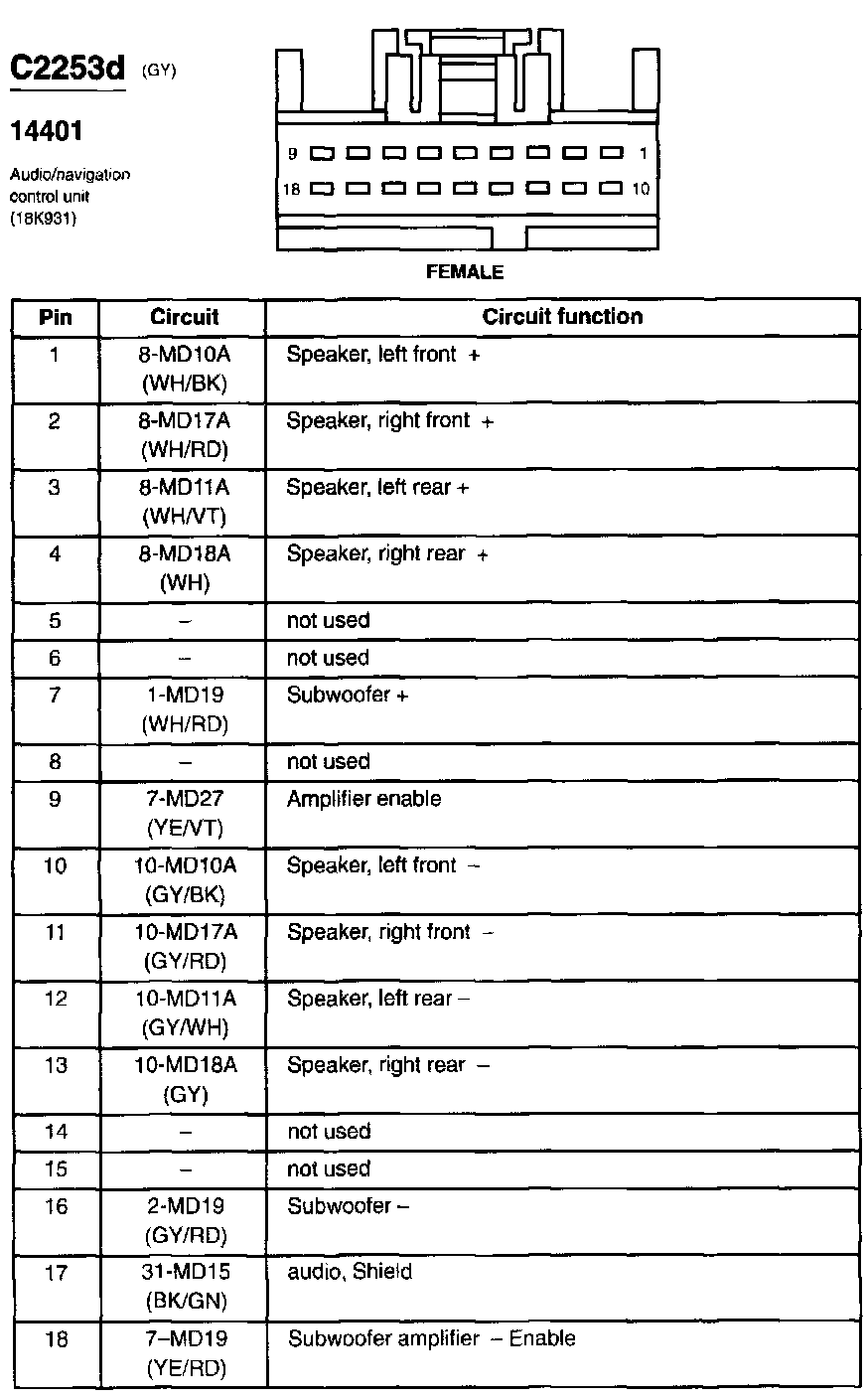

C2253d:
