Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

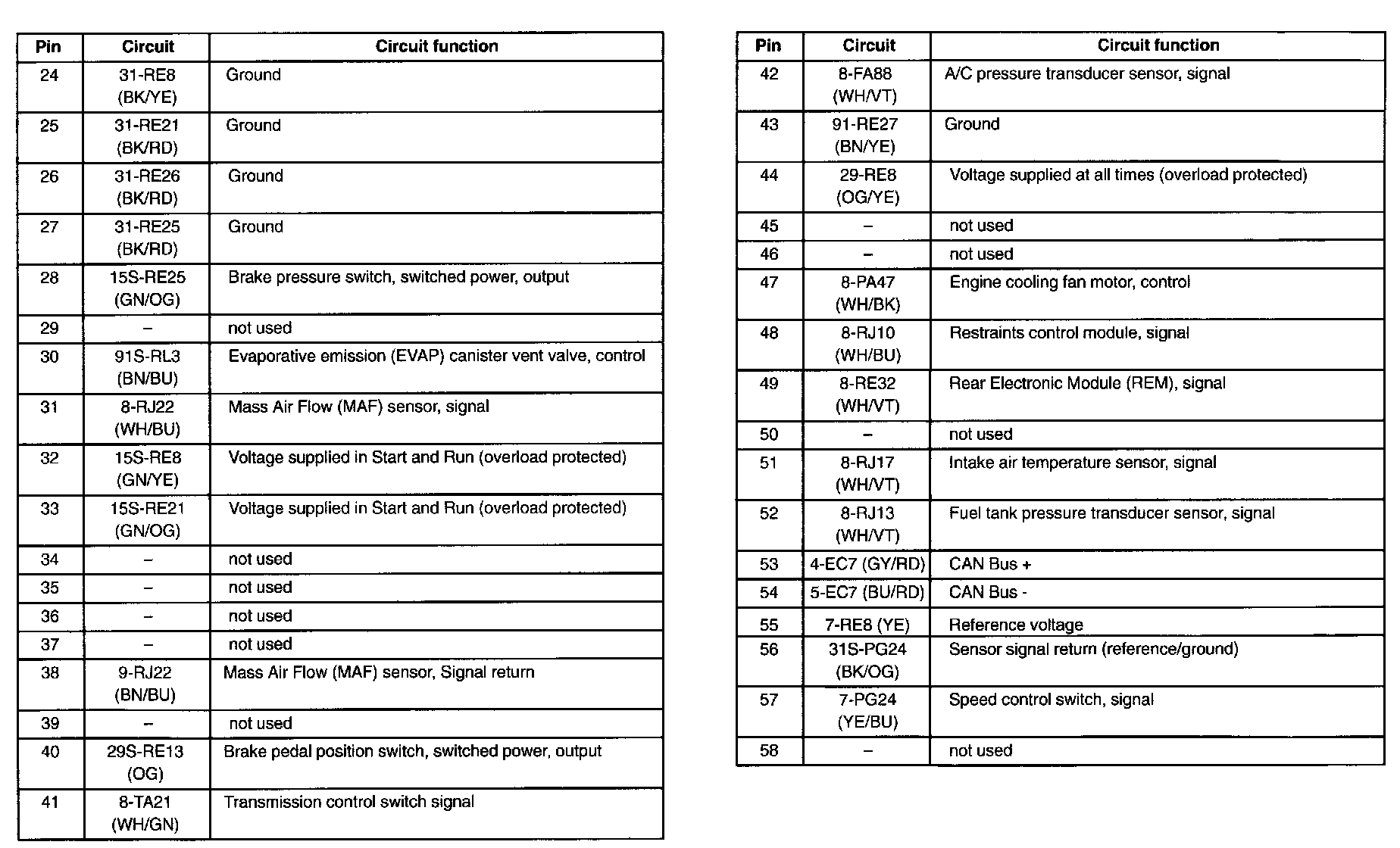

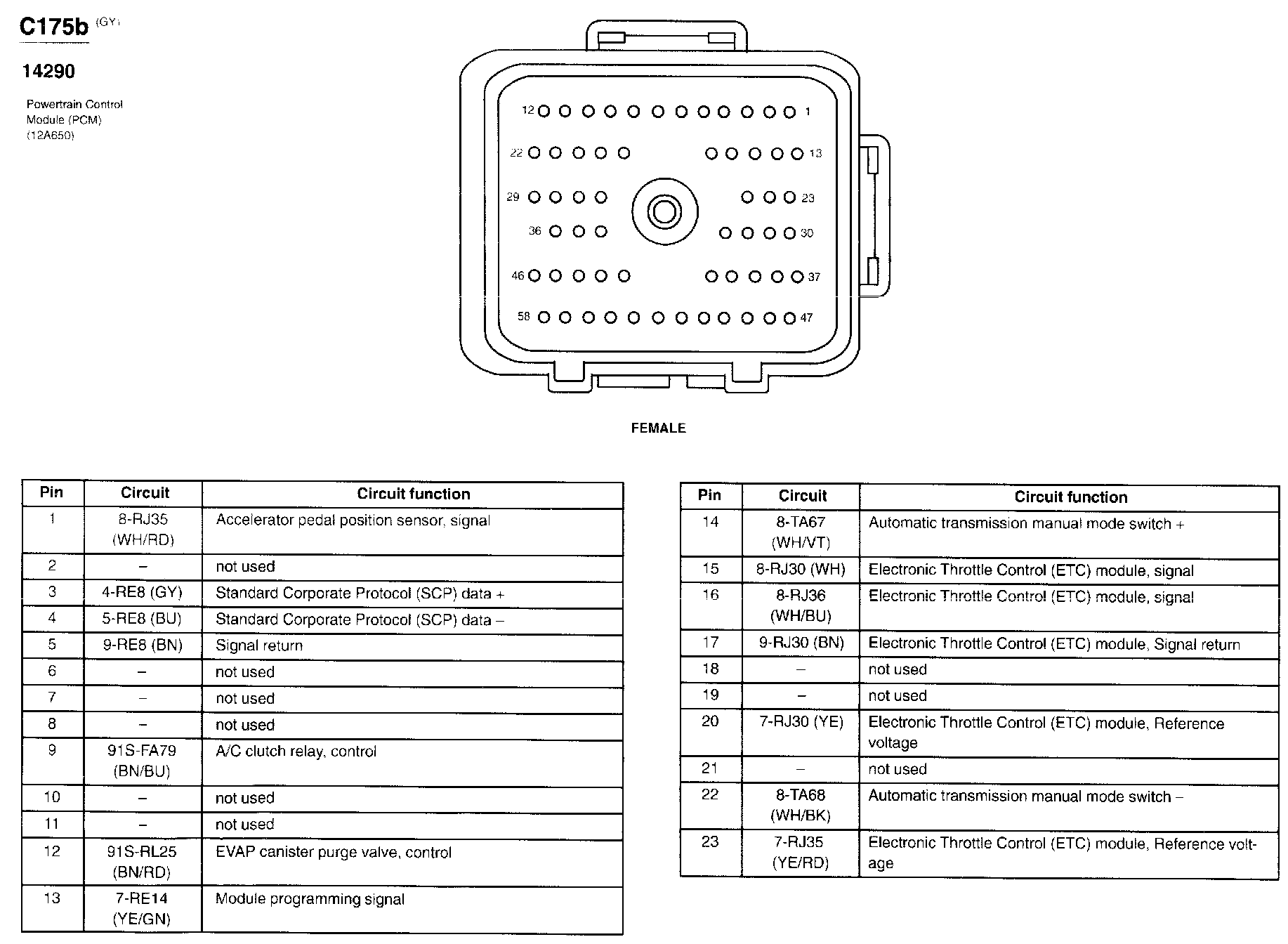

C175b (Part 1):

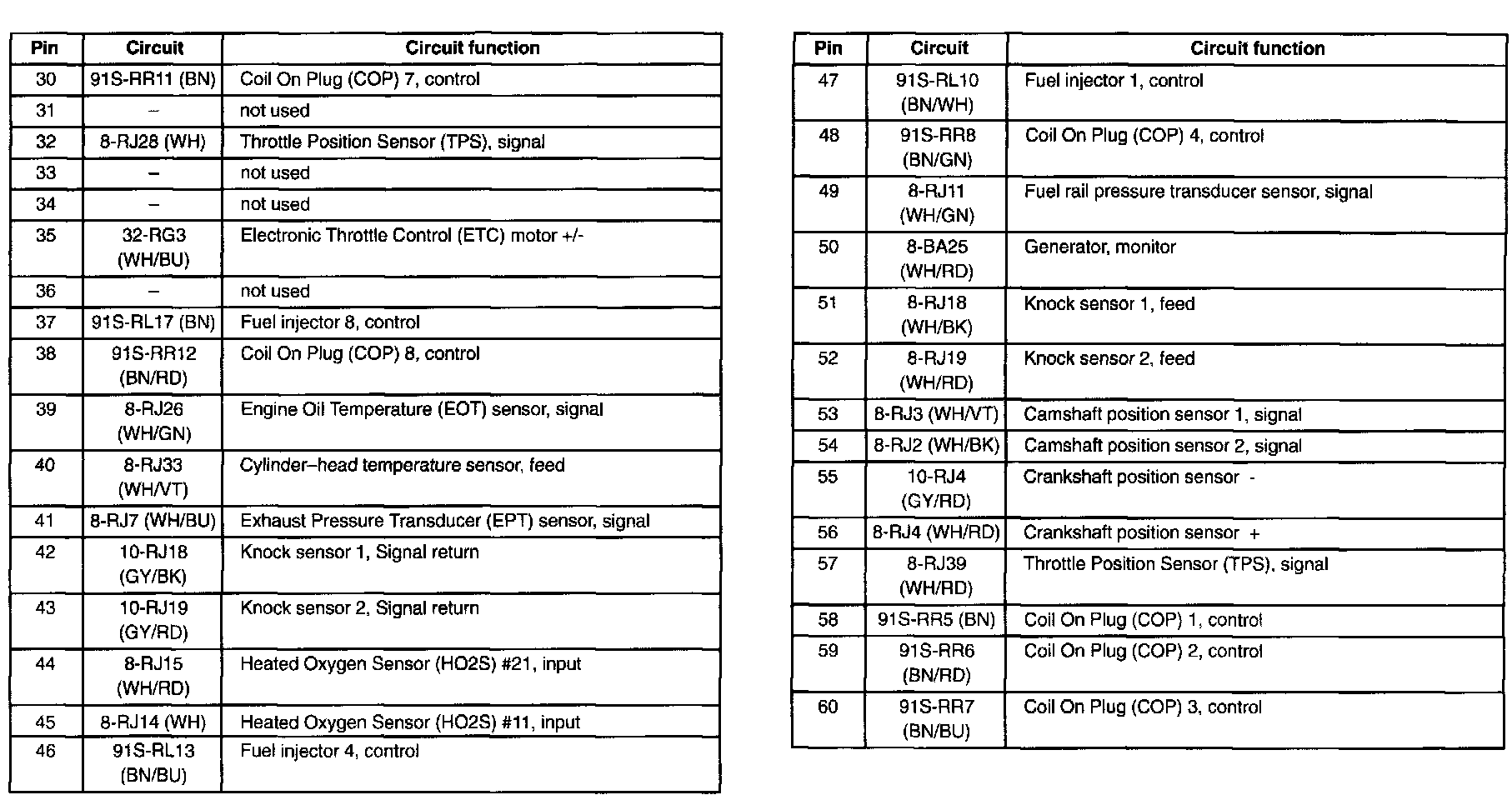

C175b (Part 2):

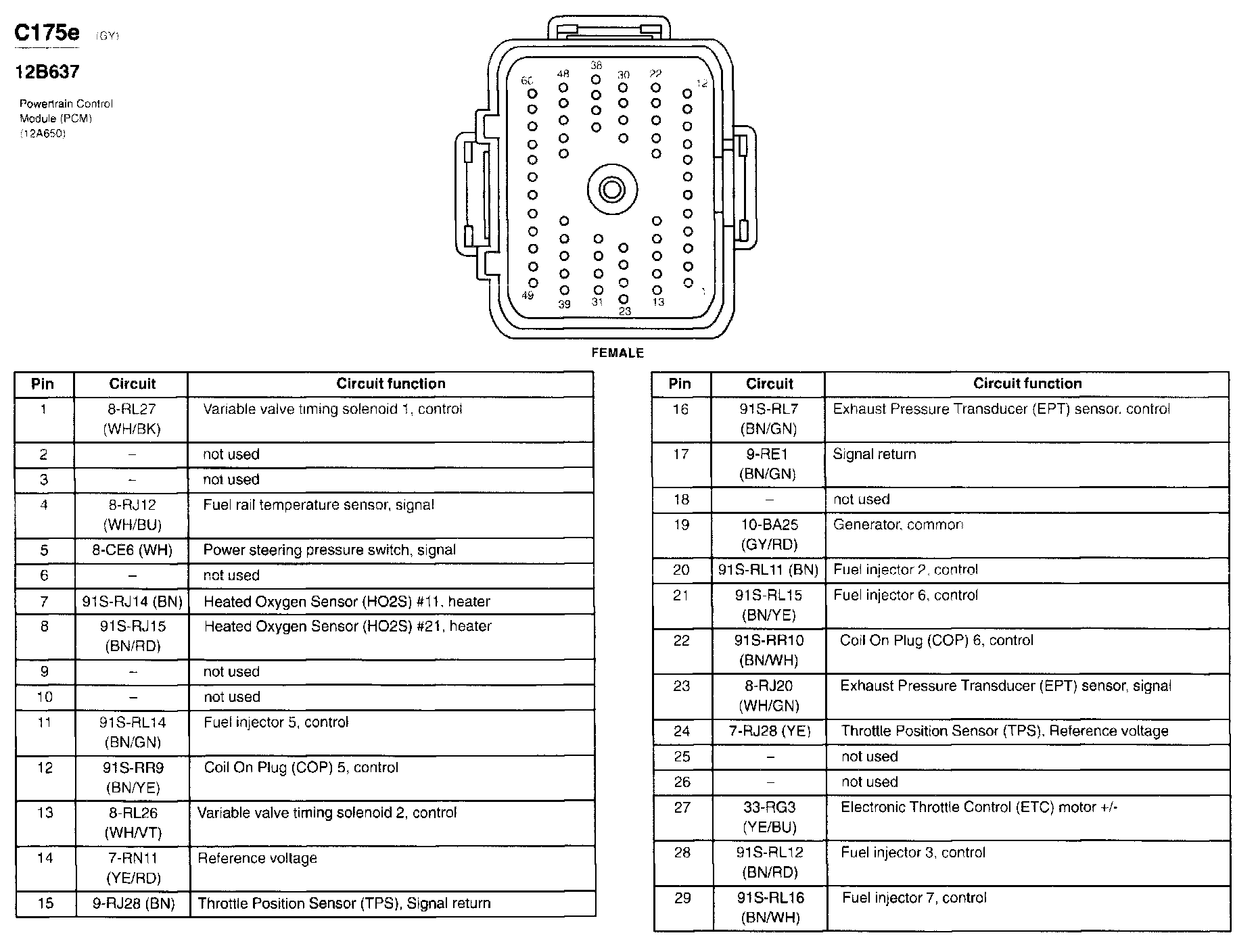

C175e (Part 1):

C175e (Part 2):

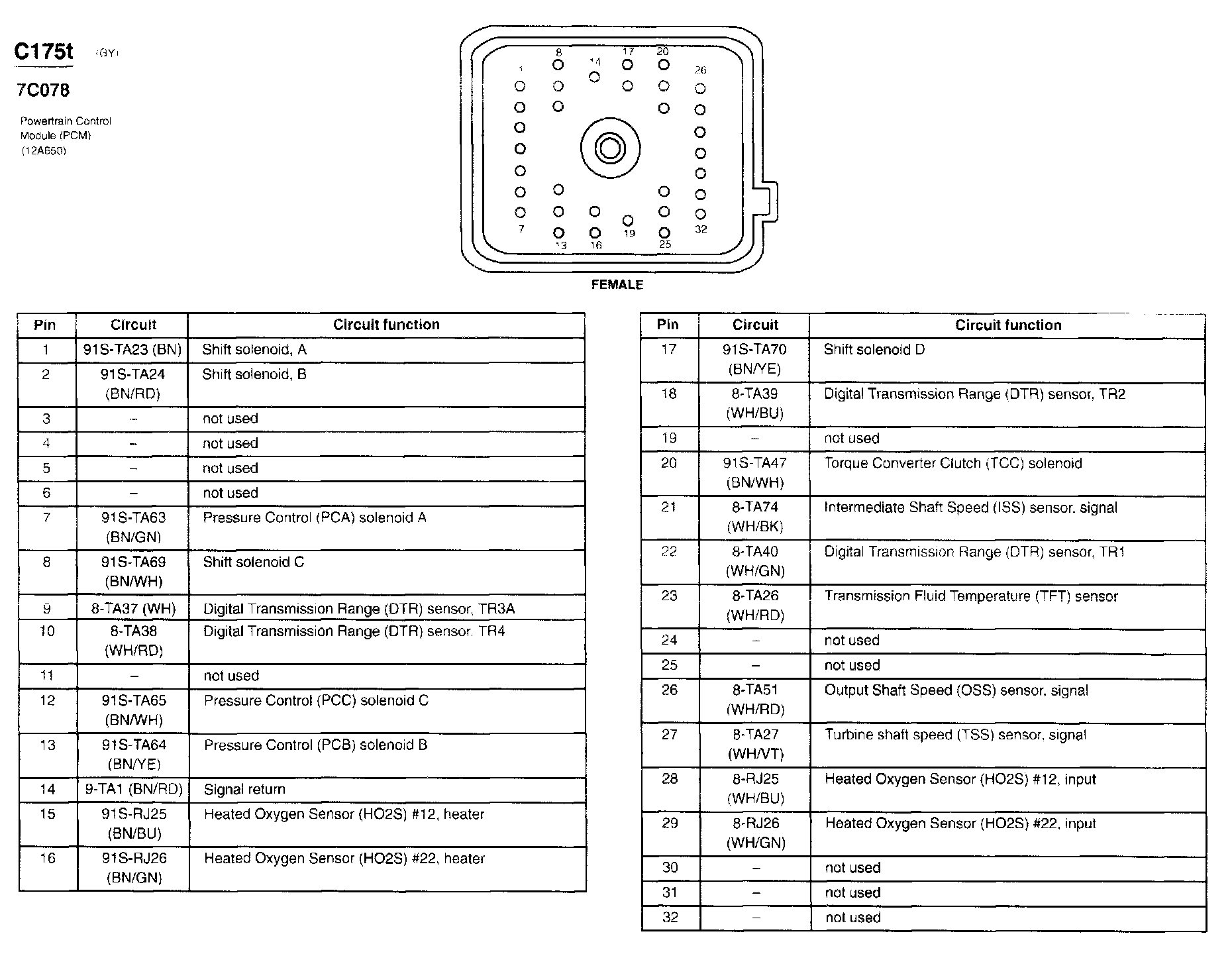

C175t:
