Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Rear Electronic Module (REM)

Rear Electronic Module (REM)

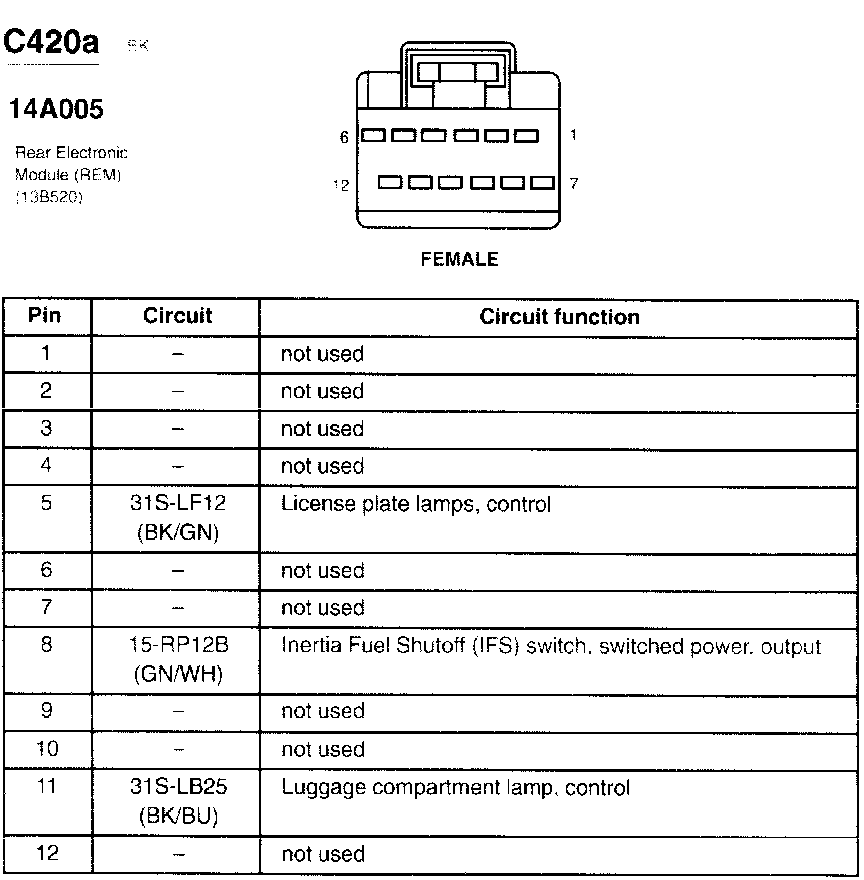

C420a:

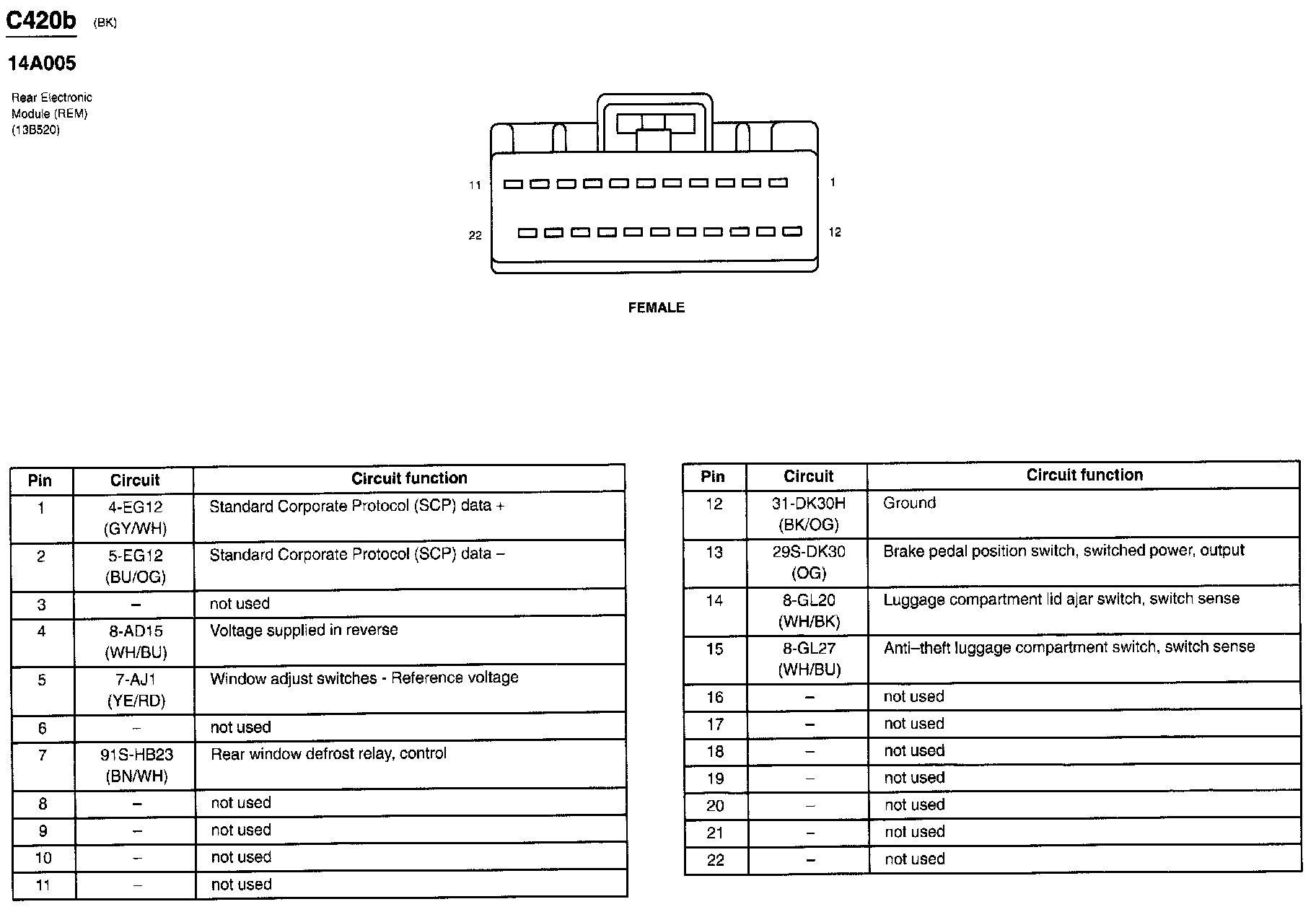

C420b:

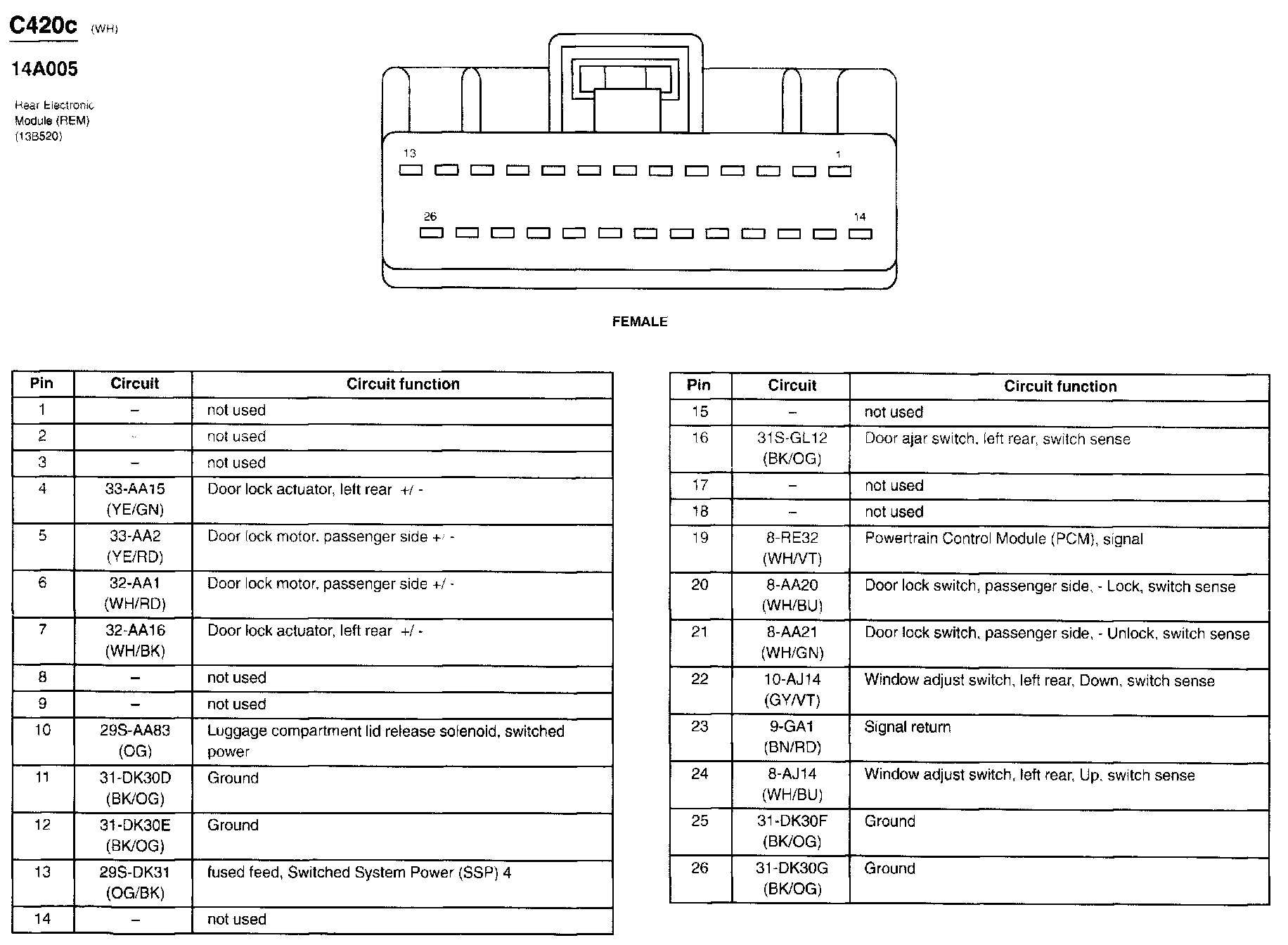

C420c:

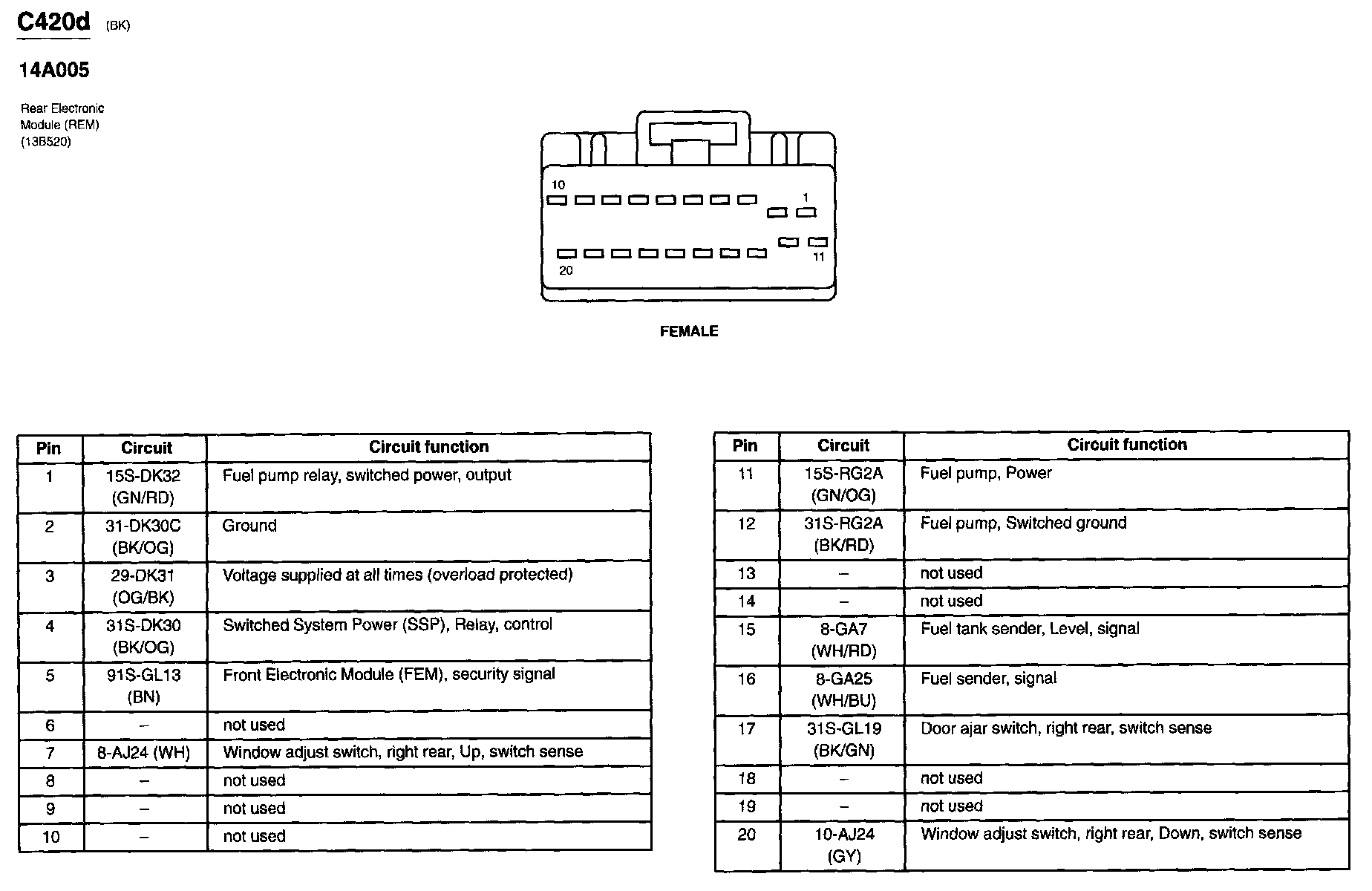

C420d:

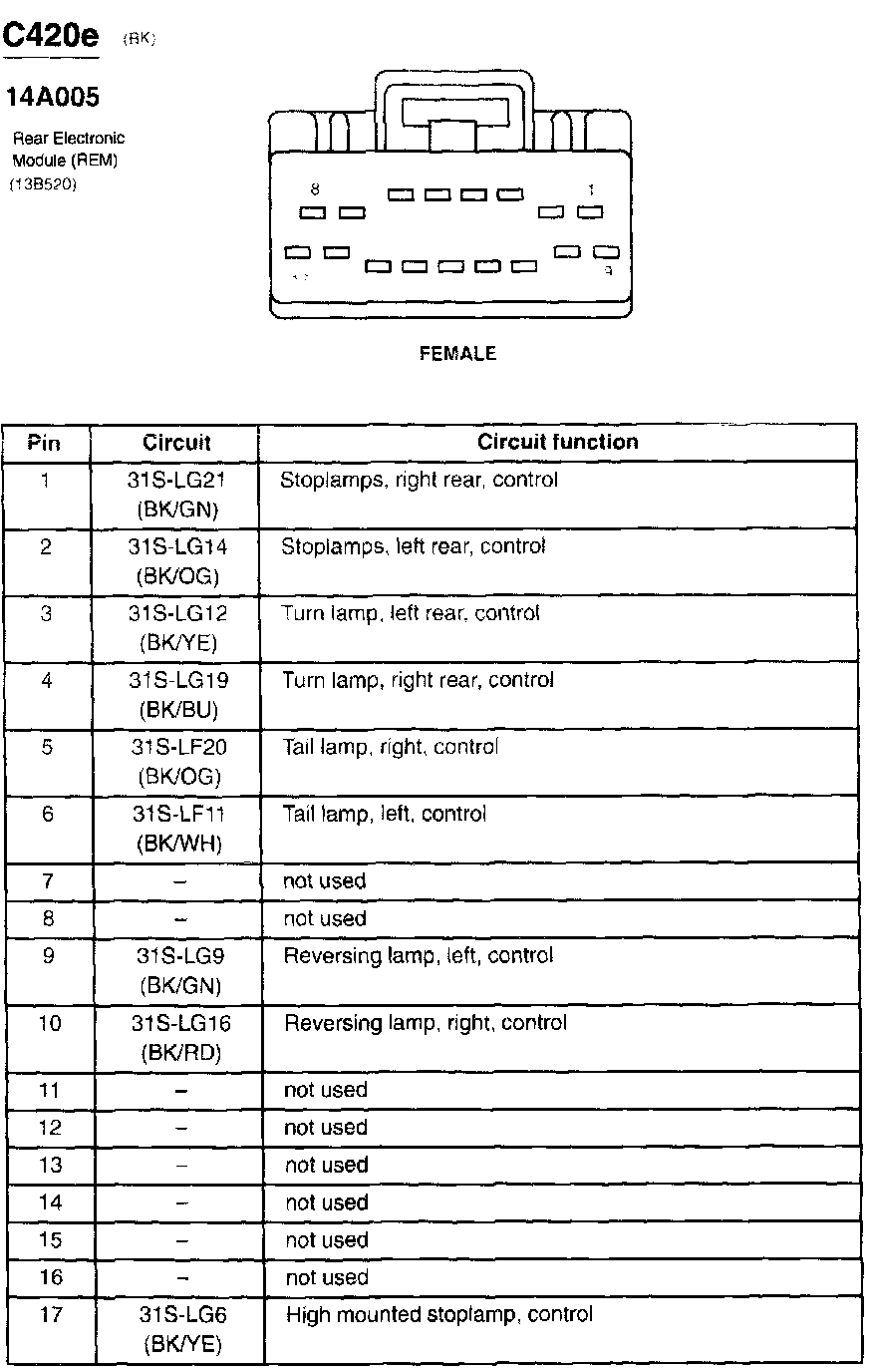

C420e:

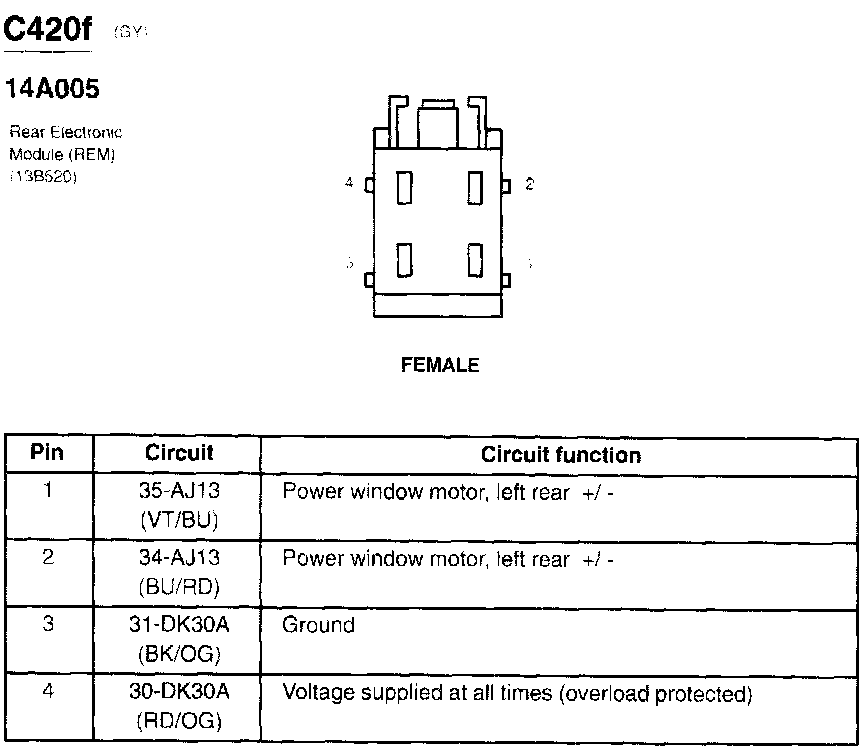

C420f:

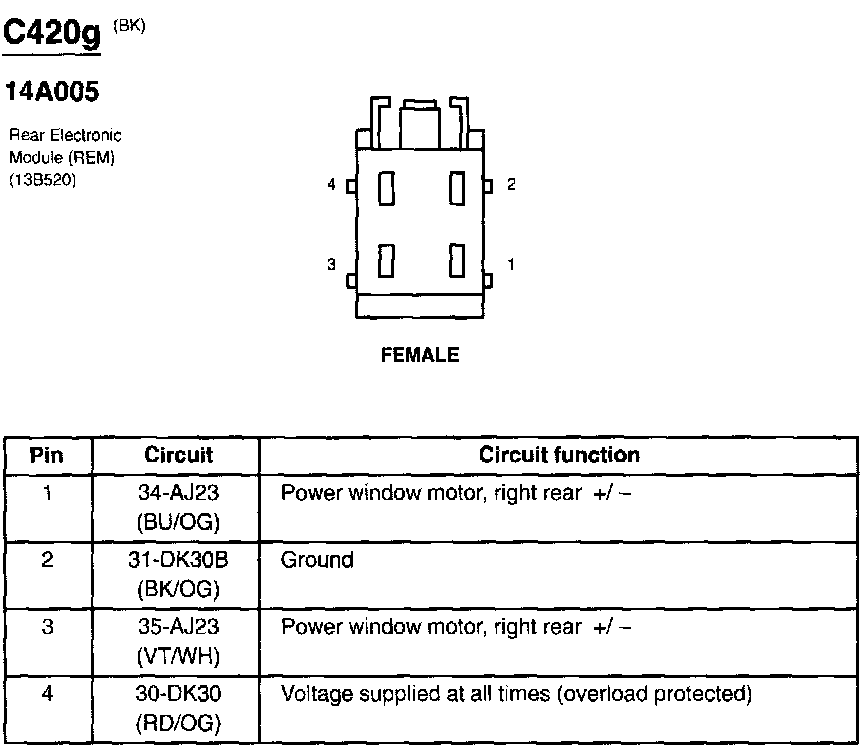

C420g:
