Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Driver Door Module

Driver Door Module

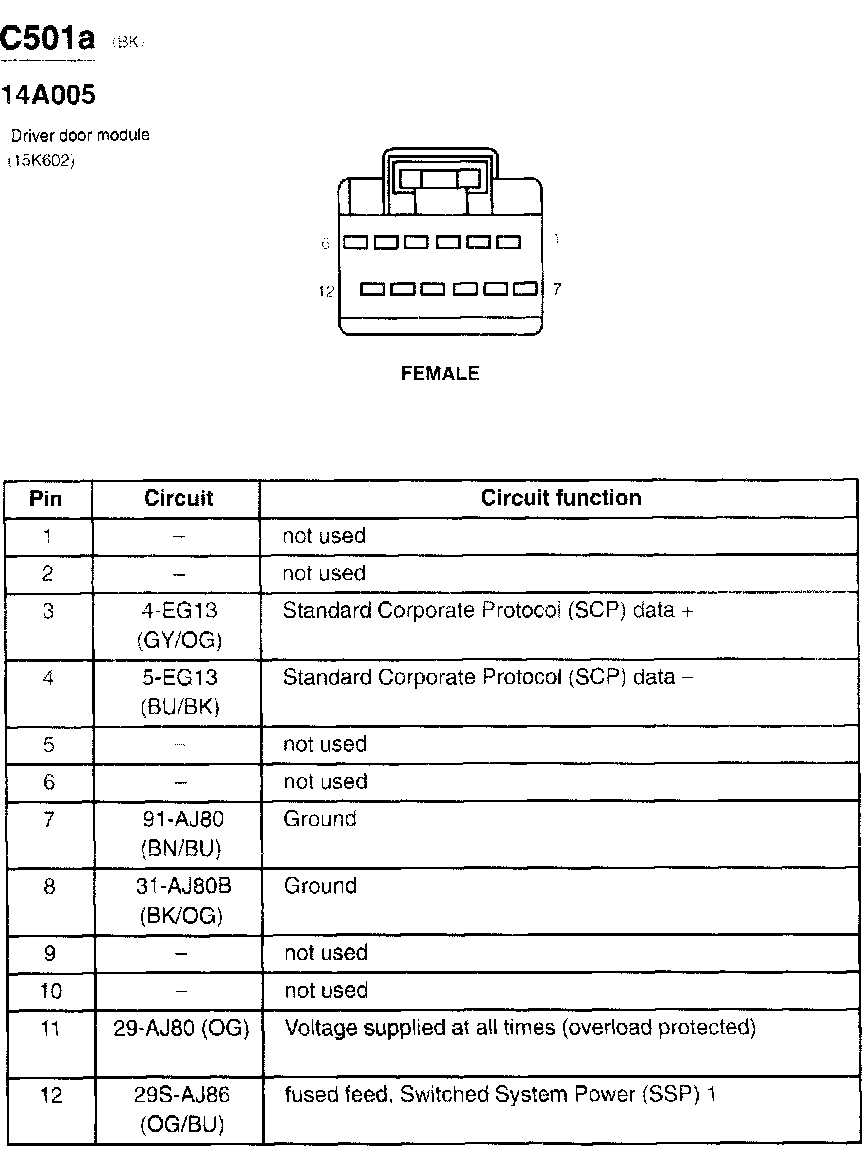

C501a:

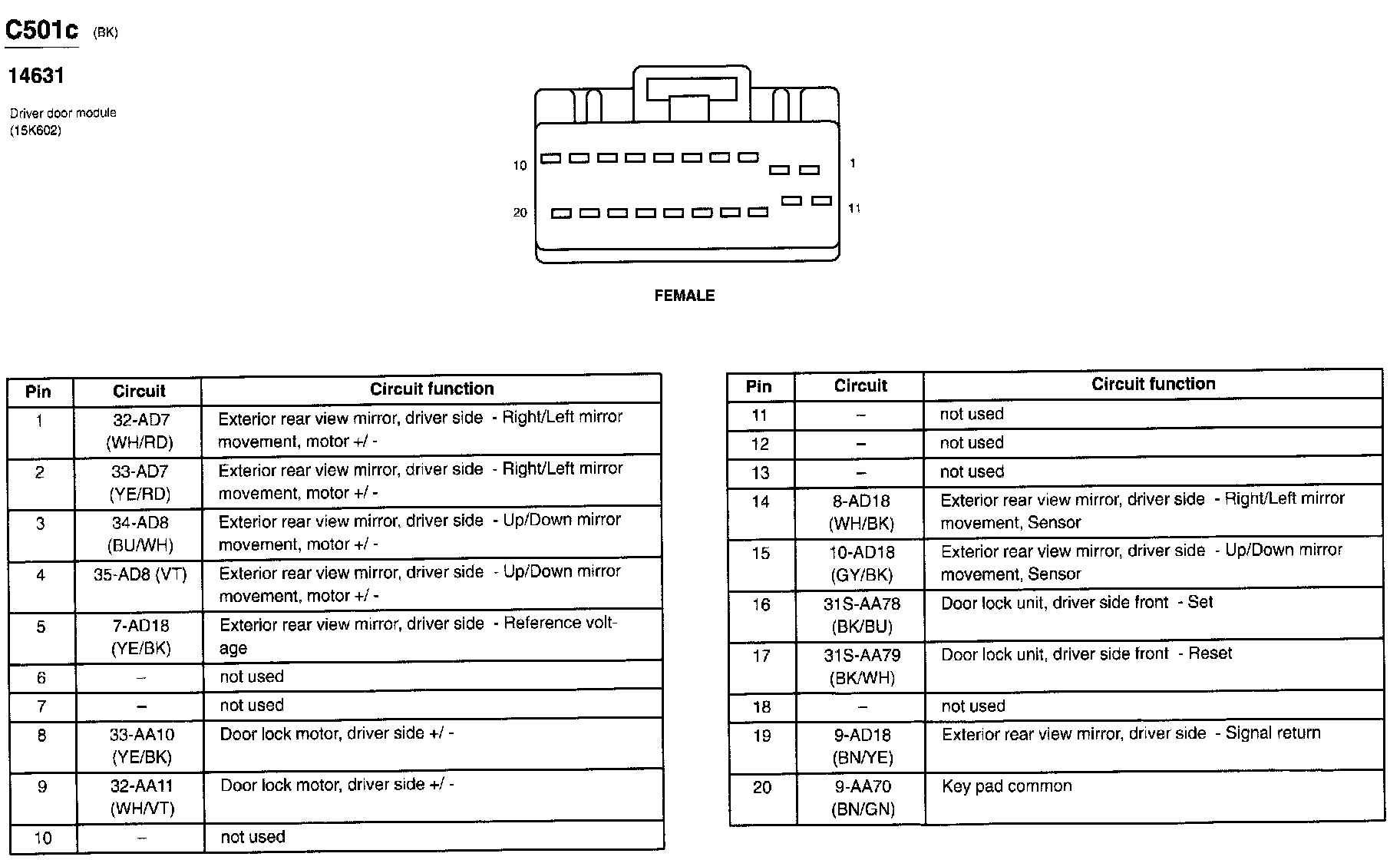

C501c:

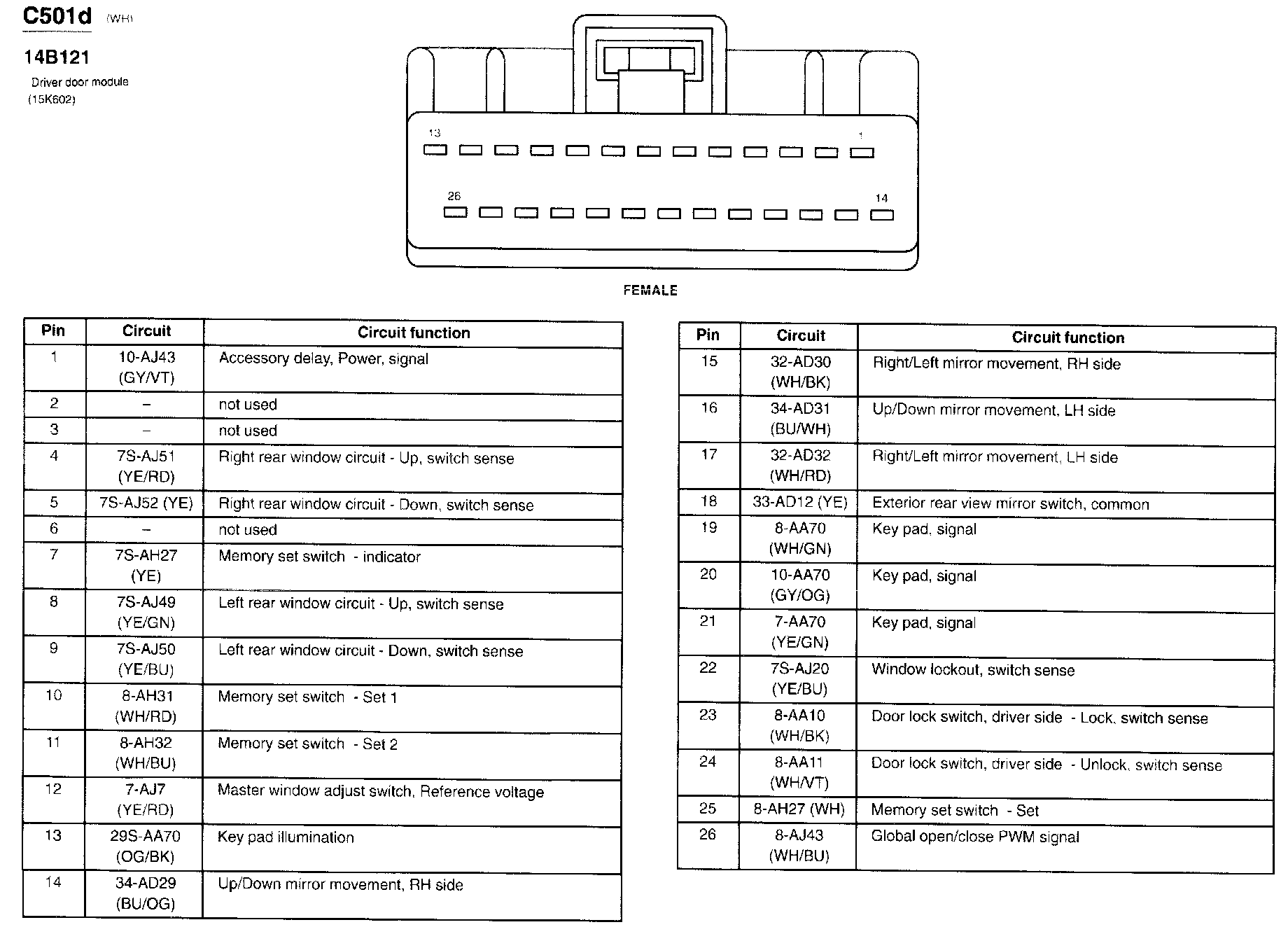

C501d:
