Home
>>
Lincoln
>>
2003
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

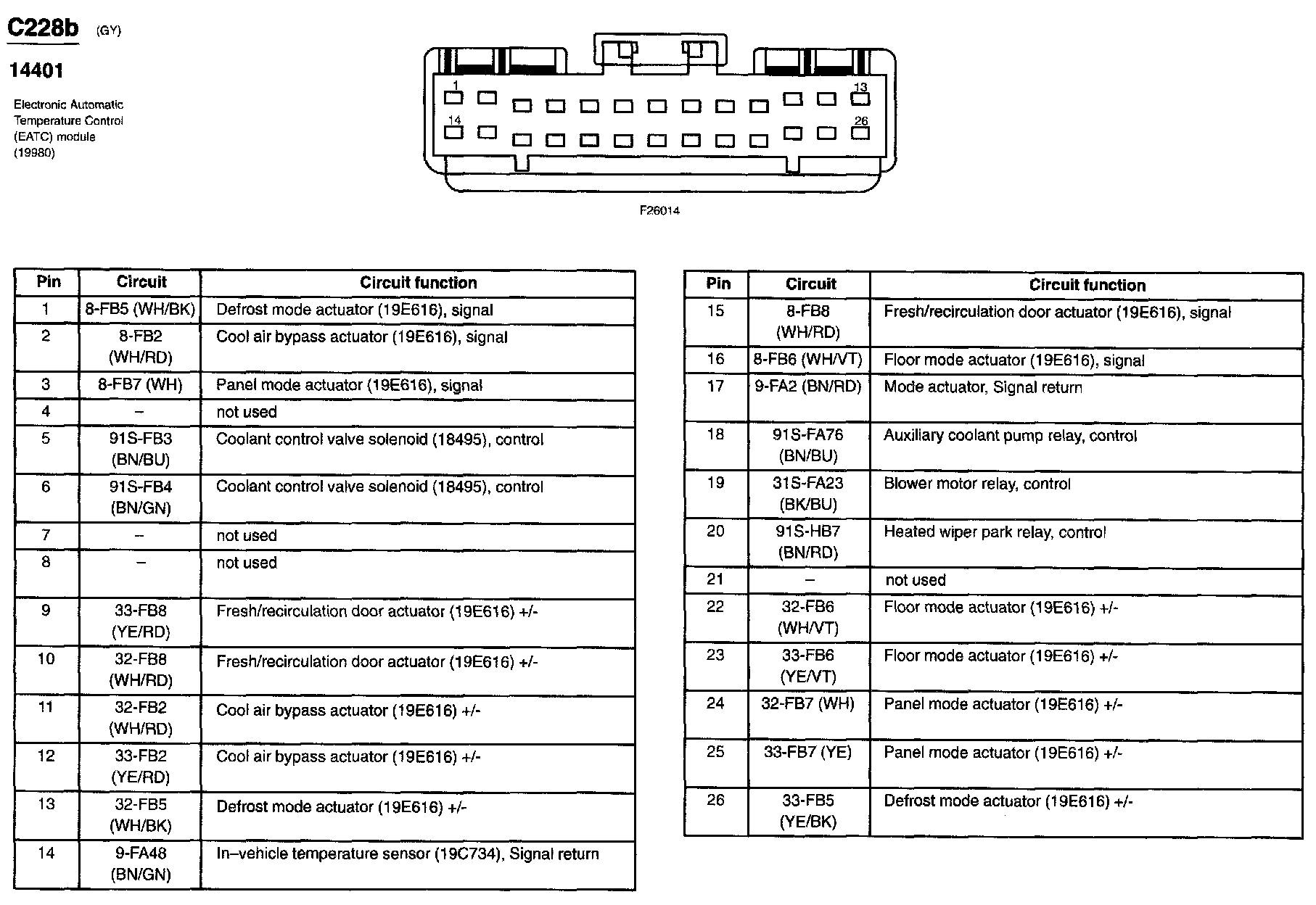

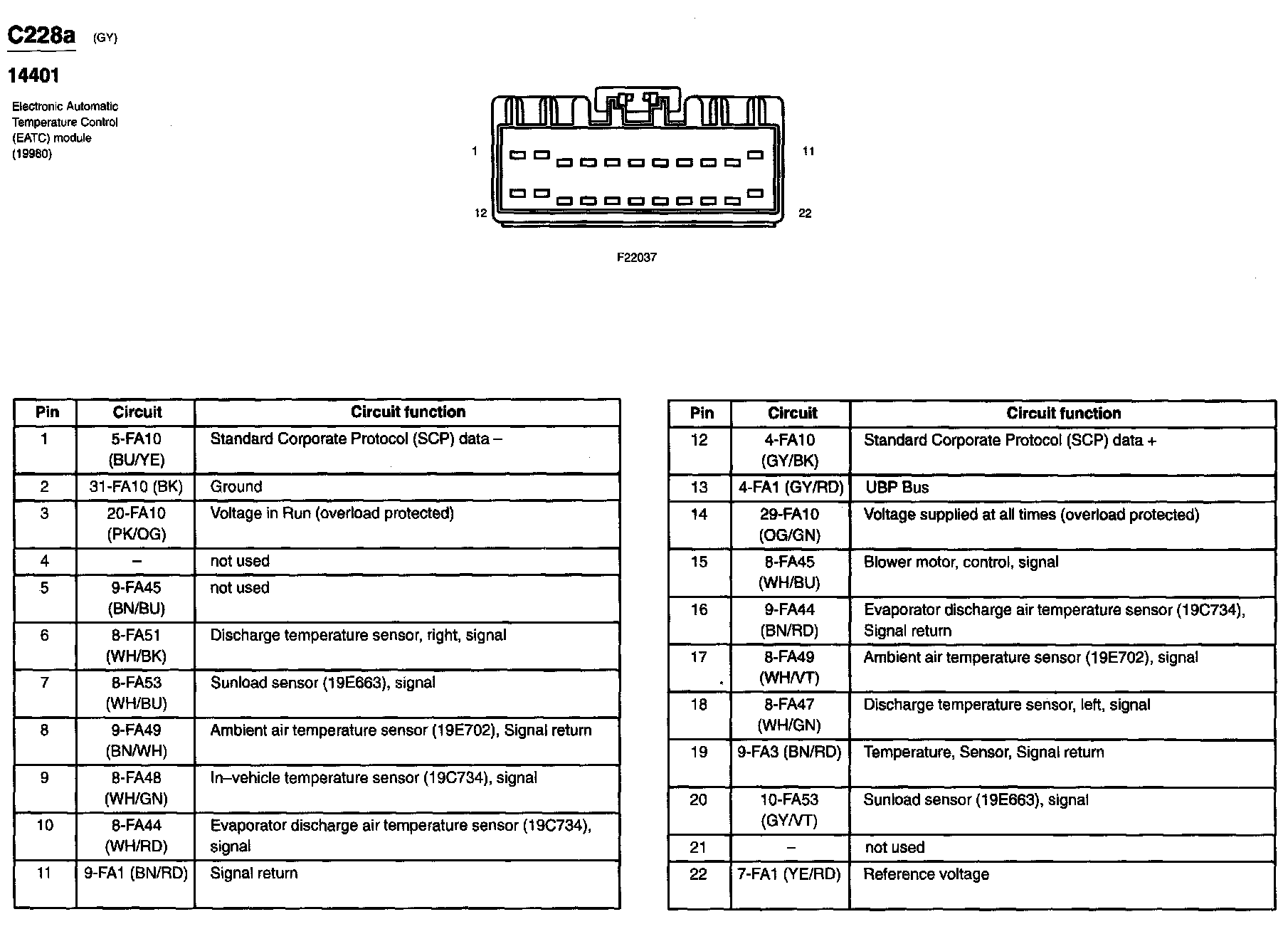

Electronic Automatic Temperature Control (EATC) Module
Electronic Automatic Temperature Control (EATC) Module
