Lincoln
>>
2002
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

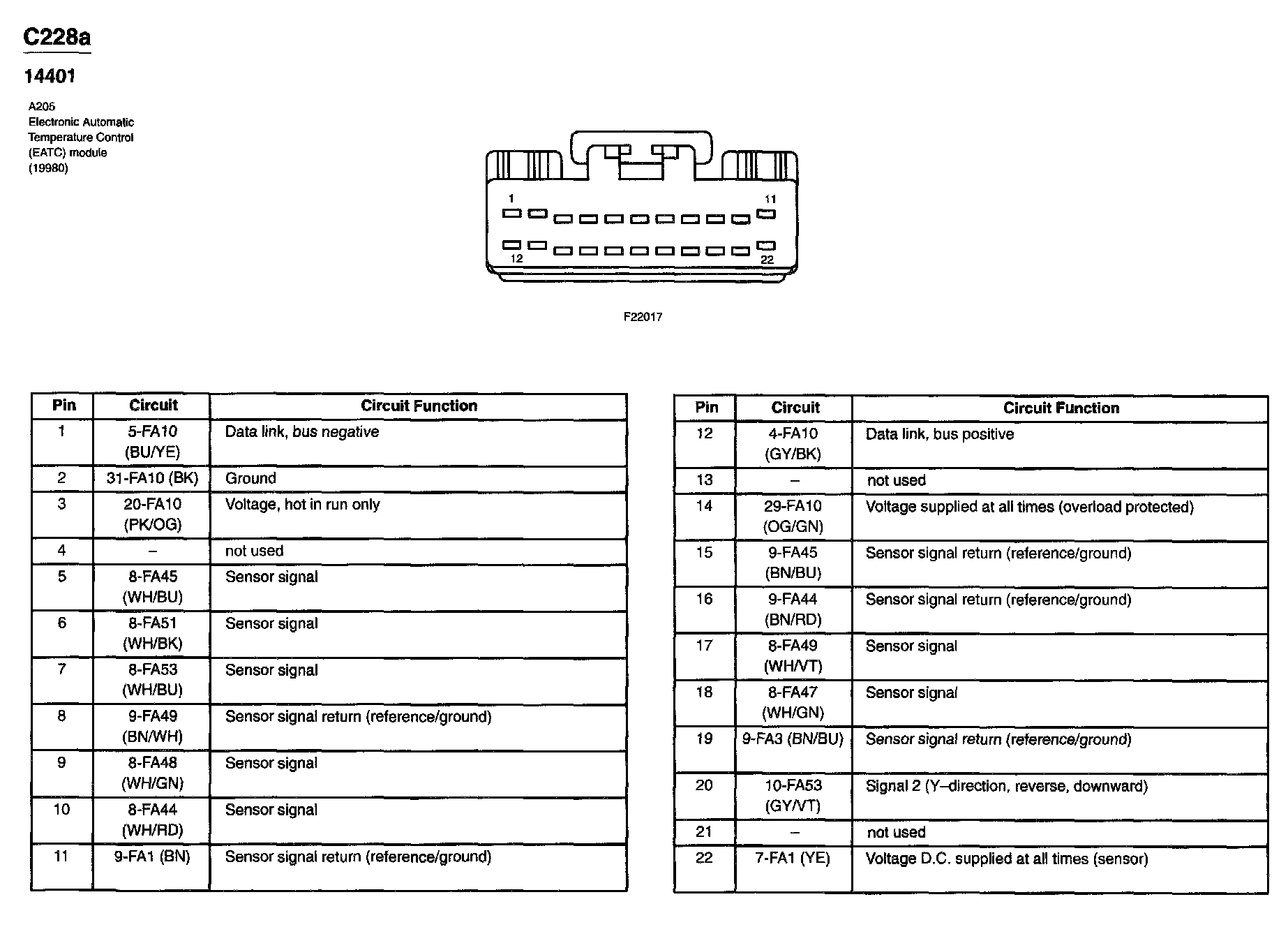

Electronic Automatic Temperature Control Module

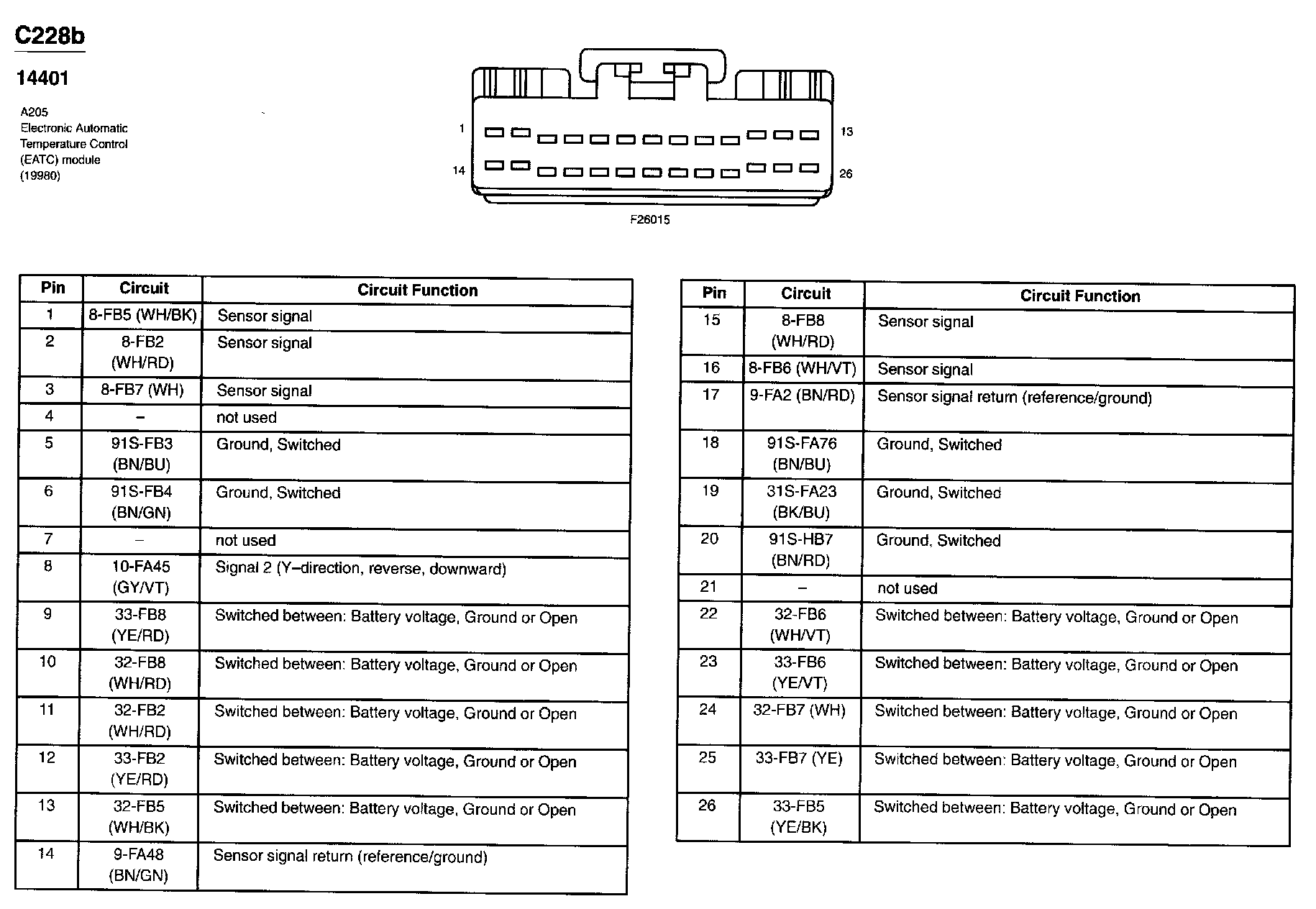

Electronic Automatic Temperature Control Module
