Home >> Lincoln >> 2001 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations >> Electronic Climate Control Module

Electronic Climate Control Module

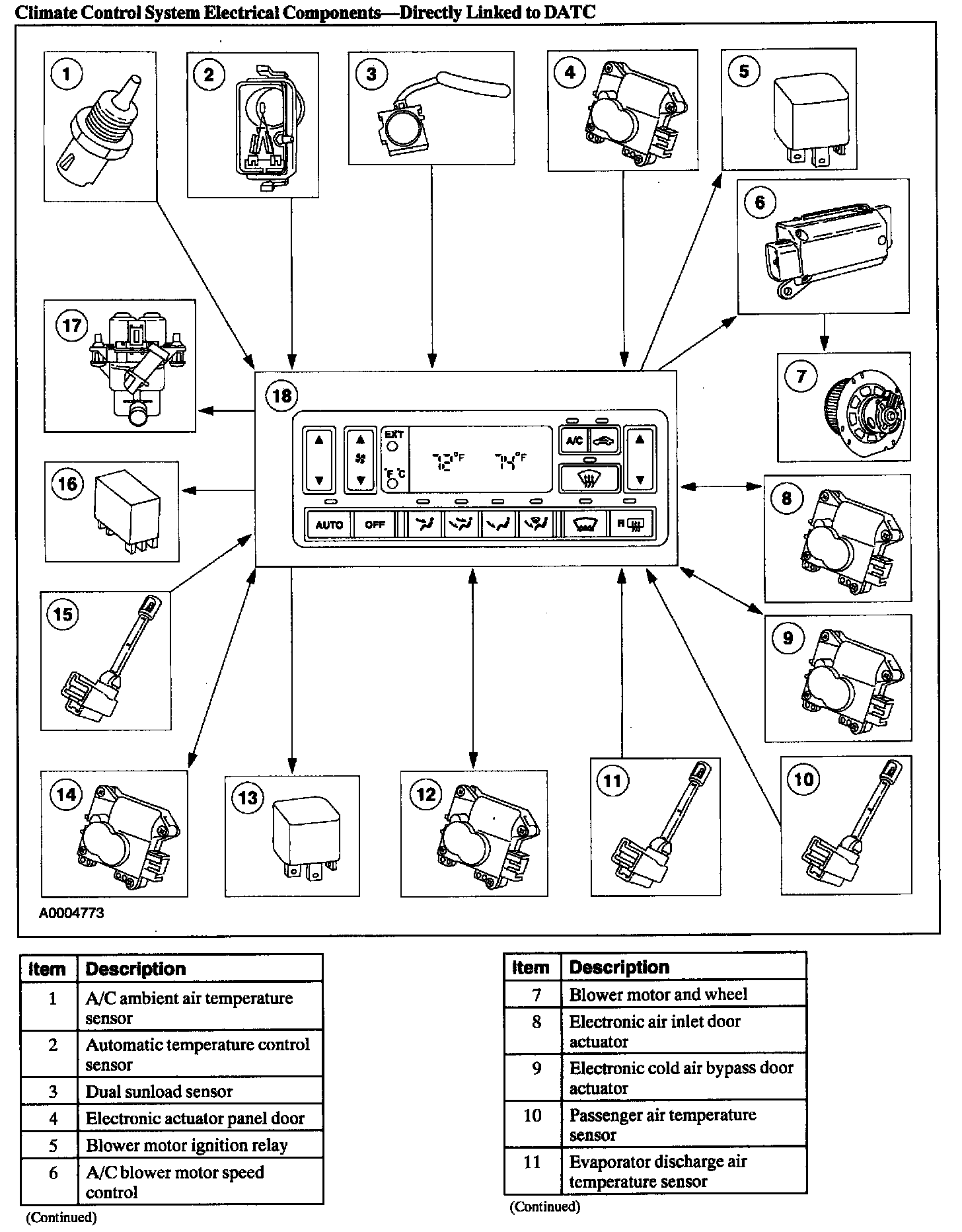

Climate Control System Electrical Components - Directly Linked To DATC, Part 1:

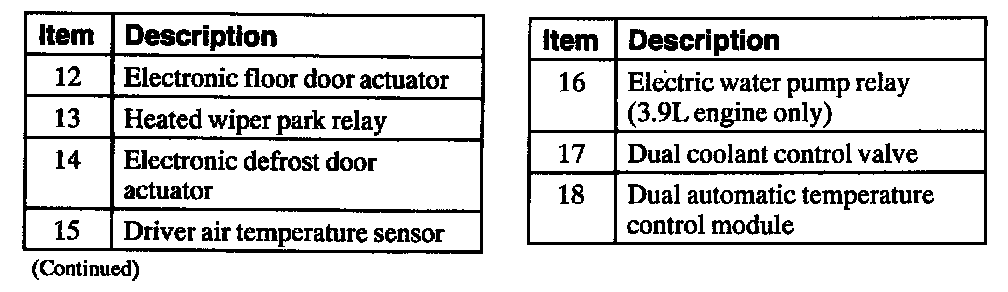

Climate Control System Electrical Components - Directly Linked to DATC, Part 2:
