Home >> Lincoln >> 2000 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test O: No Module/Network Communication

Test O: No Module/Network Communication

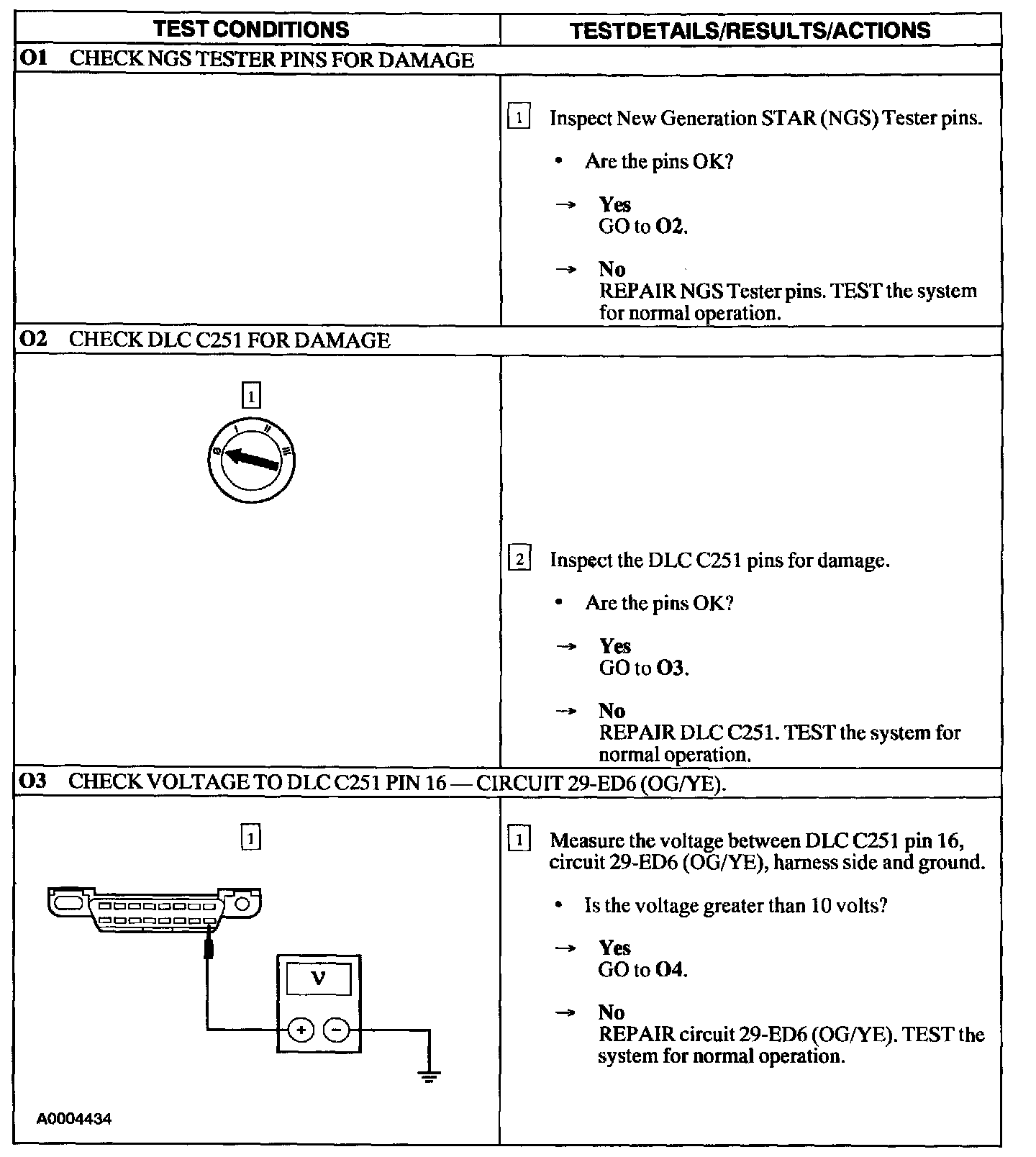

O1 - O3:

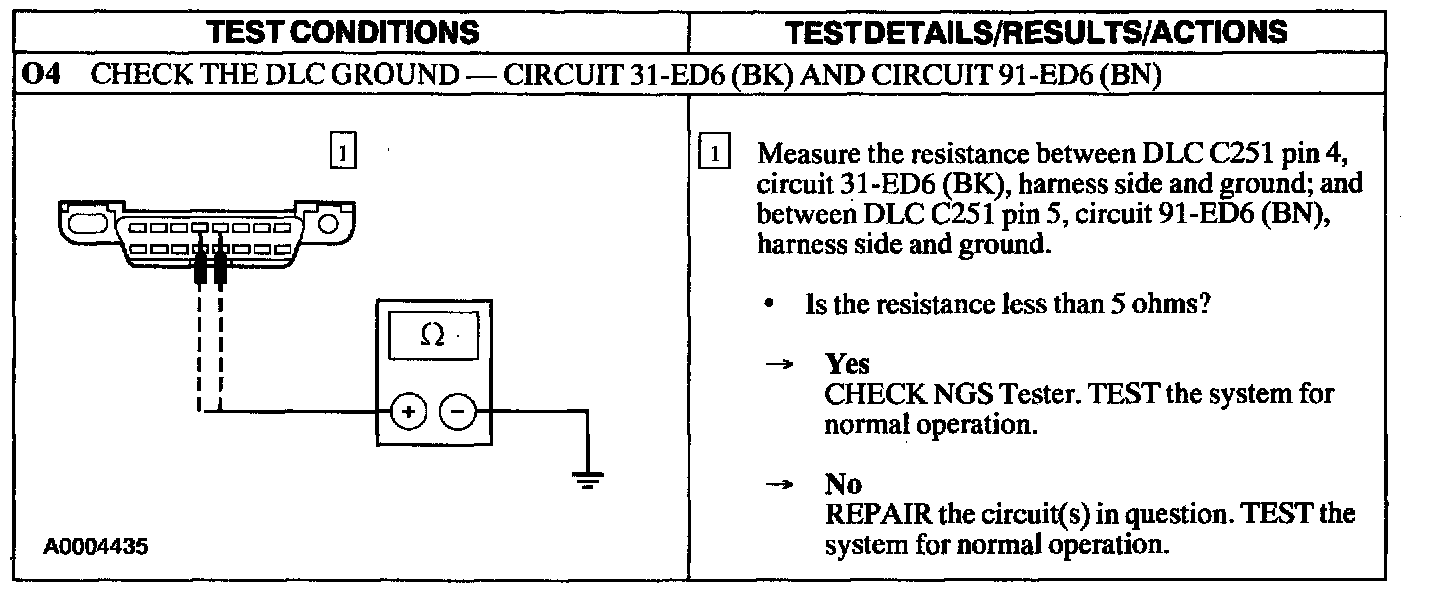

O4:
