Home >> Lincoln >> 2000 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

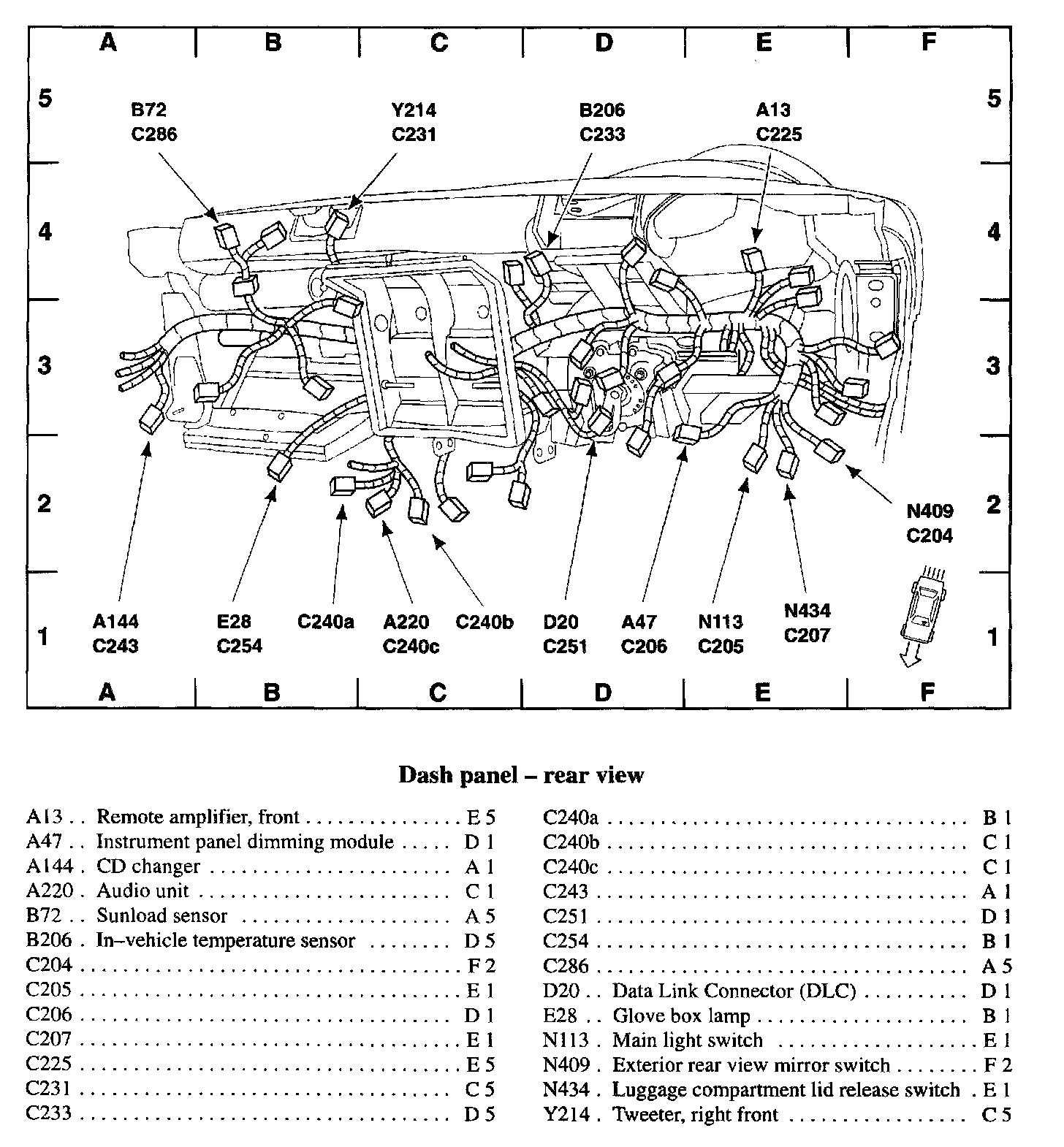

Data Link Connector is located a D20. The image is the rear view of the dash panel. Steering wheel is in the upper right of the image.
