Rear

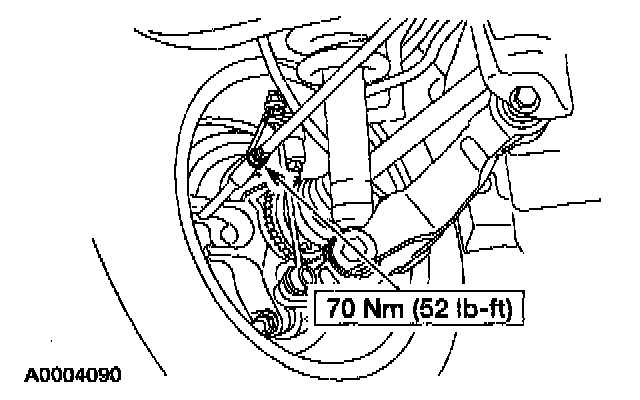

1. Loosen the nut.
- Clean the nut and toe link threads.





2. Rotate the toe link to adjust the toe.





3. Tighten the nut.
4. Recheck the toe settings. Follow the equipment manufacturer's instructions.
