Control Components

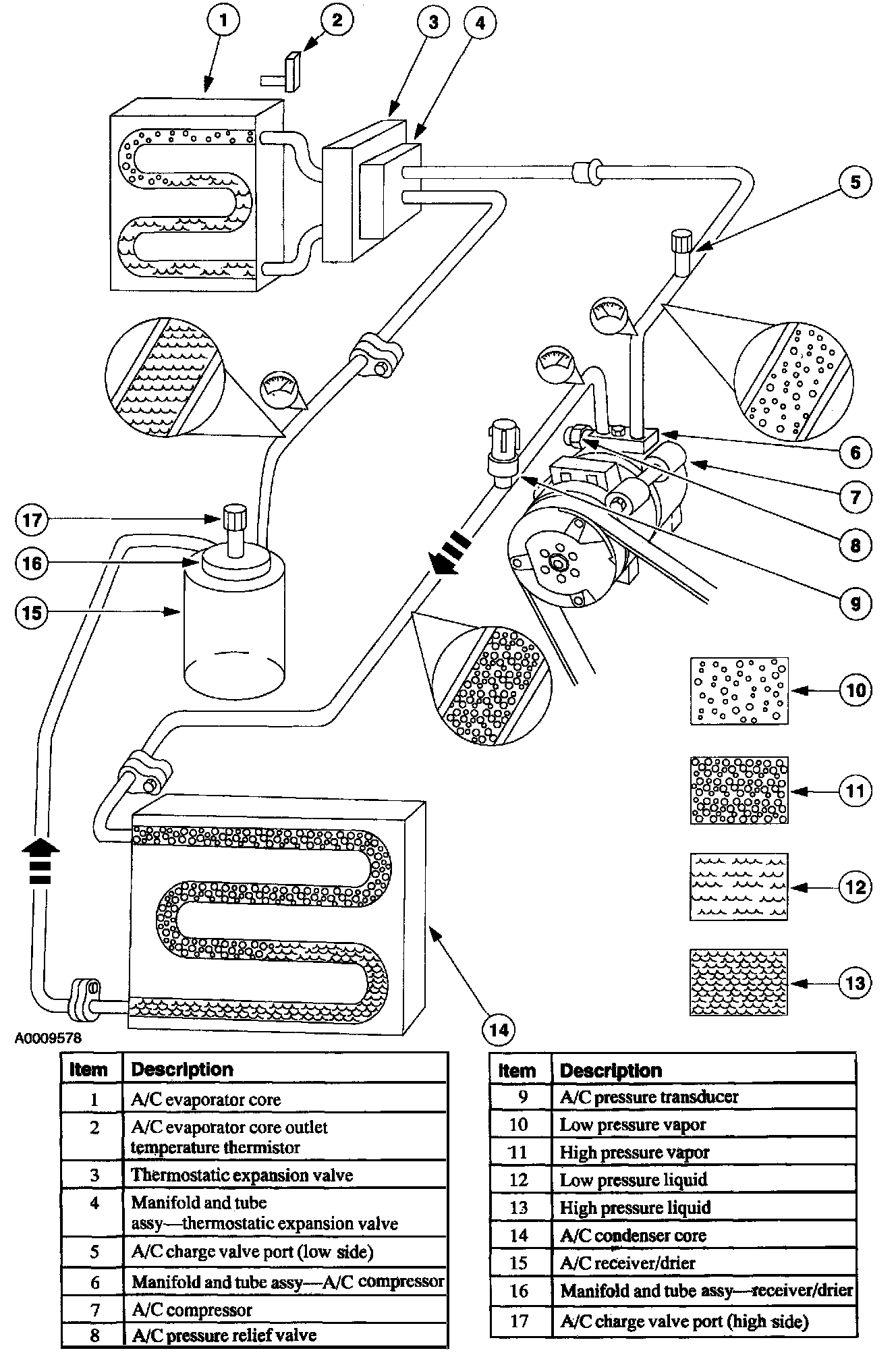

Clutch Cycling Thermostatic Expansion Valve Type Refrigerant System:

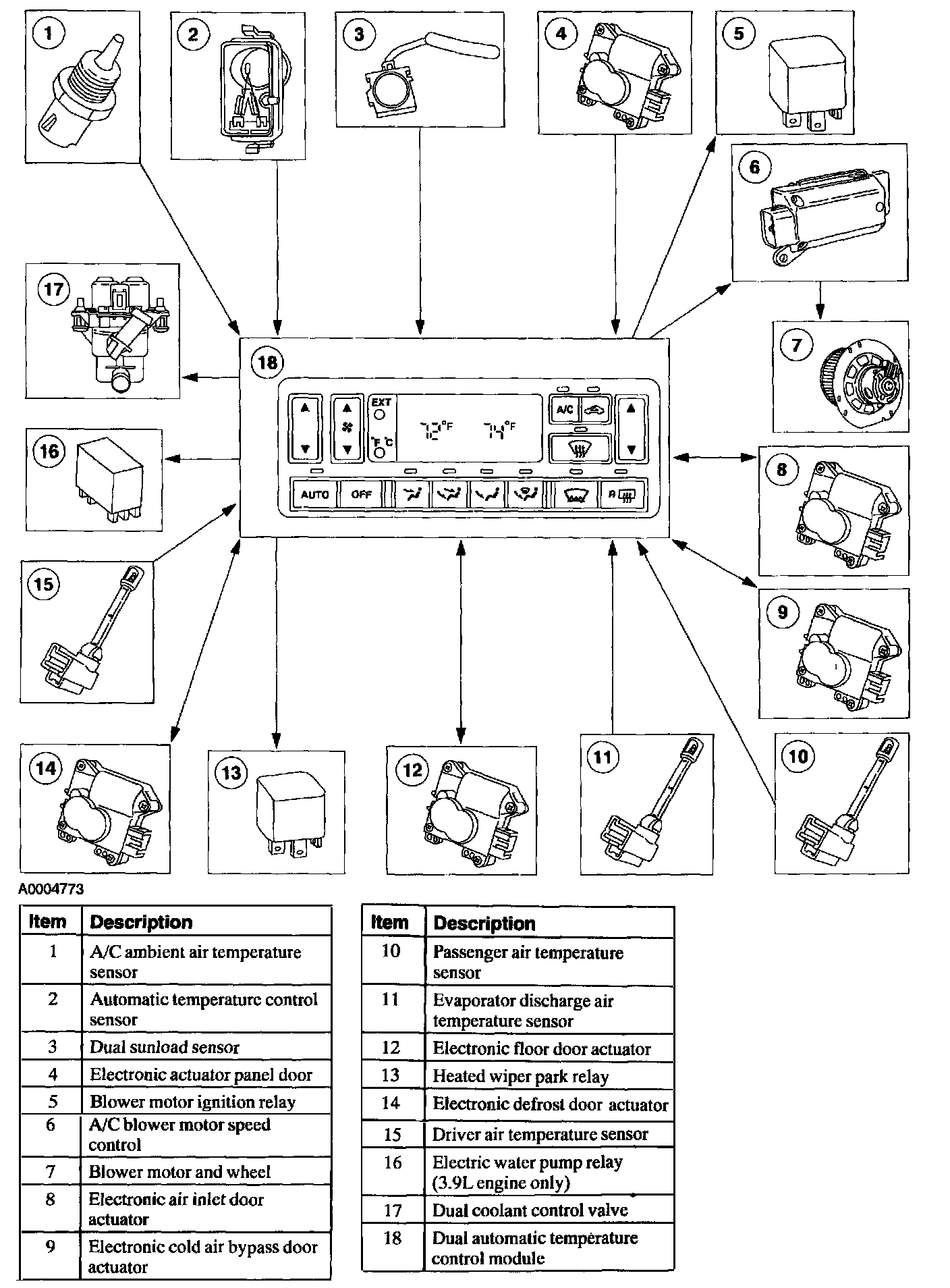

Directly Linked To DATC:

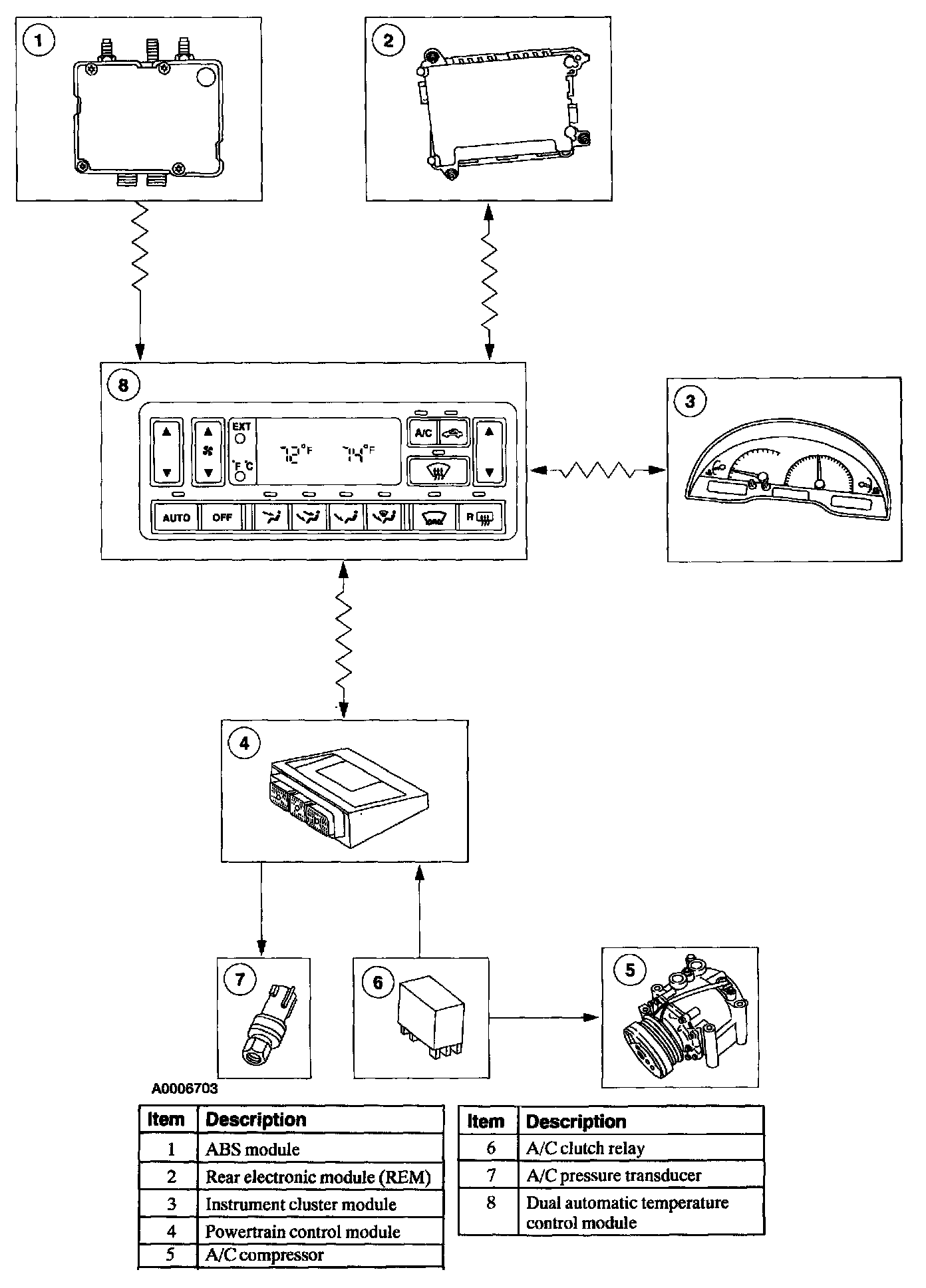

J1850 Communications Network (SCP) Linked:

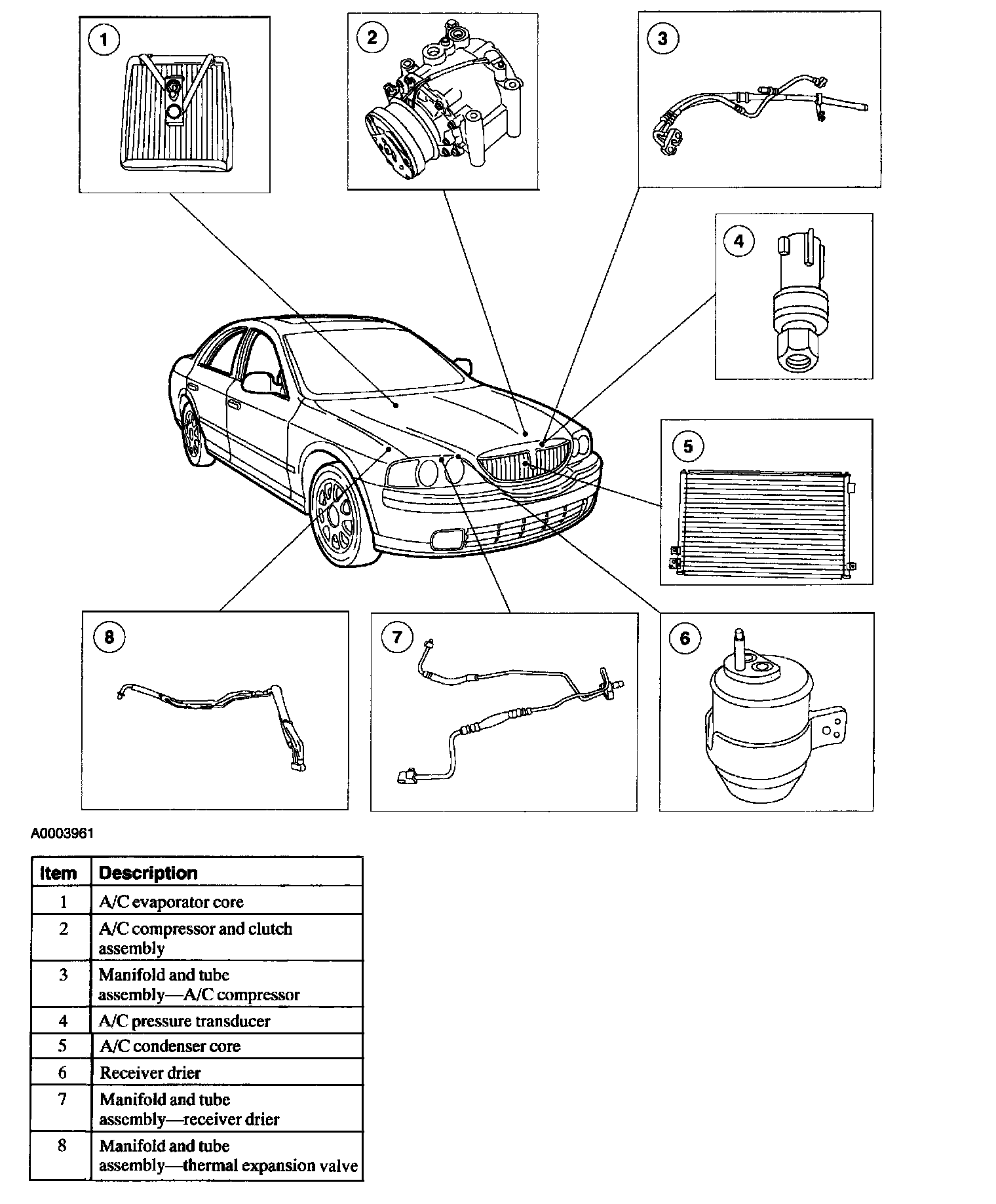

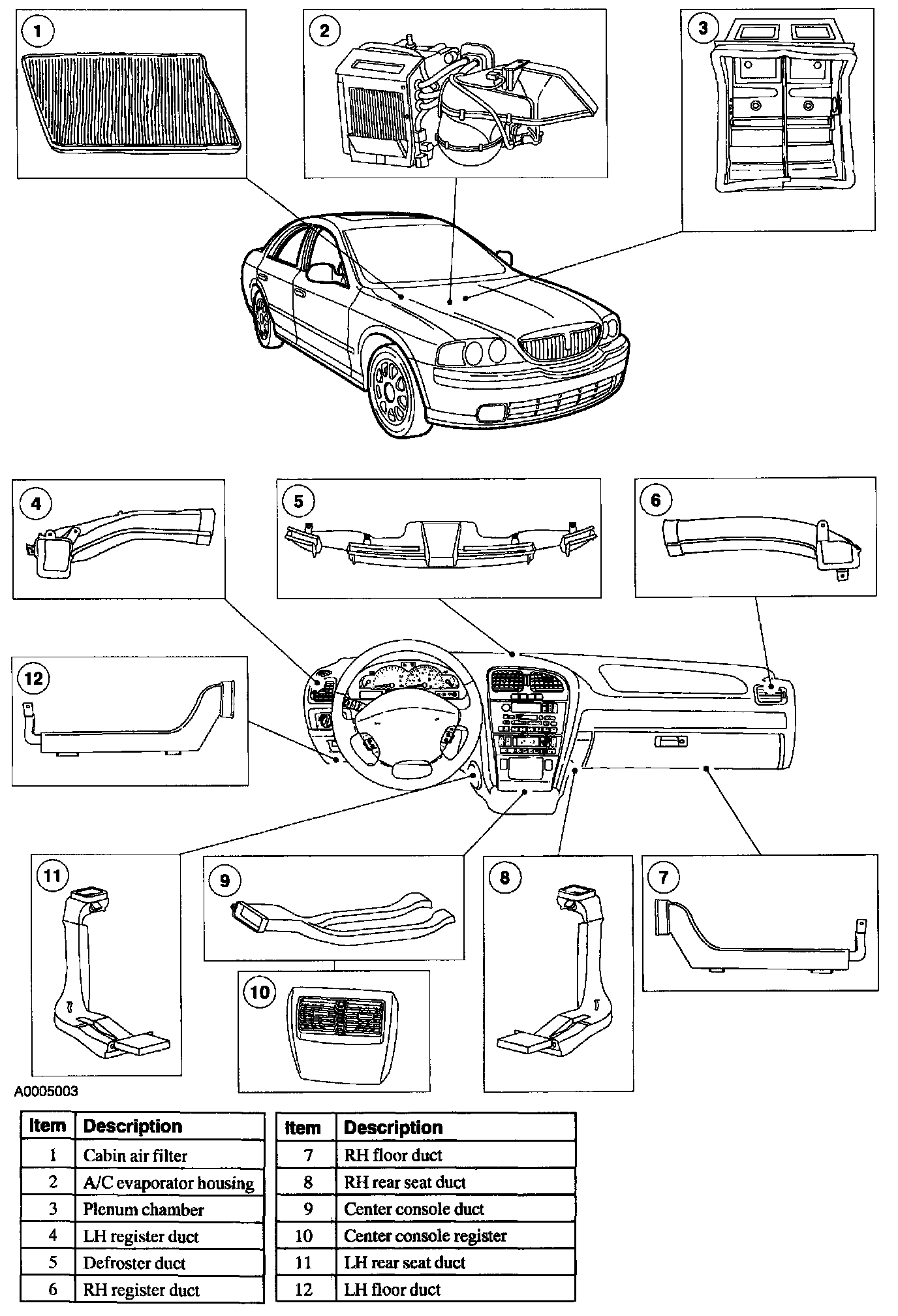

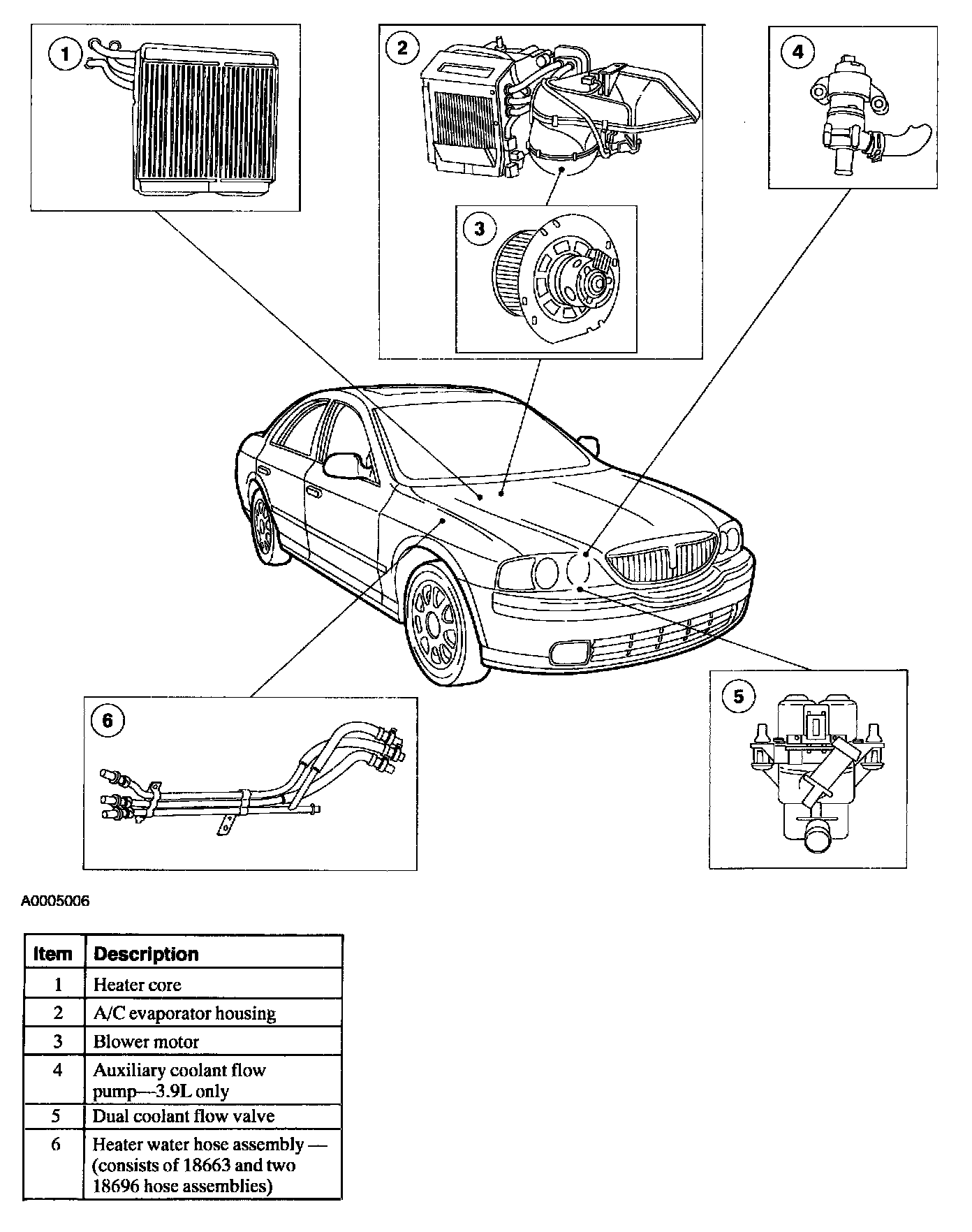

Component Locations:

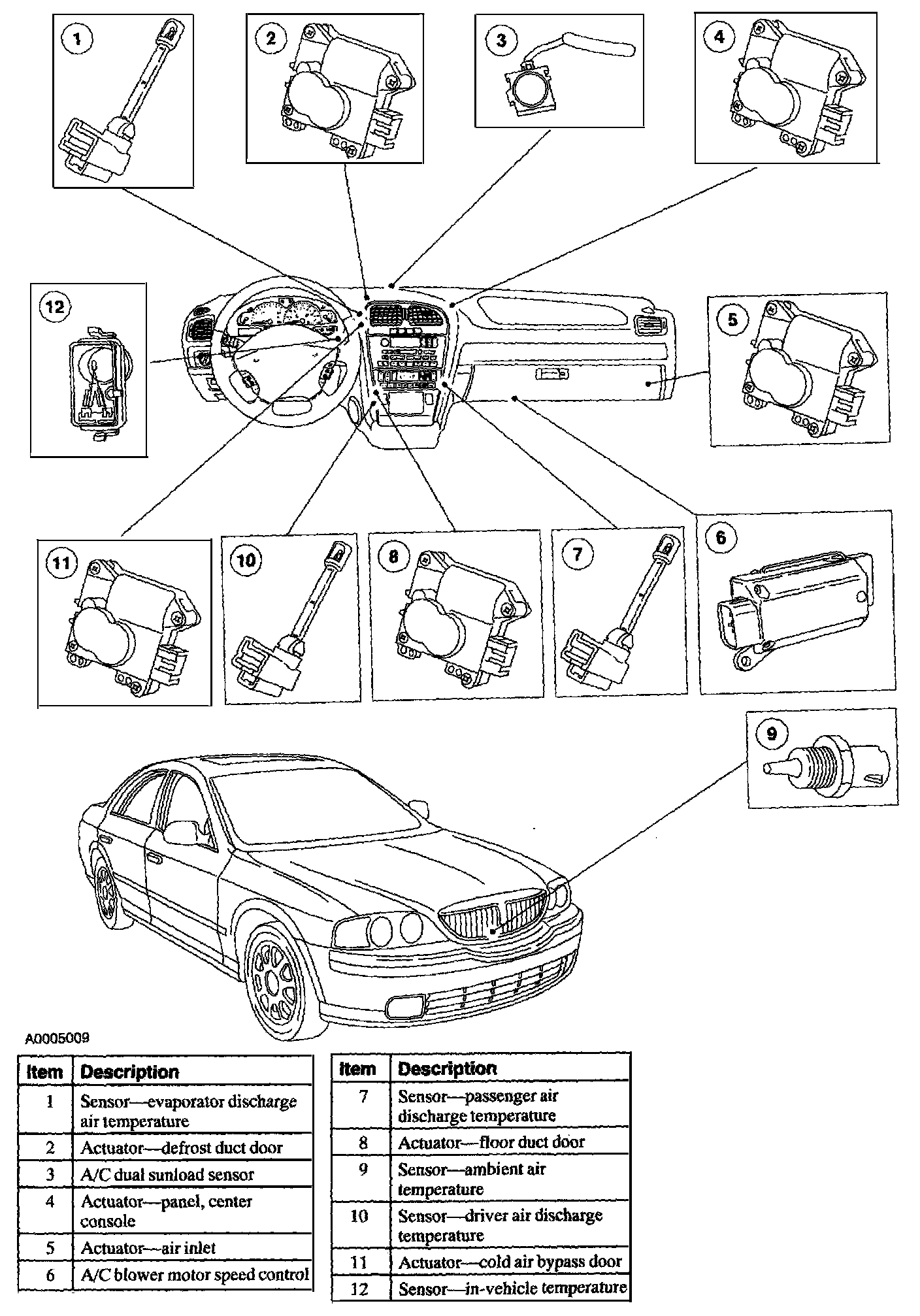

Component Locations:

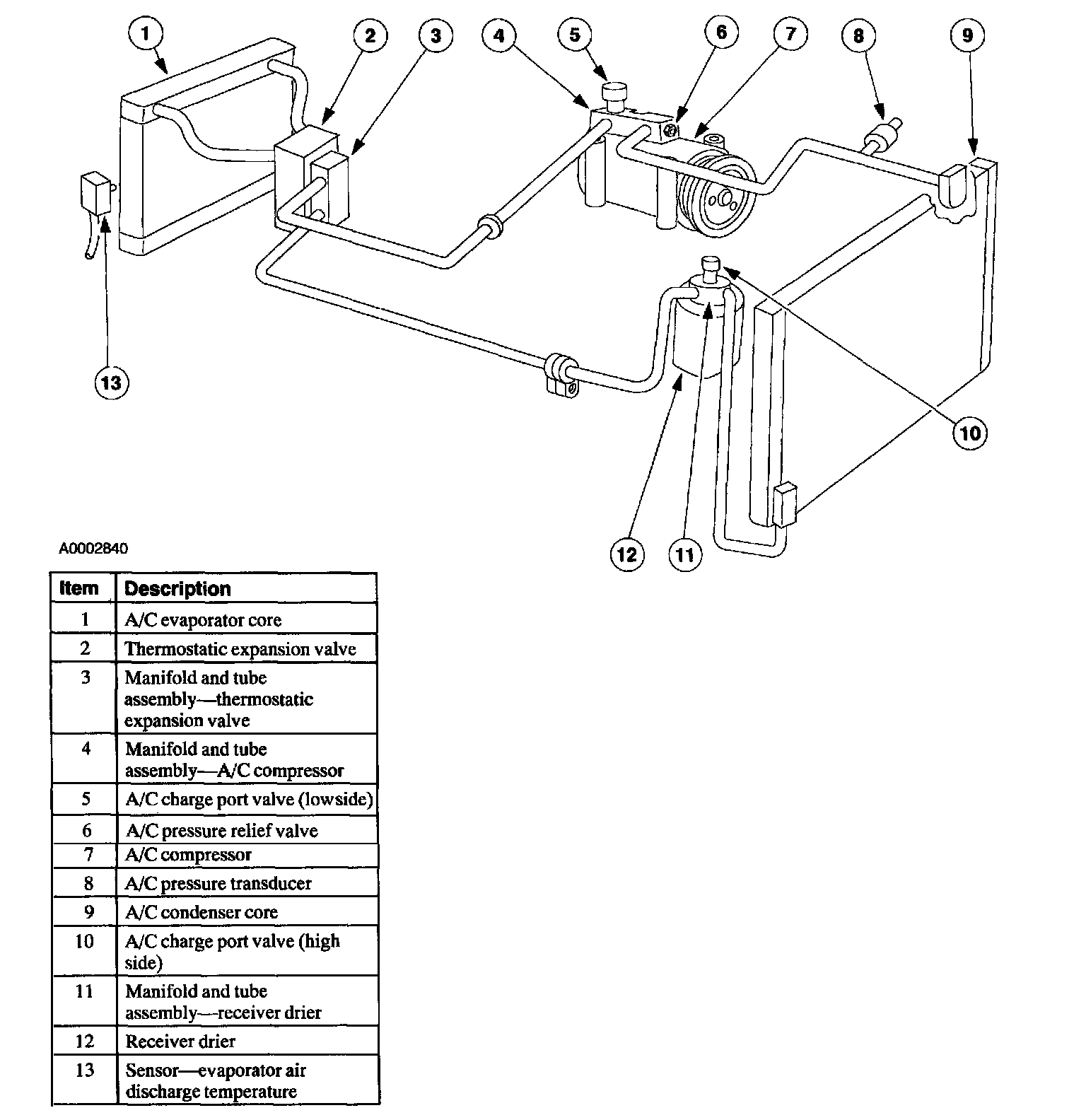

Refrigeration System Components:
