Home >> Lexus >> 2000 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> Engine Control Module

Engine Control Module

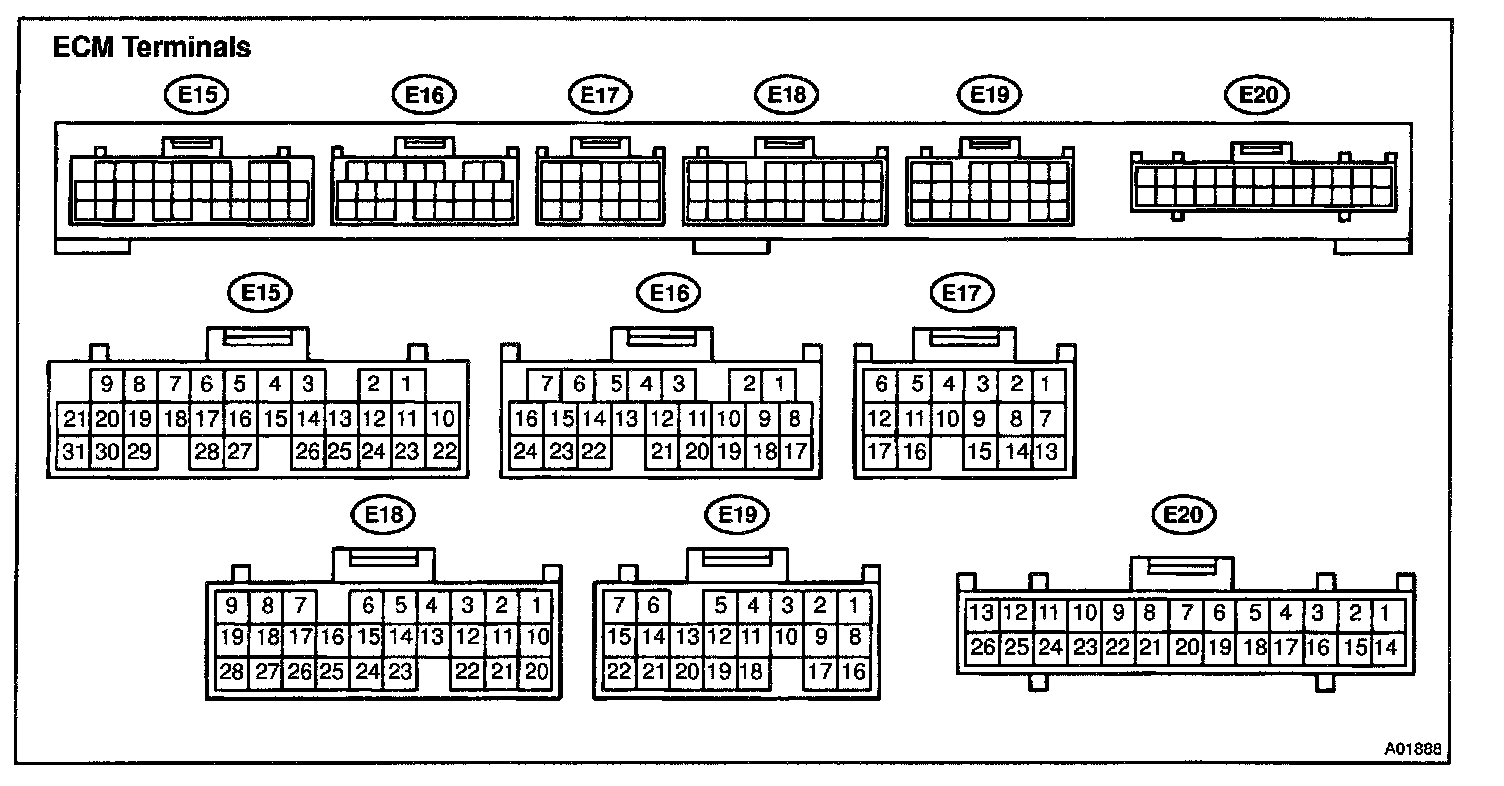

Connectors:

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:
