Home >> Lexus >> 2000 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Data

Service Data

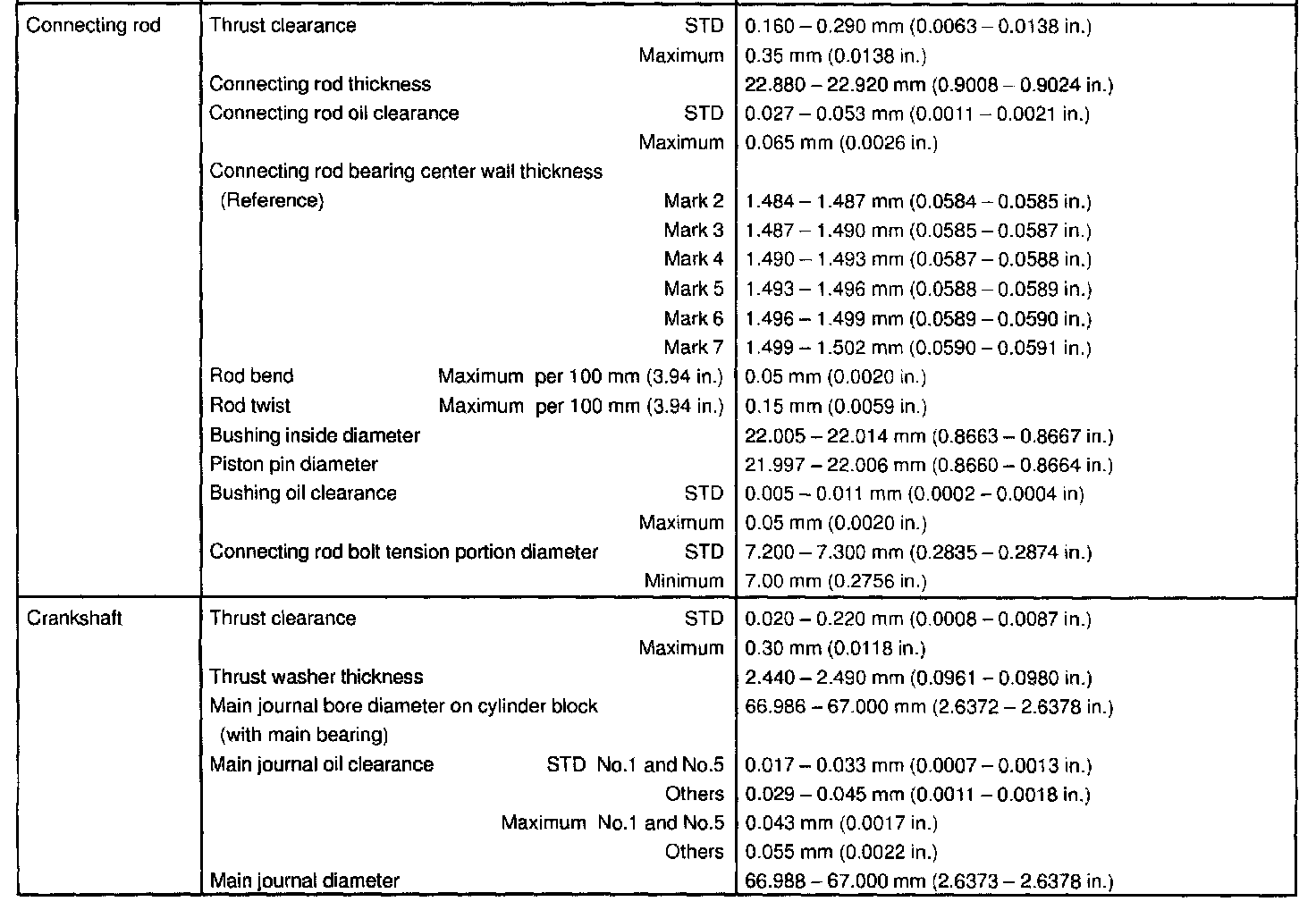

4.0L Engine Mechanical Data:

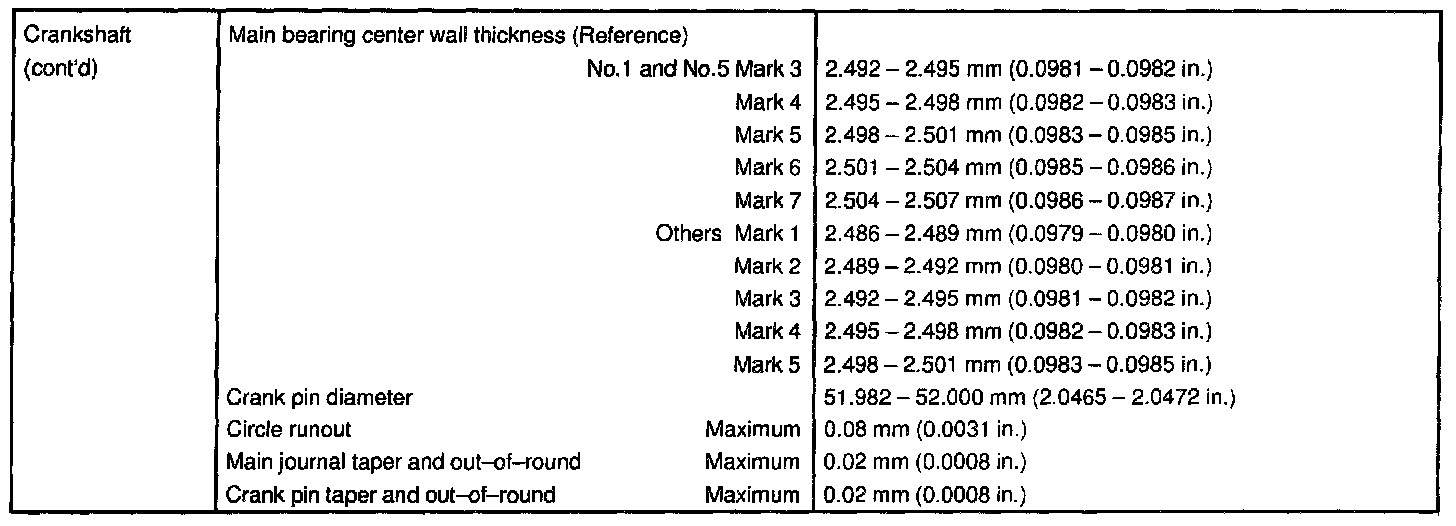

4.0L Engine Mechanical Cont.:

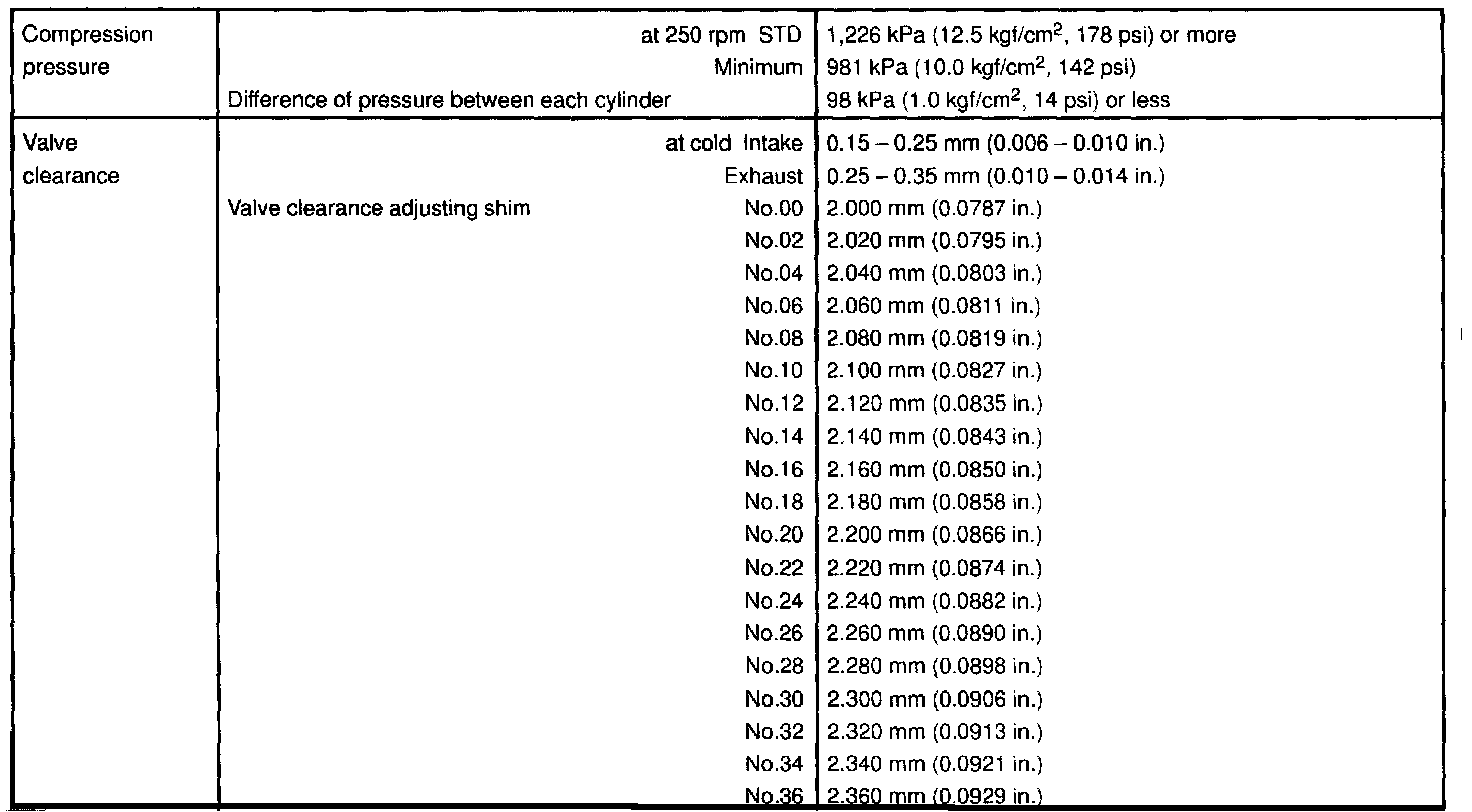

4.0L Engine Mechanical Cont.:

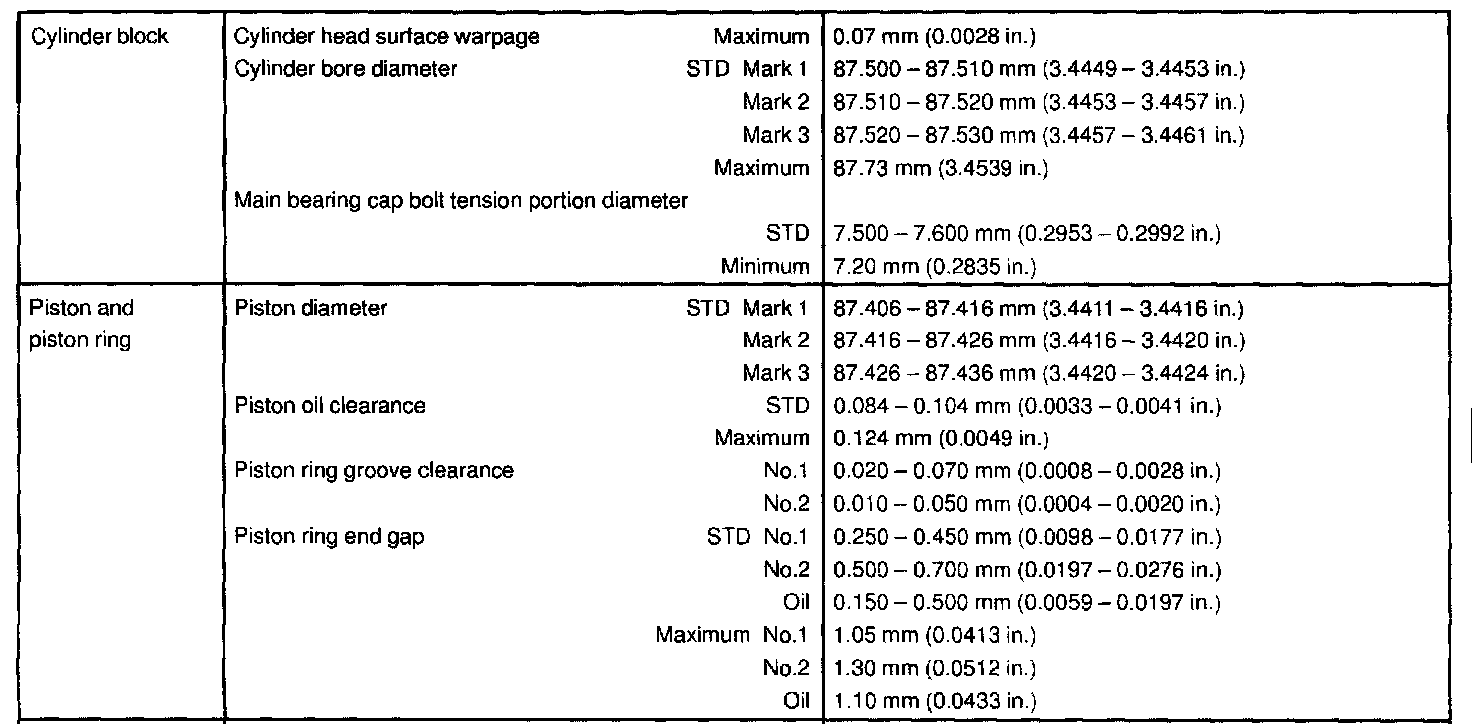

4.0L Engine Mechanical Cont.:

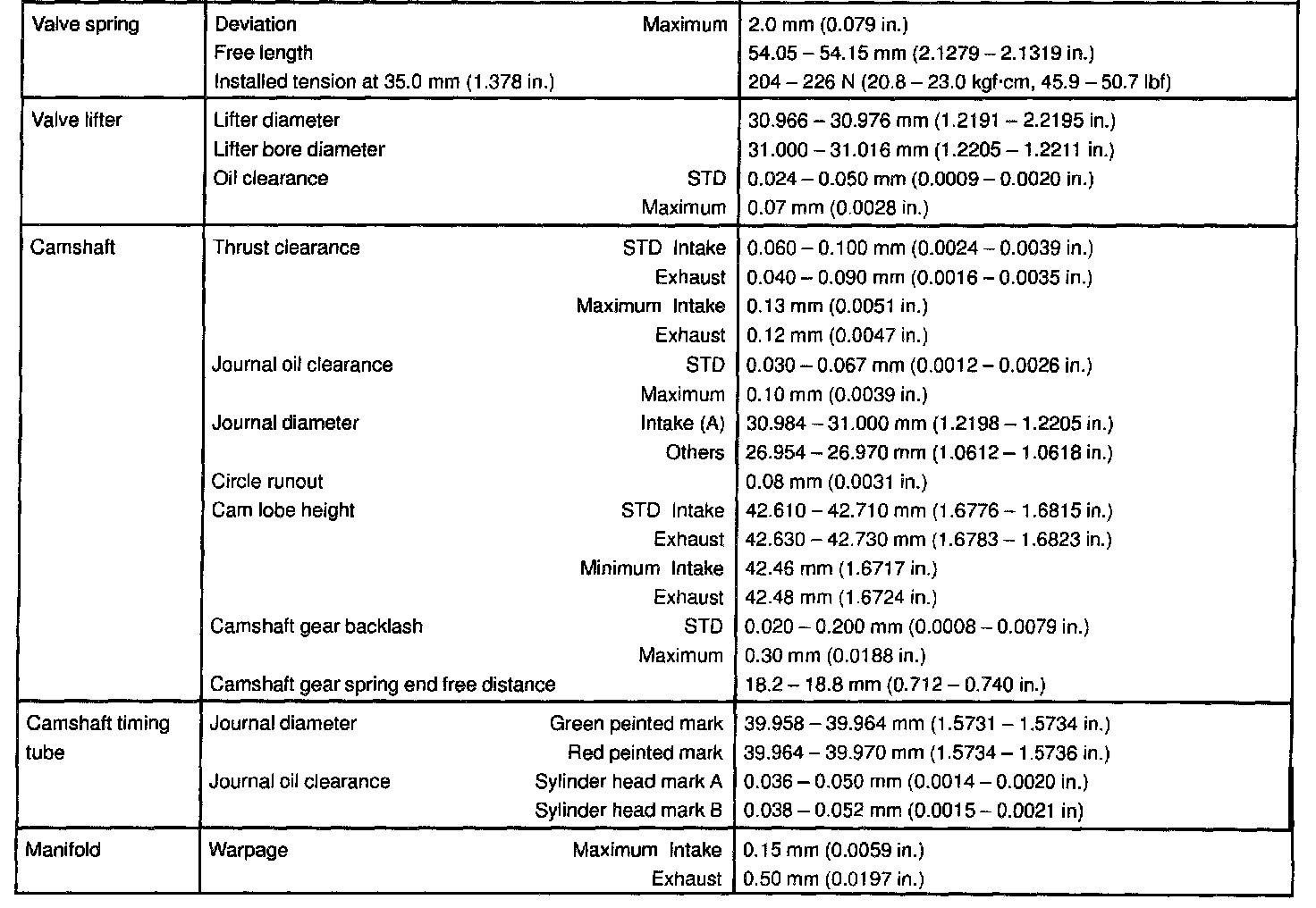

4.0L Engine Mechanical Cont.:

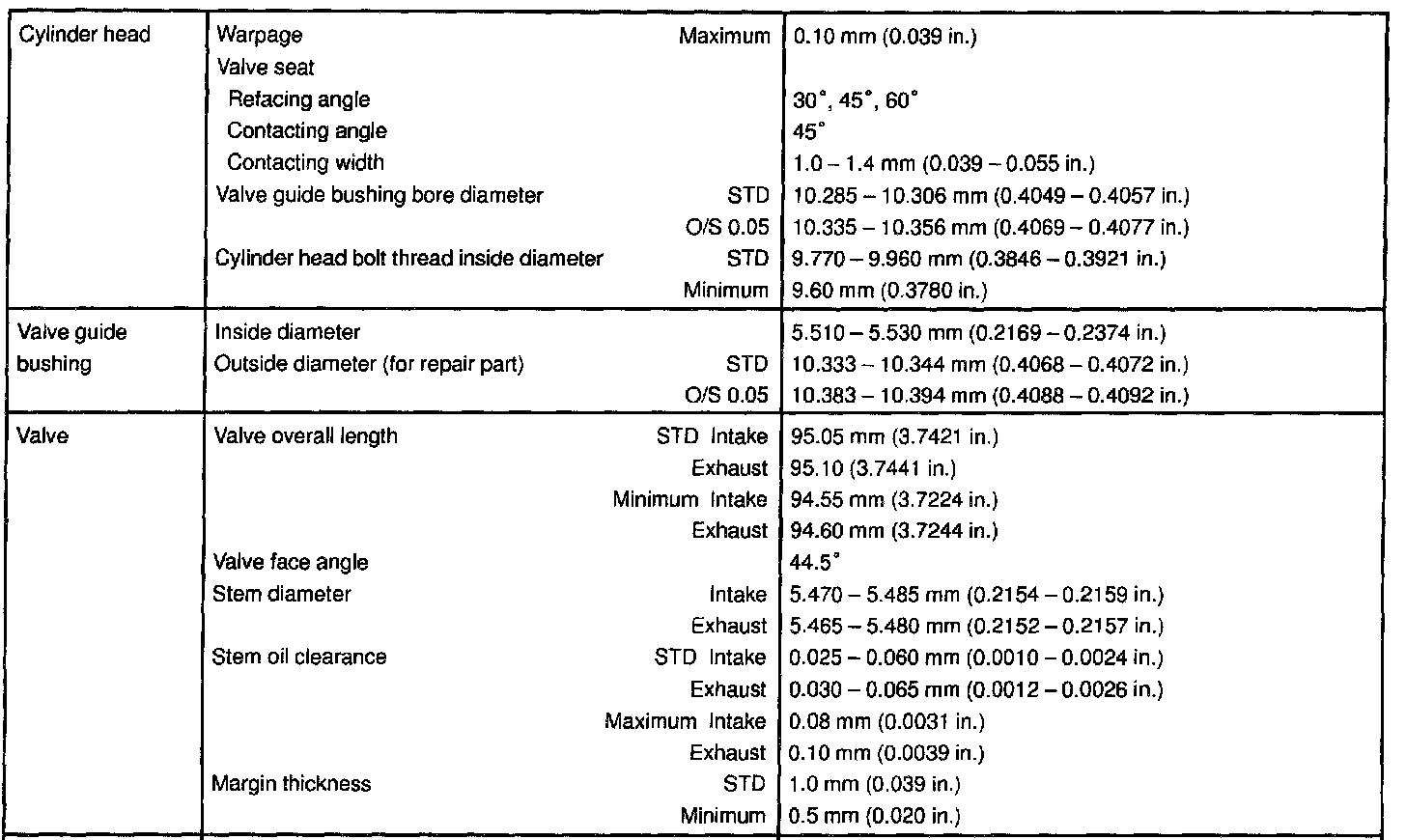

4.0L Engine Mechanical Cont.:

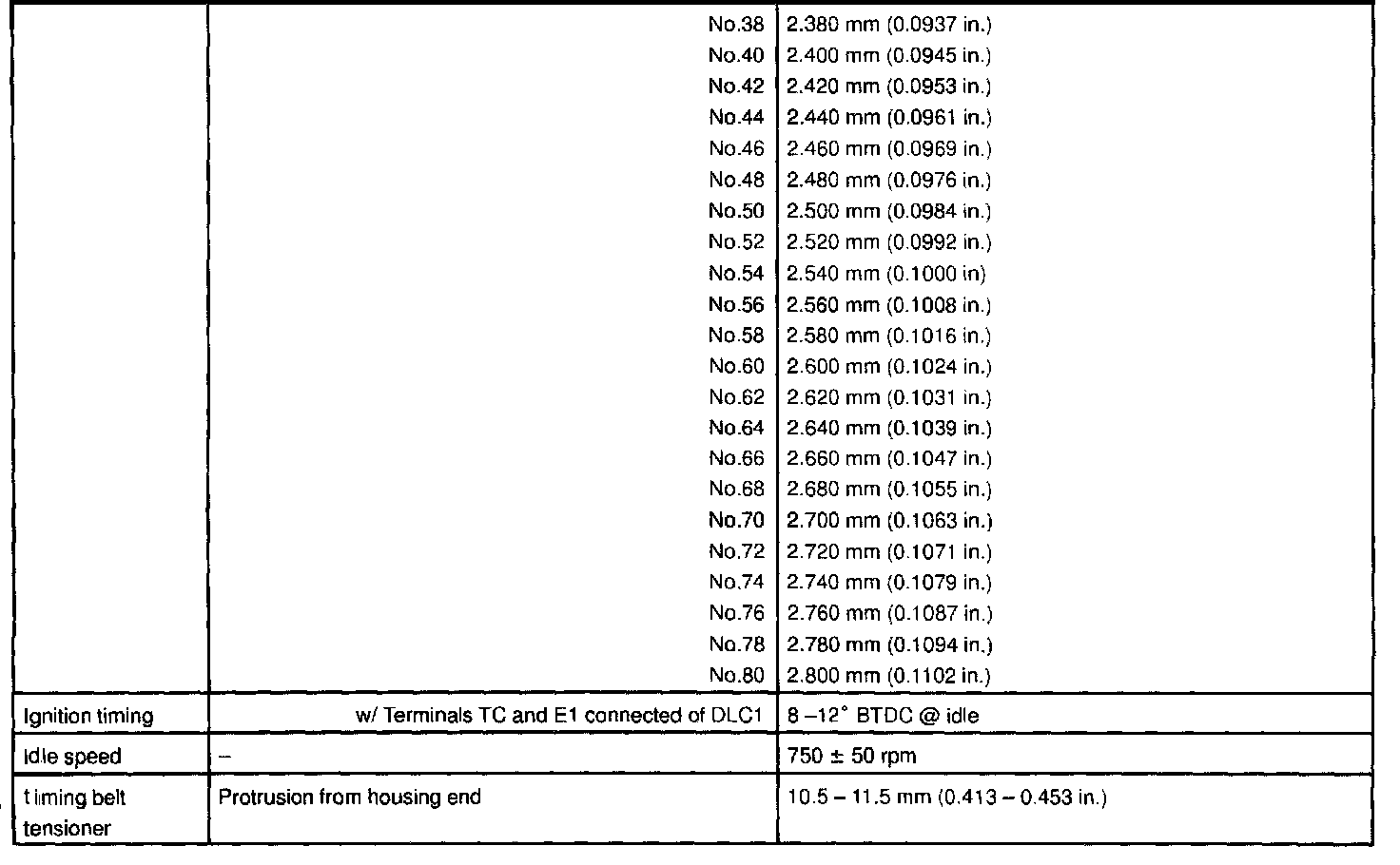

4.0L Engine Mechanical Cont.:
