Pinout Values and Diagnostic Parameters

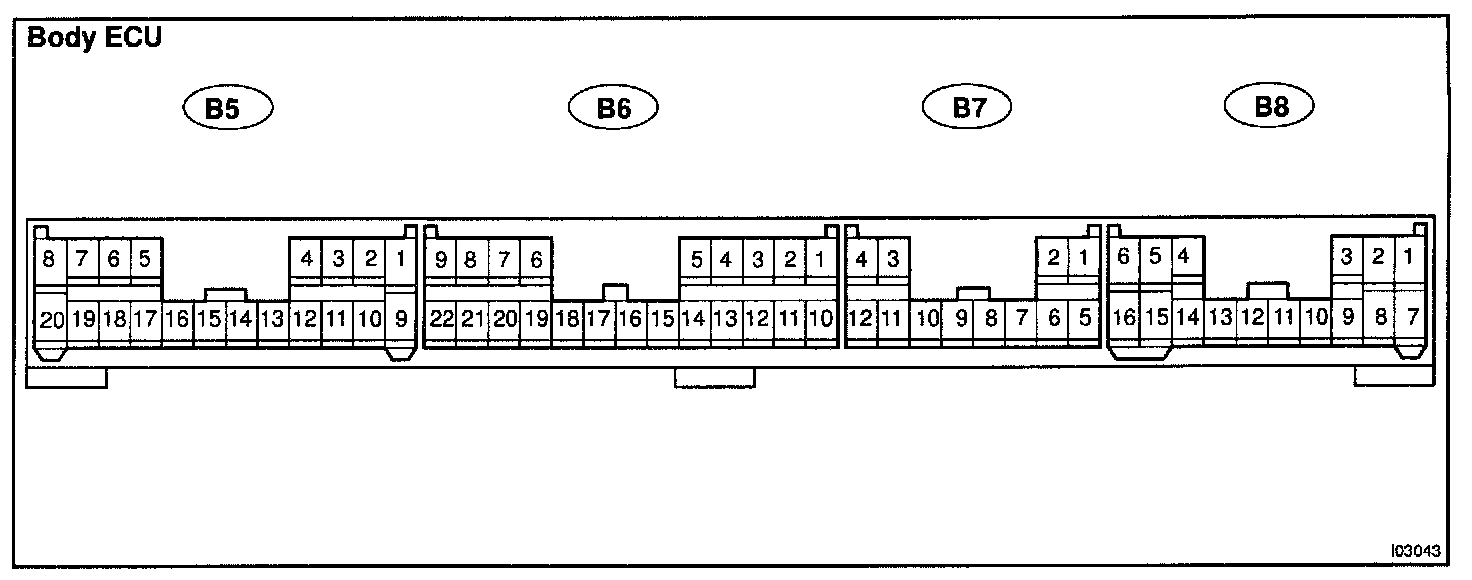

ECU Views - (B5, B6, B7, B8):
ECU Pinouts - (B5, B6, B7, B8) (Part 1 Of 2):
ECU Pinouts (B5, B6, B7, B8) - (Part 2 Of 2):

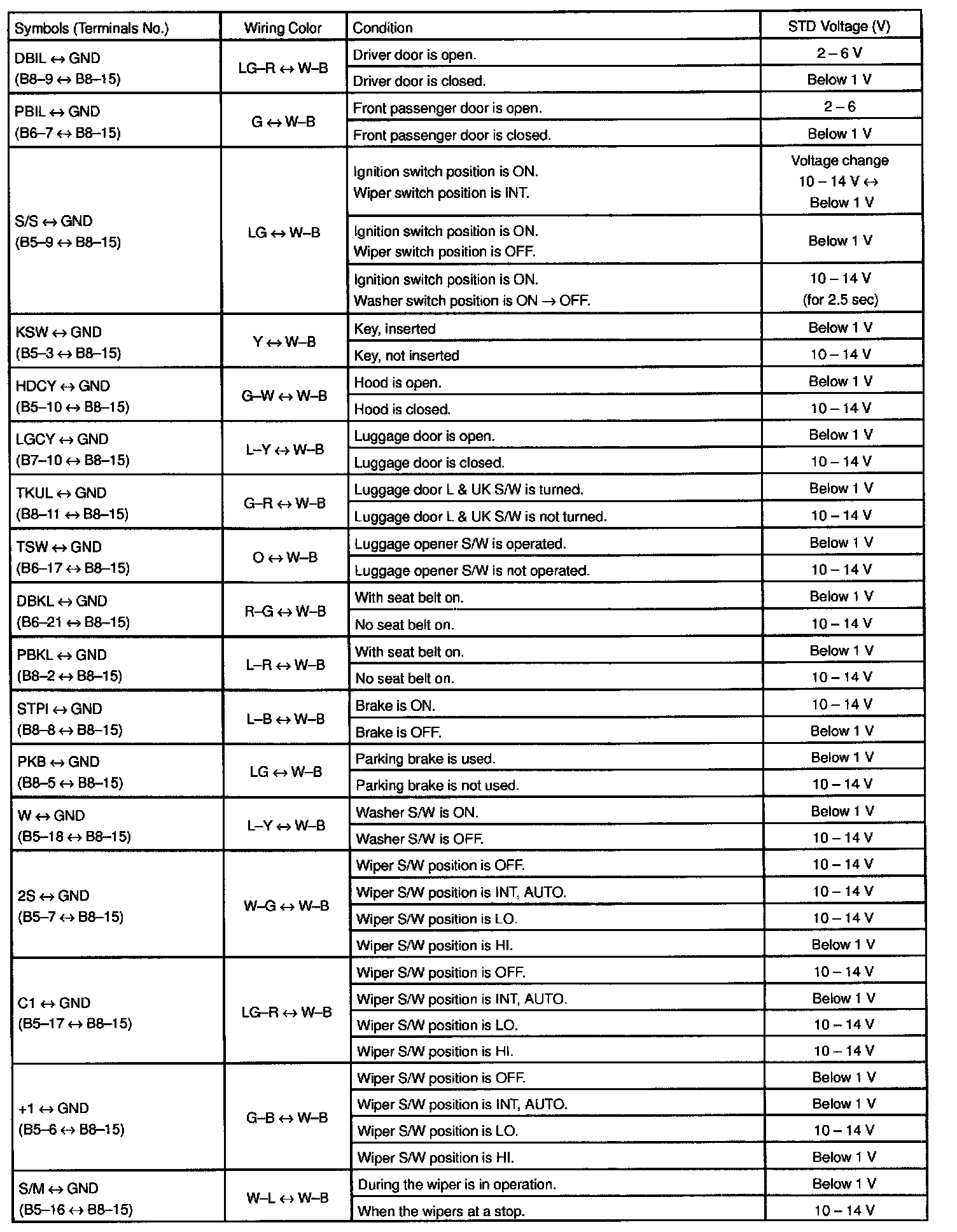

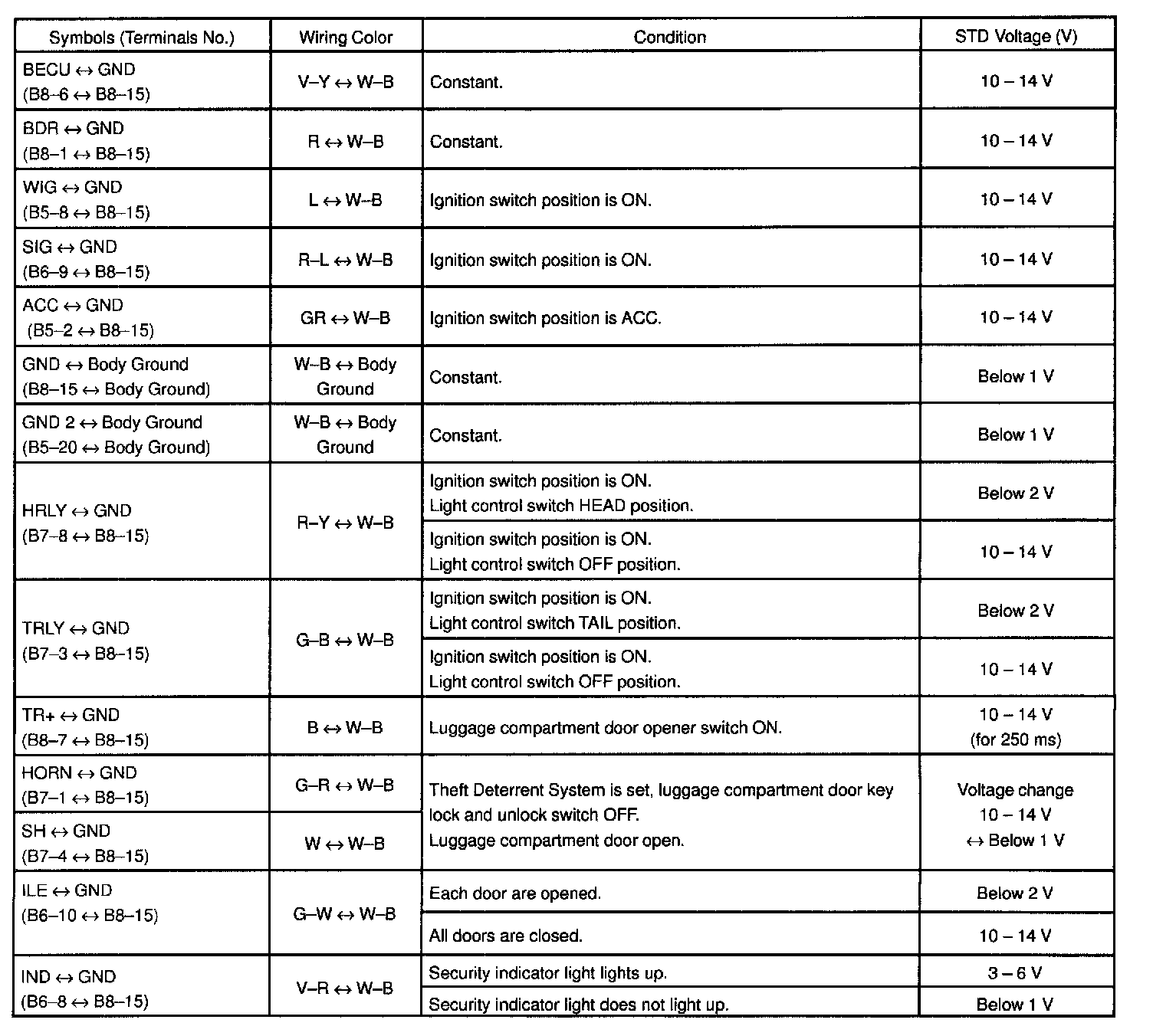

ECU Terminal Values
