Power Source Circuit
CIRCUIT DESCRIPTION
This circuit provides power to operate the Body ECU.

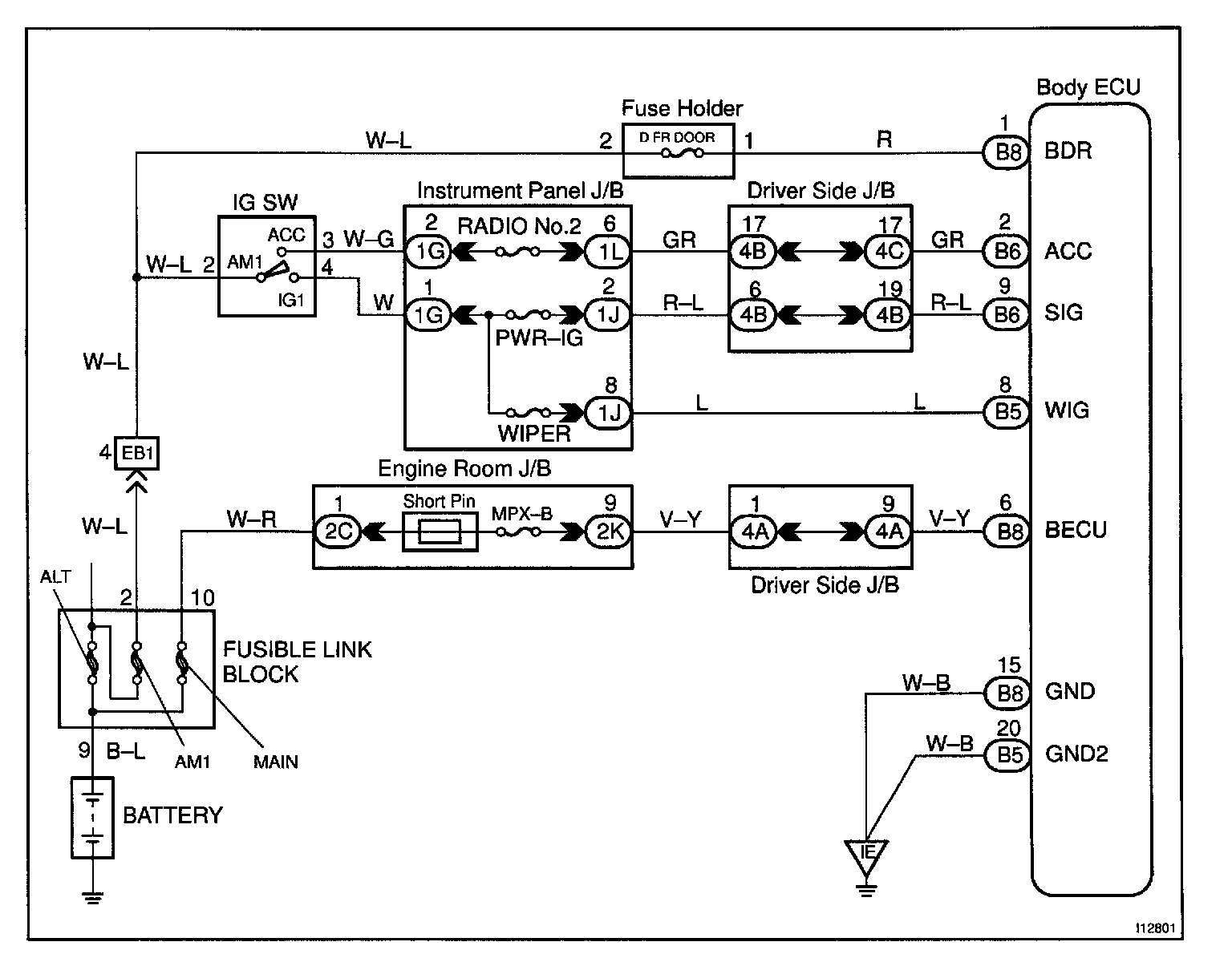

Wiring Diagram:

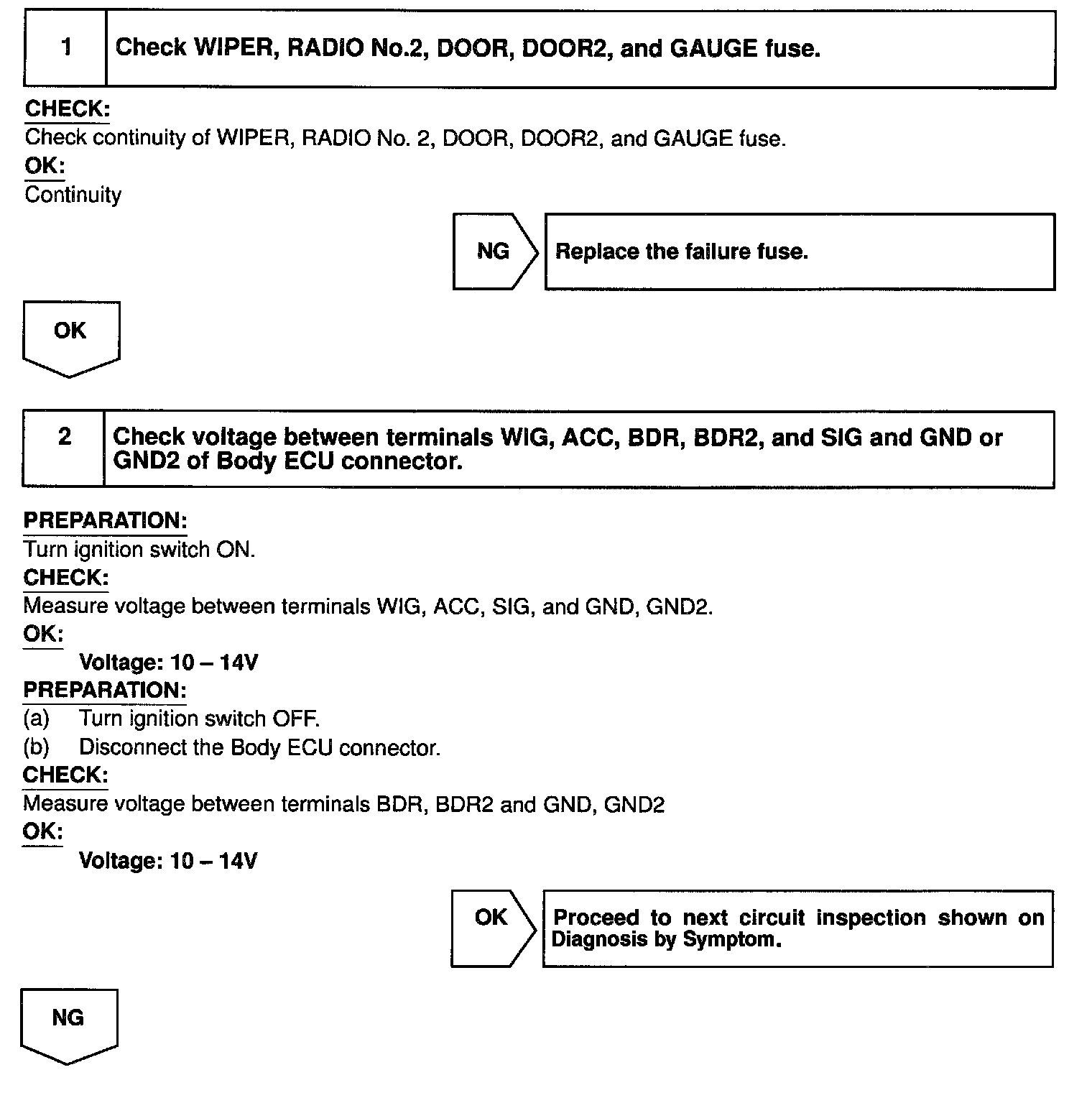

Steps 1 - 2:

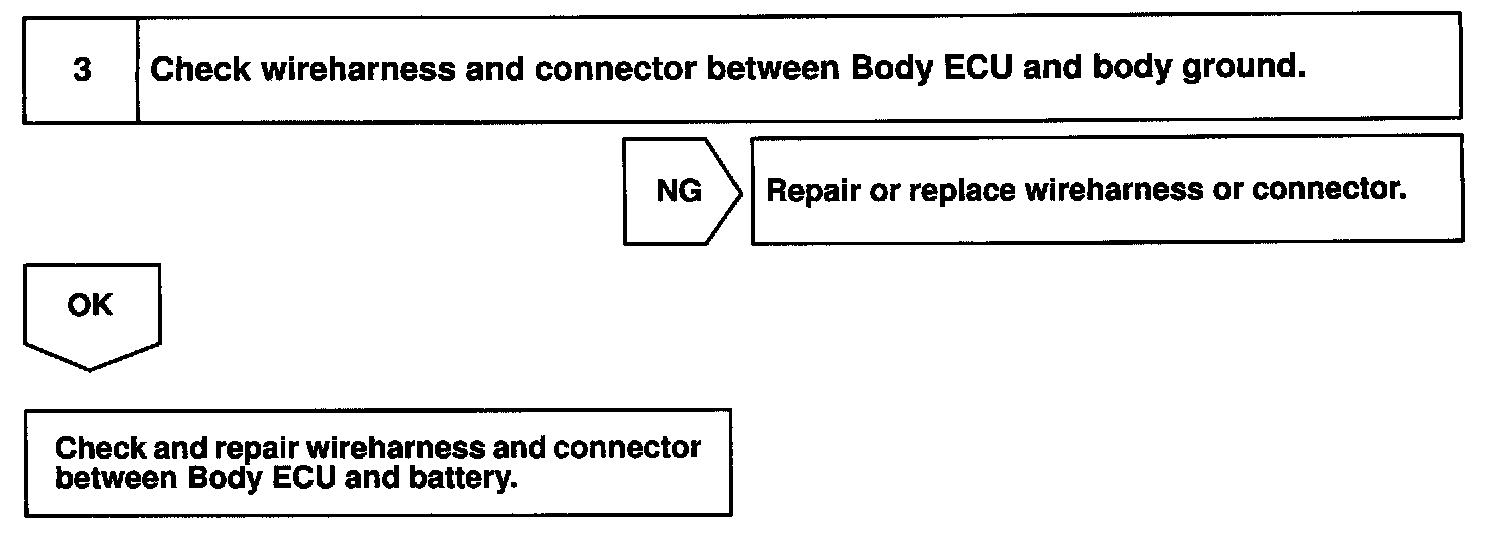

Step 3:
INSPECTION PROCEDURE
