Timing Belt

TIMING BELT REPLACEMENT W/ RELATED COMPONENTS

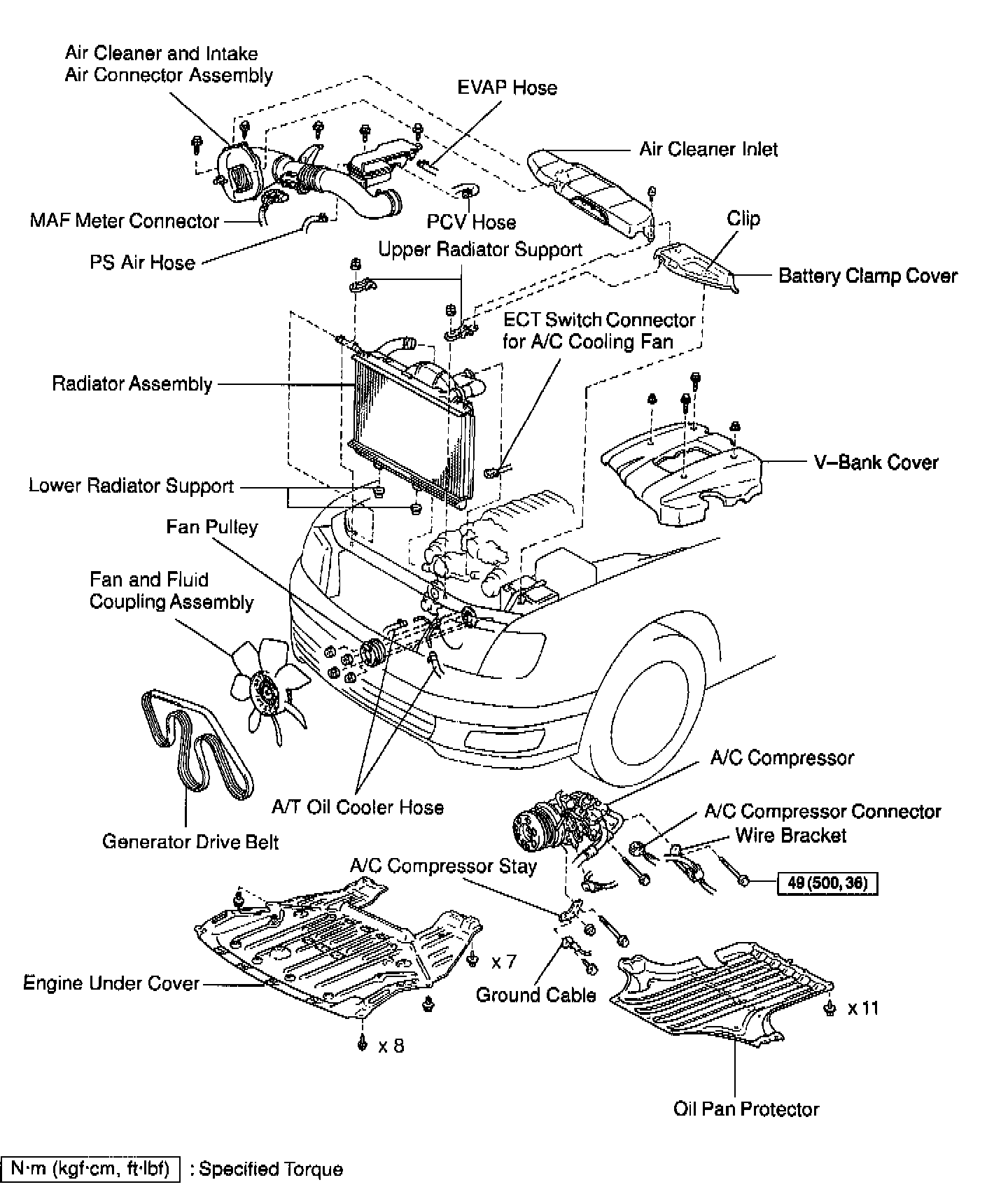

Part 1 of 4

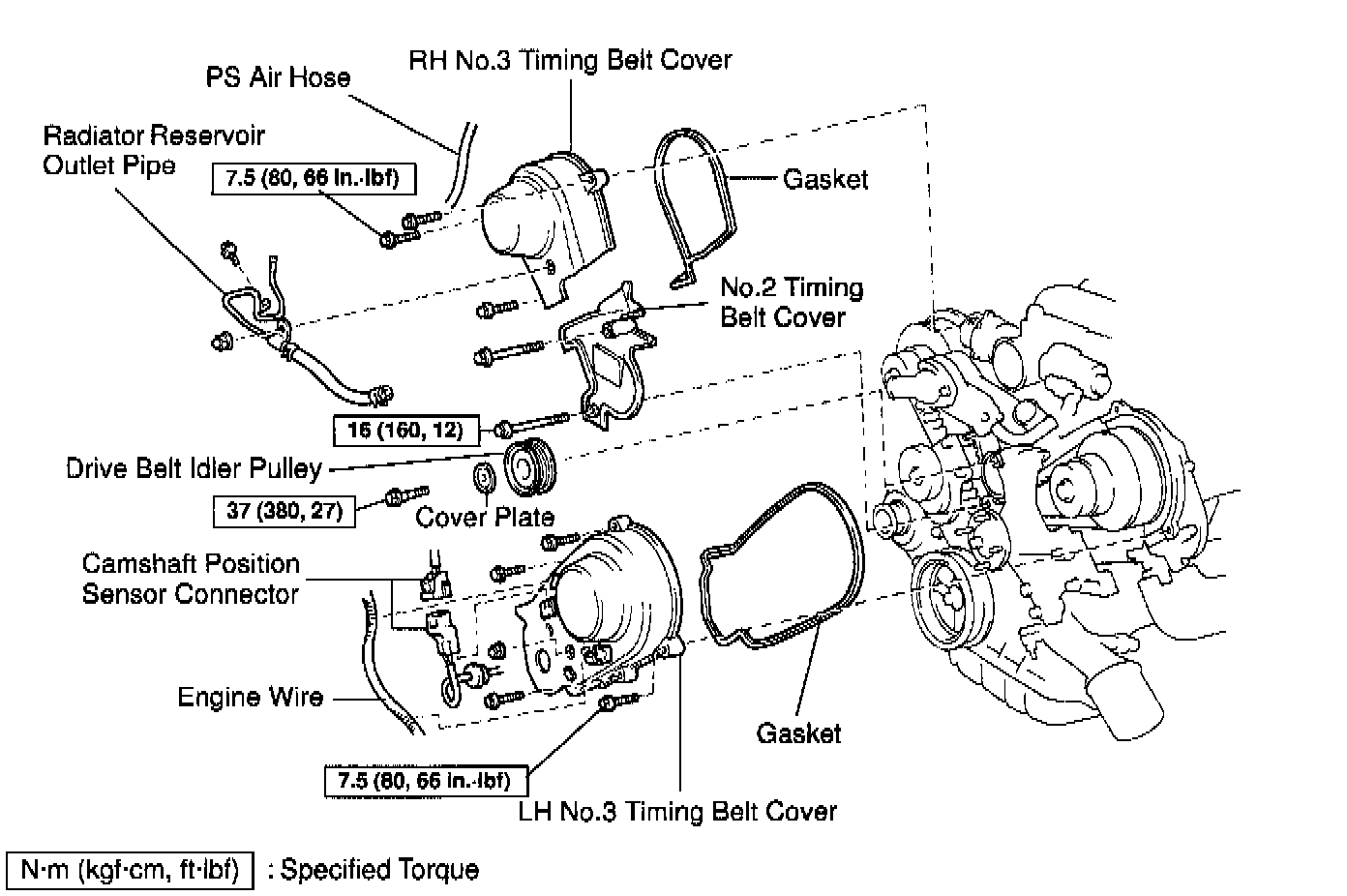

Part 2 of 4

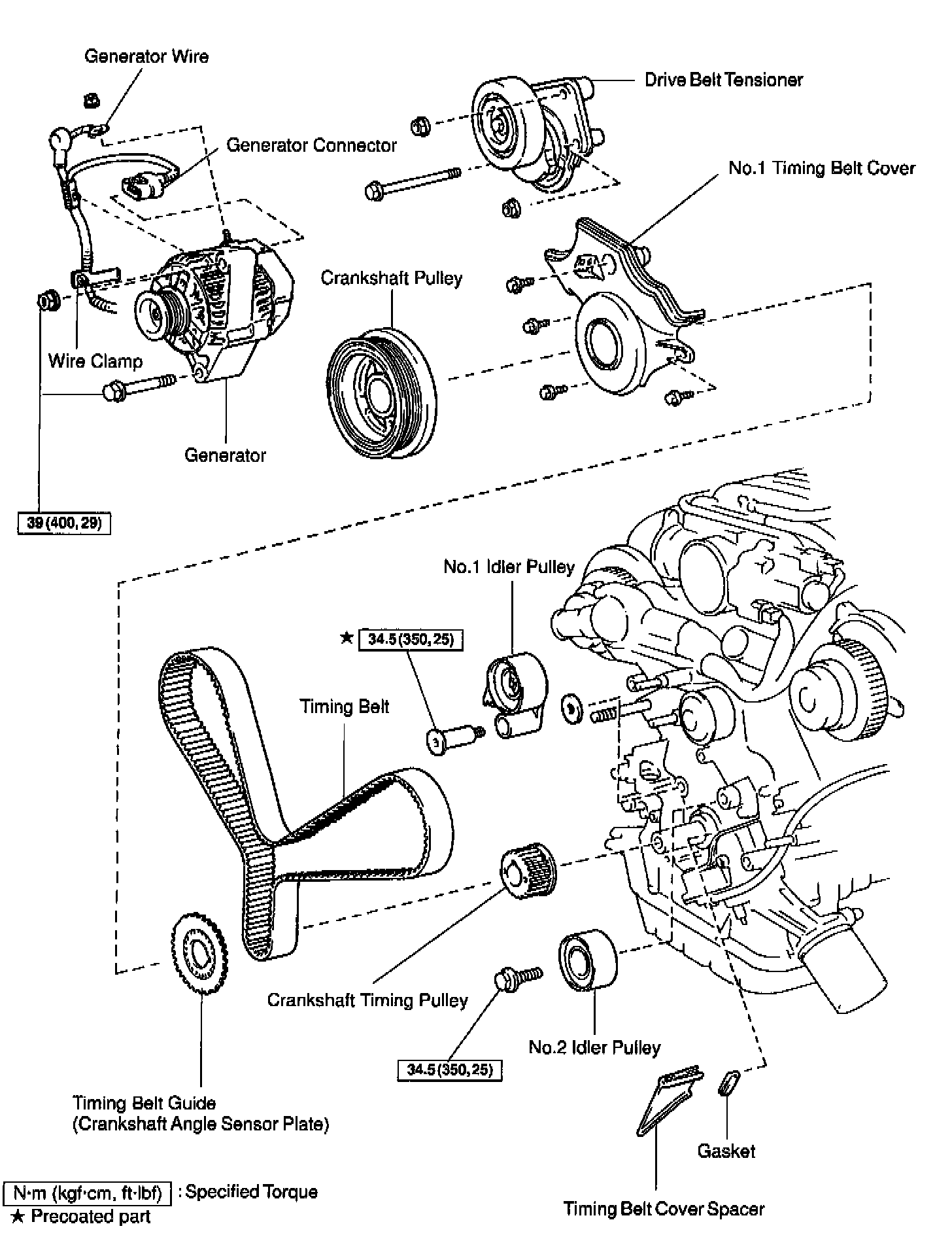

Part 3 of 4

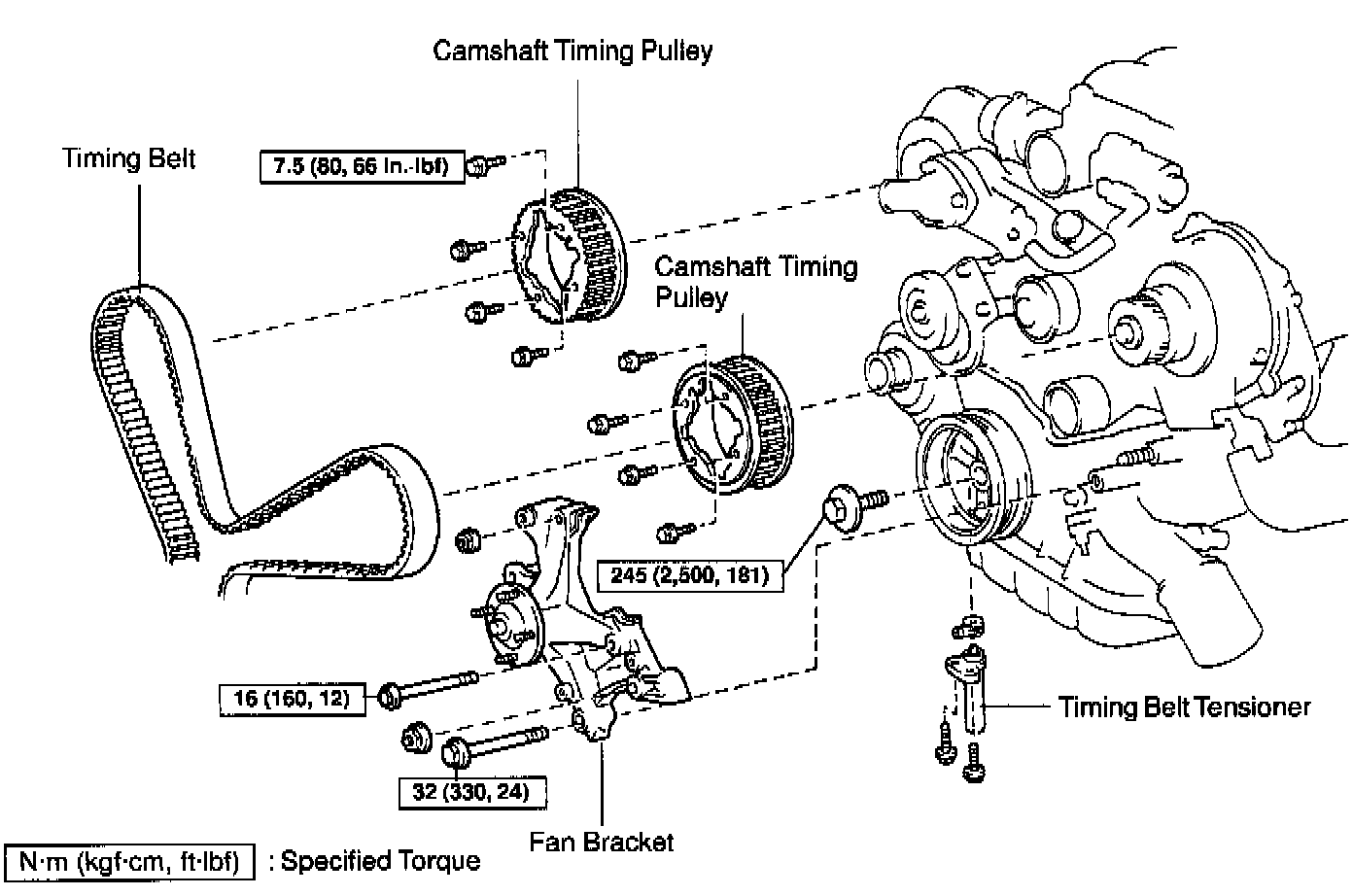

Part 4 of 4
