Control Module HVAC: Service and Repair

Auxiliary Blower Motor Control Module

Removal
1 Disconnect the battery ground cable. For additional information, refer to Specifications Specifications
2 Remove the LH C-pillar lower trim panel For additional information, refer to C-Pillar Lower Trim Panel C-Pillar Lower Trim Panel




3
NOTE:
Note the fitted position.

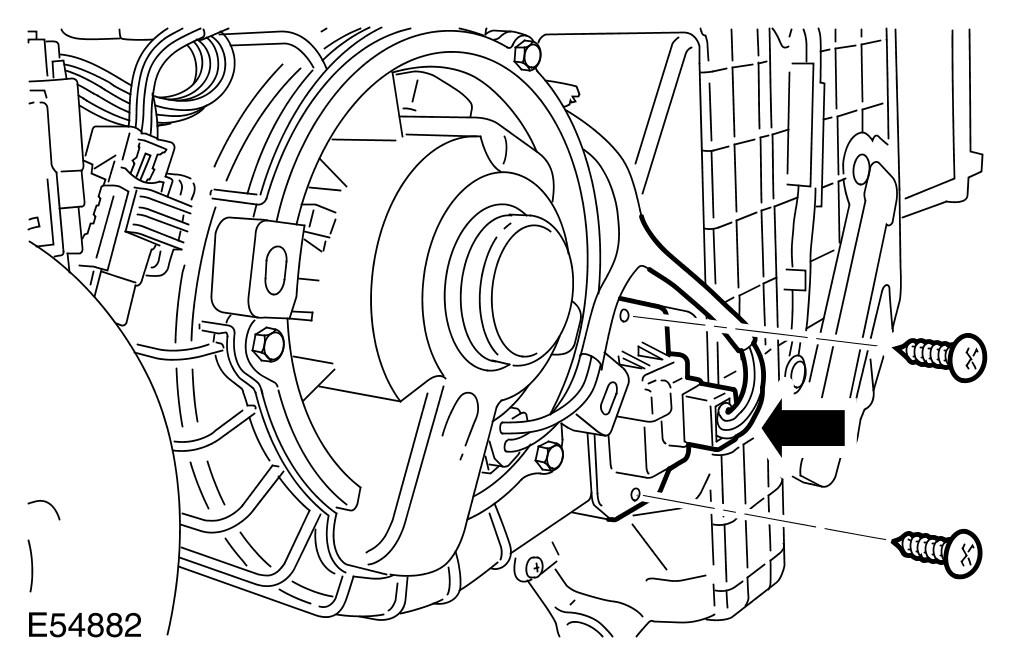

Remove the blower motor resistor.
- Disconnect the electrical connector.
- Remove the 2 screws.

Installation
1
NOTE:
Align to the position noted on removal.
Install the resistor.
- Tighten the screws.
- Connect and secure the electrical connector.
2 Install the C-pillar lower trim panel. For additional information, refer to C-Pillar Lower Trim Panel C-Pillar Lower Trim Panel
3 Connect the battery ground cable. For additional information, refer to Specifications Specifications
