Home >> Land Rover >> 2012 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Diagrams >> C2282 Module-Blower-Motor Control-Rear

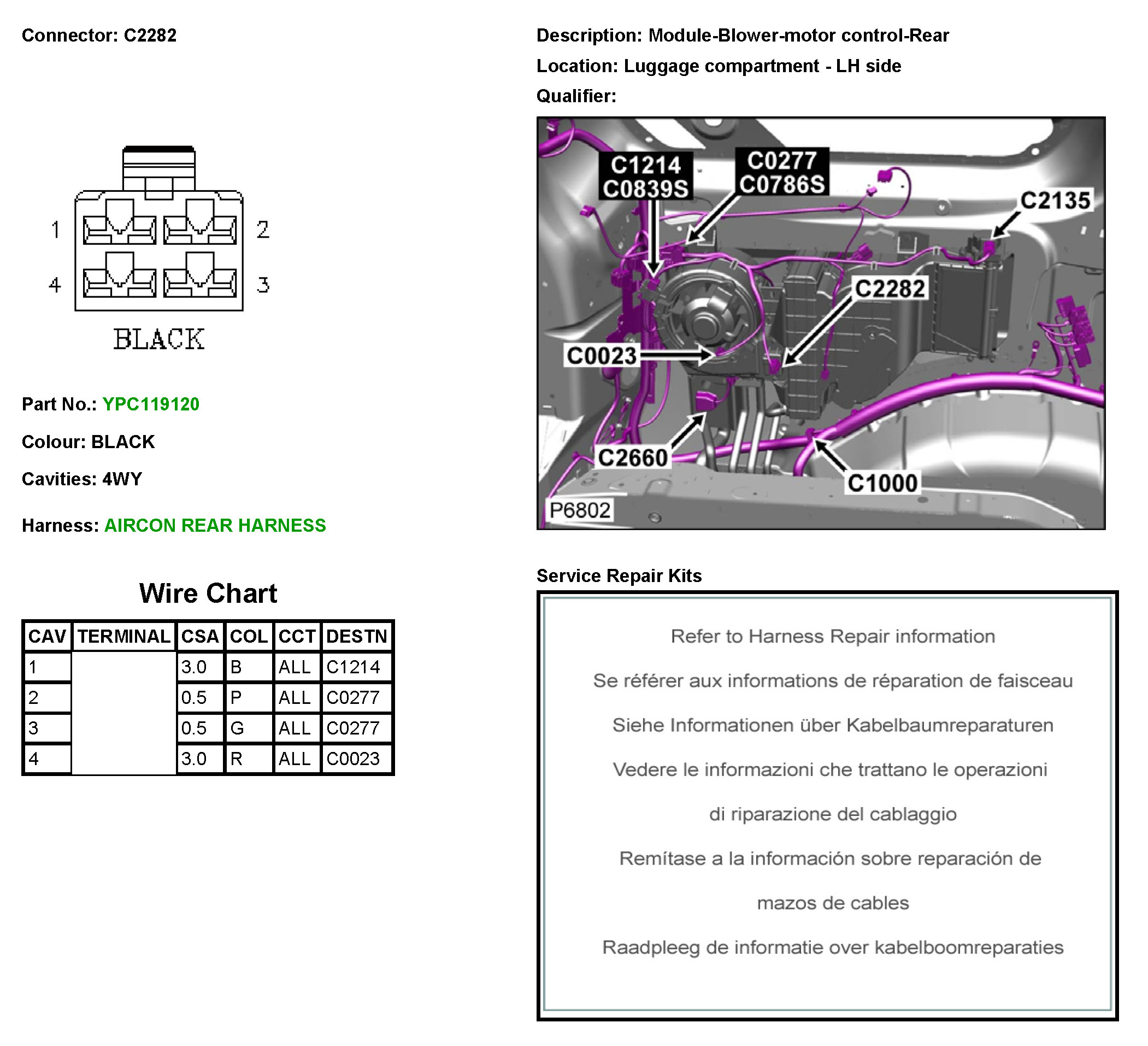

C2282 Module-Blower-Motor Control-Rear



C2282
