Home >> Land Rover >> 2012 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C0635L Engine Control-Module (ECM)

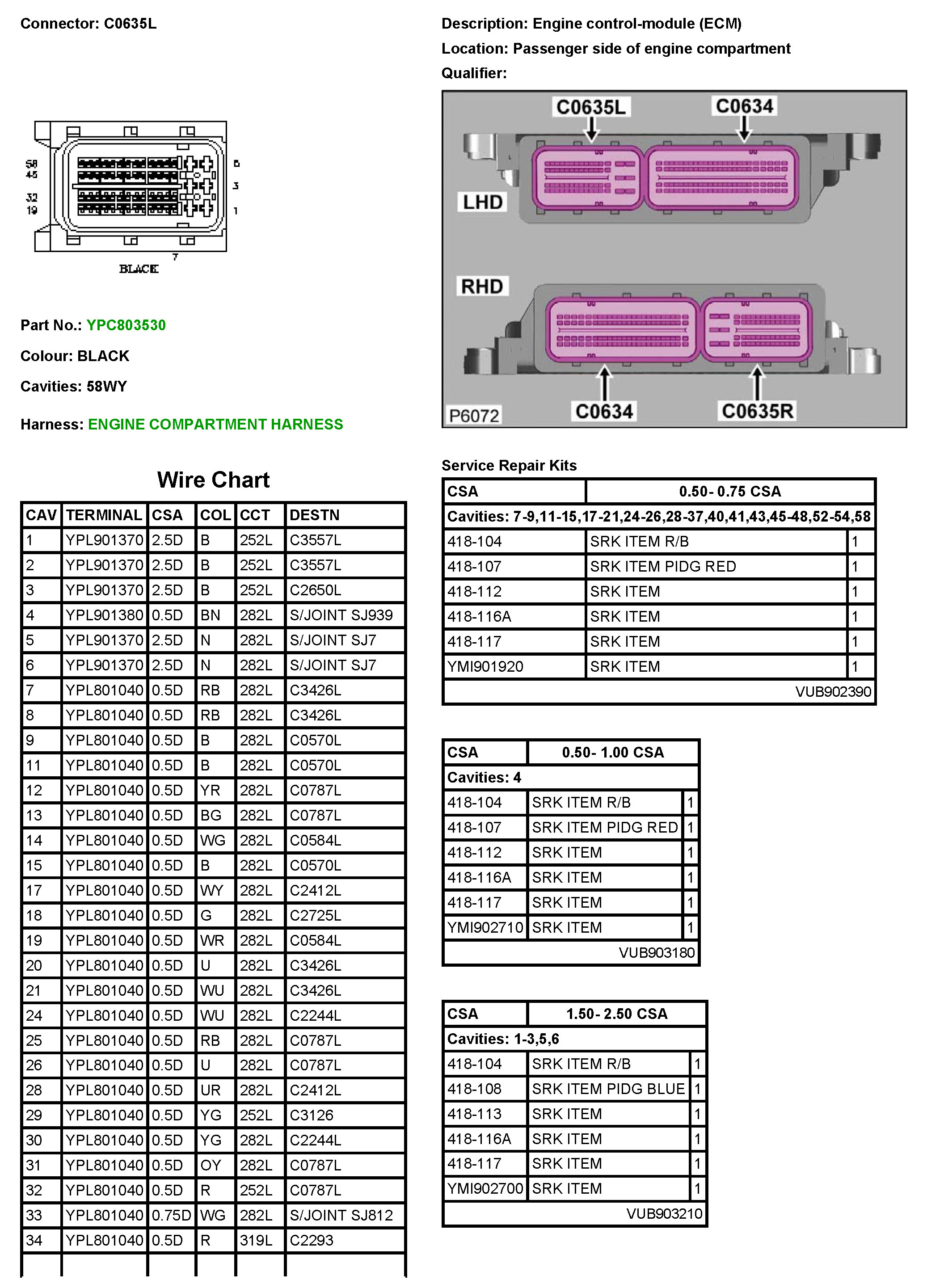

C0635L Engine Control-Module (ECM)



C0635L
