Control Module, Transfer Case
>>

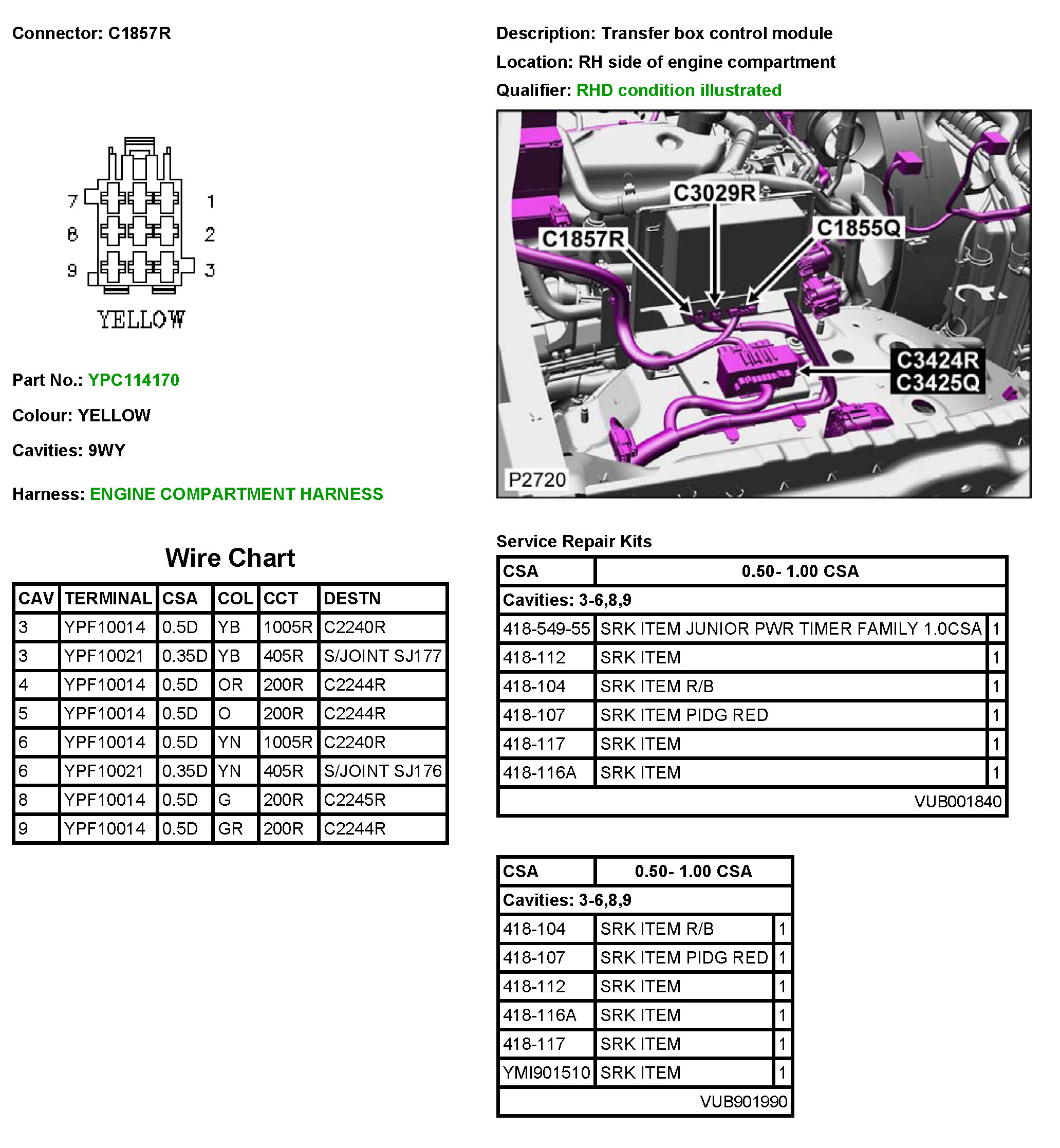

C1857R Transfer Box Control Module
C1857R Transfer Box Control Module
C1857R
