lemon-mirror
:
Home
>>
Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

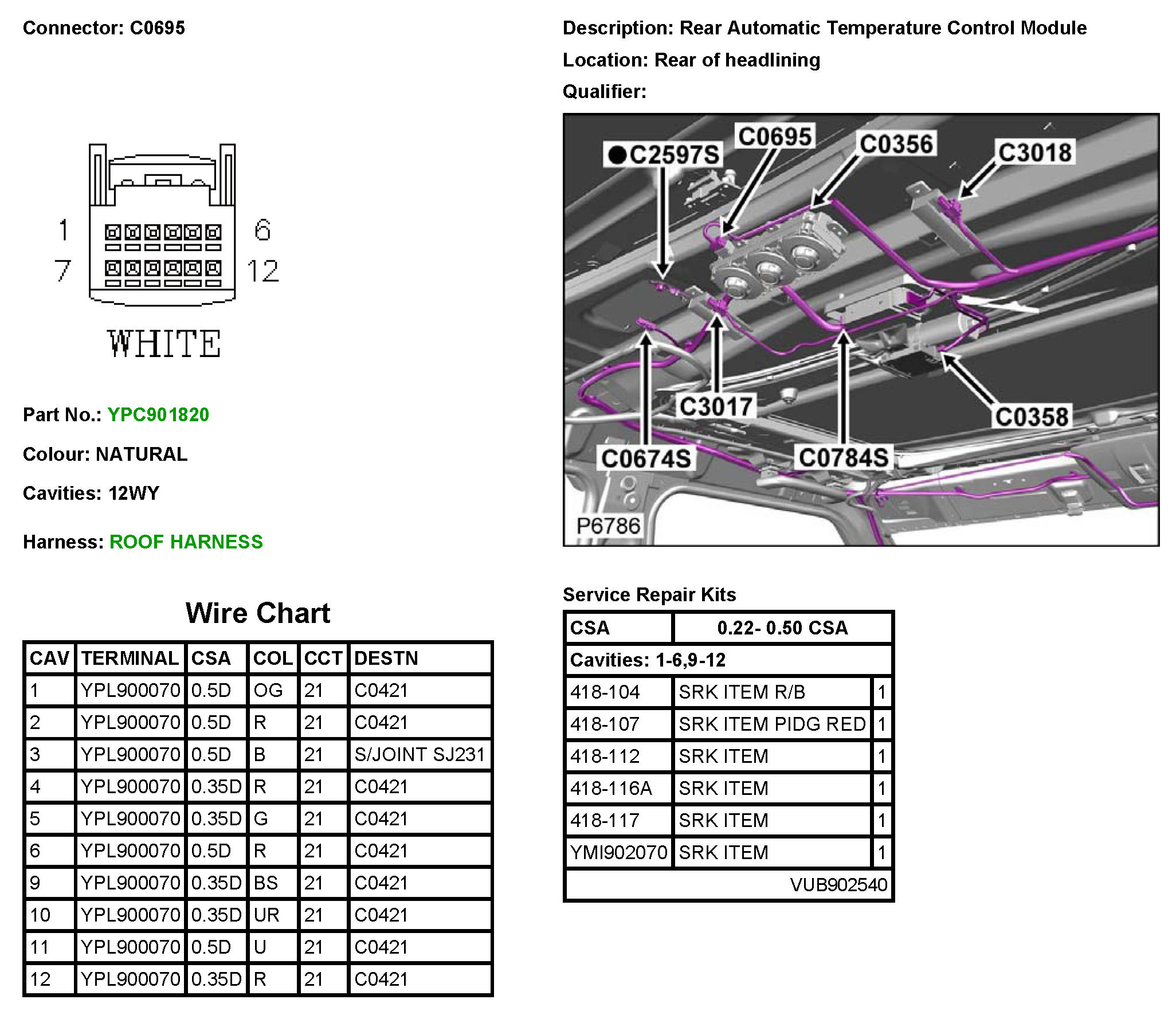

C0691 Rear Automatic Temperature Control Module
C0691 Rear Automatic Temperature Control Module
C0695
