Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

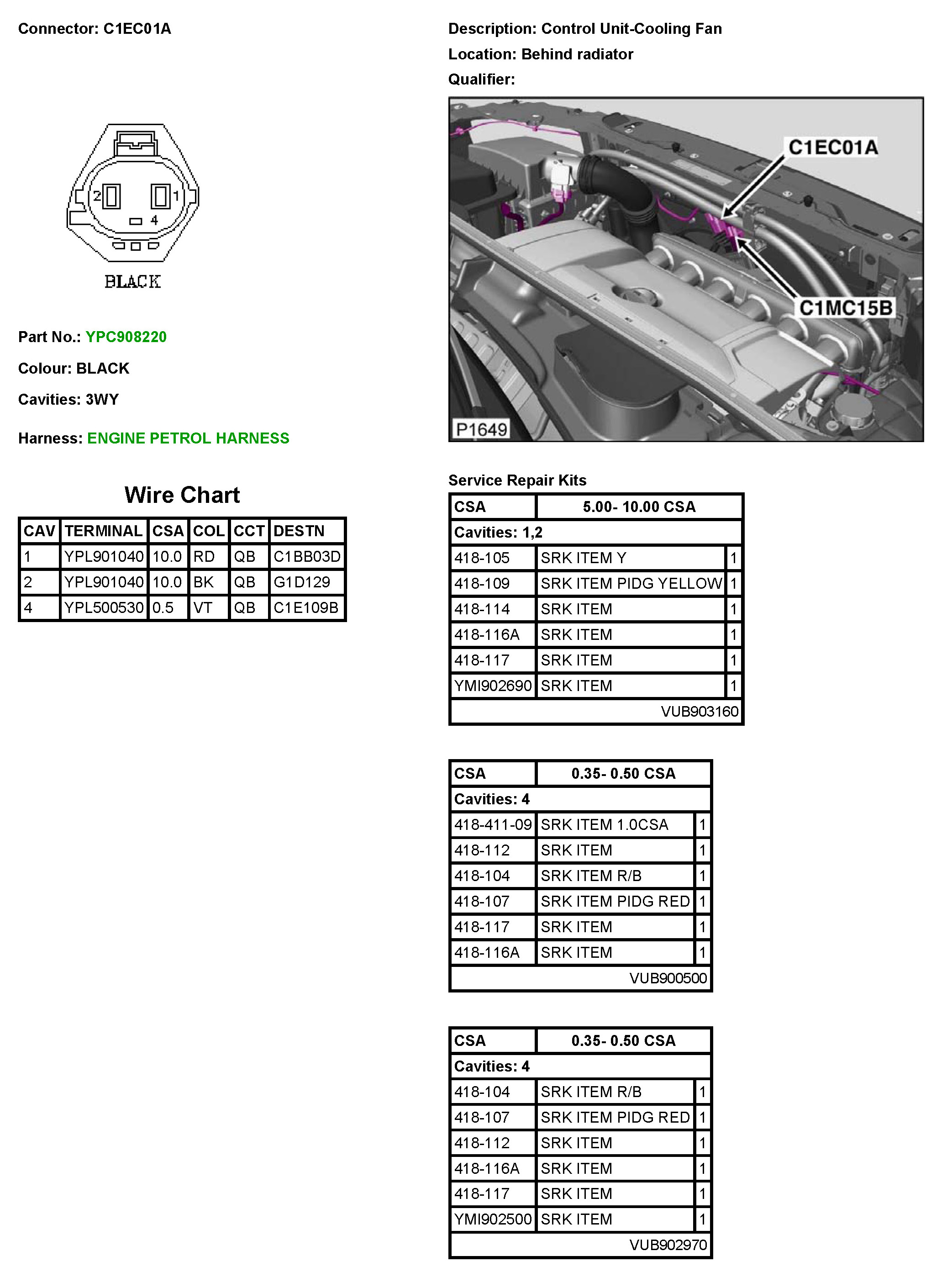

Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module
C1EC01A
