Impact Sensor
>>

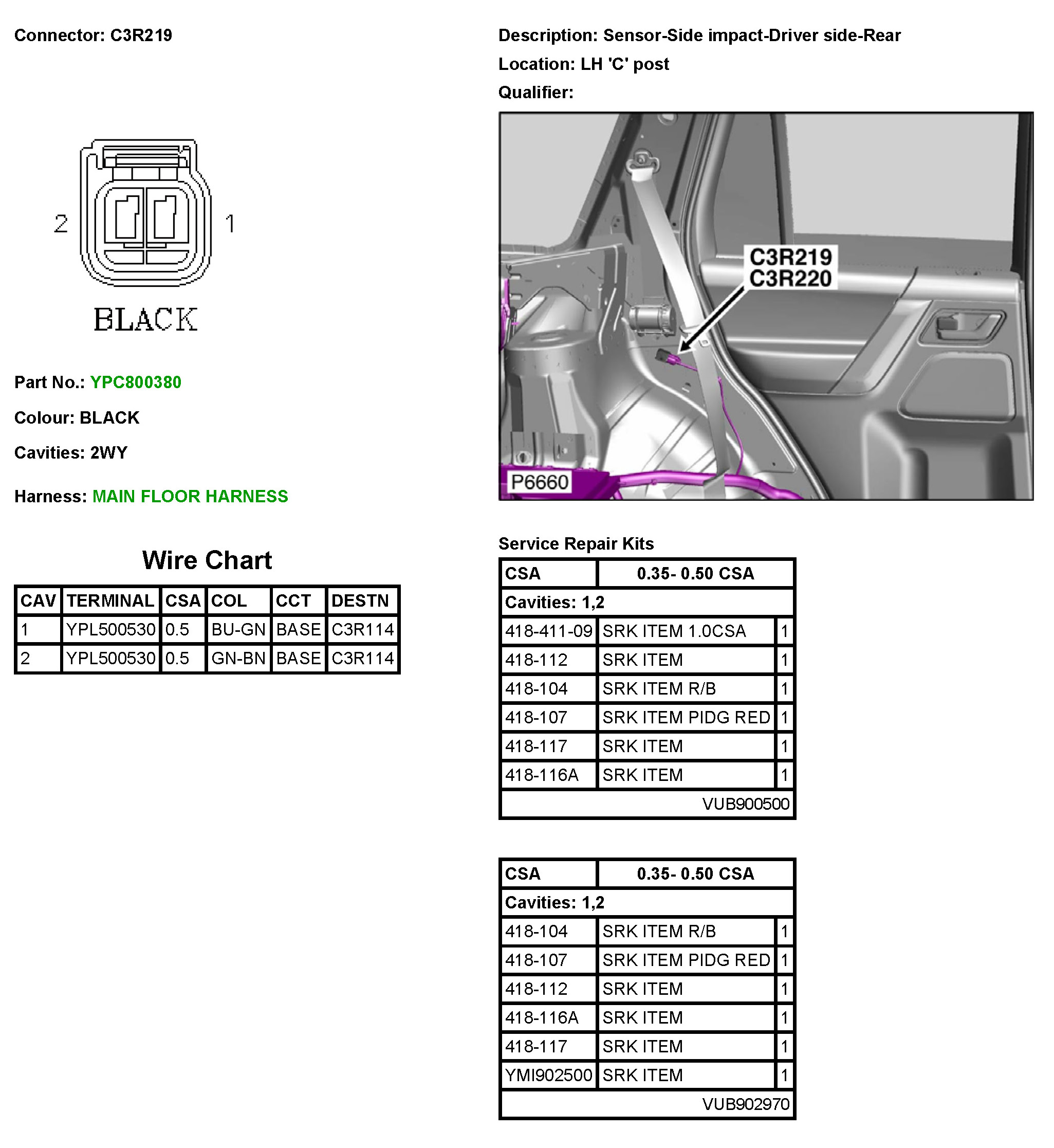

C3R219 Sensor-Side Impact-Driver Side-Rear
C3R219 Sensor-Side Impact-Driver Side-Rear
C3R219
