lemon-mirror
:
Home
>>
Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Module
>>

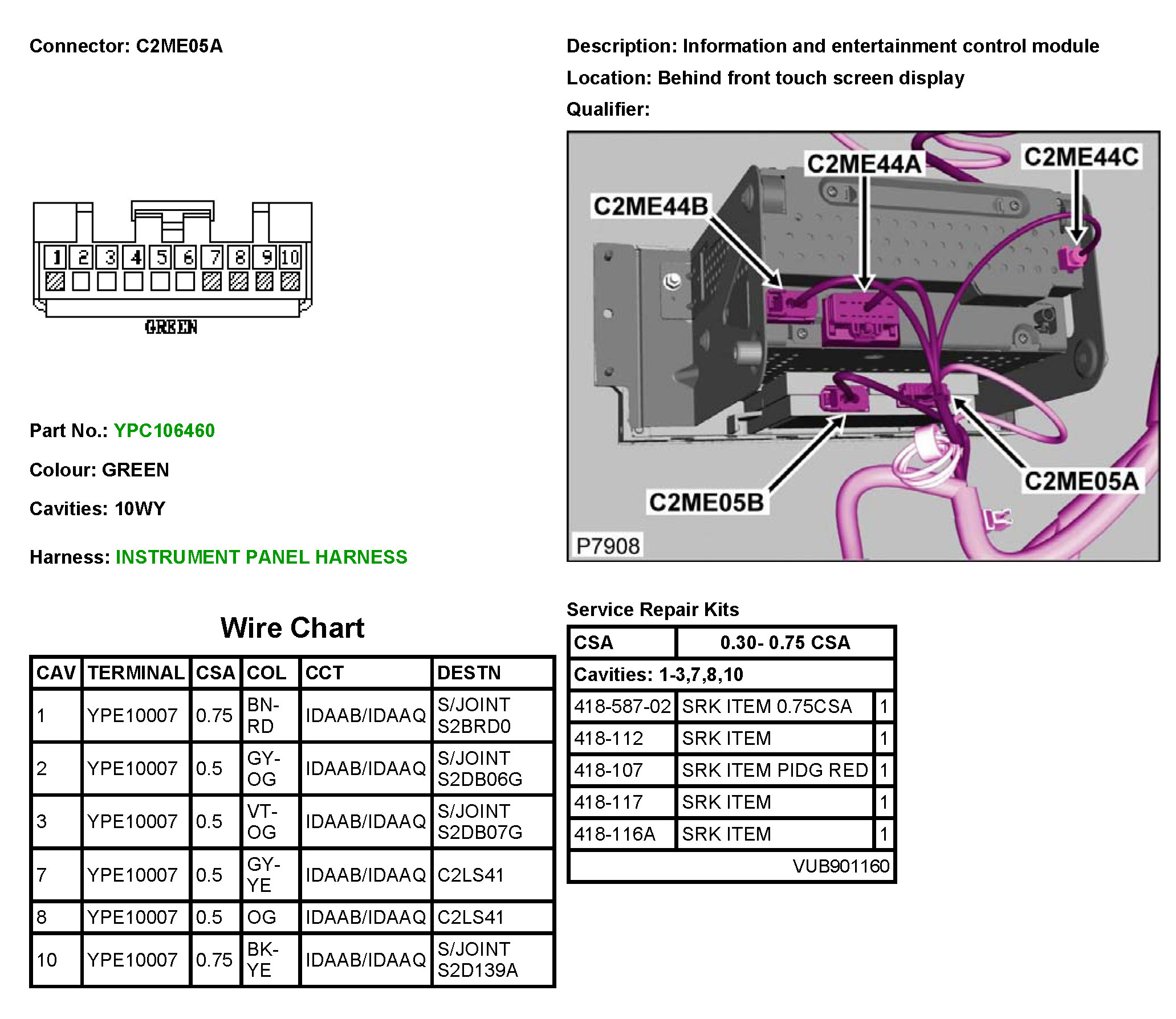

C2ME05A Information and Entertainment Control Module
C2ME05A Information and Entertainment Control Module
C2ME05A
