Home >> Land Rover >> 2012 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> C3R114 Restraints Control Module (RCM)

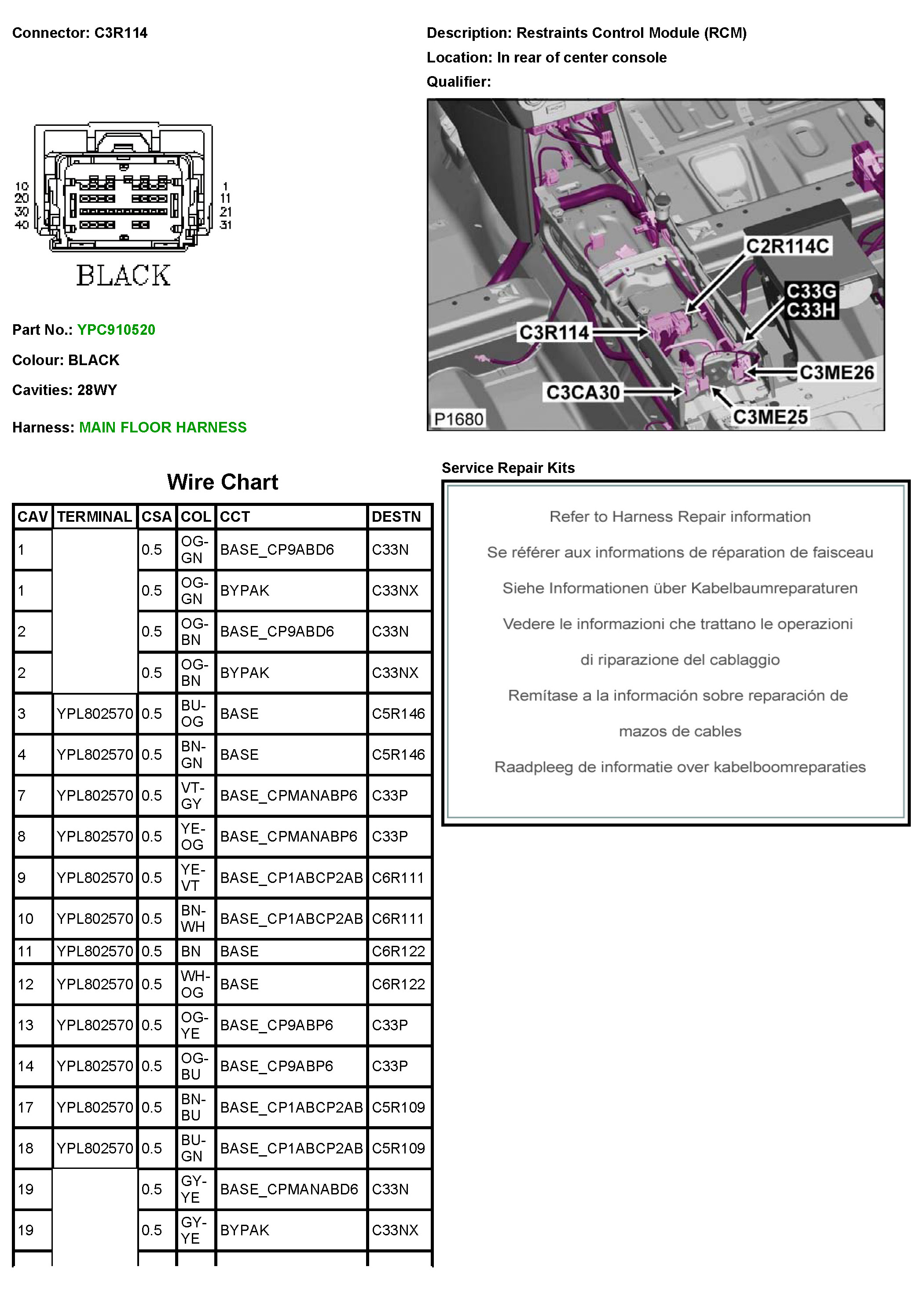

C3R114 Restraints Control Module (RCM)

C3R114
