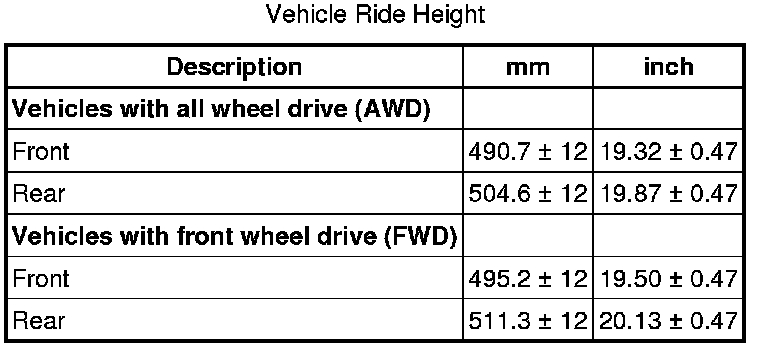

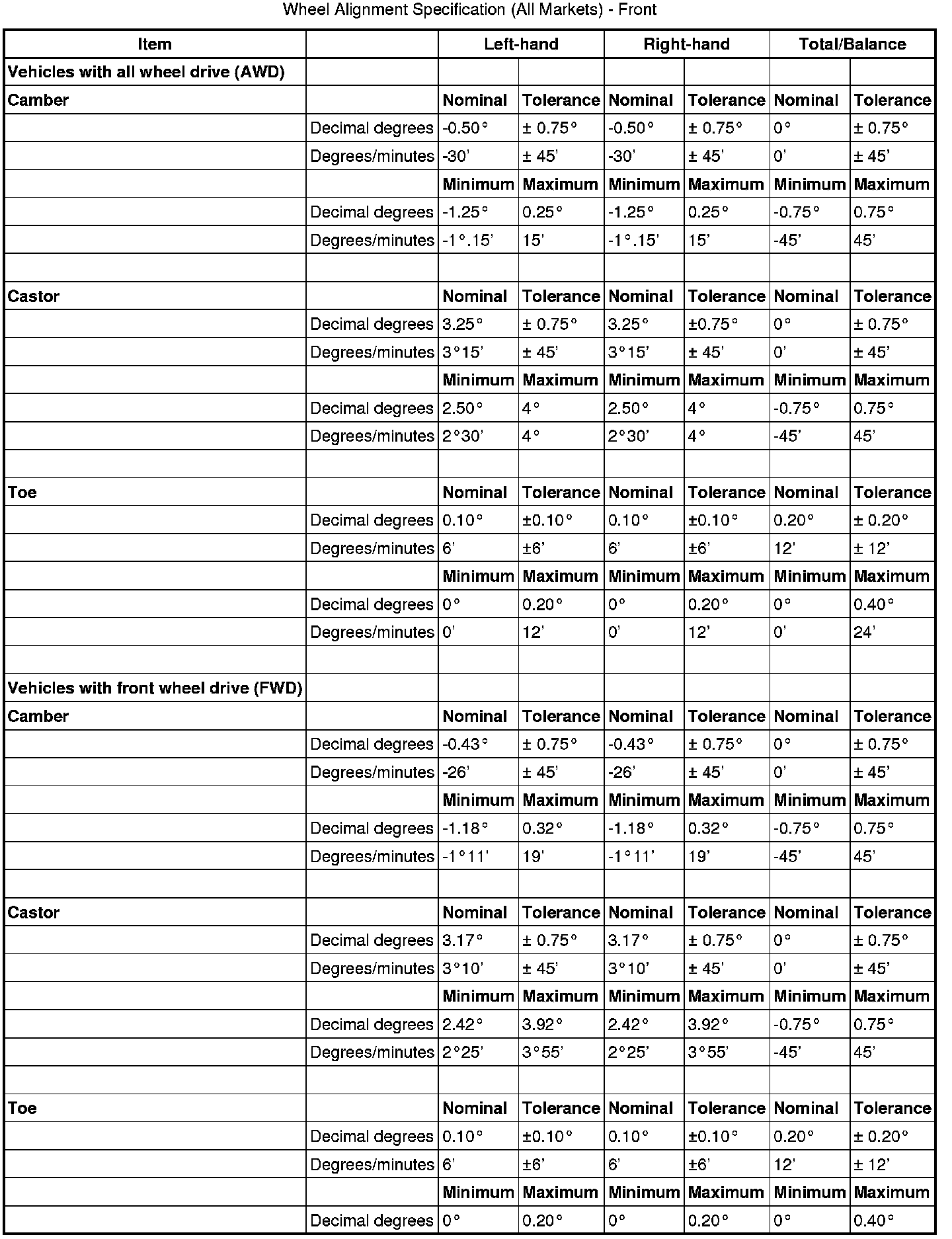

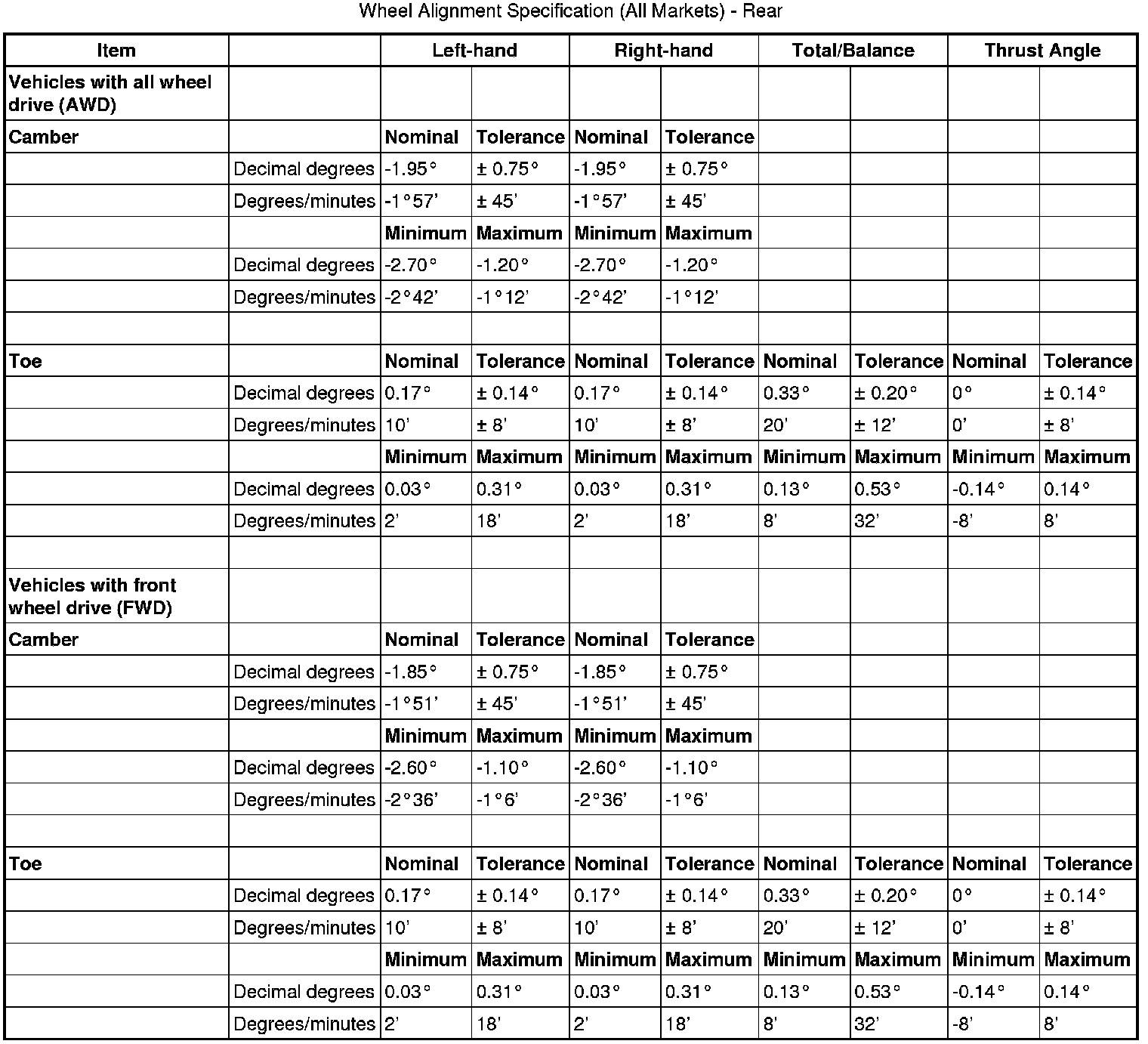

Alignment\Ride Height

NOTE:
All figures are with vehicle at 'Showroom' ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures





NOTE:
All figures are with vehicle at 'curbside' (curbside) ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures

NOTE:
Ride height is measured vertically from wheel center to underside of wheel arch
