Locations
>>
Connector Locations
>>

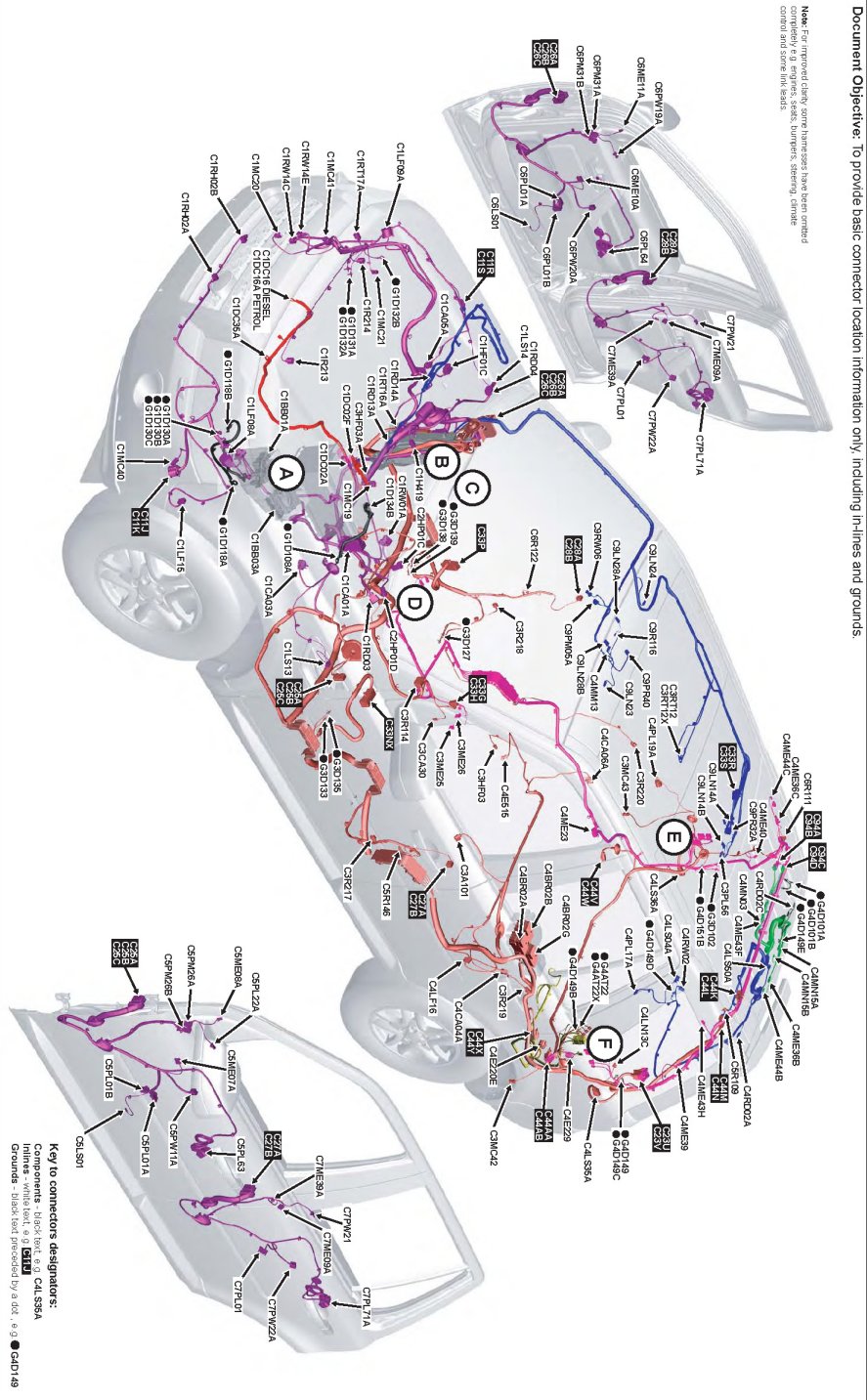

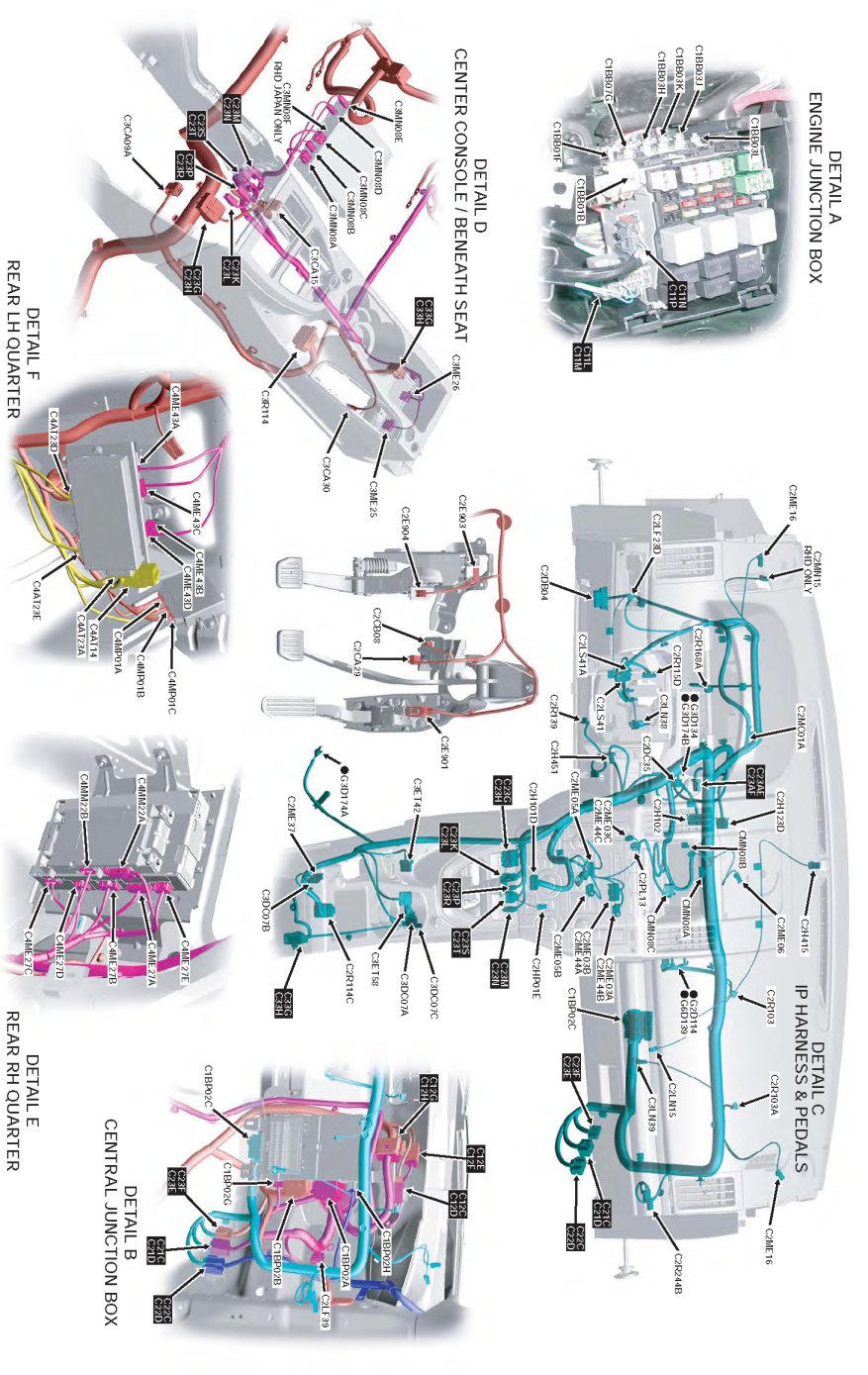

Connector Quick Reference Guide
Connector Quick Reference Guide
CONNECTOR QUICK REFERENCE GUIDE
