Home >> Land Rover >> 2009 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

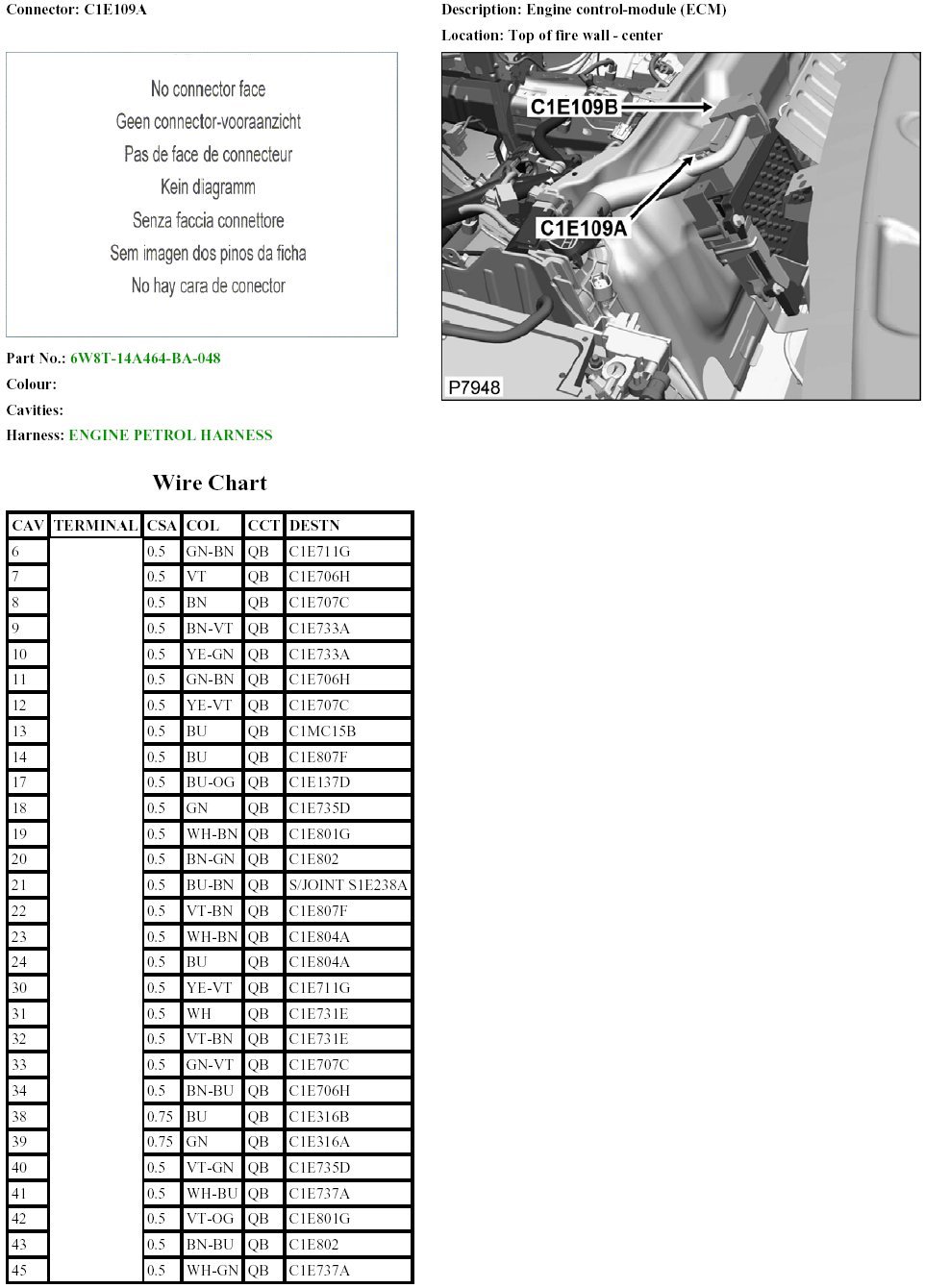

C1E109A (Part 1):

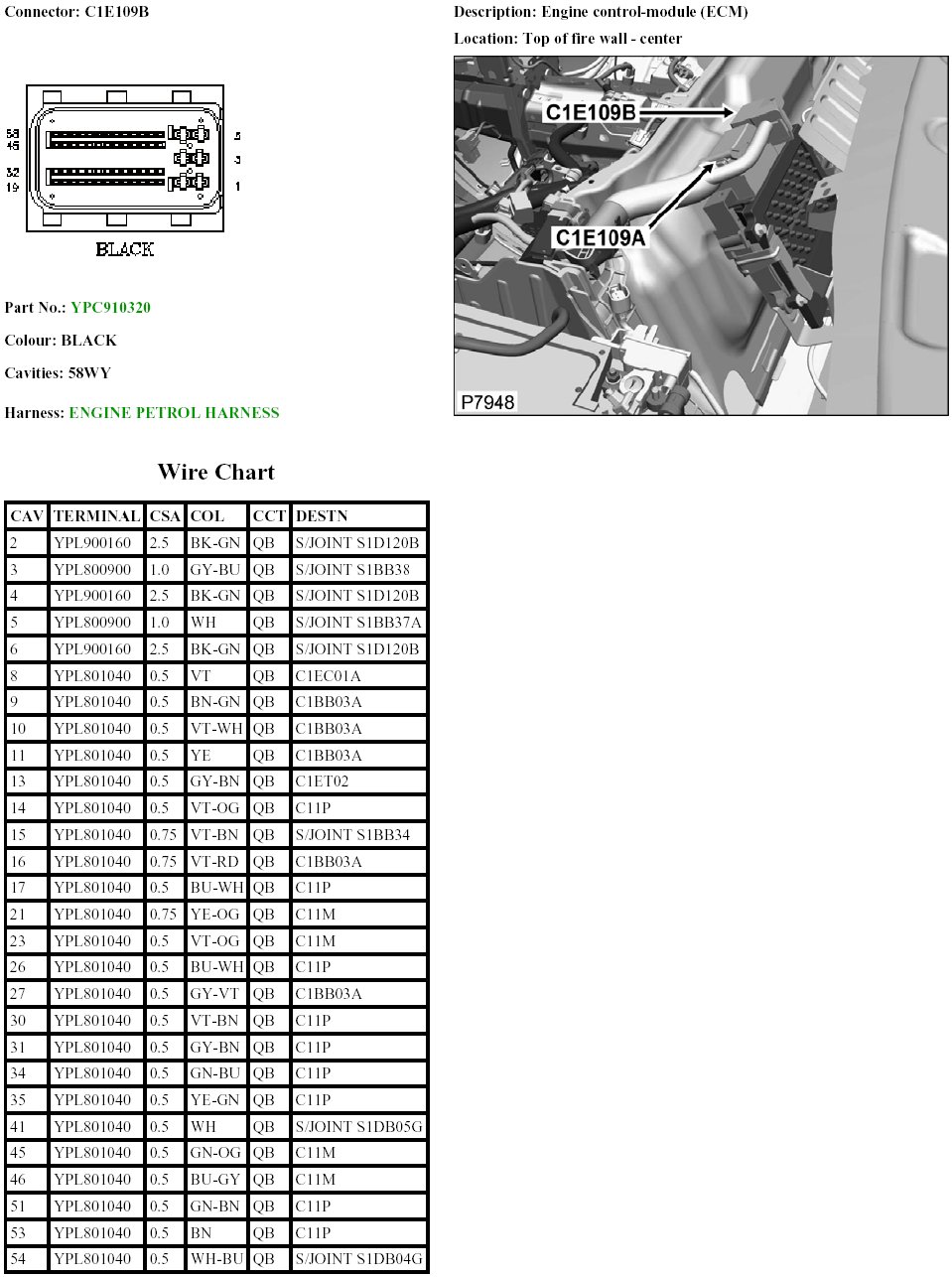

C1E109B:
