Home >> Land Rover >> 2009 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Module-Passenger-Door

Module-Passenger-Door

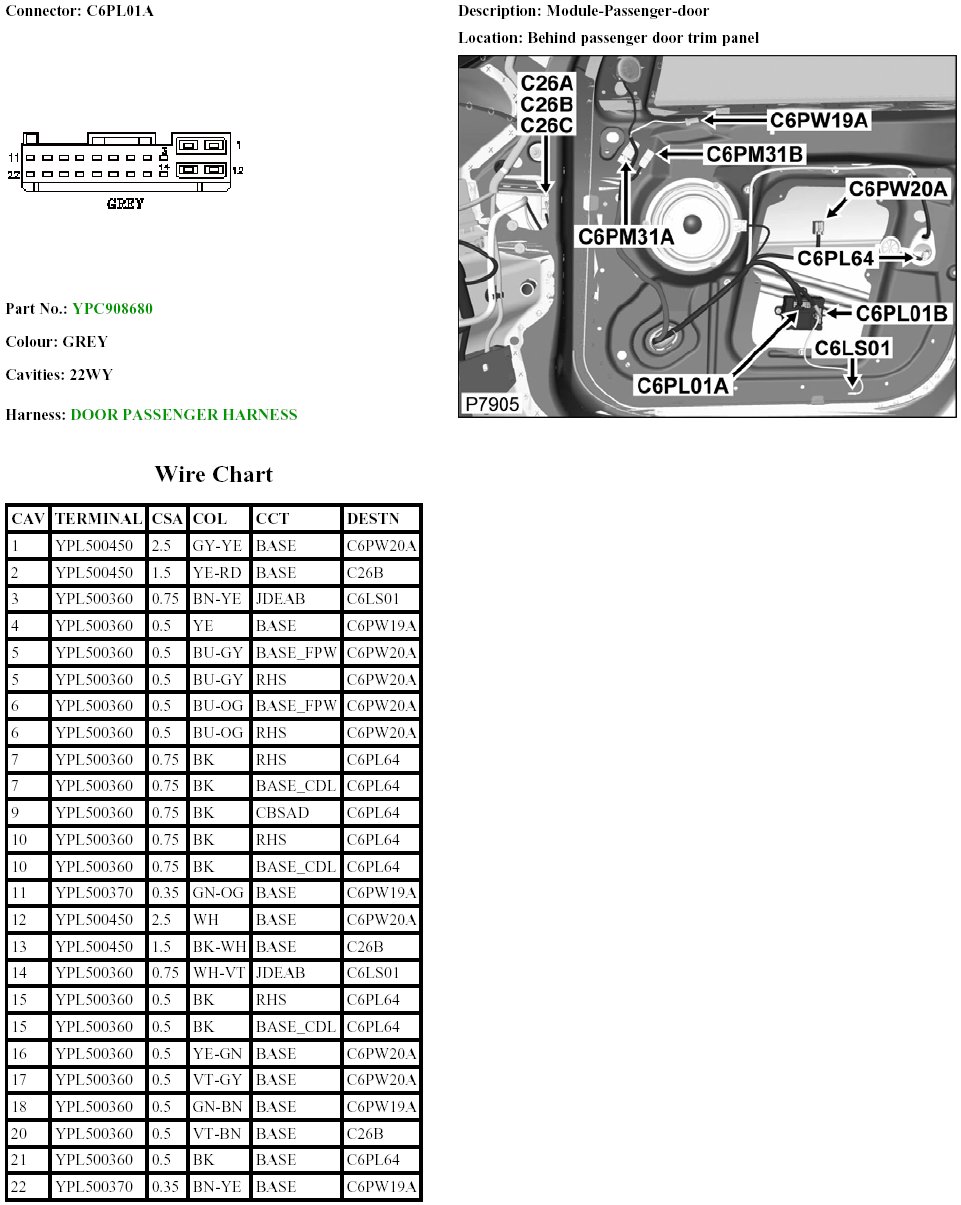

C6PL01A:

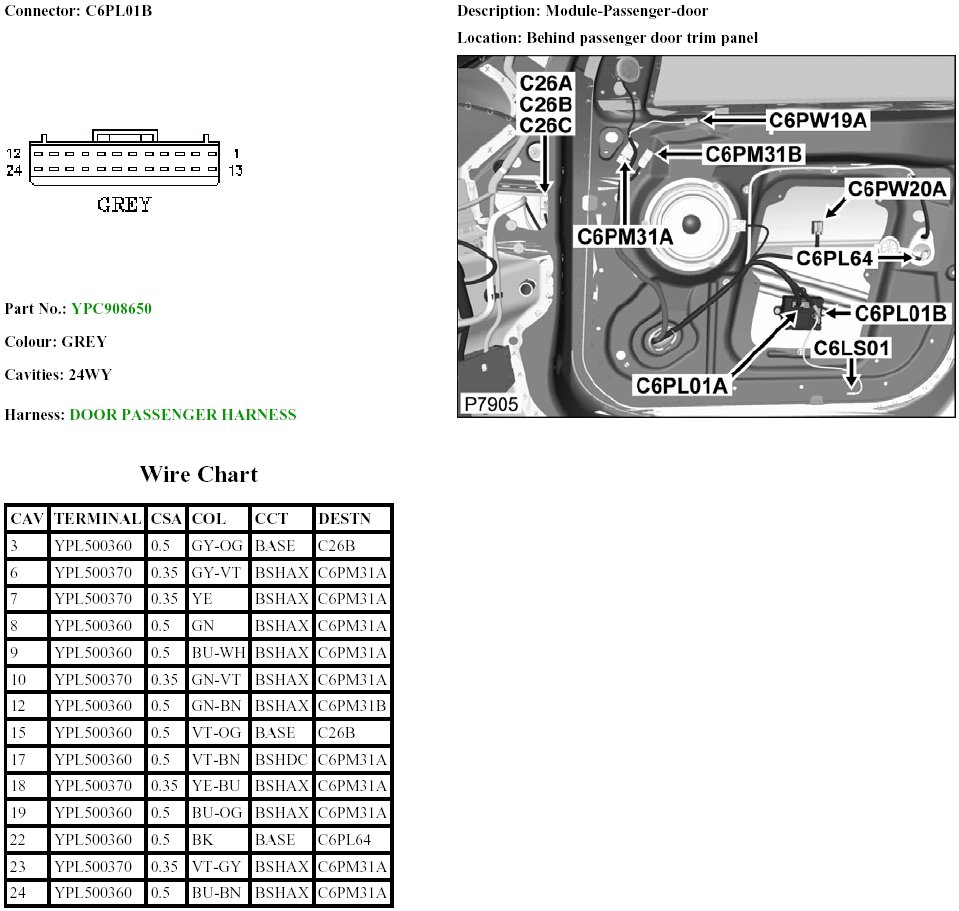

C6PL01B:
