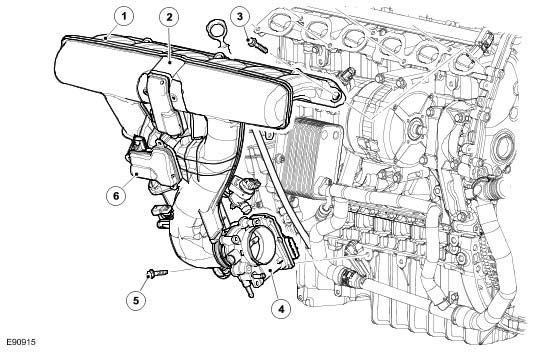

Intake Manifold

Intake Manifold








The intake manifold attaches to the cylinder head with 6 bolts and the oil pan with 2 bolts.

Intake manifold bolts 16 Nm (12 lb-ft)
Lower inlet manifold bolts 10 Nm (7 lb-ft)

Throttle body
Install the throttle body and tighten the screws in the sequence shown.
Torque: 8 Nm (6 lb-ft)





Throttle body to block support bolt 10 Nm (7 lb-ft)

* New nuts/bolts must be fitted A = refer to procedure for correct torque sequence
