Home >> Land Rover >> 2008 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations >> Connector Locations

Connector Locations

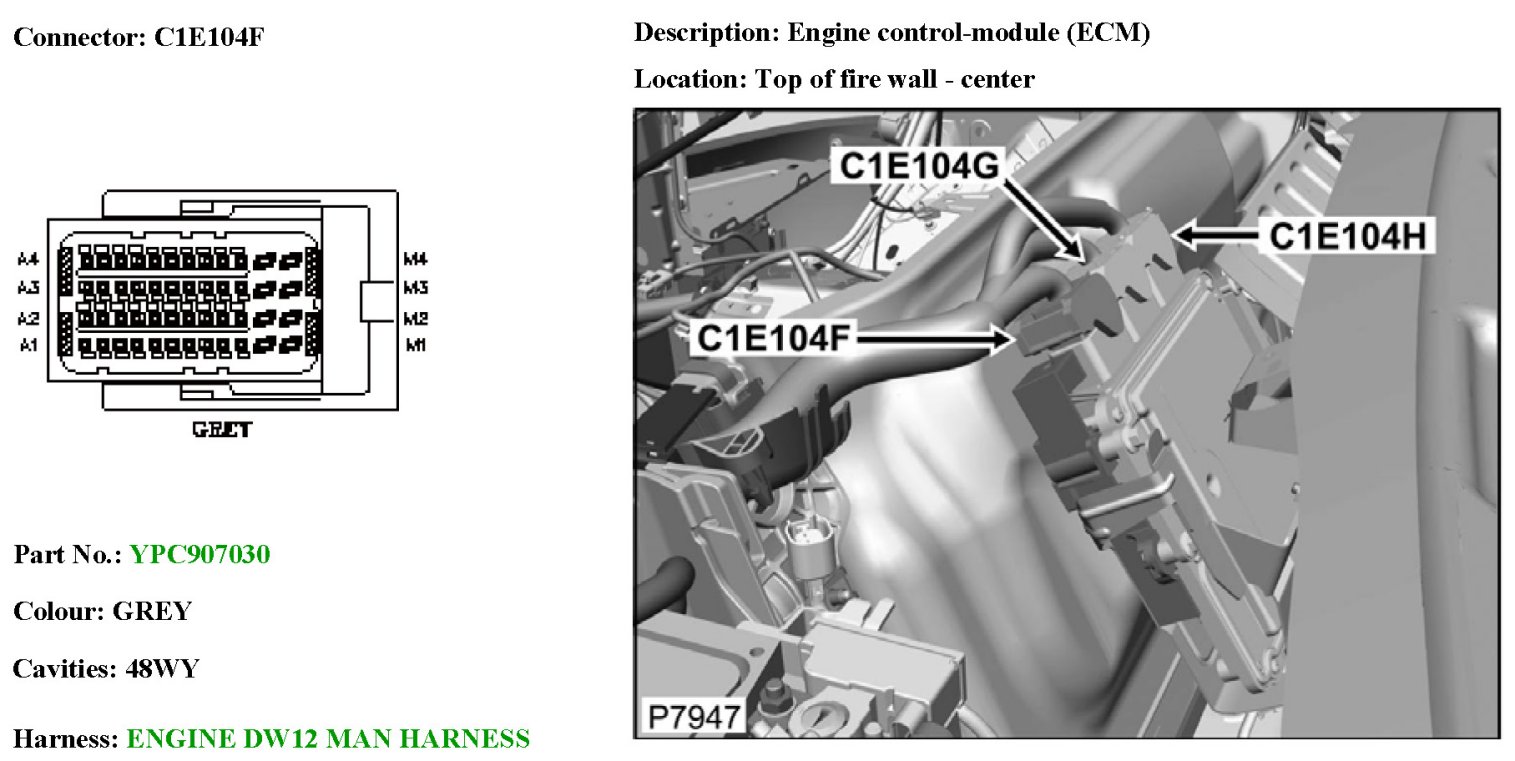

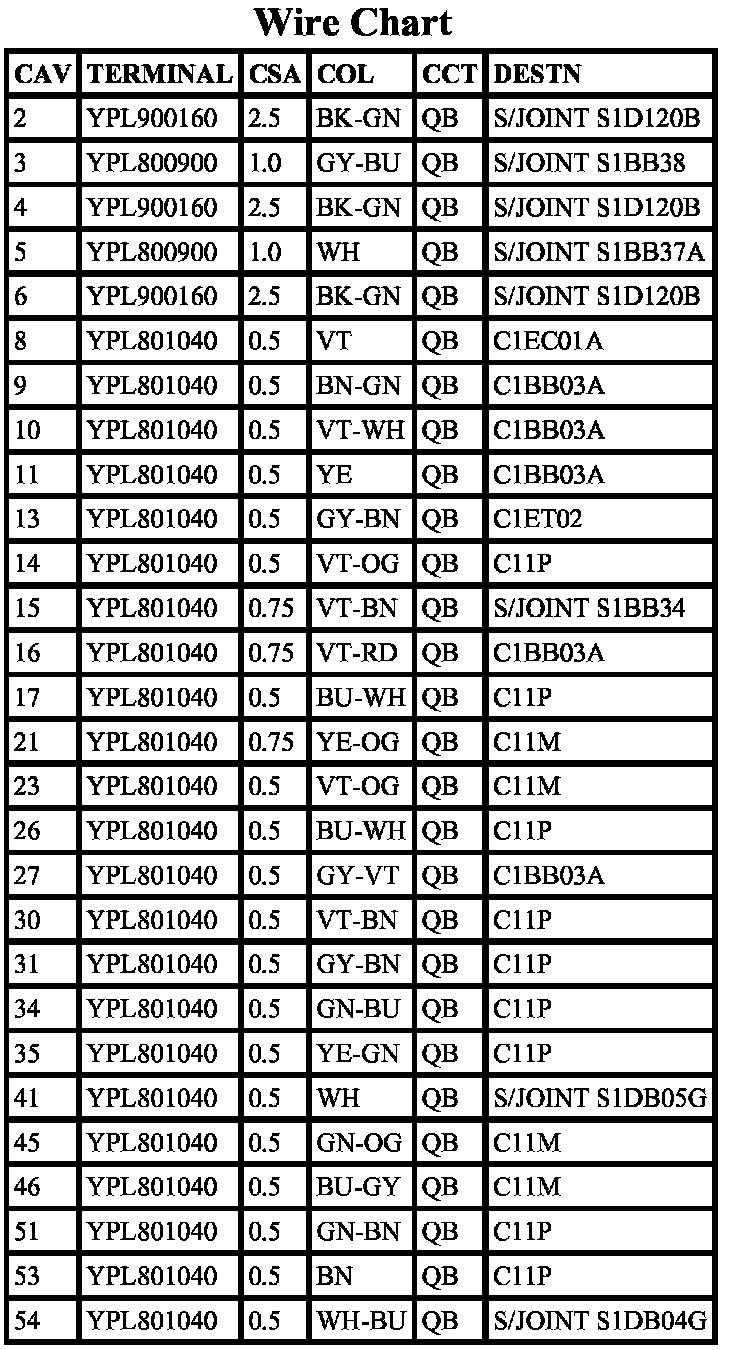

C1E104F (Part 1):



C1E104F (Part 2):

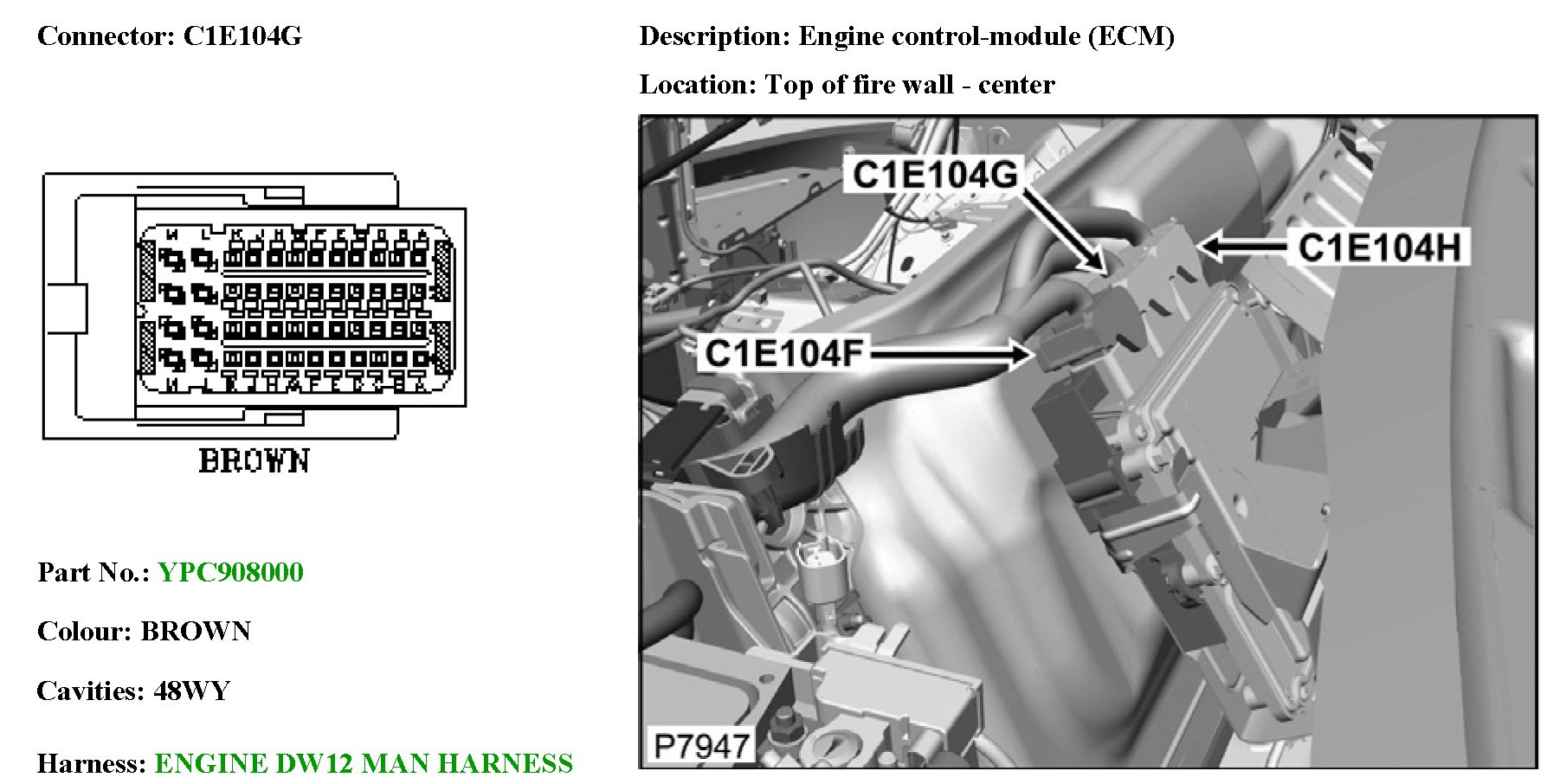

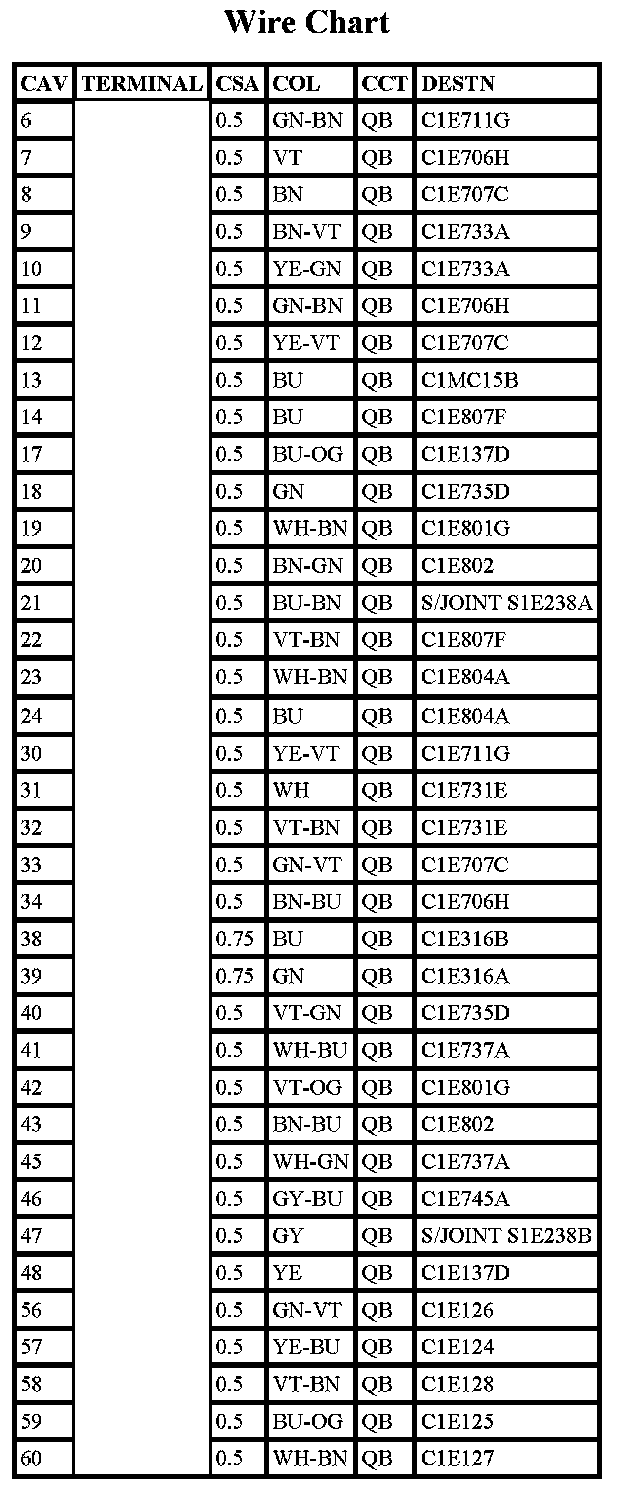

C1E104G (Part 1):



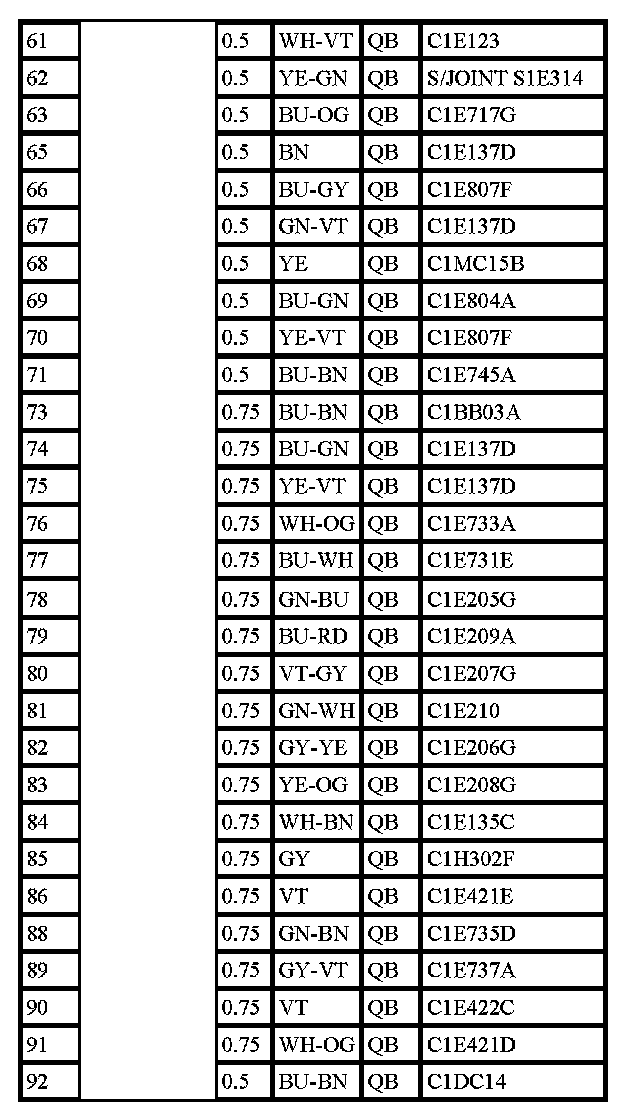

C1E104G (Part 2):

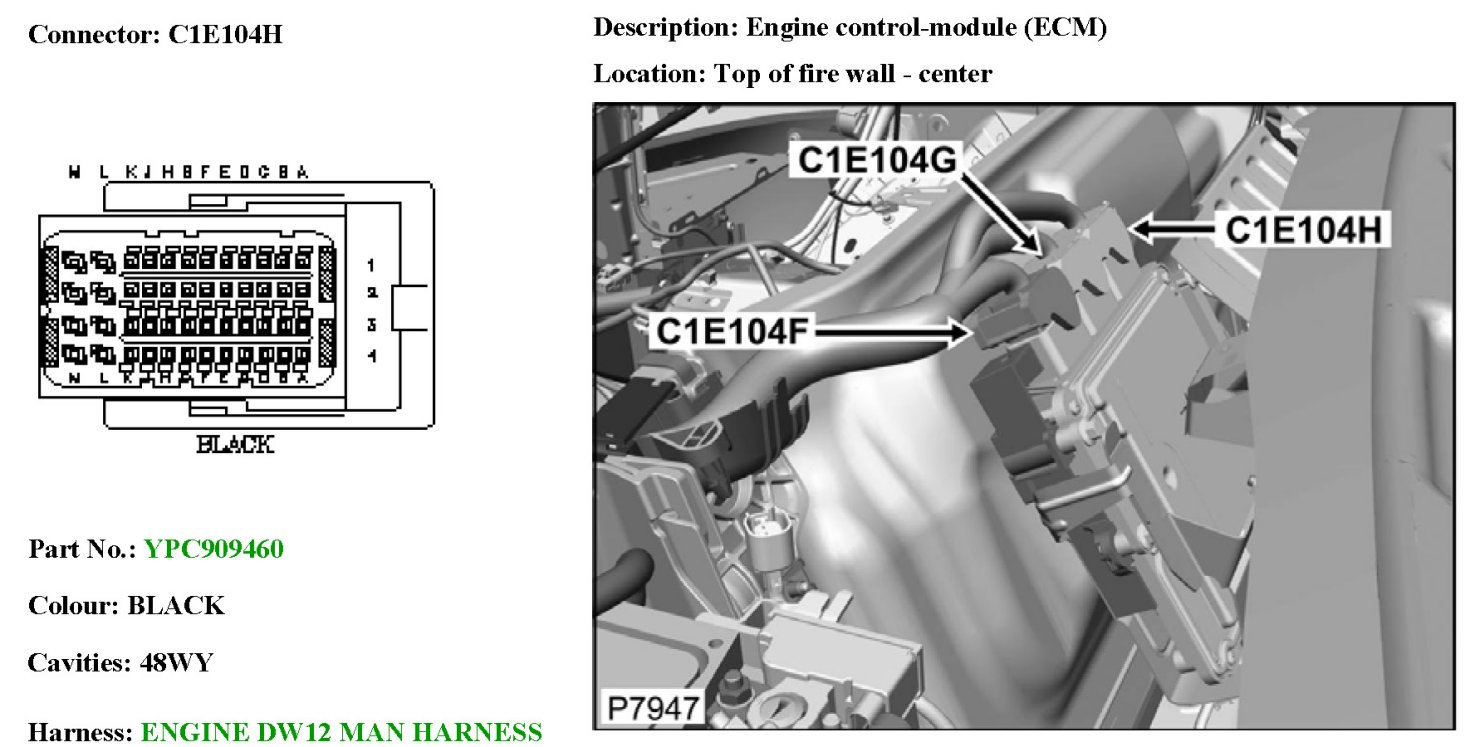

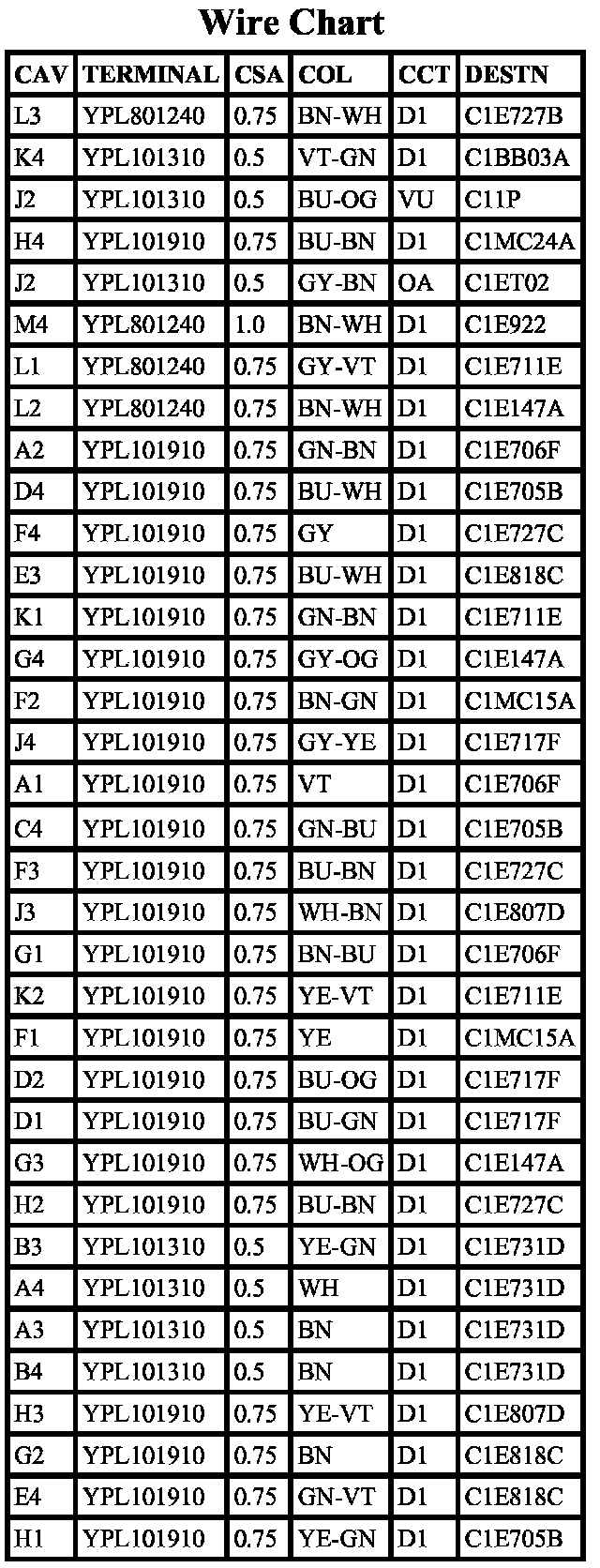

C1E104H (Part 1):



C1E104H (Part 2):

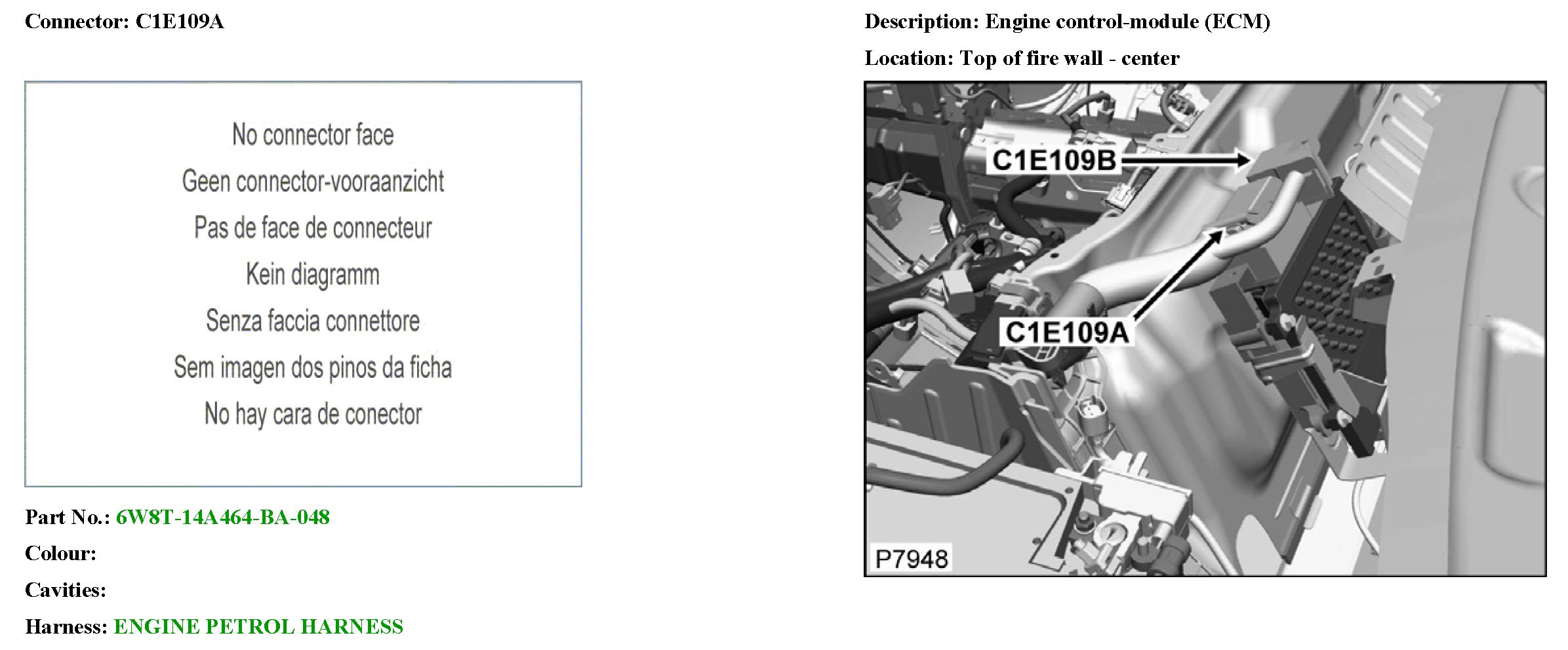

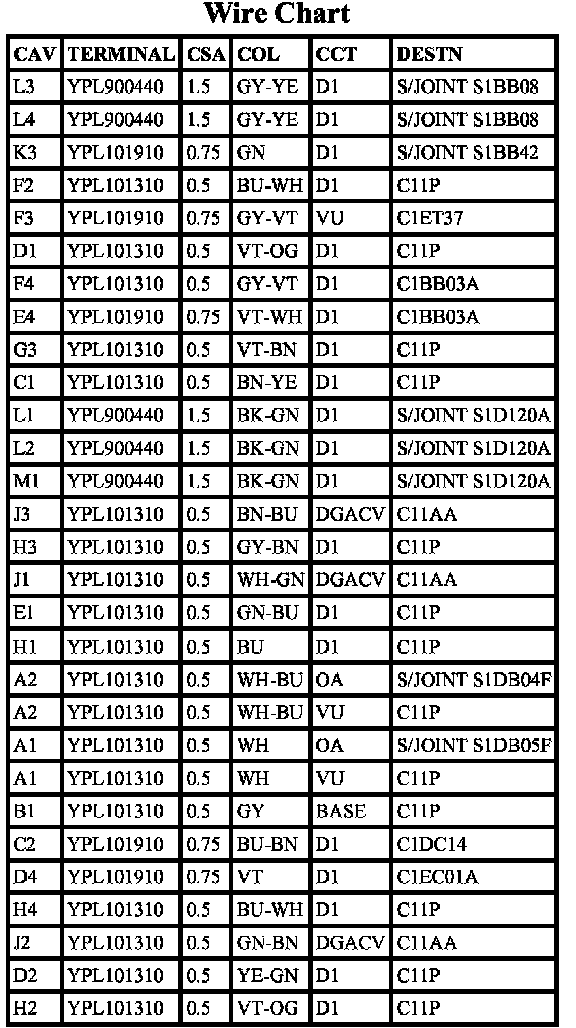

C1E109A (Part 1):



C1E109A (Part 2):



C1E109A (Part 3):

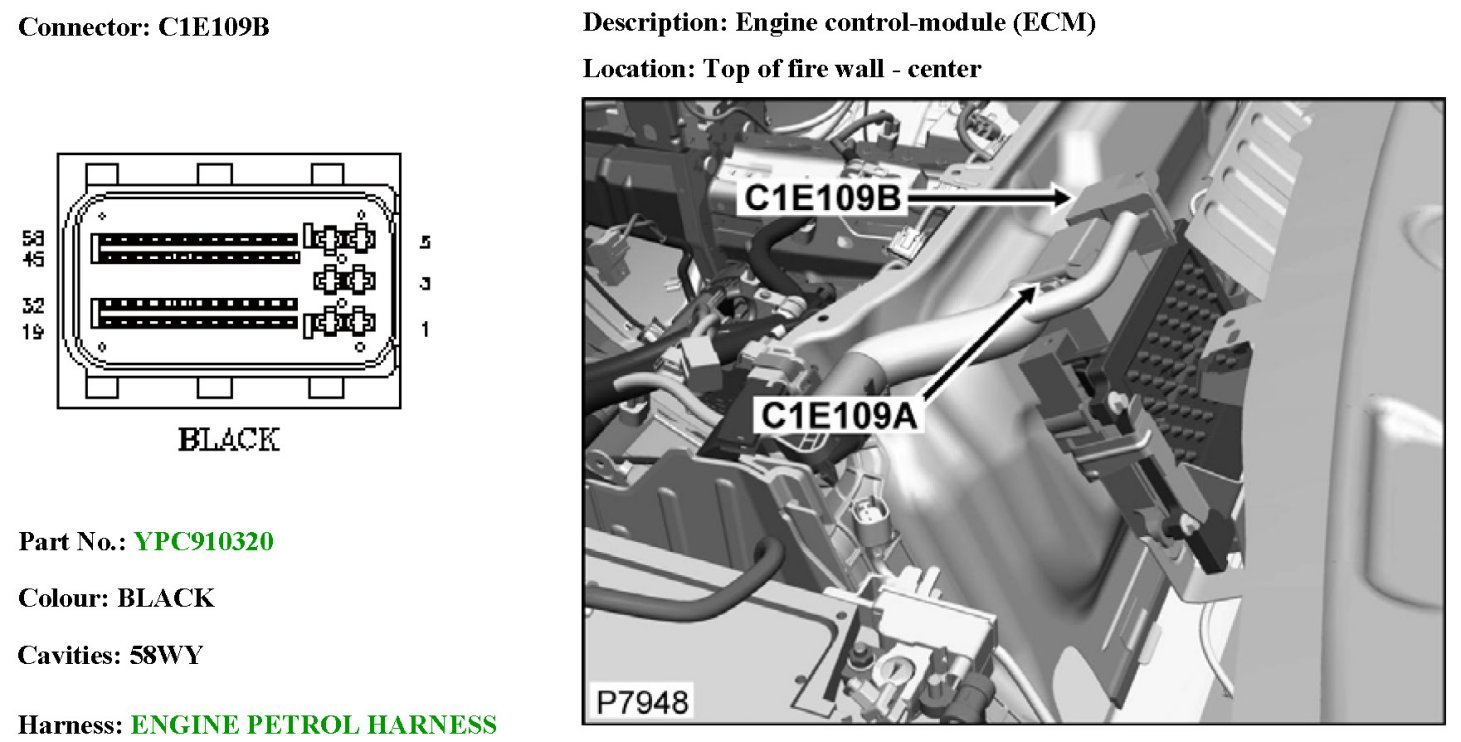

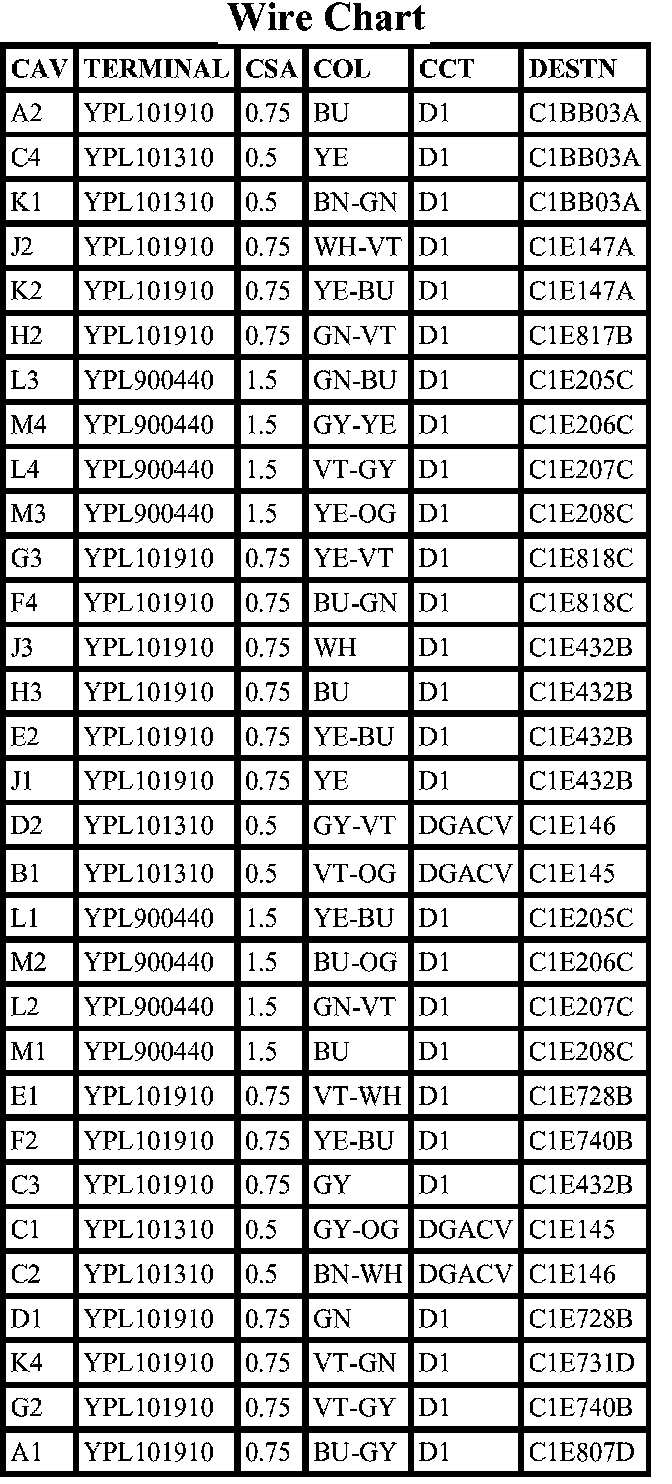

C1E109B (Part 1):



C1E109B (Part 2):
