Seat Temperature Control Module
>>
Module-Heated Seat-Driver
Module-Heated Seat-Driver

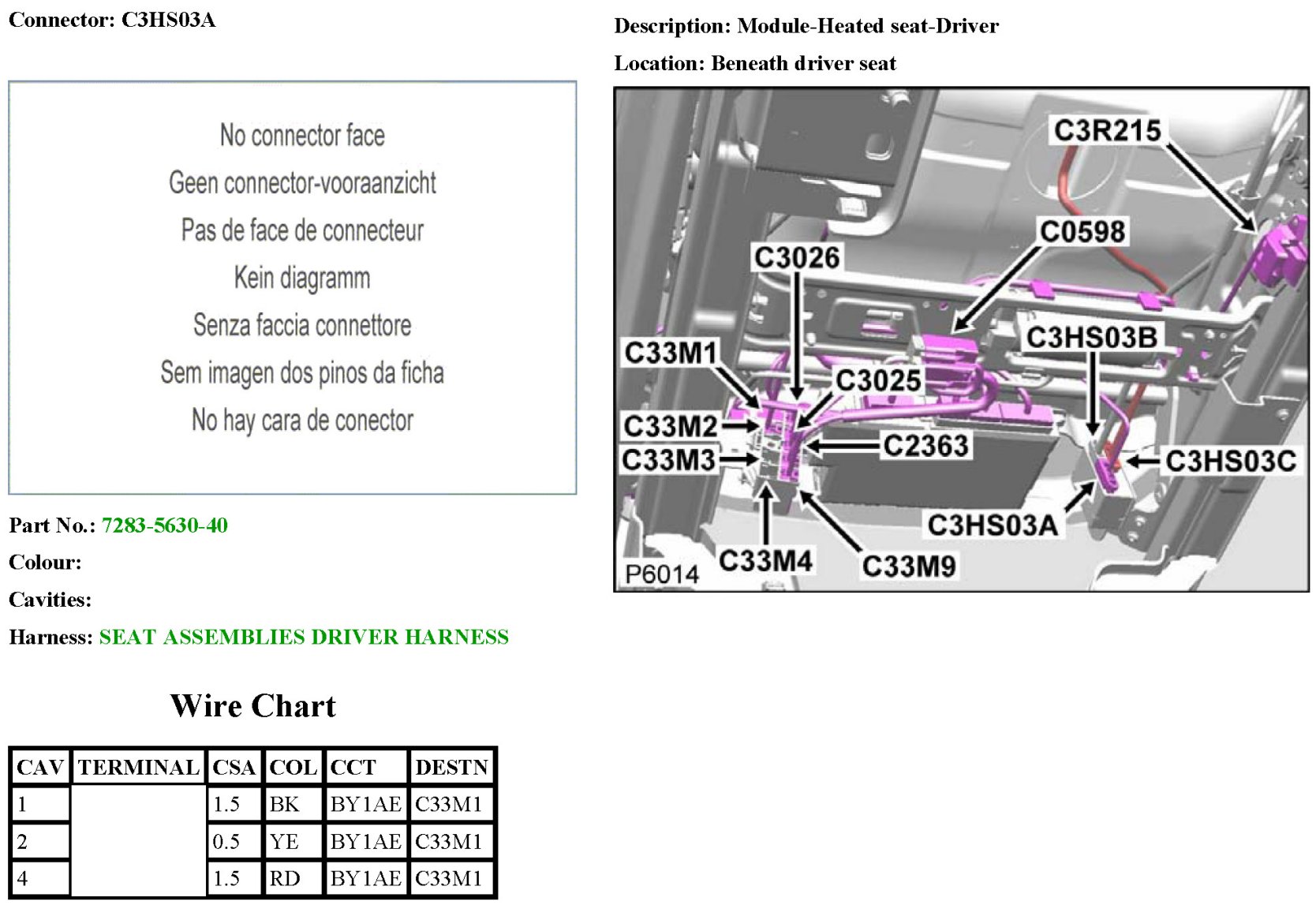

C3HS03A:

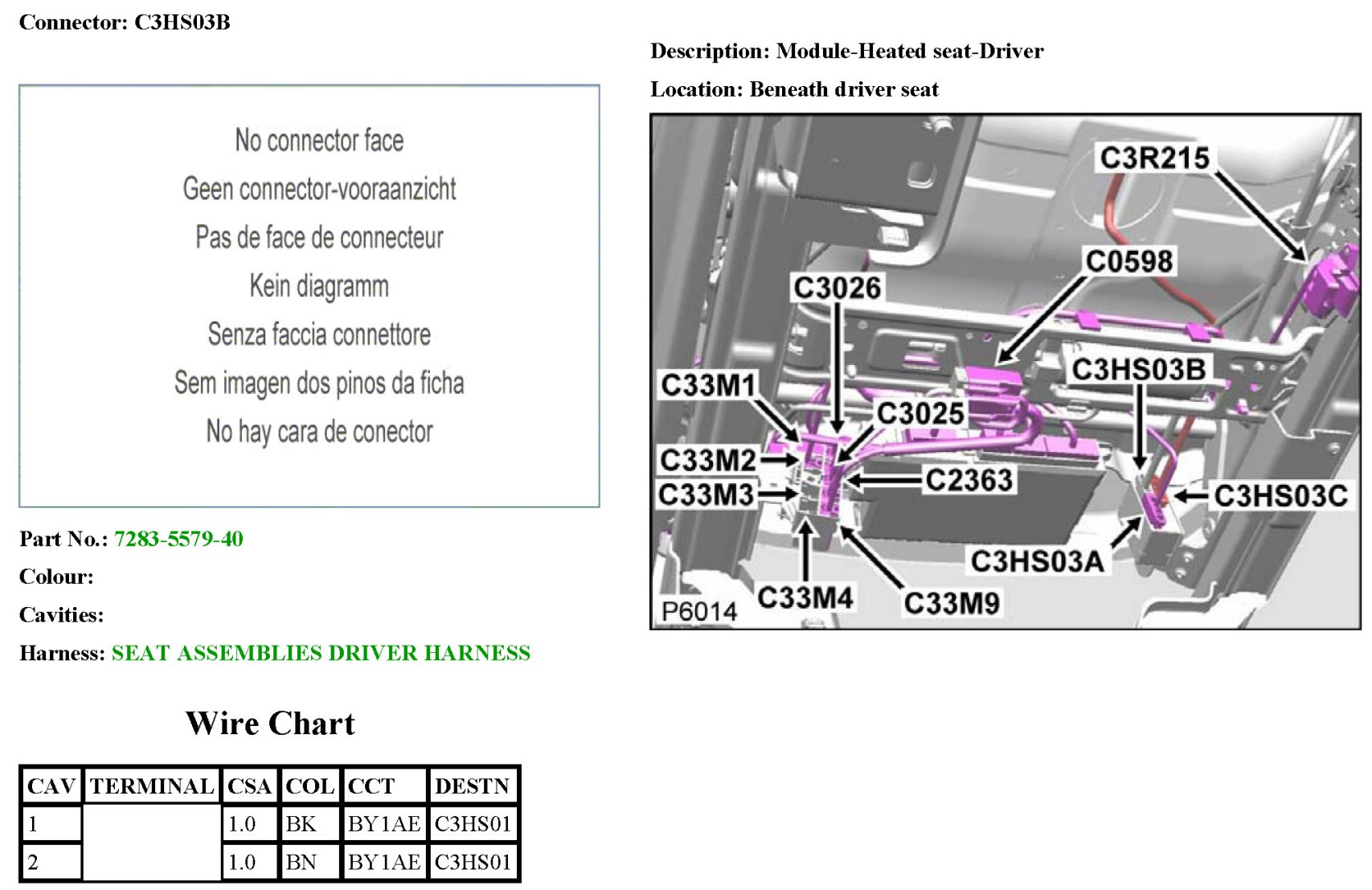

C3HS03B:

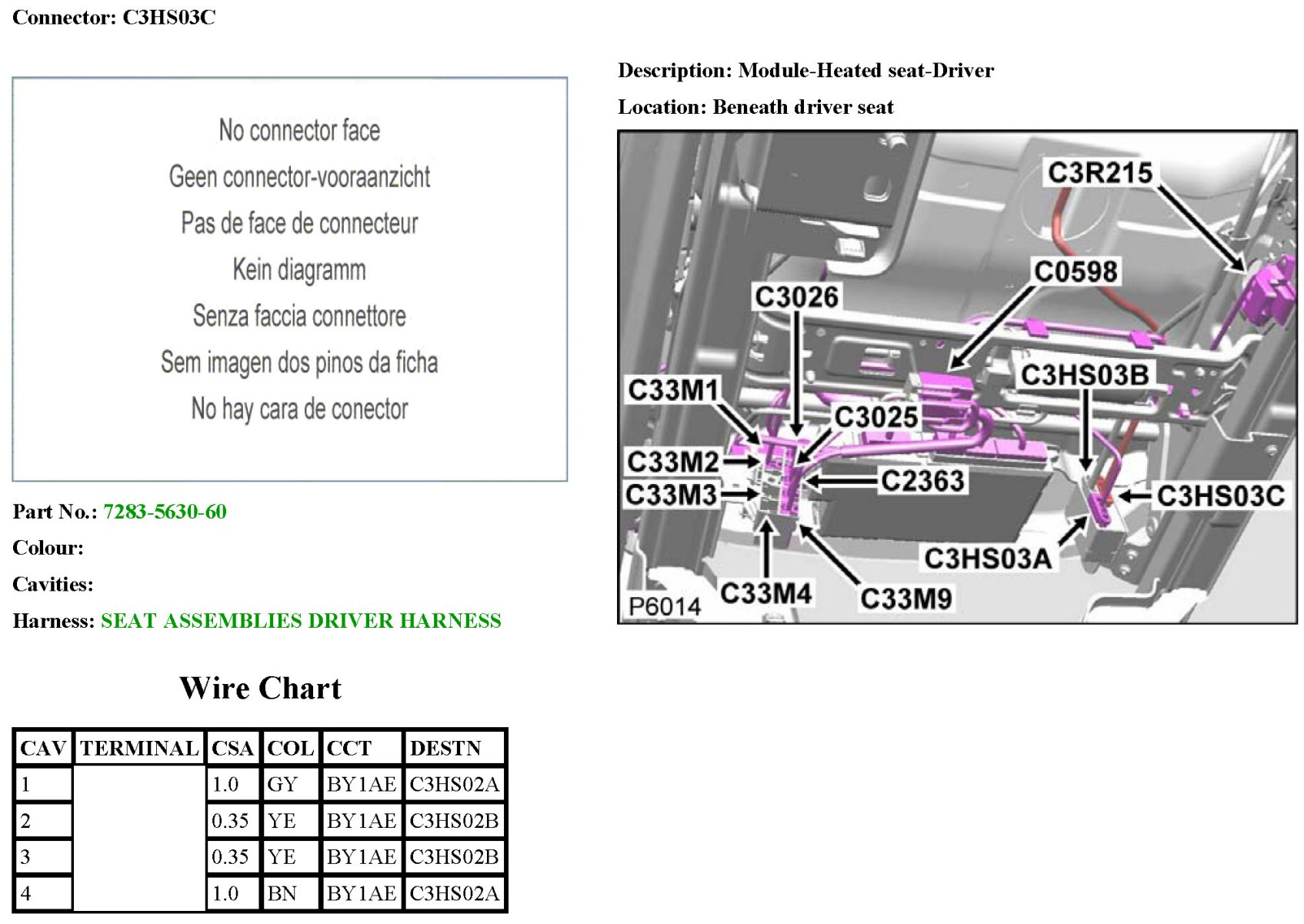

C3HS03C:
