Home >> Land Rover >> 2008 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation Module

Navigation Module

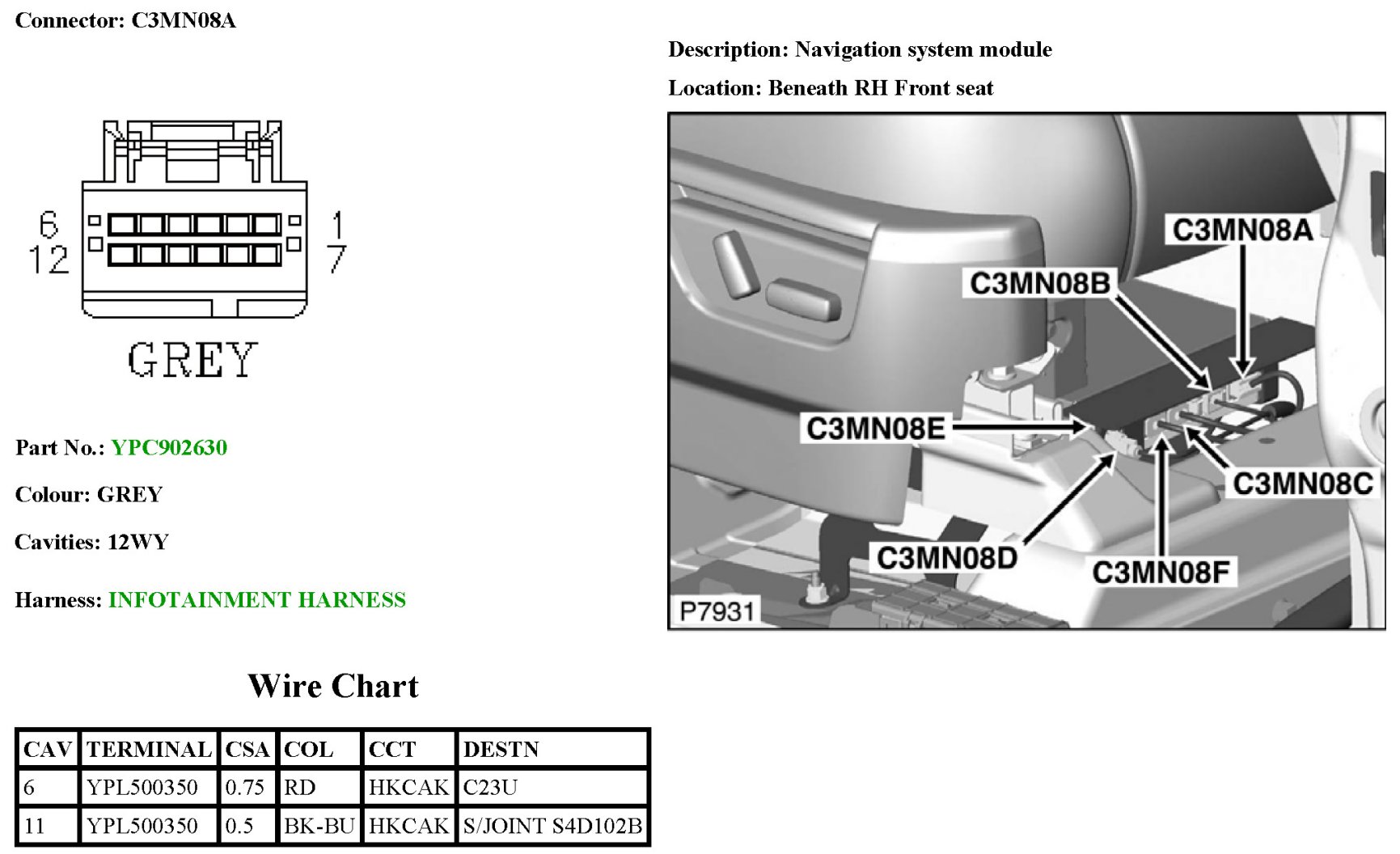

C3MN08A:

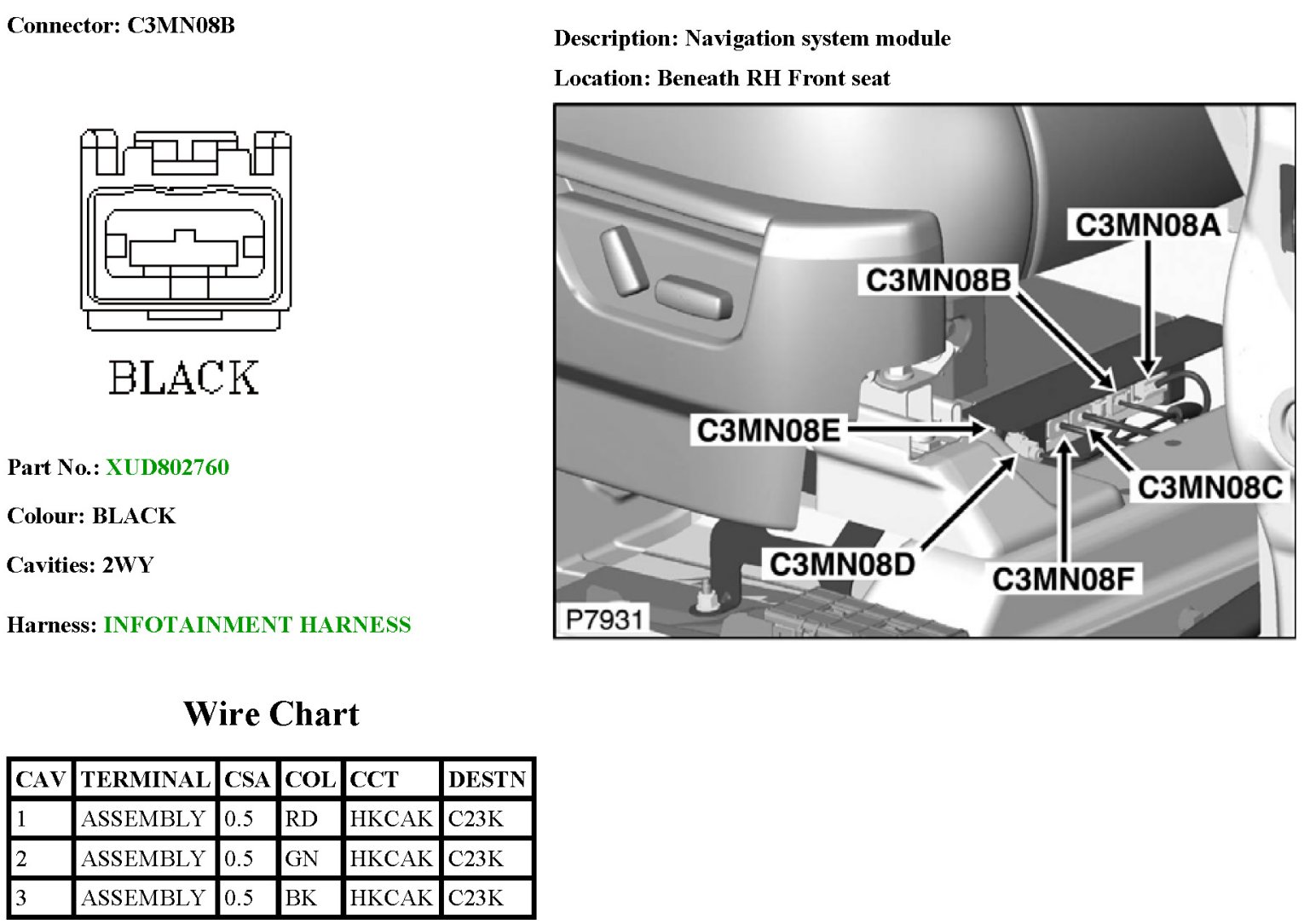

C3MN08B:

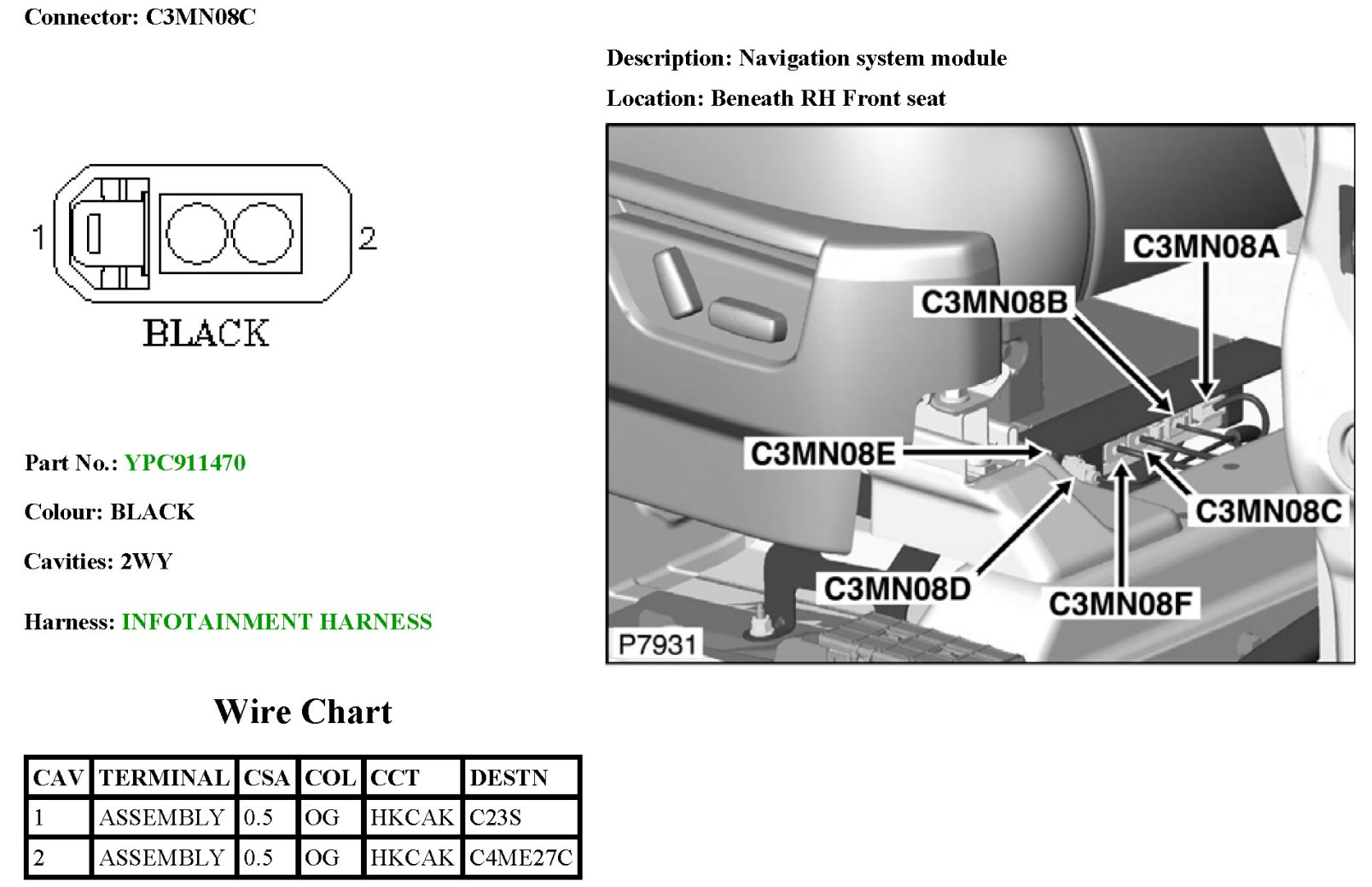

C3MN08C:

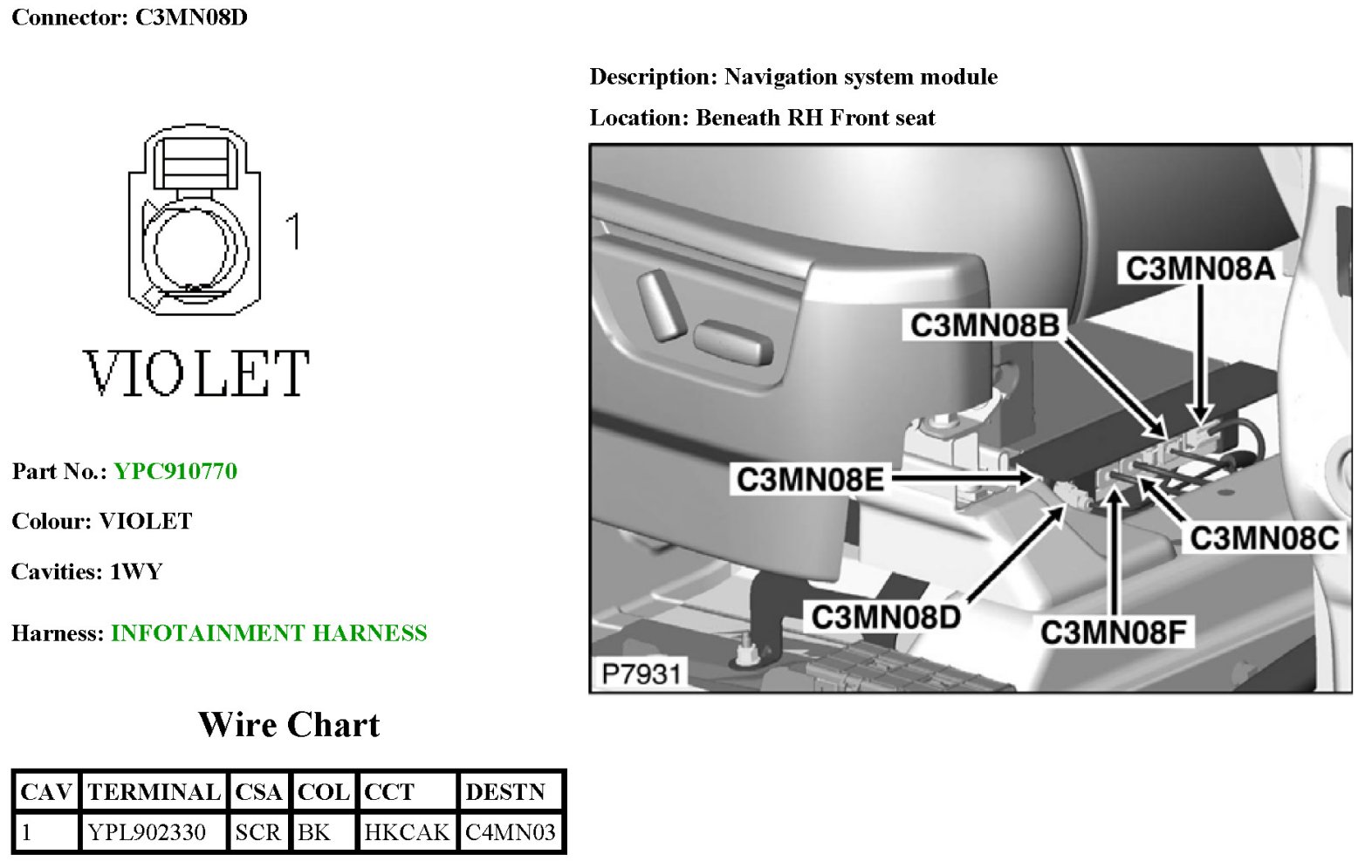

C3MN08D:

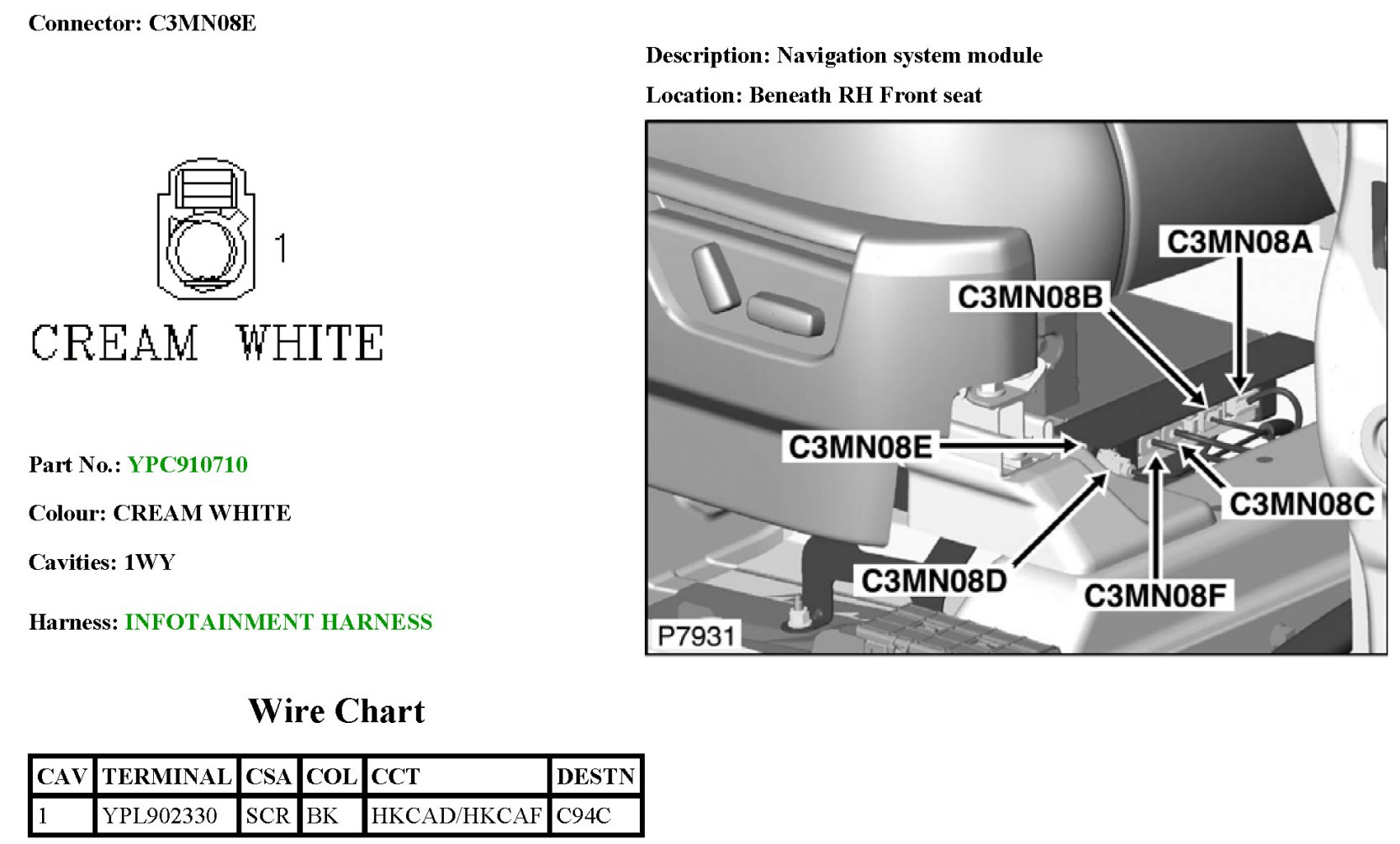

C3MN08E:

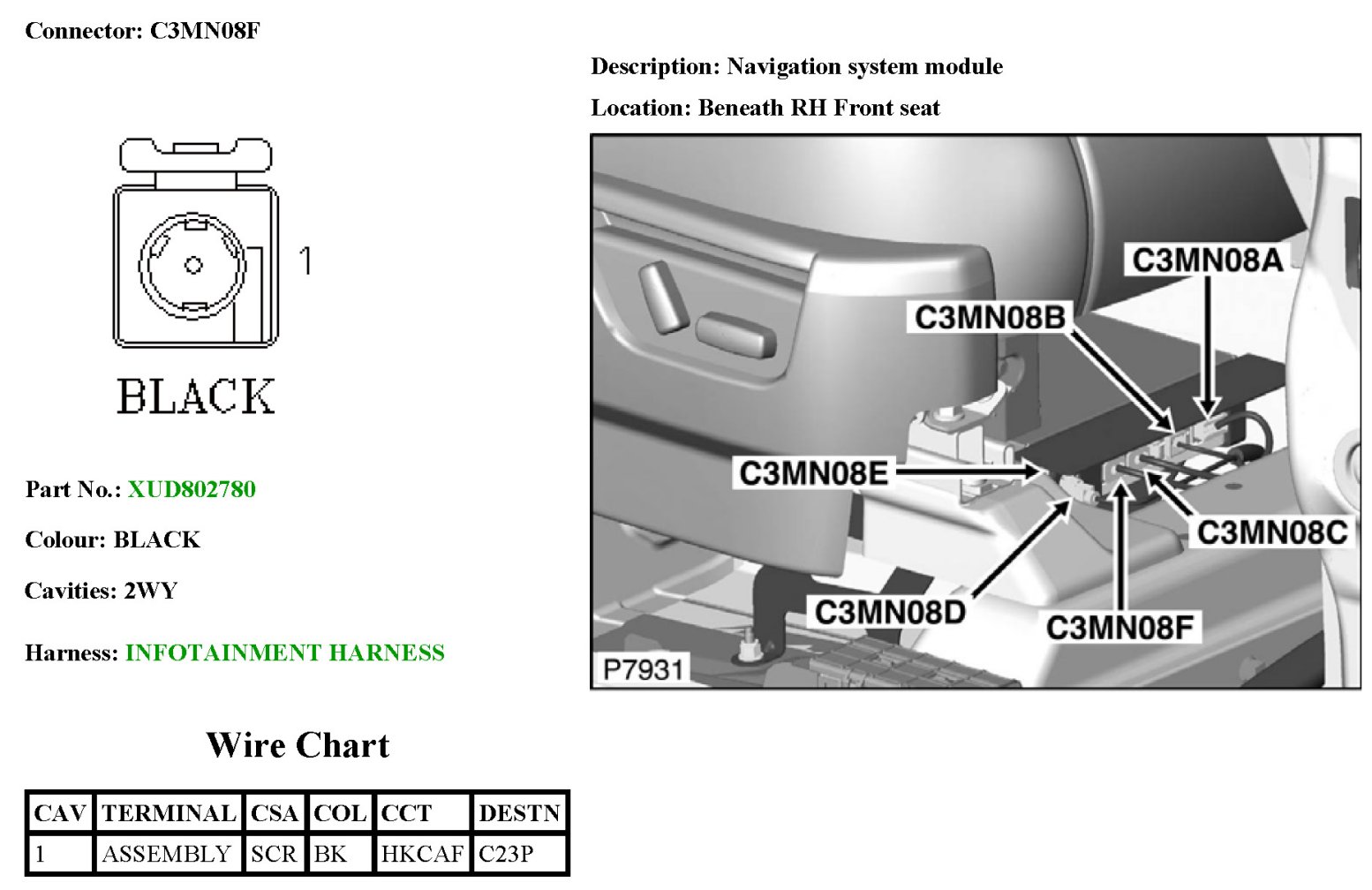

C3MN08F:
