Home >> Land Rover >> 2008 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module

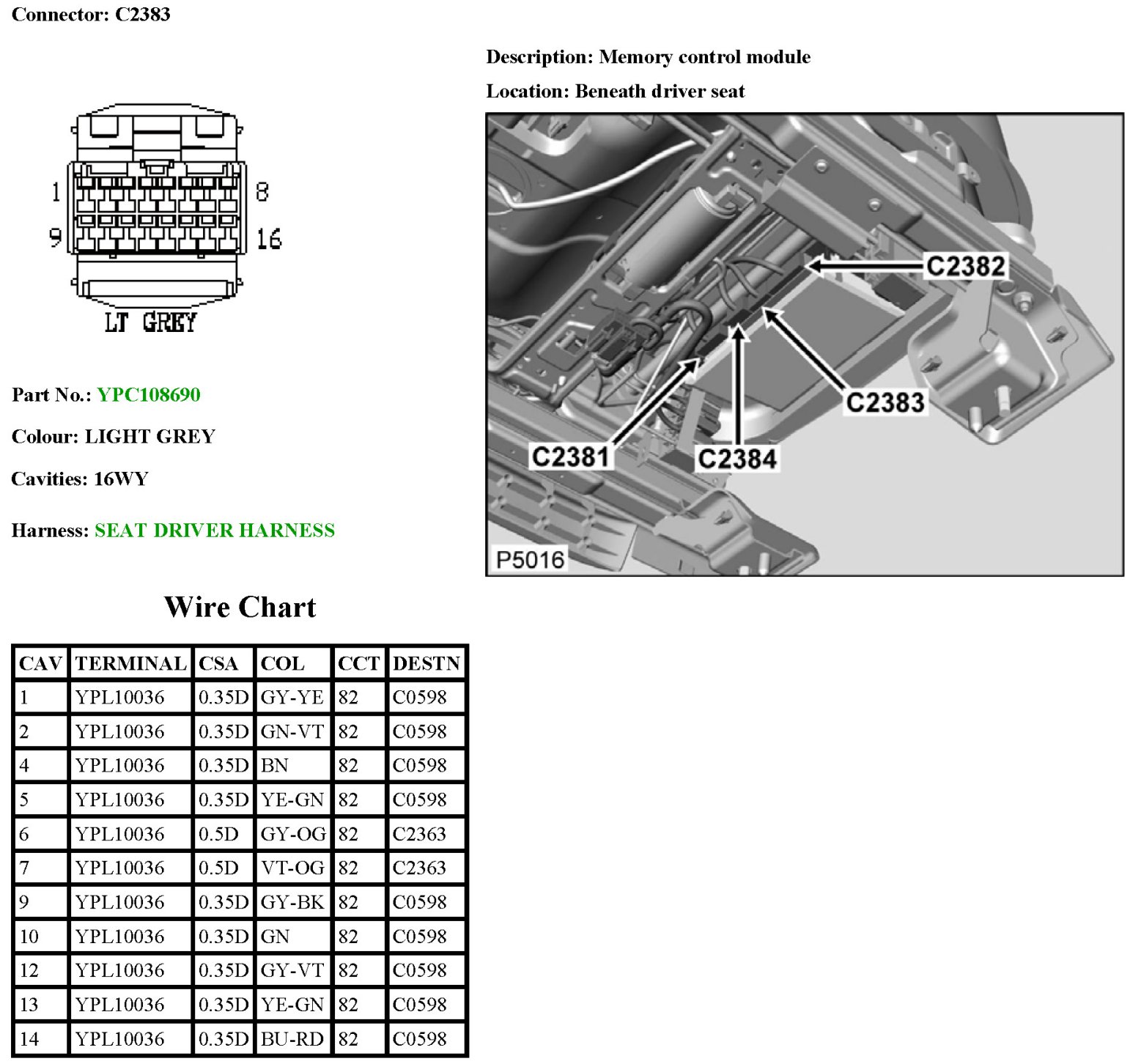

C2383:

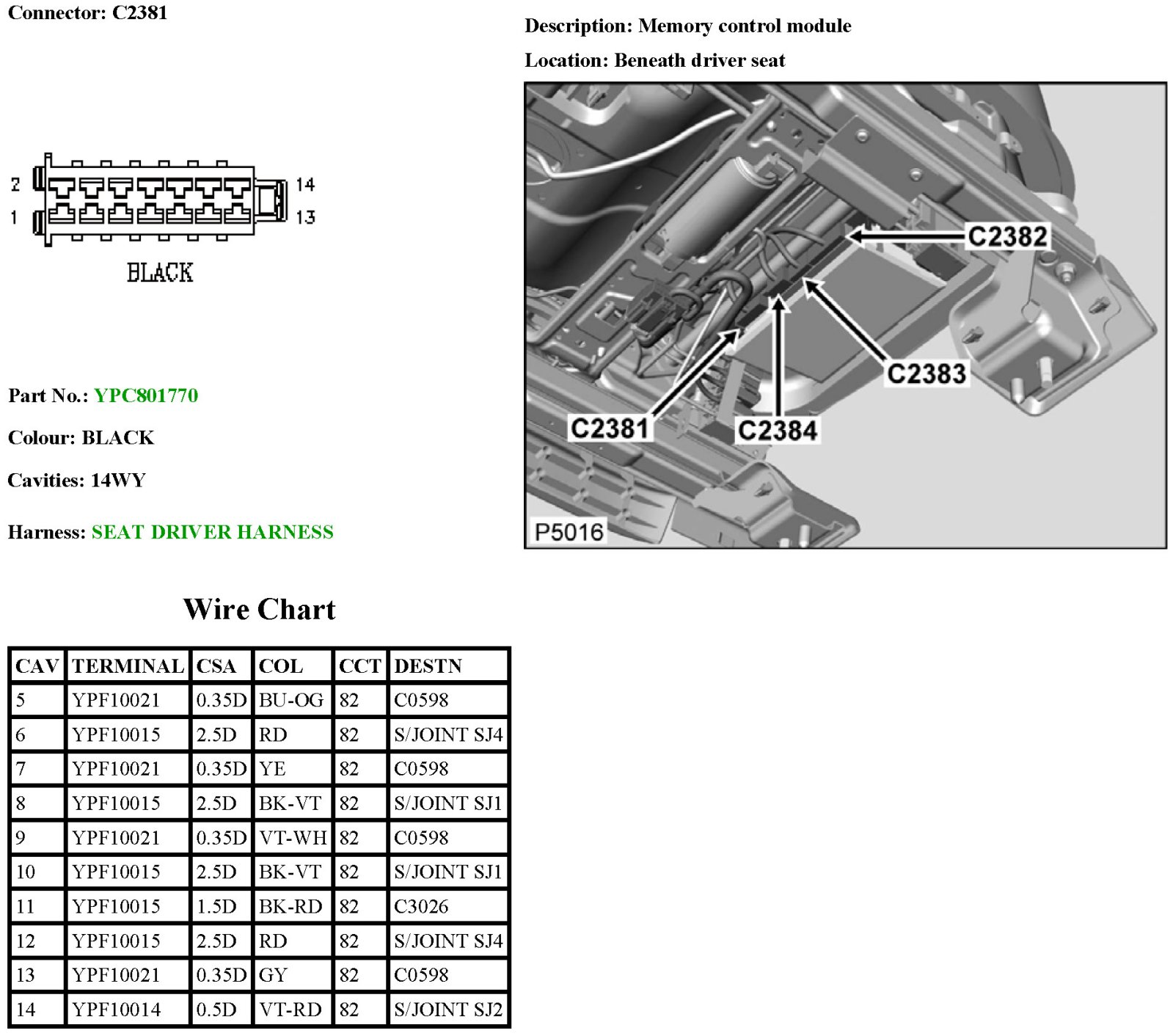

C2381:

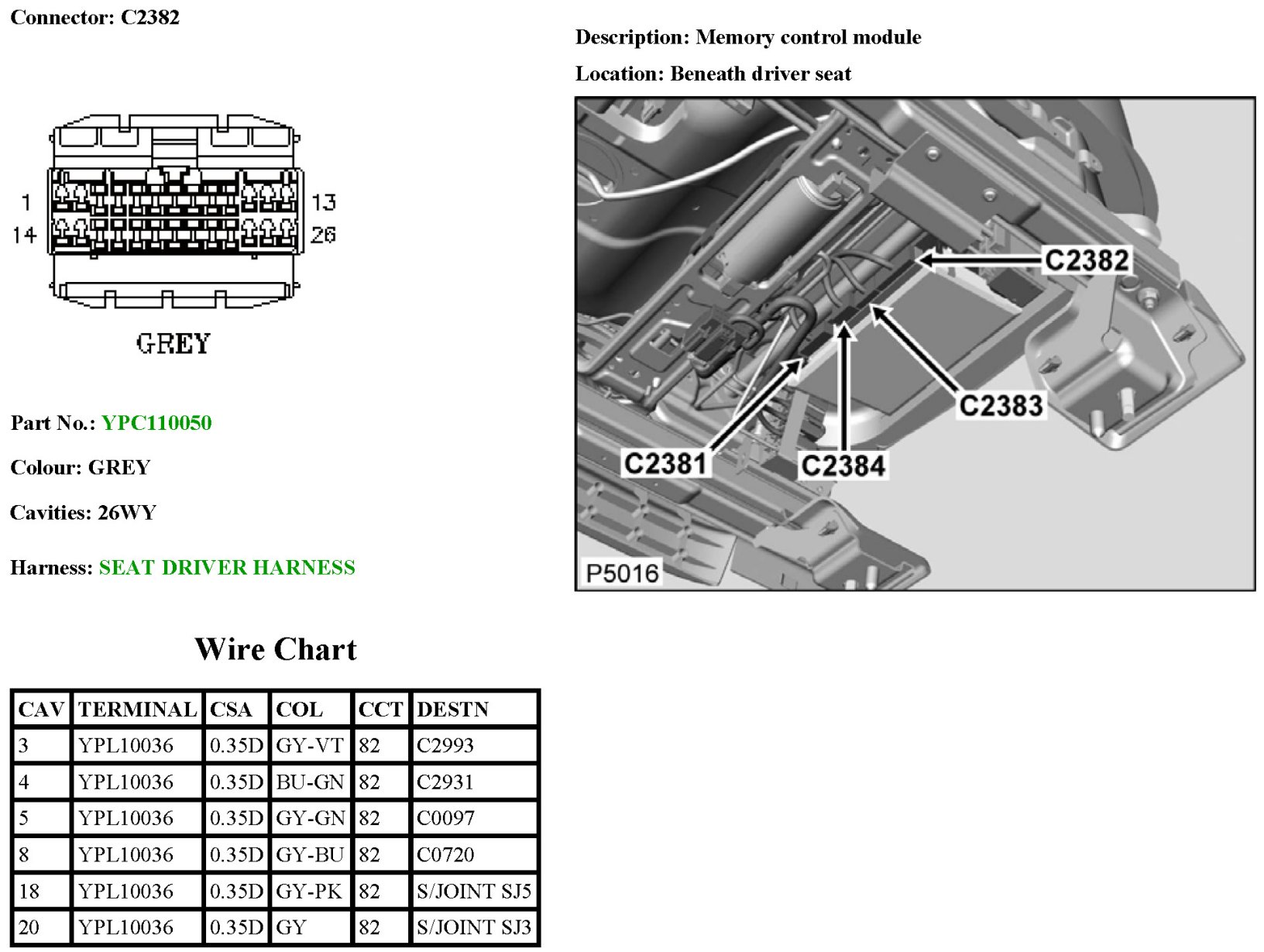

C2382:

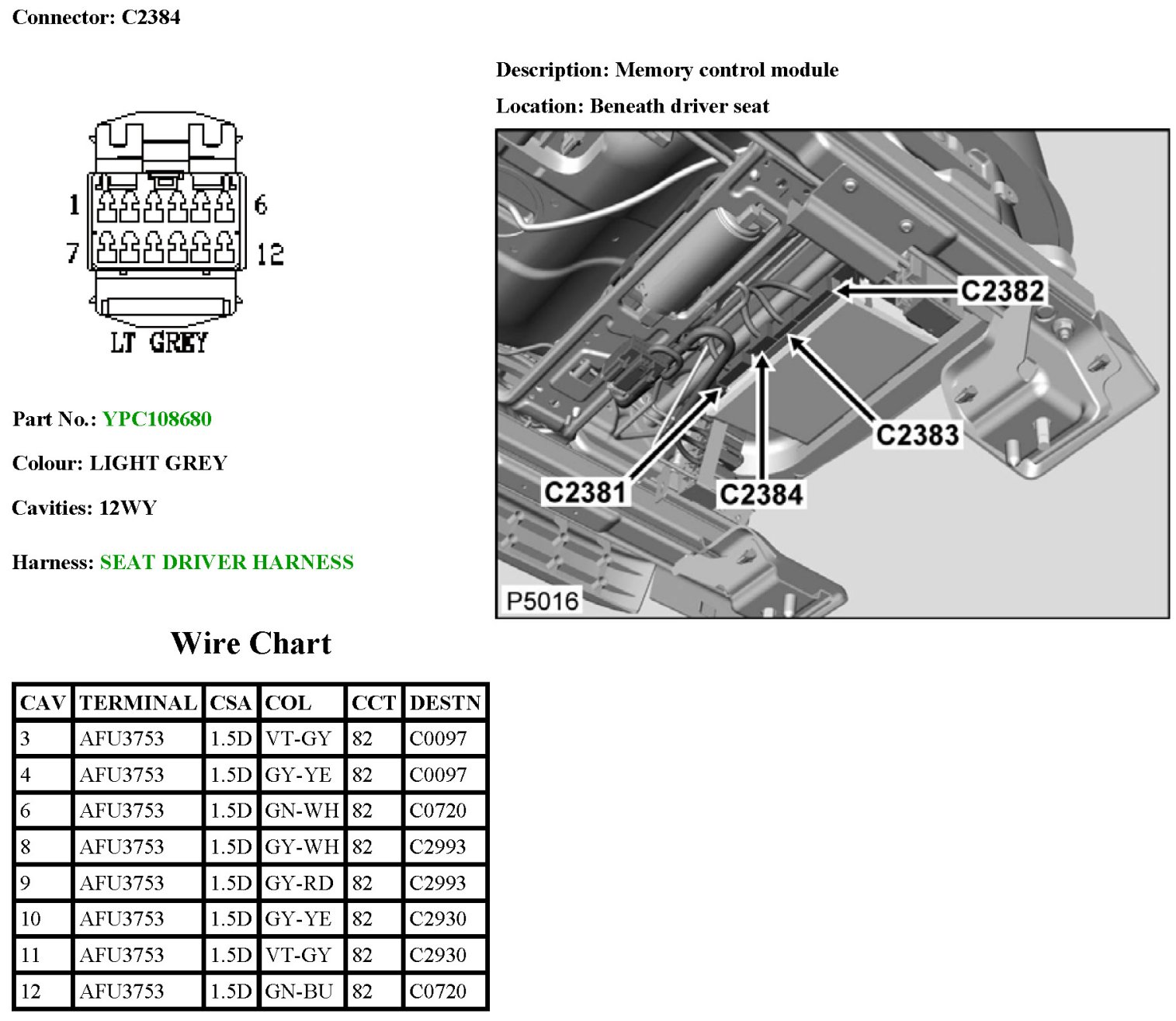

C2384:
