LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

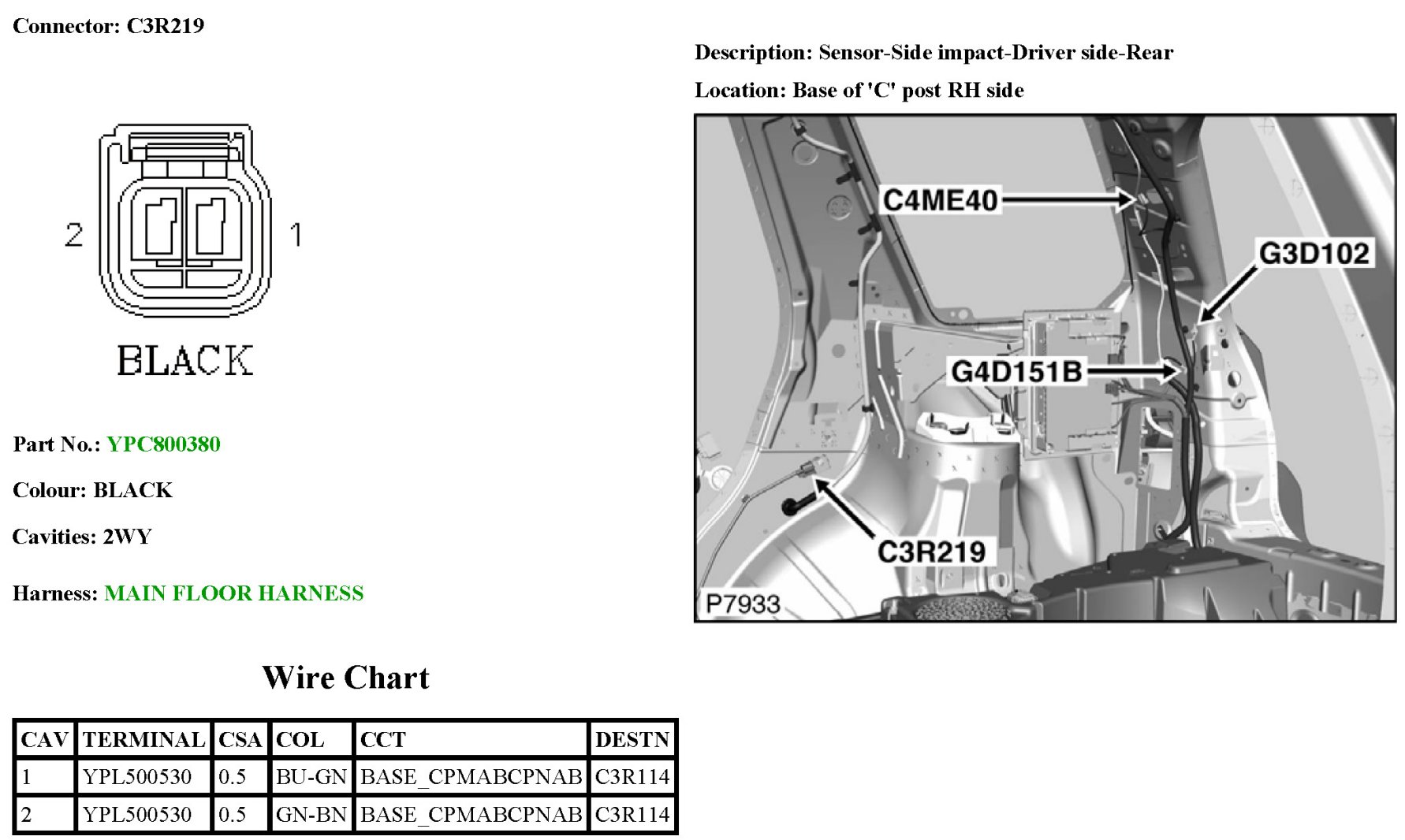

Sensor-Side Impact-Driver Side-Rear
Sensor-Side Impact-Driver Side-Rear
C3R219:
