Door Module
>>
Module-Passenger-Door
Module-Passenger-Door

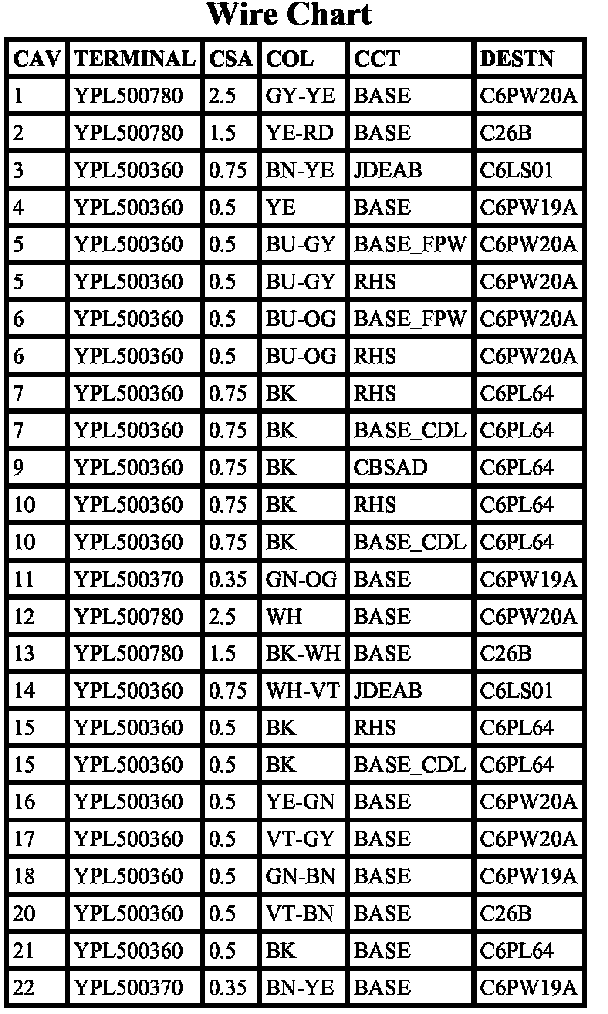

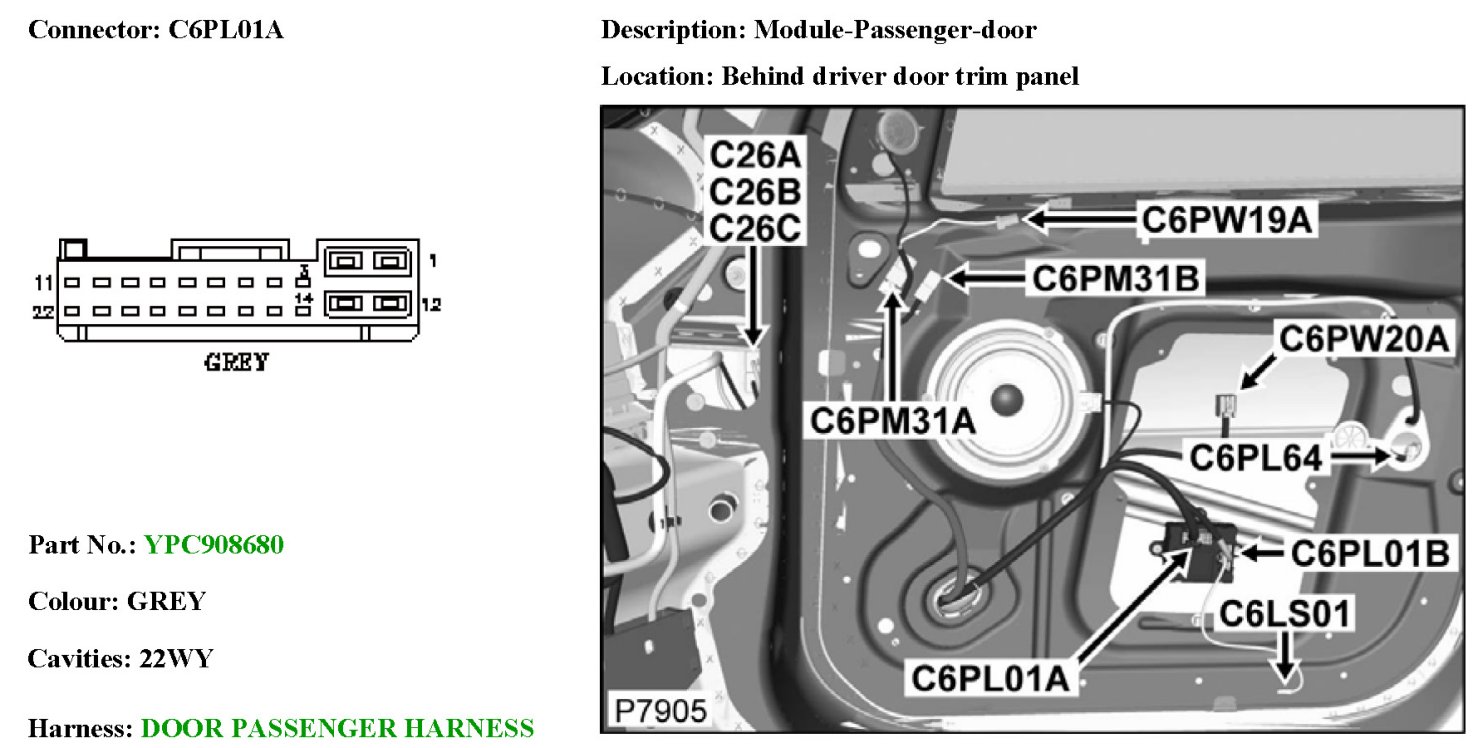

C6PL01A (Part 1):
C6PL01A (Part 2):

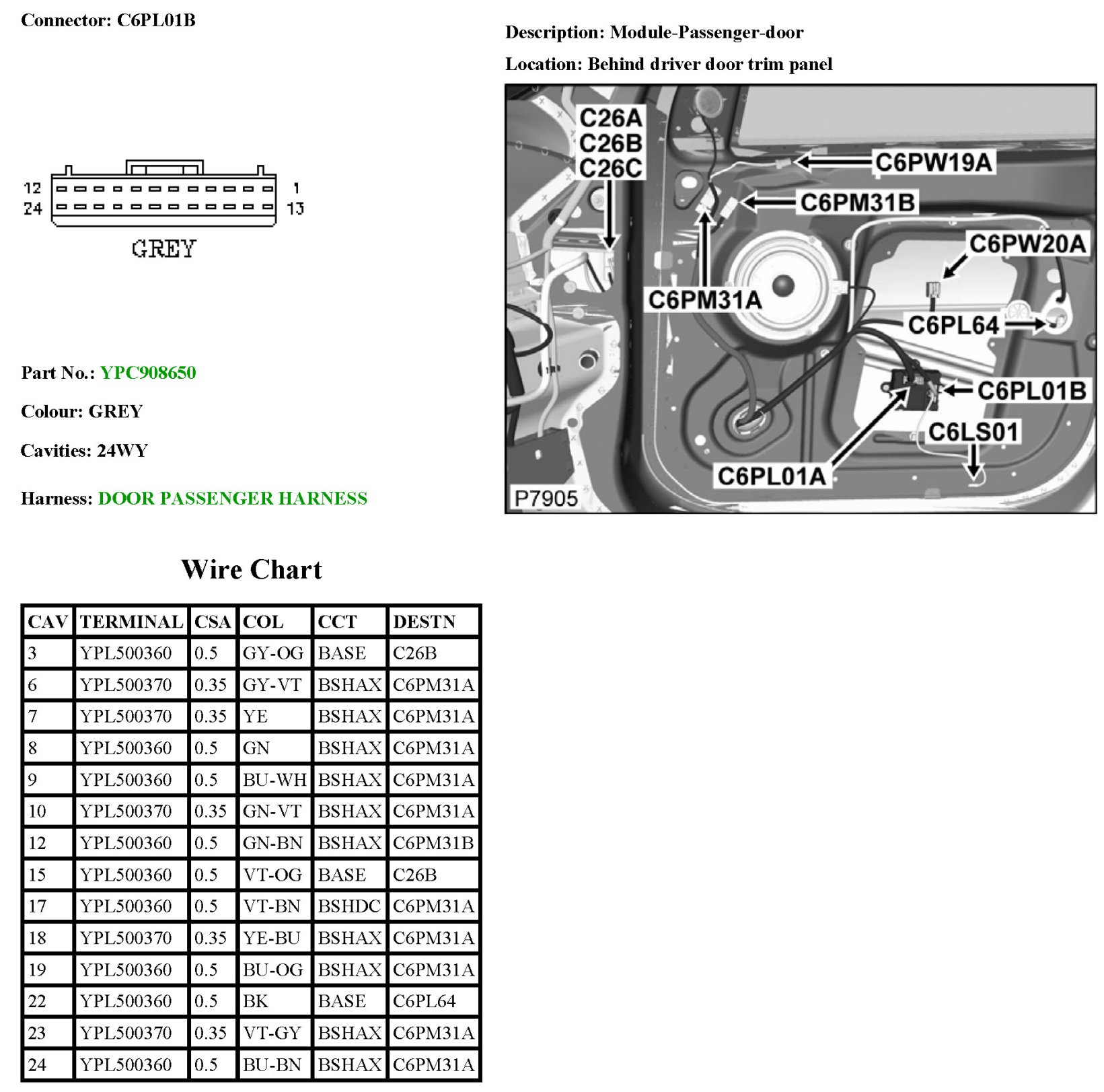

C6PL01B:
