Home >> Land Rover >> 2008 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

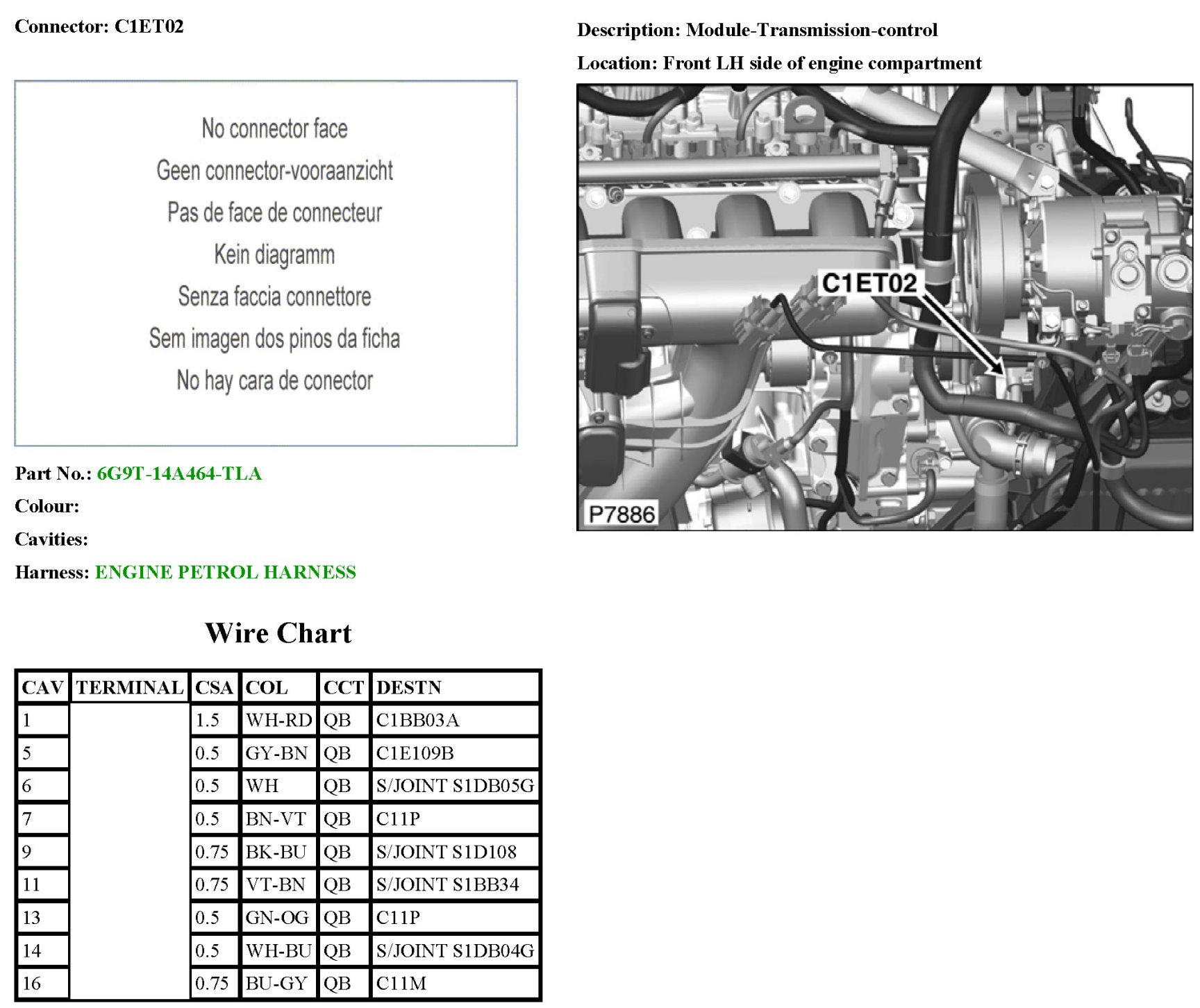

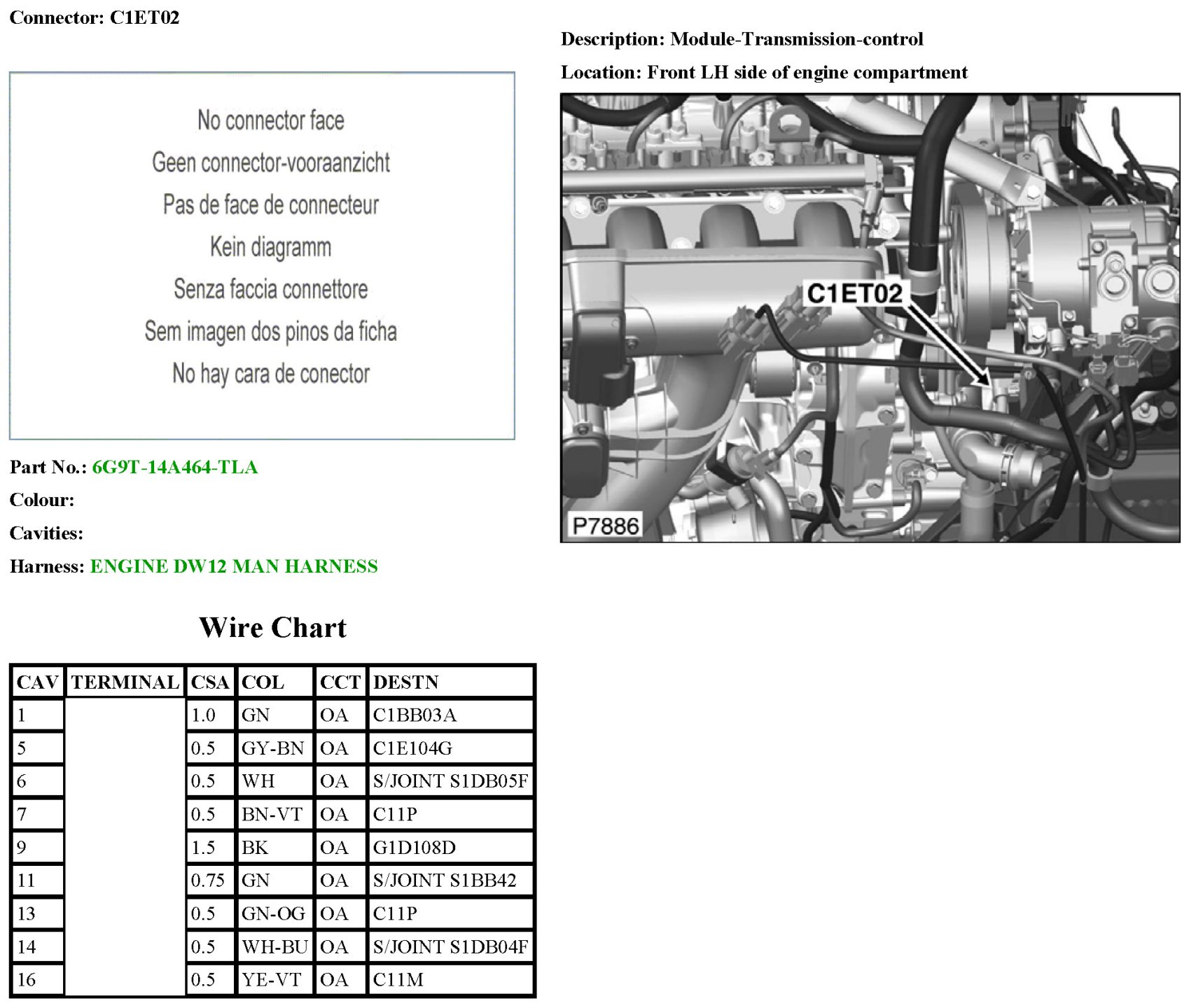

Control Module, A/T

C1ET02:



C1ET02:
