Home >> Land Rover >> 2000 >> Range Rover (LP) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

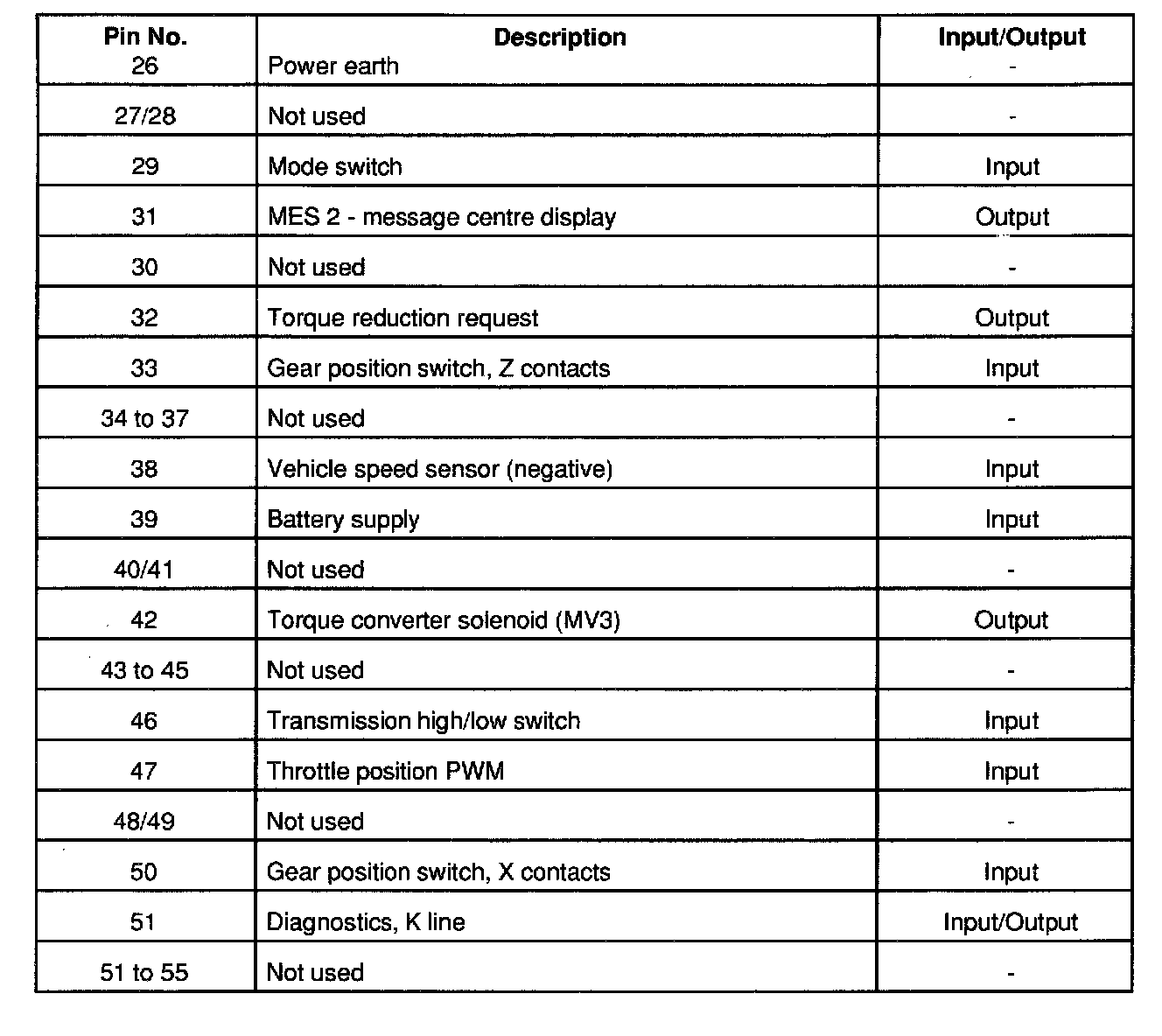

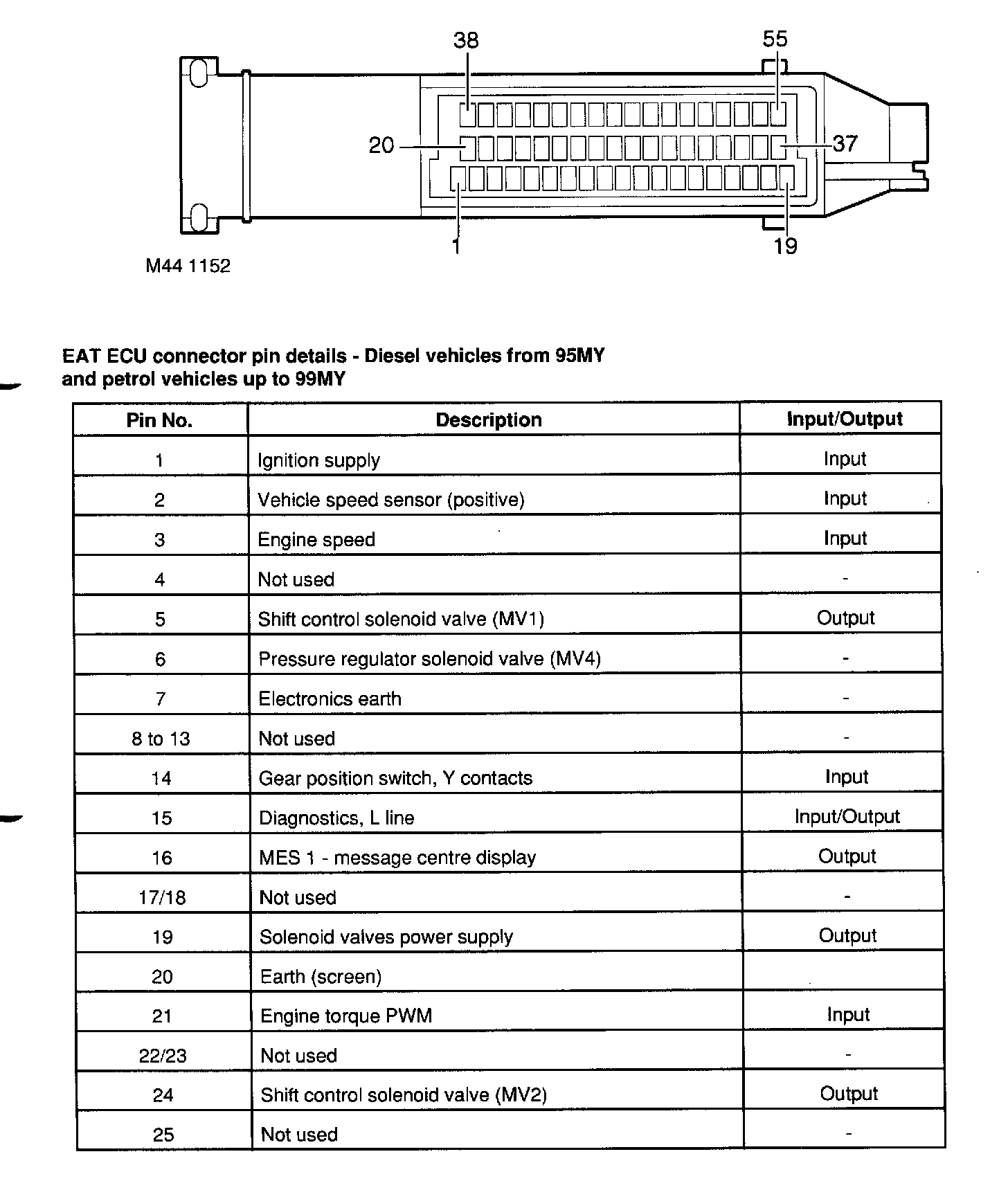

EAT ECU connector - Diesel vehicles from 95MY and petrol vehicles up to 99MY

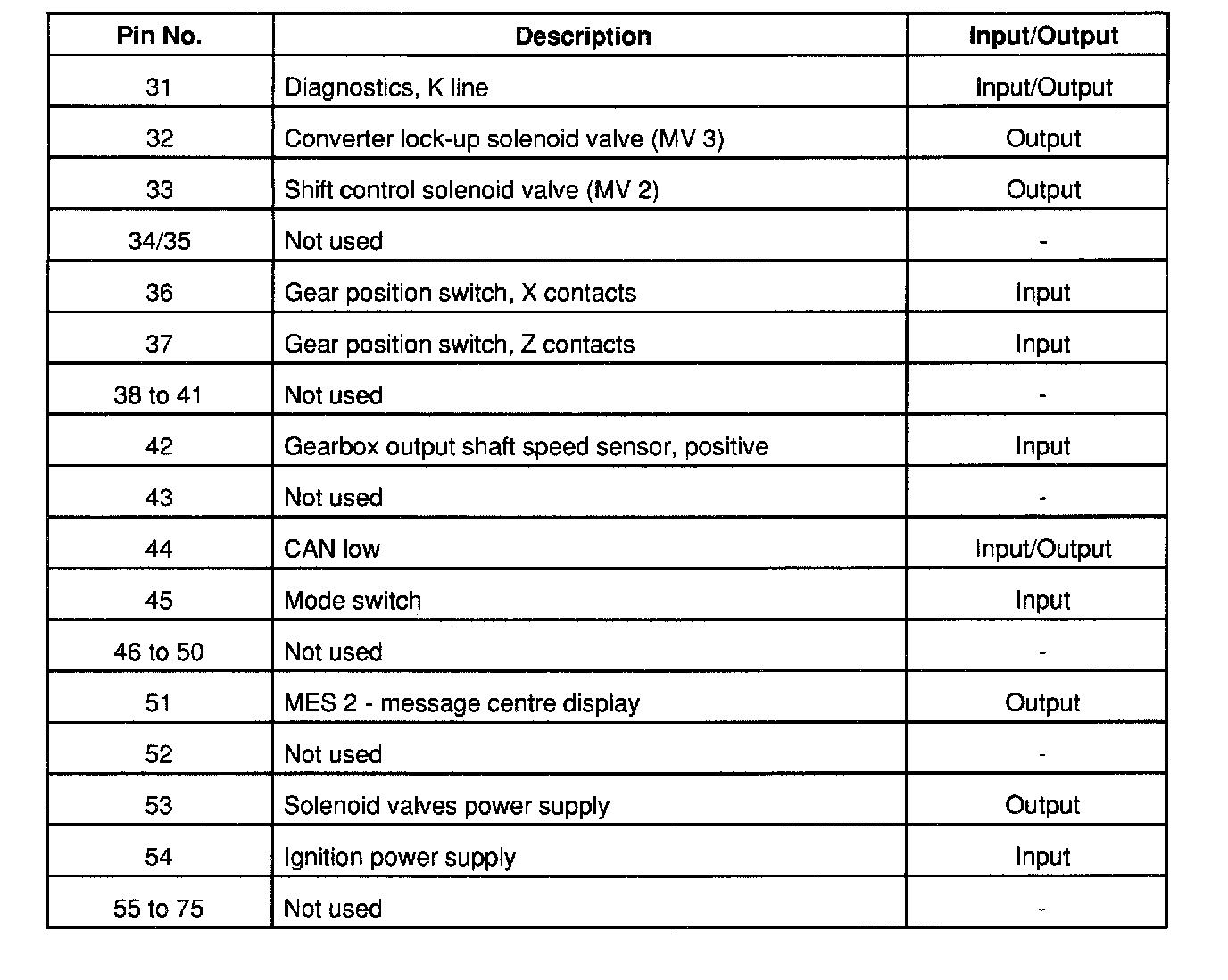

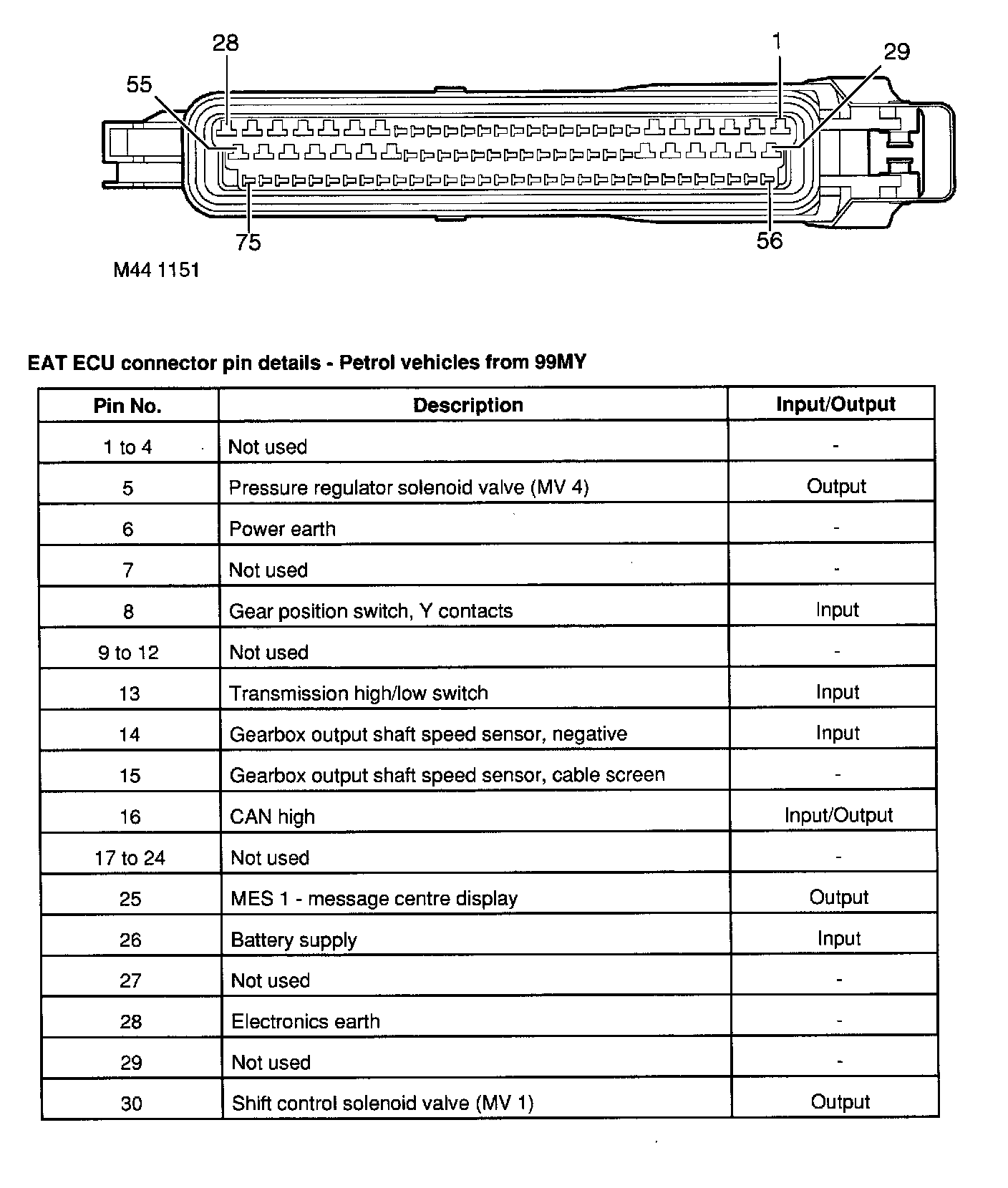

EAT ECU connector - Petrol vehicles from 99MY
