Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the floor console (A).

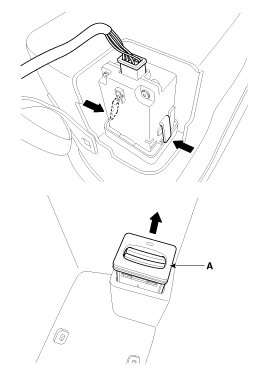

3. Disconnect the connector, then remove the fob holder assembly (A) after releasing the hook.






Installation

1. Install the fob holder assembly.
2. Install the floor console.
3. Install the negative(-) battery terminal.
