Fuse: Locations

I/P Junction Box View:

I/P Junction Box Circuit Details:

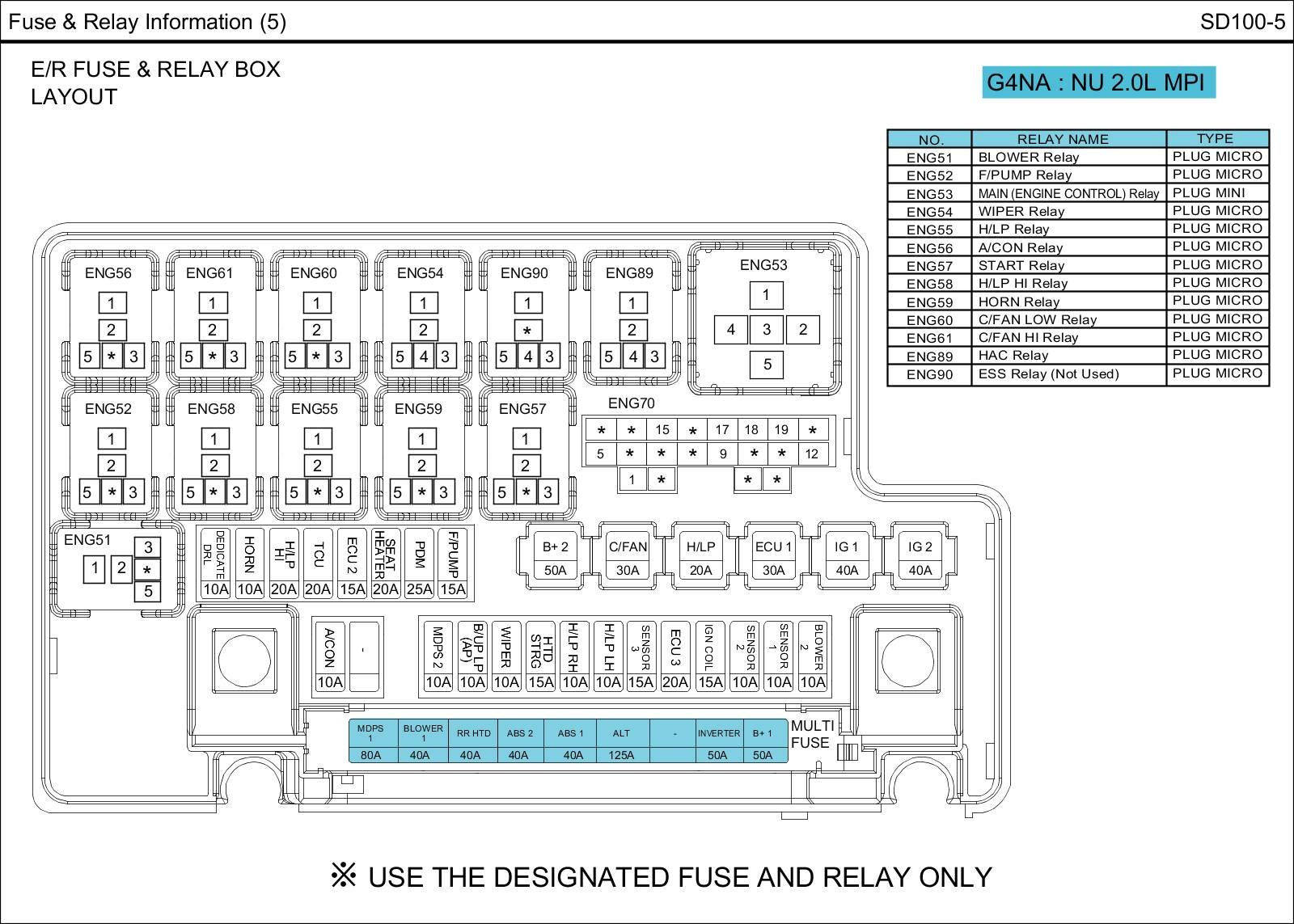

E/R Fuse & Relay Box View:

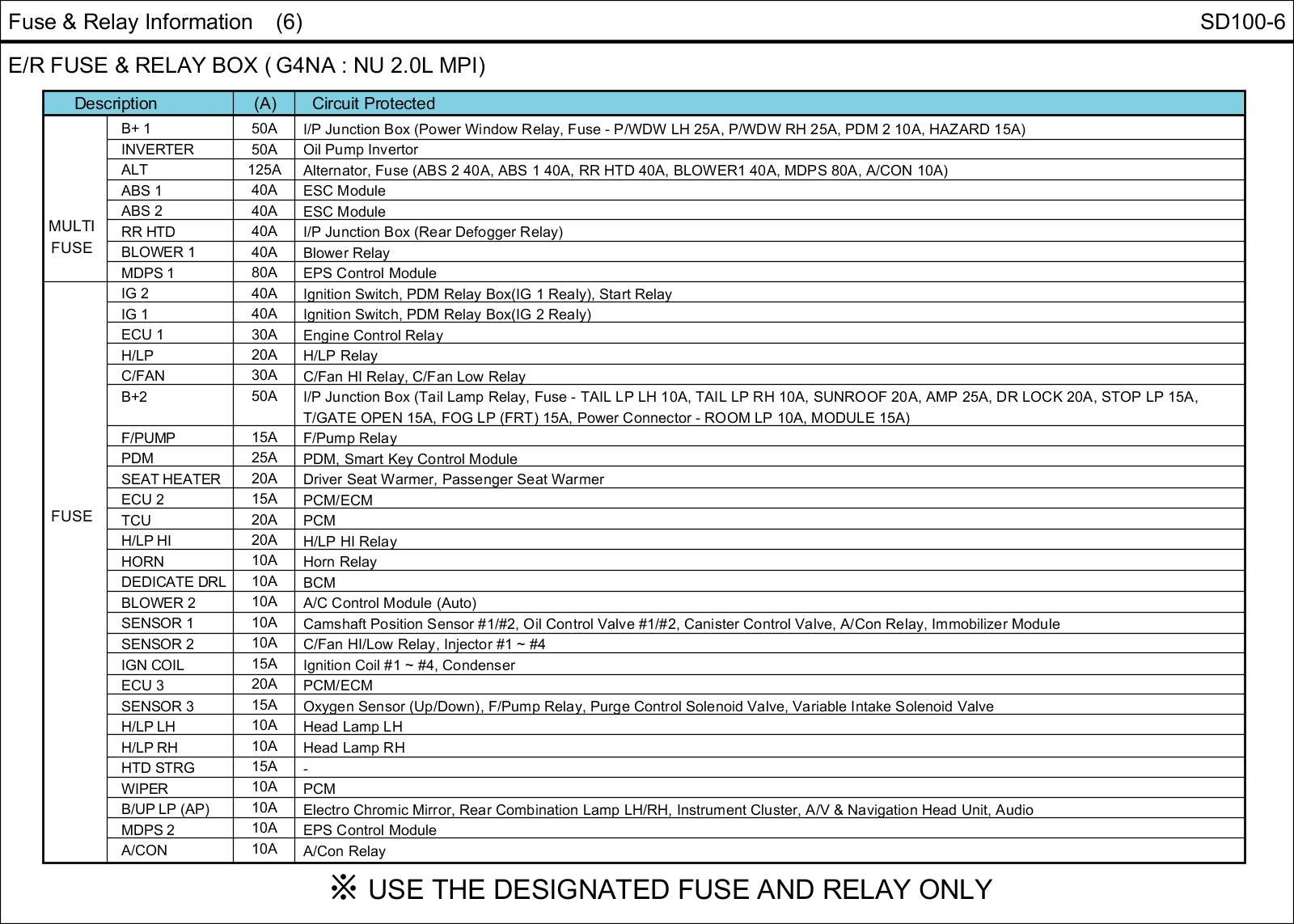

E/R Fuse & Relay Box Circuit Details:

PDM Relay Box View:
