Home >> Kia >> 2012 >> Sorento 2WD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

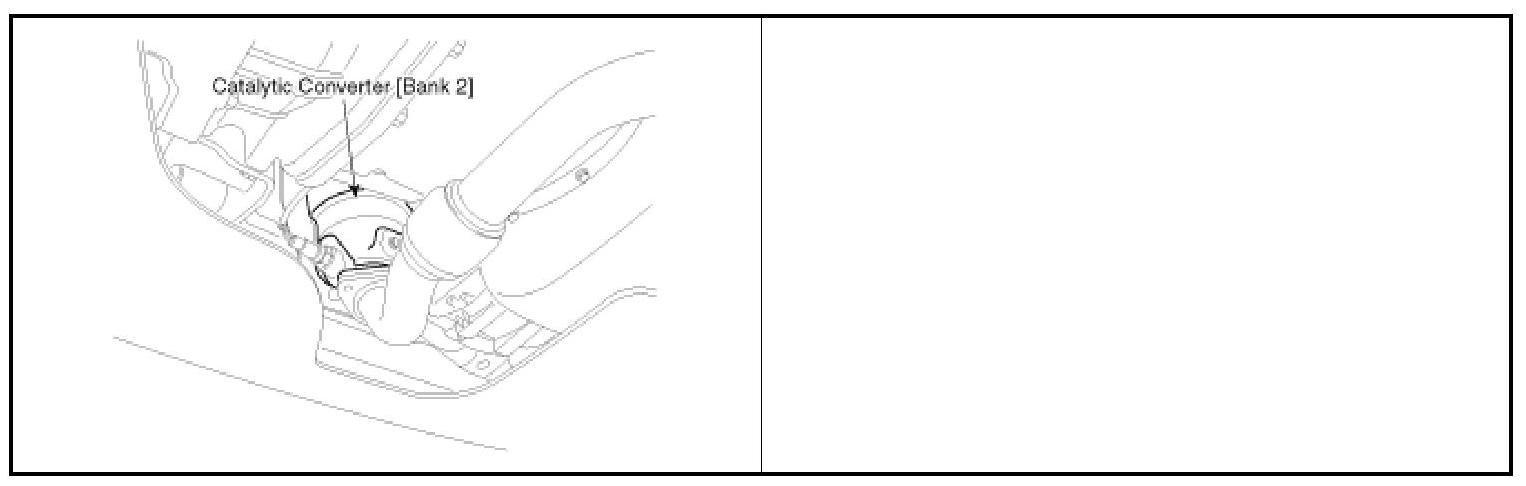

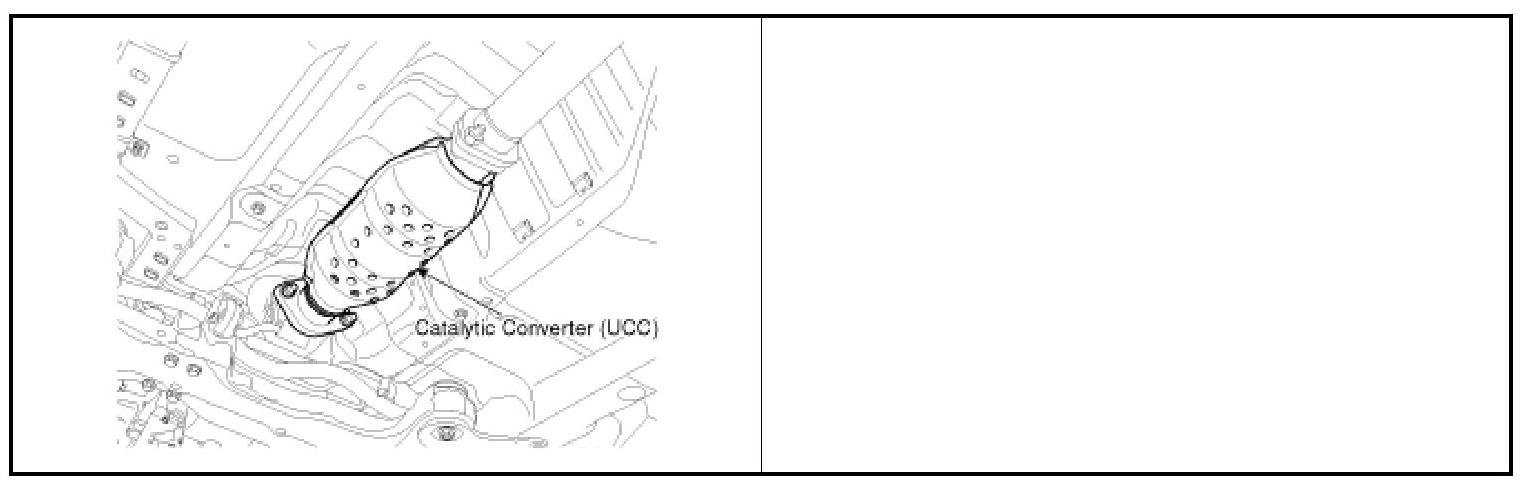

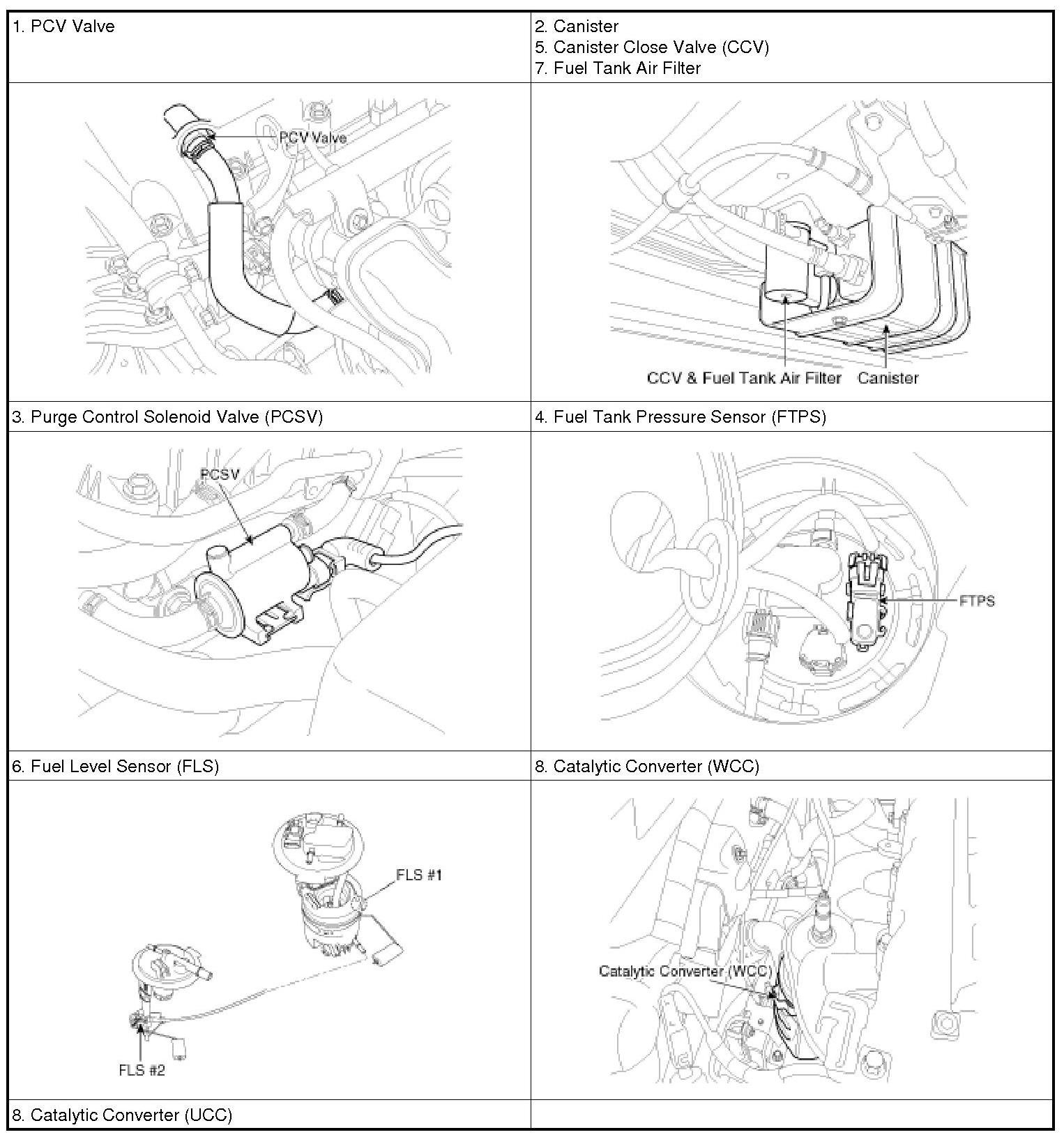

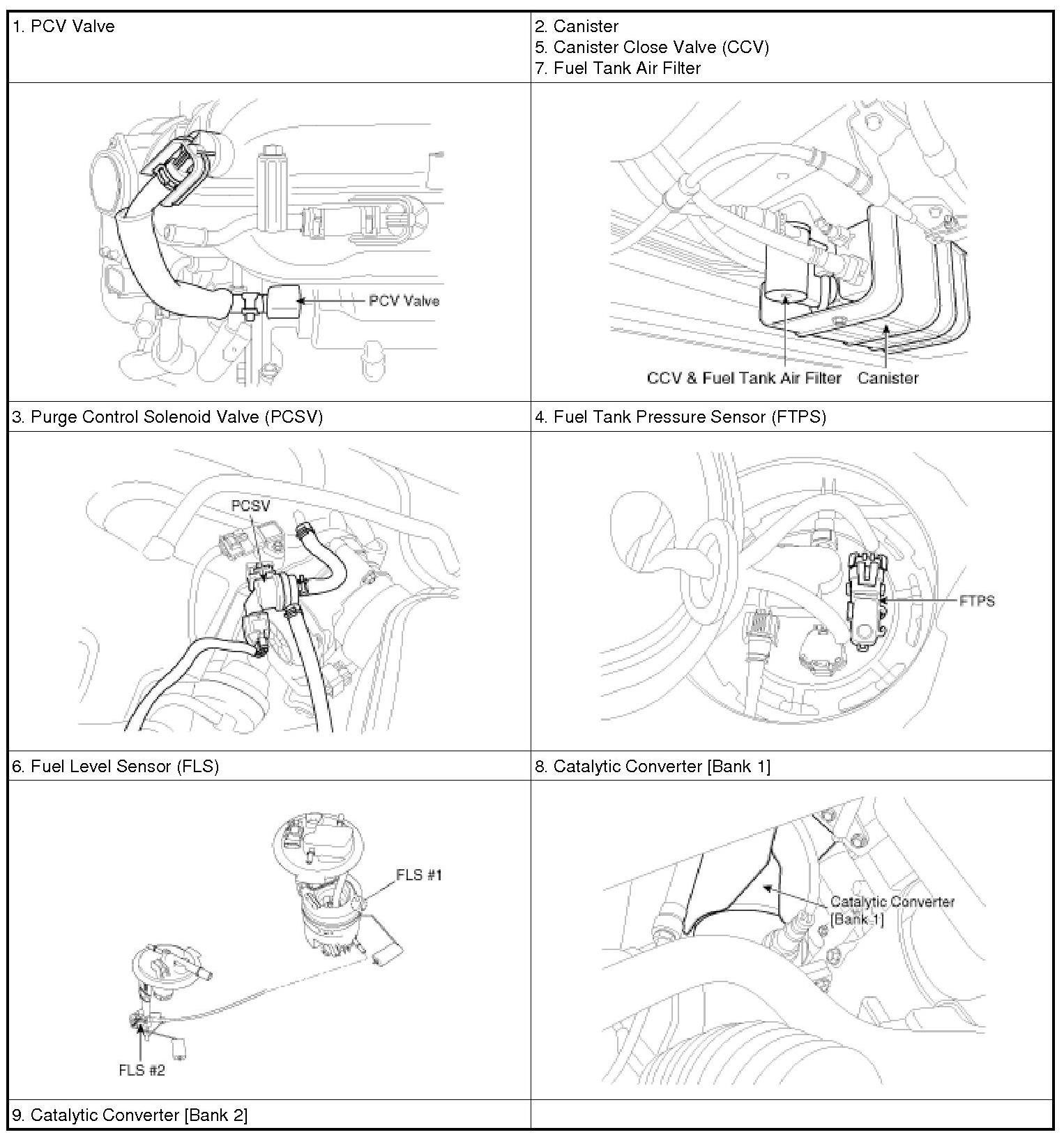

Components Location

[2.4 MPI]



















[2.4 GDI]



















[3.5 V6]
