Main Relay (Computer/Fuel System)
>>
Locations
>>
G6DC
G6DC
Fuse & Relay Information

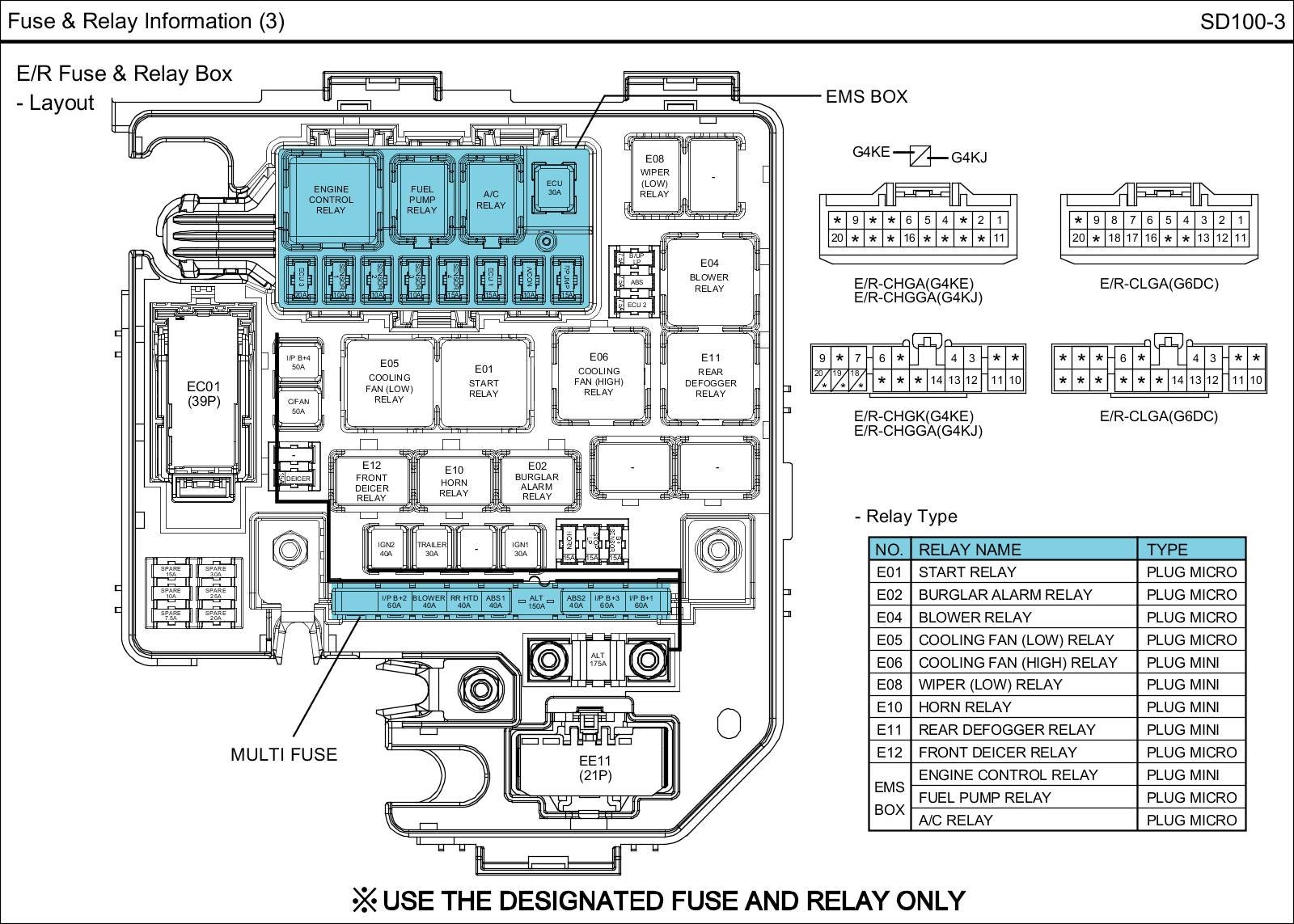

E/R Fuse & Relay Box View:

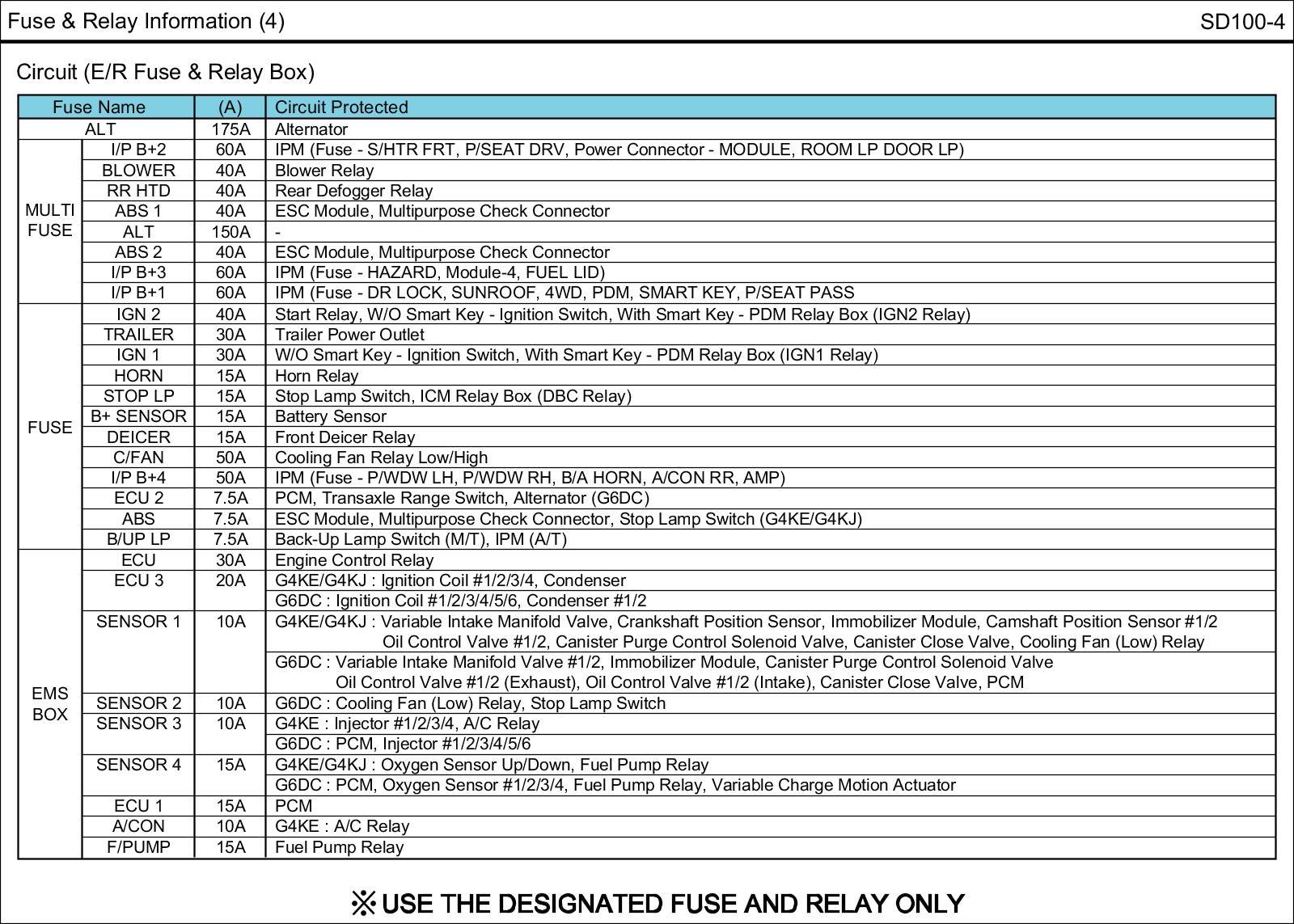

E/R Fuse & Relay Box Circuit Details:

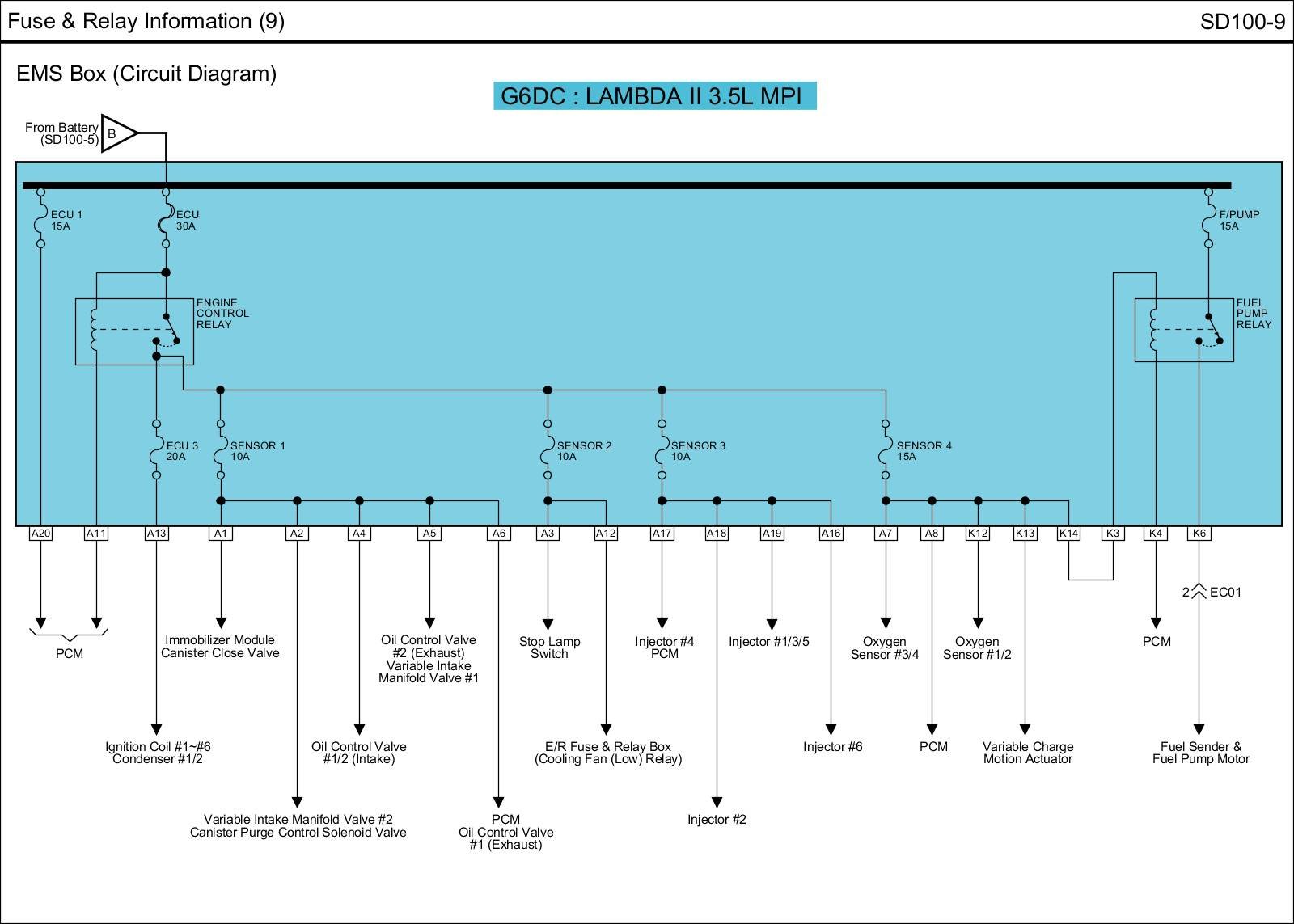

EMS Box (Circuit Diagram) View:
